Ruck Air Movement 18 inch EC 6569 CFM Axialine Tubeaxial Fan

Name: Ruck Air Movement 18 inch EC 6569 CFM Axialine Tubeaxial Fan
Brand: Ruck Air Movement
Price: 1828.0 USD
Availability: InStock

SKU: ru17158 | Model: 156262

$1,828.00

FREE shipping on orders over $45!

In Stock Usually ships in 3 business days.

Add extended protection plan. (Select one)

2-Year Warranty - $79.99

learn more

A 2-year major appliance warranty for products less than $2,500.

4-Year Warranty - $129.99

learn more

A 4-year major appliance warranty for products less than $2,500.

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

3-Year Limited Warranty

What's In The Box?

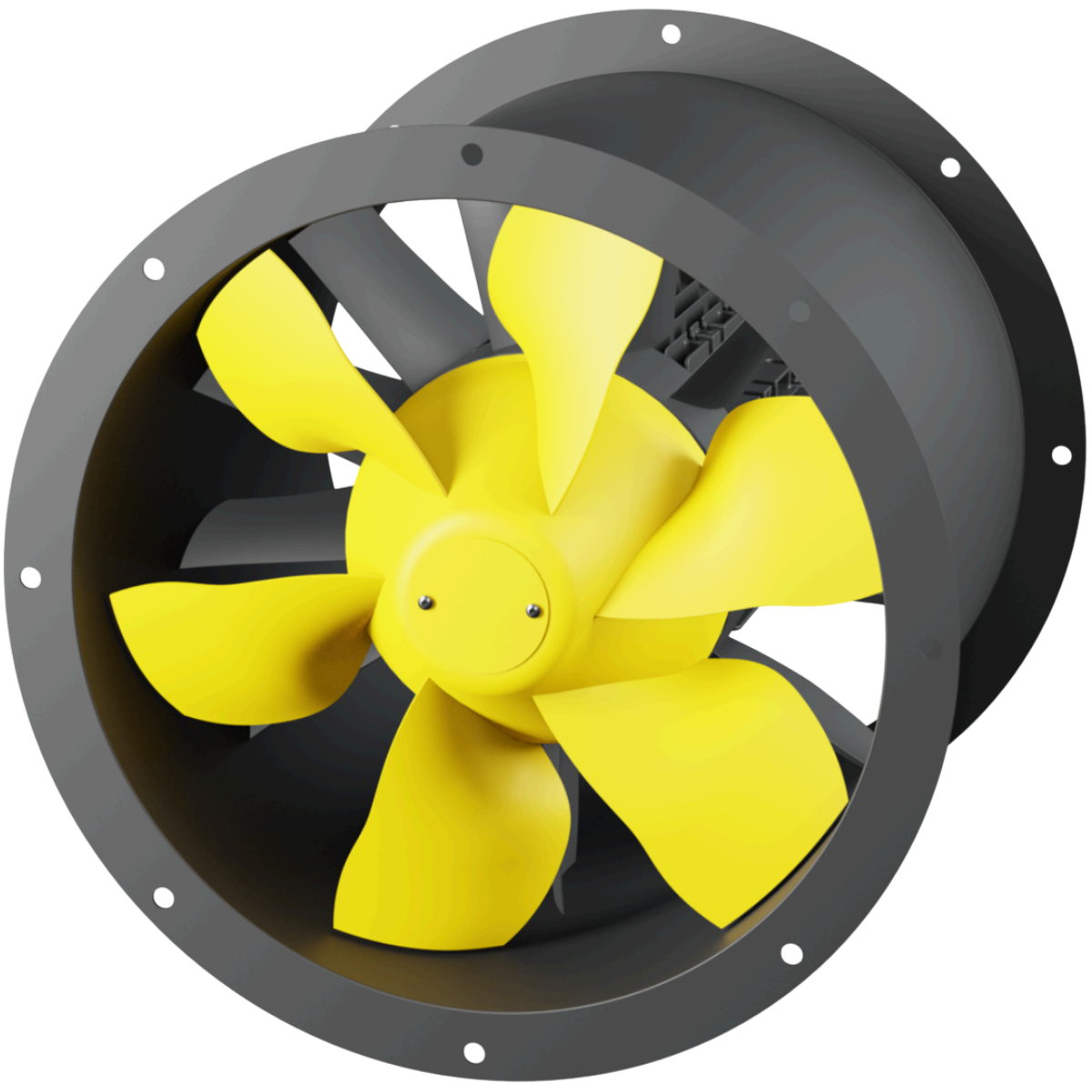

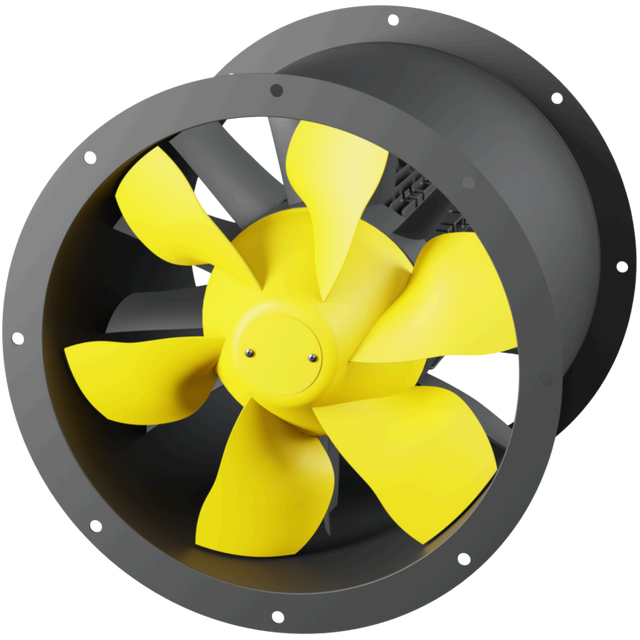

Ruck Air Movement 18-inch Axialine EC 6569 CFM Tubeaxial Fan (AL 450 EC 03)
Owner’s Manual

Info & Guides

Description

The Ruck Air Movement 18-inch Axialine EC 6,569 CFM Tubeaxial Fan is a high-efficiency, high-volume fan.
Designed for facility managers, HVAC contractors, and industrial operators who need reliable, durable ventilation, this compact powerhouse pairs a CFD-optimized impeller with an ultra-efficient IE5 EC motor to keep production floors, warehouses, and commercial spaces safe and comfortable.

Delivering up to 6,569 CFM while drawing just 1,255 watts, it offers energy-smart performance, full speed control, and a rugged steel housing that stands up to temperatures from ‑4 to 140 degrees F.

Key Features and Benefits of the Ruck 18-inch Axialine EC Tubeaxial Fan

High-Efficiency EC Motor: The brushless, IE5 electronically commutated motor cuts operating costs and delivers smooth, stepless speed control without external VFDs.

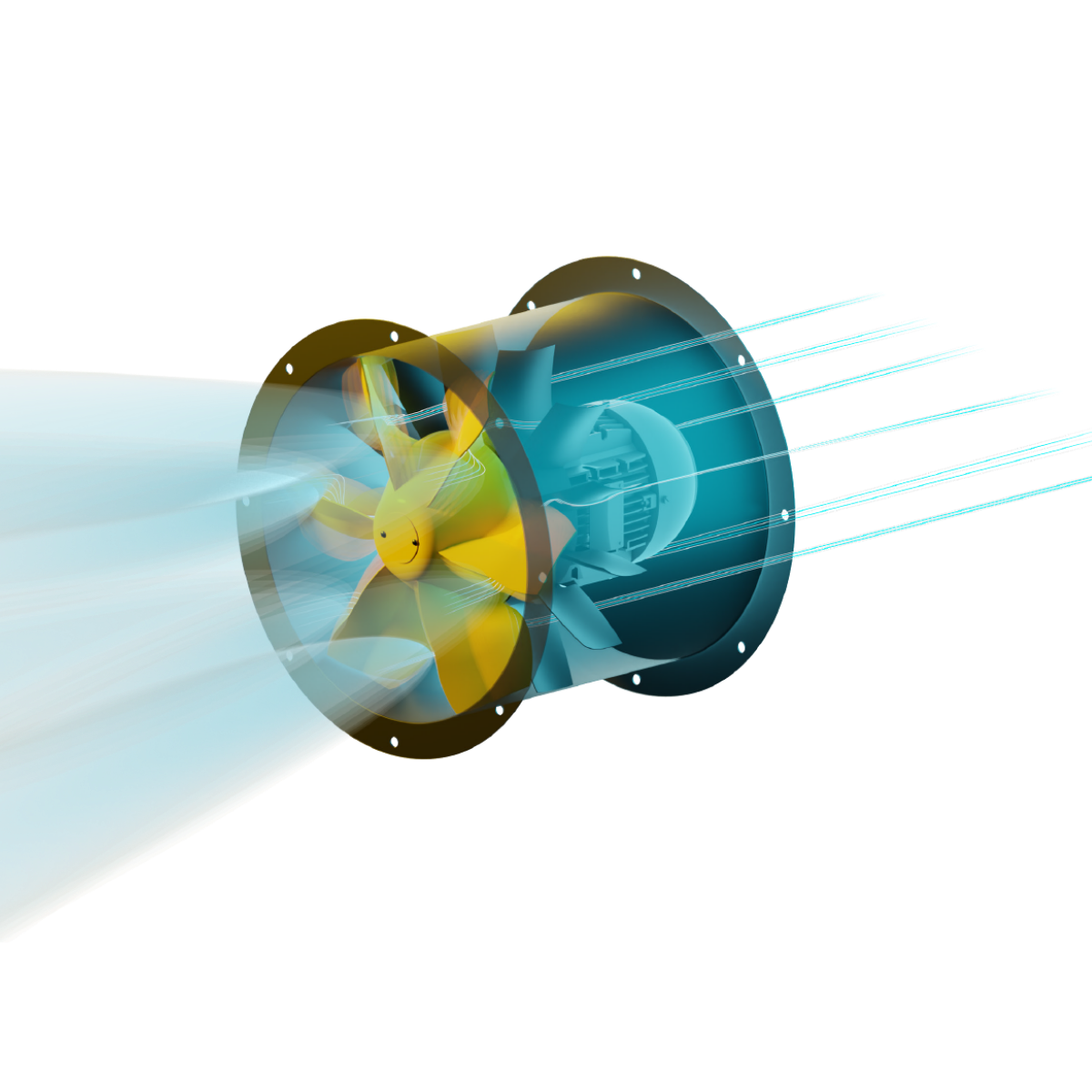

CFD-Optimized Impeller: The computer-modeled blade geometry boosts efficiency while reducing noise and vibration for quieter operation.

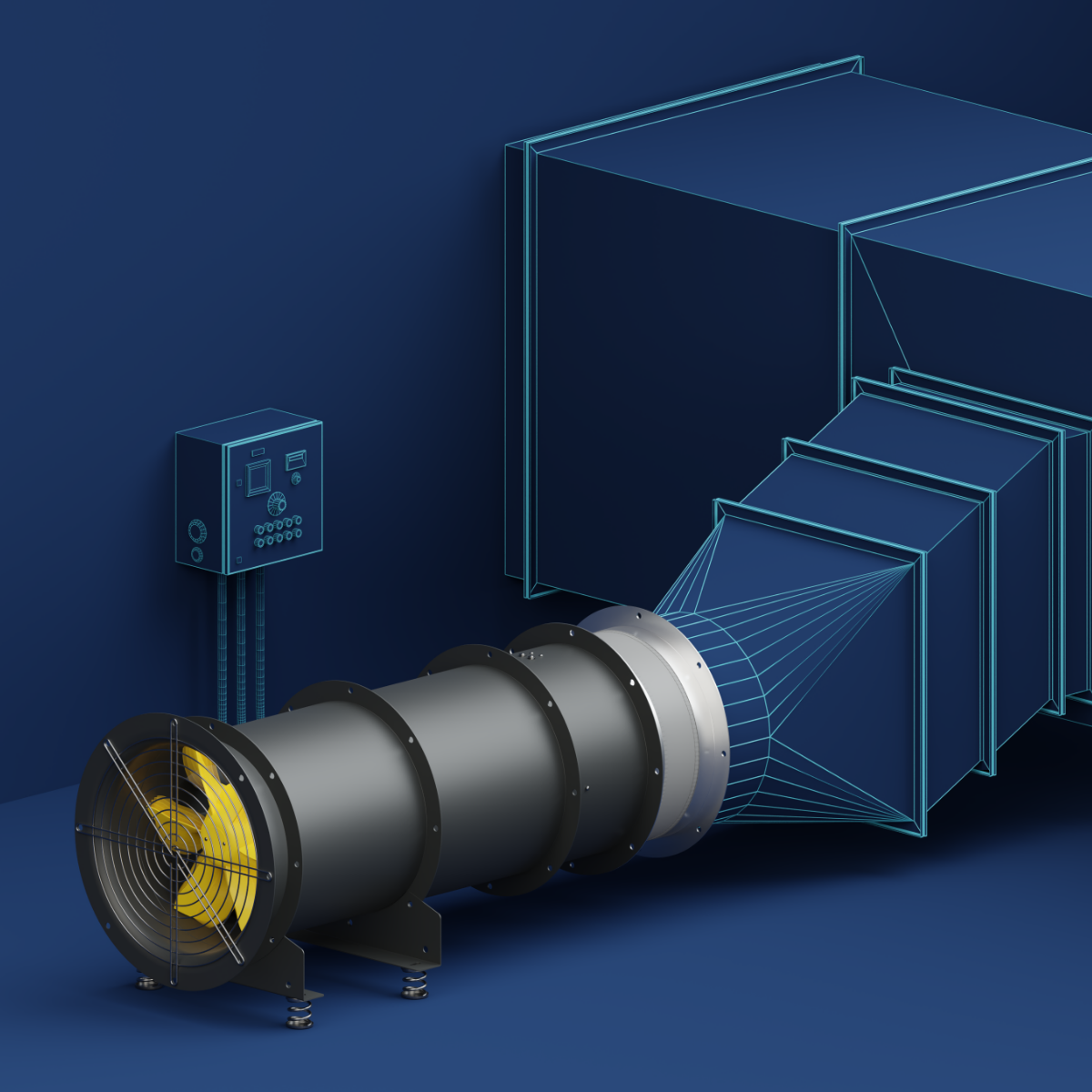

Robust Static Pressure: Handles long duct lengths and restrictive static pressure systems up to 360 Pa, making it ideal for supply, exhaust, or spot ventilation in demanding applications.
Durable Housing: The powder-coated, corrosion-resistant steel construction weighs 49.8 pounds, simplifying ceiling, wall, and inline duct installation.
Dust and Water Protection: Enhanced IPX4 Fan and IP66 Terminal Box protection shields electronics from dust and moisture for worry-free performance.

Engineered Airflow, Tailored to Your Space

Every facility has unique ventilation challenges, varying duct sizes, fluctuating heat loads, and strict energy targets. The Axialine EC addresses them all.

The EC motor responds instantly to 0 to 10 V or PWM control signals, letting you dial in the exact RPM your process demands. You can ramp up operations during peak production, slow down during off-hours, or integrate it with building automation.

Sylvane's Expert Take

If you need an industrial ventilation fan that efficiently delivers big airflow, the Ruck 18-inch Axialine EC Fan is an easy recommendation. The IE5 motor technology, controllable speed range, and rugged build quality make it a smart upgrade for new or retrofit projects alike. Install it once, fine-tune the airflow, and count on years of reliable service, exactly what busy facilities demand.

Specifications

Key Specifications

Number of Speeds

Variable
Type

Tubeaxial

General

Application

Ducting, Industrial
Certifications

CE
Color

Black, Yellow
Controls

Electronic
Maximum Air Temperature (degrees F)

140
Maximum Cubic Feet per Minute (CFM) (CFM)

6569.0

Power

Amperage (Amps)

9.5
Power Supply

Hardwired
Voltage (V)

208-230
Watts (W)

1255

Dimensions

Depth (in.)

20.9
Depth (with front cover) (in.)

20.9
Duct Diameter (in.)

17.7
Height (in.)

14.5
Height (with front cover) (in.)

14.5
Weight (lbs.)

50
Width (in.)

17.7
Width (with front cover) (in.)

17.7
