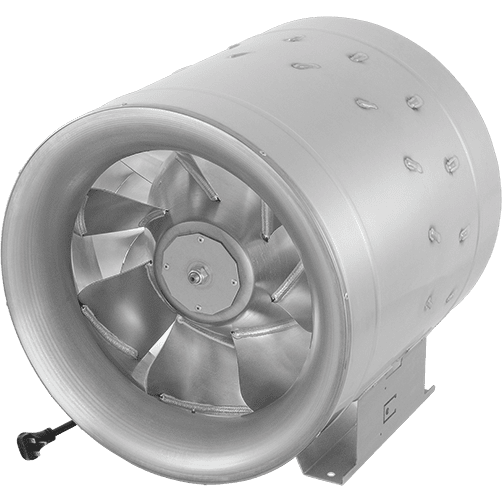

Ruck Air Movement 18-In. Prime 3634 CFM Mixed Flow Inline Duct Fan

Name: Ruck Air Movement 18-In. Prime 3634 CFM Mixed Flow Inline Duct Fan
Brand: Ruck Air Movement
Price: 1139.0 USD
Availability: InStock

SKU: ru14515 | Model: 147554

$1,139.00

FREE shipping on orders over $45!

In Stock Usually ships in 3 business days.

Add extended protection plan. (Select one)

2-Year Warranty - $74.99

learn more

A 2-year major appliance warranty for products less than $1,500.

4-Year Warranty - $119.99

learn more

A 4-year major appliance warranty for products less than $1,500.

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

3-Year Warranty

What's In The Box?

Ruck Air Movement 18-inch Prime Mixed Flow Inline Duct Fan
Mounting Bracket
Owner's Manual

Info & Guides

Owner's Manual

Description

This Ruck Air Movement 18-inch Prime Mixed Flow Inline Duct Fan is equipped with a single-phase AC motor with an integrated 3-speed switch.

Designed and manufactured in Germany, it has three-dimensionally shaped impeller blades for the highest aerodynamic efficiency and powerful airflow.

Powerfully Efficient

The motor of the Ruck inline duct fan is protected, enclosed in the hub of the robust aluminum housing. This efficient mixed flow inline duct fan delivers a maximum airflow of 3634 CFM while pulling only 3.8 Amps.

Features & Highlights

18-inch Inline Duct Fan
3D Shaped Impeller Blades
Robust Aluminum Housing
Motor Rating IP54 against contamination from dust/particles & moisture
Integrated 3-speed Switch
4-Pole
Minimum Operating Temperature of -13° Fahrenheit (-25° C)
Maximum Operating Temperature of 176° Fahrenheit (80° C)
Included Mounting Bracket
Motor is located in the protected Hub

Summary

The Ruck Air Movement Prime Mixed Flow Inline Duct Fan is available in this 18-inch size. Equipped with a single-phase AC motor, integrated 3-speed switch, and 3D impeller blades. Also available in 6-in, 8-in, 10-in, 12-in, 14-in, 16-in, and 20-in sizes.

Specifications

Key Specifications

Number of Speeds

Variable
Sound Level (Sones) (sones)

59.0
Type

Mixed Flow Inline Duct Fan

General

Application

Ducting
Certifications

UL, CSA
Color

Gray
Controls

Manual
Maximum Air Temperature (degrees F)

176
Maximum Cubic Feet per Minute (CFM) (CFM)

3634.0

Power

Amperage (Amps)

3.8
Power Supply

Hardwired
Voltage (V)

220-240
Watts (W)

748

Dimensions

Depth (in.)

19.45
Depth (with front cover) (in.)

19.45
Duct Diameter (in.)

18.0
Height (in.)

18.78
Height (with front cover) (in.)

18.78
Weight (lbs.)

38.39
Width (in.)

18.15
Width (with front cover) (in.)

18.15
