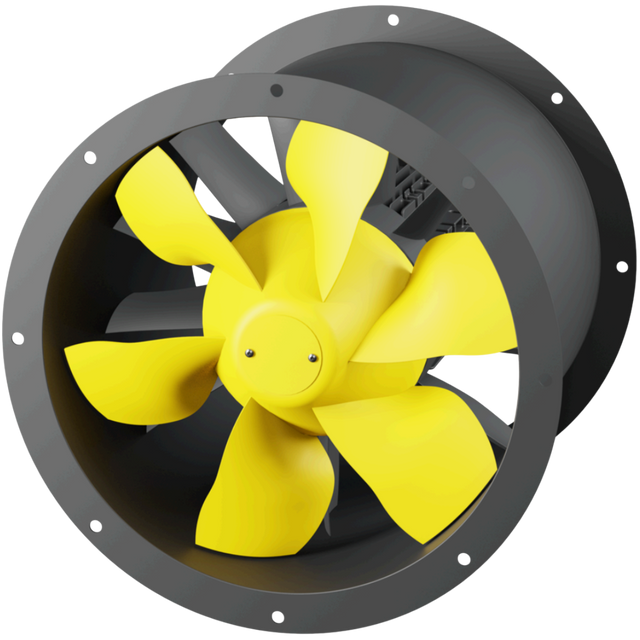

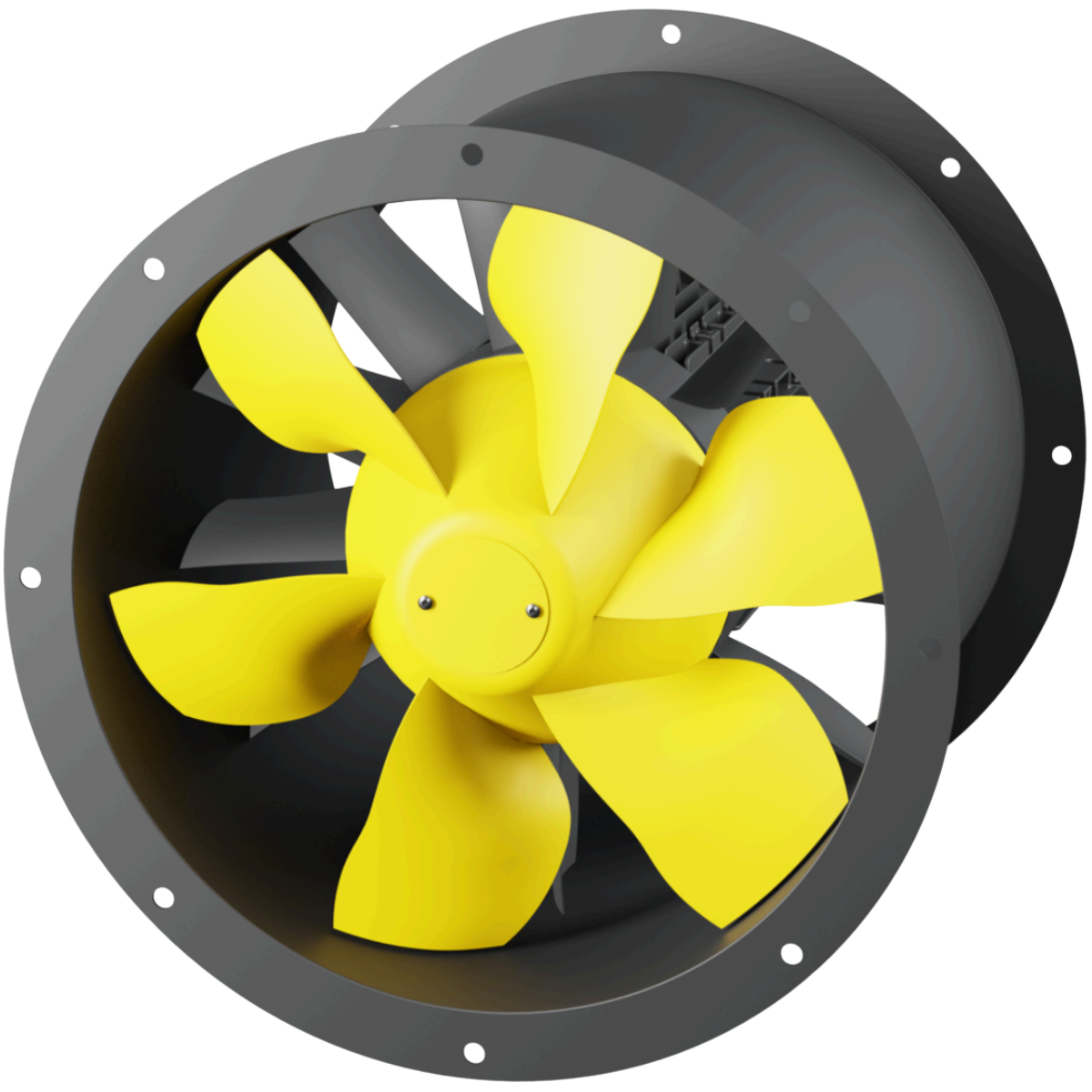

Ruck Air Movement 22 inch Axialine Tubeaxial Fan

Name: Ruck Air Movement 22 inch Axialine Tubeaxial Fan
Brand: Ruck Air Movement
Price: 1654.0 USD
Availability: InStock

SKU: ru17152 | Model: 154160

$1,654.00

FREE shipping on orders over $45!

In Stock Usually ships in 3 business days.

Option

Product variants

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

3-Year Limited Warranty

What's In The Box?

Ruck Air Movement 22-inch Axialine Tubeaxial Fan (AL 560 D4 01 or AL 560 D4 02)
Owner’s Manual

Info & Guides

Description

High-output airflow for demanding ventilation projects is guaranteed with Ruck Air Movement’s 22-inch Axialine Tubeaxial Fans.

Designed for facility managers, HVAC contractors, and plant engineers, this rugged axial fan delivers up to 9,759 CFM of directional air movement, making it ideal for warehouses, production floors, large mechanical rooms, and spot-cooling applications.

Two different models let you right-size the airflow in various static pressure conditions, while its powder-coated steel exterior stands up to daily industrial use.

Key Features and Benefits of the Ruck 22-Inch Axialine Tubeaxial Fan

Two Optimized Airflow Options: Choose from the 9,052 CFM (AL 560 D4 01) or 9,759 CFM (AL 560 D4 02) model to match your project’s volume flow and static pressure needs without wasting energy.
IE3-Efficiency AC Motor: A high-efficiency 400 V, three-phase motor lowers operating costs and supports VFD control for precise speed regulation.
CFD-Engineered Impeller: Computer-optimized blades maximize thrust while minimizing turbulence, boosting total system efficiency by up to 15 percent over conventional designs.
Durable Steel Construction: The powder-coated housing and impeller resist corrosion, impacts, and extreme temperatures from ‑4 to 140 degrees F.
Ready for Harsh Environments: It has IPX4 overall protection and an IP55-rated terminal box to safeguard internal components against moisture, dust, and wash-down.

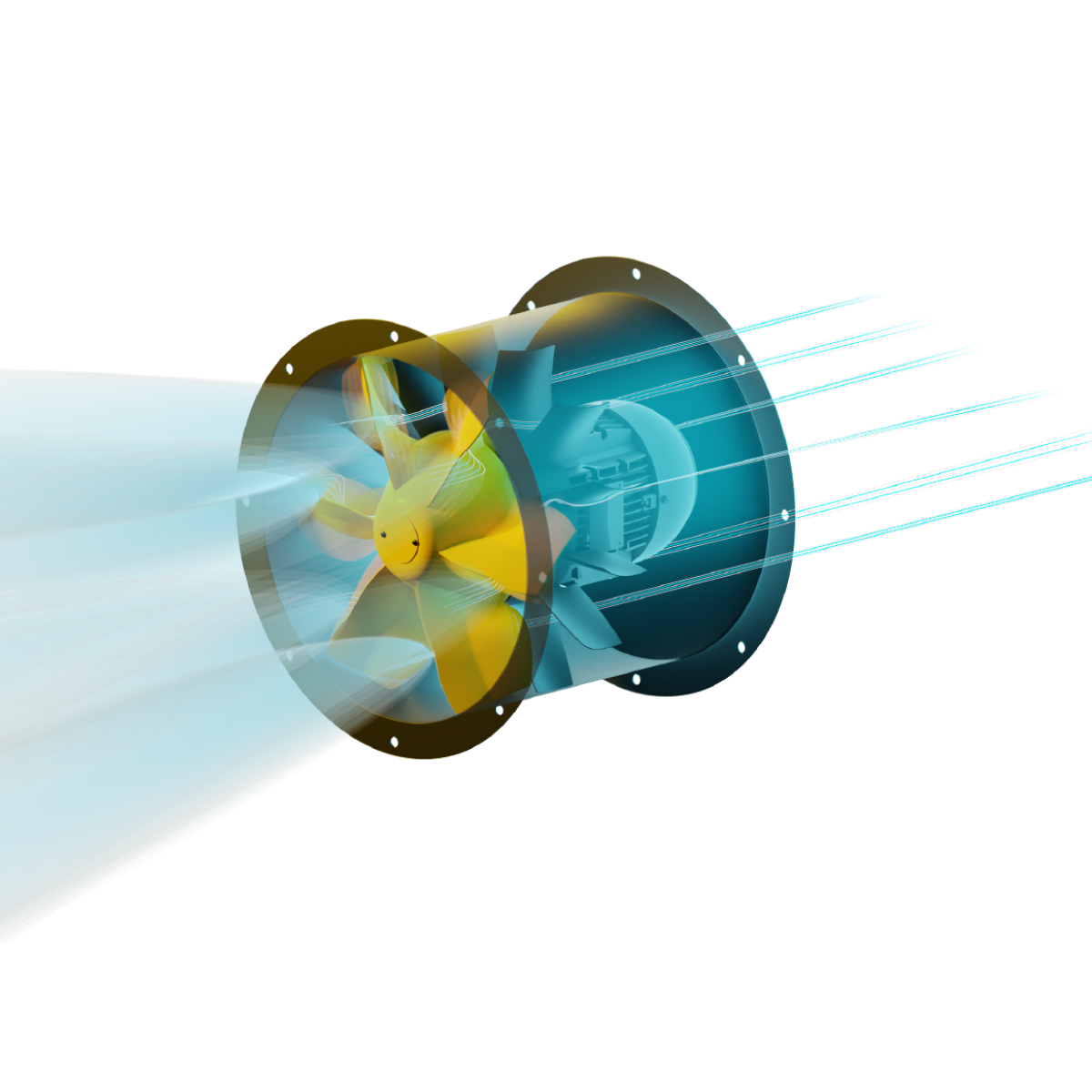

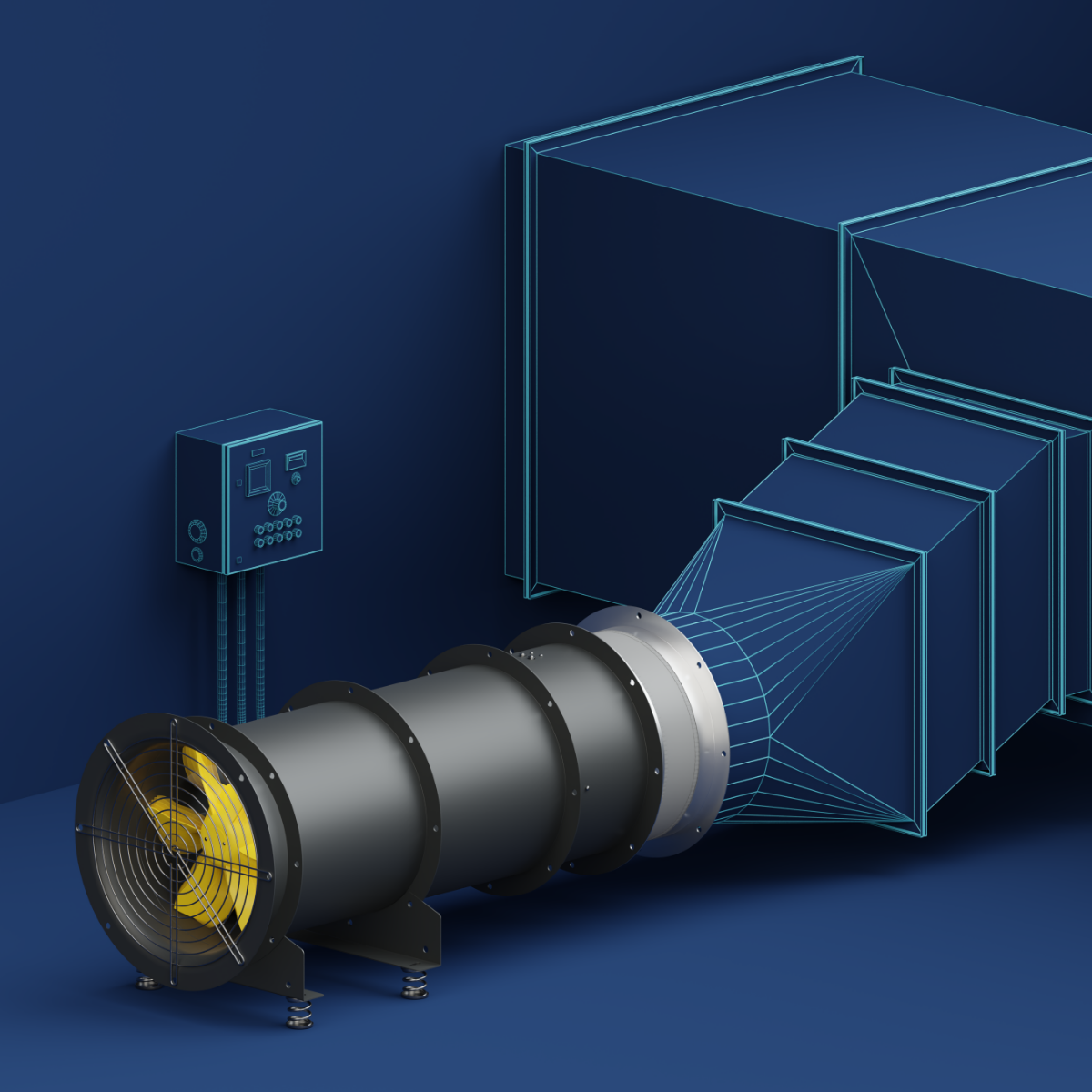

Straight-Through Air Path: The tubeaxial design keeps airflow linear, reducing pressure loss and noise, making it ideal for long duct runs.

Built for Reliability

Every detail of the Axialine series is tailored for real-world uptime. Because many industrial processes run 24/7, the fan is rated for continuous operation at elevated temperatures, ensuring critical spaces stay ventilated even during heat spikes or production surges.

Sylvane's Expert Take

Ruck’s 22-inch Axialine Tubeaxial Fans hit the sweet spot between high airflow and energy-wise performance. Its two CFM options, VFD-ready IE3 motor, and rugged steel build give professionals the control and durability they demand in commercial or industrial settings. If you need a dependable tubeaxial fan that installs easily, handles tough temperatures, and keeps utility costs in check, the Axialine series is a smart, future-proof choice.

Specifications

Key Specifications

Number of Speeds

Variable
Type

Tubeaxial

General

Application

Ducting, Industrial
Certifications

CE
Color

Black, Yellow
Controls

Manual
Maximum Air Temperature (degrees F)

140
Maximum Cubic Feet per Minute (CFM) (CFM)

9,759 CFM: 9759.0

9,052 CFM: 9052.0

Power

Amperage (Amps)

9,759 CFM: 4.31

9,052 CFM: 3.35
Power Supply

Hardwired
Watts (W)

9,759 CFM: 3162

9,052 CFM: 2577

Dimensions

Depth (in.)

17.4
Depth (with front cover) (in.)

17.4
Duct Diameter (in.)

22.0
Height (in.)

25.6
Height (with front cover) (in.)

25.6
Weight (lbs.)

9,759 CFM: 108.7

9,052 CFM: 92.8
Width (in.)

22.0
Width (with front cover) (in.)

22.0

Warranty

Manufacturer's Warranty

3-Year Limited Warranty
