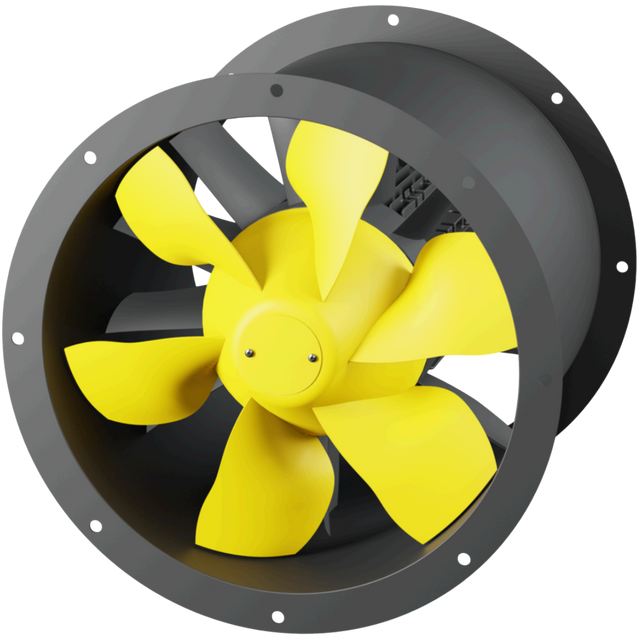

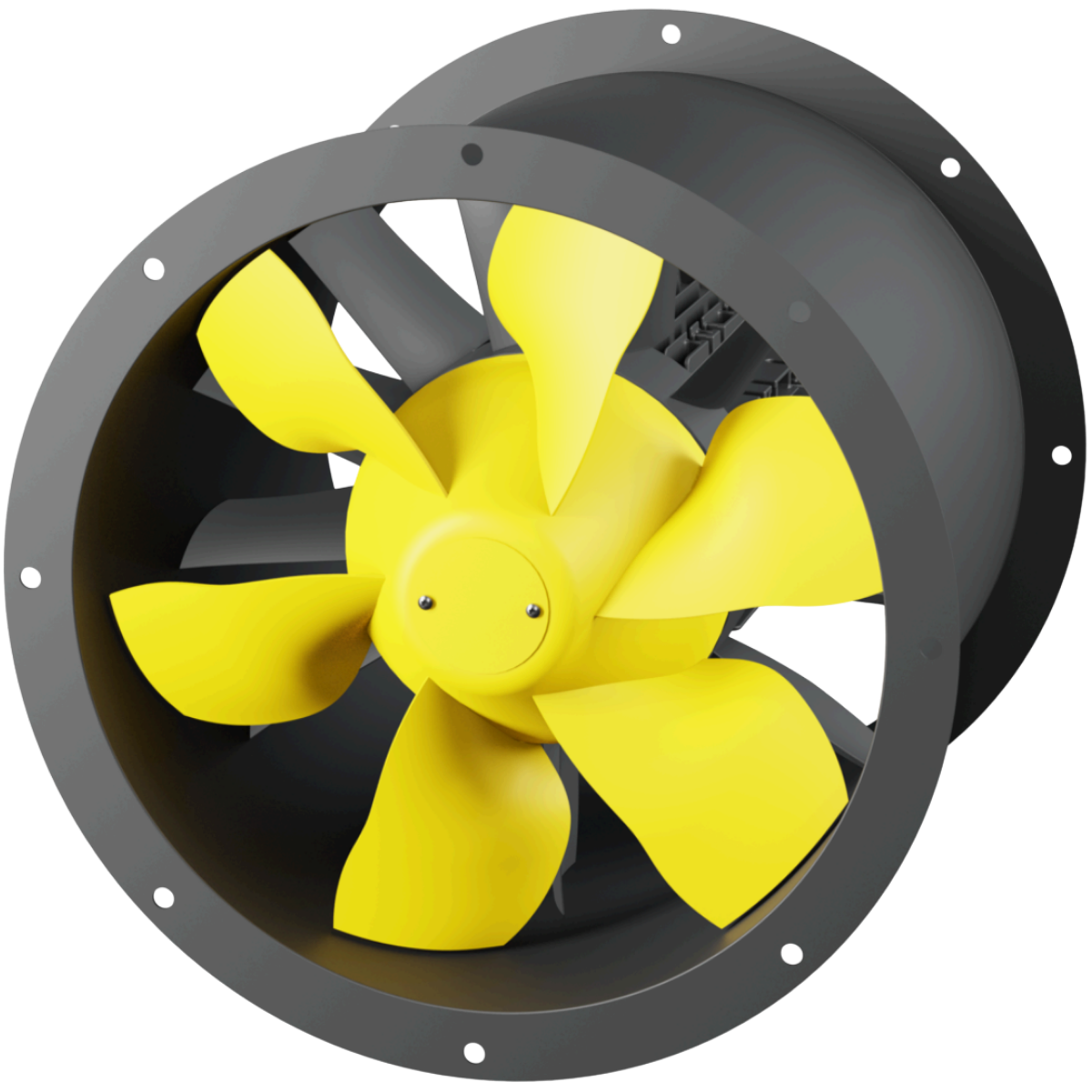

Ruck Air Movement 24 inch Axialine Tubeaxial Fan

Name: Ruck Air Movement 24 inch Axialine Tubeaxial Fan
Brand: Ruck Air Movement
Price: 2042.0 USD
Availability: InStock

SKU: ru17153 | Model: 154152

$2,042.00

FREE shipping on orders over $45!

In Stock Usually ships in 3 business days.

Option

Product variants

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

3-Year Limited Warranty

What's In The Box?

Ruck Air Movement 24-inch Axialine Tubeaxial Fan (AL 630 D4 01 or AL 630 D6 01)
Owner’s Manual

Info & Guides

Description

Move large volumes of air quickly and efficiently with Ruck Air Movement’s Axialine 24-inch Tubeaxial Fans, engineered for high-demand ventilation, cooling, and air-exchange applications in industrial and commercial facilities.

Whether you’re exhausting heat from a production floor, ventilating a parking garage, or supplying fresh air to a warehouse, these heavy-duty axial fans deliver the reliable airflow you need, up to 14,491 CFM, while meeting strict energy-efficiency standards.

Key Features and Benefits of the Ruck Axialine 24-Inch Tubeaxial Fan

Two Models: Choose between the 14,491 CFM 4-pole (model AL 630 D4 01) and the 9,517 CFM 6-pole (model AL 630 D6 01) based on your airflow needs.
Energy-Efficient IE3 Motor: The premium-efficiency, three-phase motor reduces power consumption and operating costs.
Blade Angles: Factory-set blade geometry is CFD-optimized for maximum pressure stability, giving you consistent performance even against higher static pressures.
Frequency-Controllable: Pair these fans with a VFD to fine-tune airflow, balance zones, or ramp down during off-peak hours, making them ideal for energy-conscious facilities.
Wide Temperature Tolerance: Continuous operation from ‑4 to 140 degrees F keeps ventilation online in unheated storage space and hot process areas.
Powder-Coated Steel Housing: Corrosion-resistant finish stands up to moisture, cleaning chemicals, and daily wear for dependable, low-maintenance service.
IP-Rated Protection: The IPX4 fan body and IP55 terminal box guard internal components from dust and water spray, helping maintain uptime in tough environments.

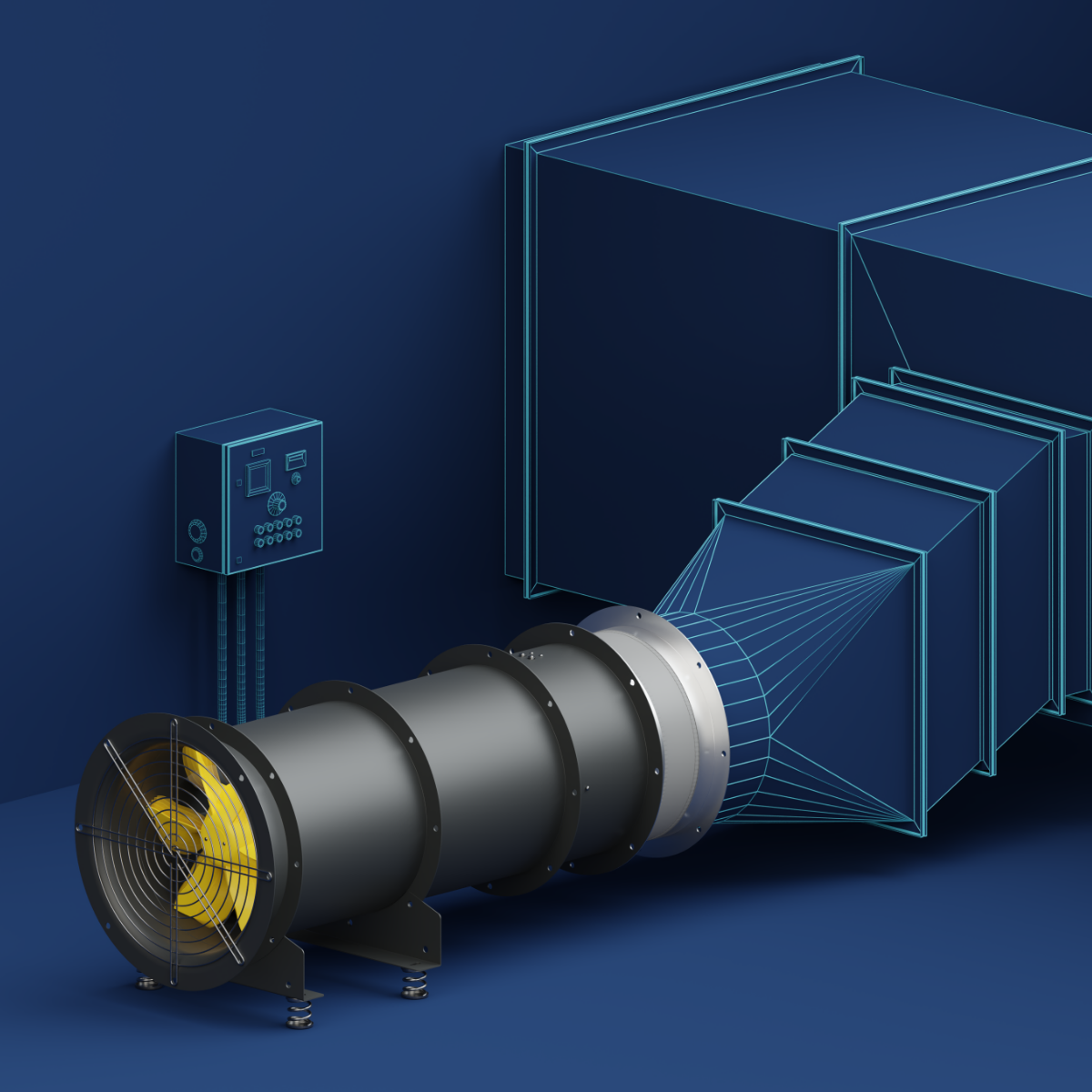

Fits DN630 Ductwork: Weighing 143 pounds, the 24-inch fans fits standard DN630 ductwork and simplifies mounting inline.

Built for Demanding Environments

The Axialine series isn’t a one-size-fits-all fan; it’s engineered to adapt to real-world challenges.

Choose the high 14,491 CFM AL 630 D4 01 model or the 9,517 CFM AL 630 D6 01 model to exhaust fumes, smoke and stale air depending on your requirements. Both units accept VFD control so you can dial in the precise air flow.

Sylvane's Expert Take

Ruck’s Axialine 24-inch Tubeaxial Fans offer a smart blend of high airflow, energy efficiency, and rugged construction, making them a dependable choice for industrial ventilation upgrades.

The IE3 motor and frequency-ready design provide long-term savings without sacrificing performance, while the powder-coated steel build and wide temperature range ensure longevity in harsh conditions. If you need a 24-inch axial fan that’s as tough as your facility and as efficient as your bottom line demands, either Ruck Air Movement model is a solid investment.

Specifications

Key Specifications

Number of Speeds

Variable
Type

Tubeaxial

General

Application

Ducting, Industrial
Certifications

CE
Color

Black, Yellow
Controls

Manual
Maximum Air Temperature (degrees F)

140
Maximum Cubic Feet per Minute (CFM) (CFM)

14,491 CFM: 14491.0

9,517 CFM: 9517.0

Power

Amperage (Amps)

14,491 CFM: 9.1

9,517 CFM: 2.95
Power Supply

Hardwired
Watts (W)

14,491 CFM: 5680

9,517 CFM: 1245

Dimensions

Depth (in.)

17.4
Depth (with front cover) (in.)

17.4
Duct Diameter (in.)

24.8
Height (in.)

28.3
Height (with front cover) (in.)

28.3
Weight (lbs.)

14,491 CFM: 143.7

9,517 CFM: 114.6
Width (in.)

24.8
Width (with front cover) (in.)

24.8

Warranty

Manufacturer's Warranty

3-Year Limited Warranty
