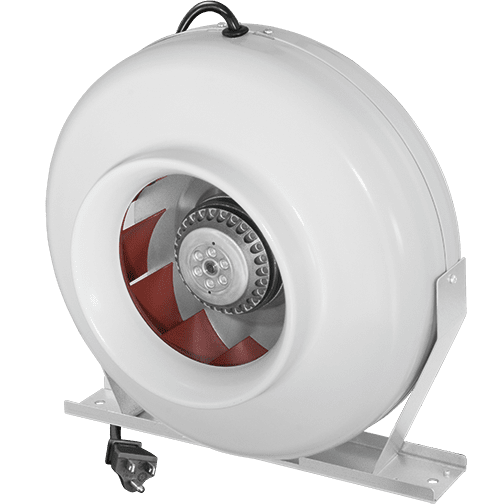

Ruck Air Movement 6-In. Classic Series Inline Centrifugal Duct Fan
Ruck Air Movement 6-In. Classic Series Inline Centrifugal Duct Fan - Classic HO is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- Ruck Air Movement 6-in Classic Series Inline Centrifugal Duct Fan
- Owner’s Manual
Info & Guides
Info & Guides
Ruck Air Movement 6-In. Classic Series Inline Centrifugal Duct Fan
Description
Description
The Ruck Air Movement 6-inch Classic Series Inline Centrifugal Duct Fan is designed with a one-phase AC motor and backward curved impeller blades that maintain high efficiency in small spaces. It's not difficult to install this ventilation fan thanks to incorporated mounting brackets in high-quality powder-coated metal casing. Available in two models: the Classic fan with 263 CFM or the Classic HO fan with 381 CFM.
Ideal for Small Spaces
The fans from the Ruck Air Movement Classic Series are highly efficient, especially in smaller areas, thanks to backward curved impeller blades. The 6-inch size model comes in two options:
- 6-inch Classic: 263 CFM, 0.7 Amps, IPX4 Rating
- 6-inch Classic HO: 381 CFM, 1.2 Amps
Features & Highlights
- 6-inch Duct Fan
- 5.5-ft Power Cord
- Backward Curved Impeller Blades
- Incorporated Mounting Brackets
- Speed Controllable
- Minimum Operating Temperature of -13 degrees Fahrenheit (-25° C)
- Maximum Operating Temperature of 176 degrees Fahrenheit (80° C)
- Made in Germany
Summary
The Ruck Air Movement Centrifugal Duct Fan is also available in 4-inch, 8-inch, and 10-inch duct sizes, also equipped with an EC motor.
Specifications
Specifications
-
Number of SpeedsVariable
-
Sound Level (Sones) (sones)35.021.0
-
TypeClassic Inline Duct Booster Fan
-
ApplicationDucting
-
CertificationsUL, CSA
-
ColorWhite
-
ControlsManual
-
Maximum Air Temperature (degrees F)176
-
Maximum Cubic Feet per Minute (CFM) (CFM)381.0263.0
-
Amperage (Amps)1.20.7
-
Power SupplyHardwired
-
Voltage (V)110-120
-
Watts (W)12679
-
Depth (in.)15.7512.6
-
Depth (with front cover) (in.)15.7512.6
-
Duct Diameter (in.)6.0
-
Height (in.)9.848.27
-
Height (with front cover) (in.)9.848.27
-
Weight (lbs.)9.757.03
-
Width (in.)13.7810.63
-
Width (with front cover) (in.)13.7810.63
-
Additional FeaturesApplicable for Indoor Growing
-
Manufacturer's Warranty3-Year Limited
