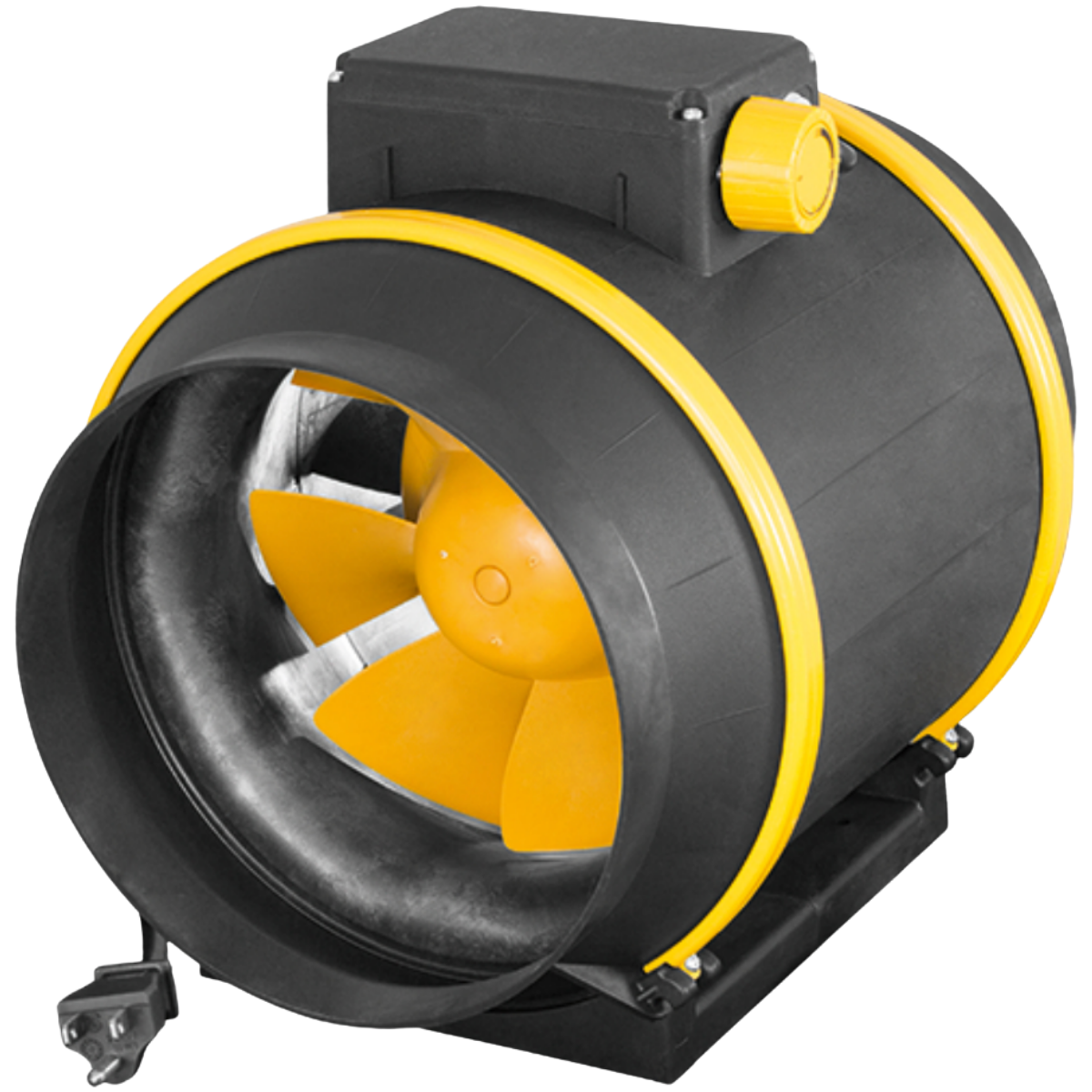

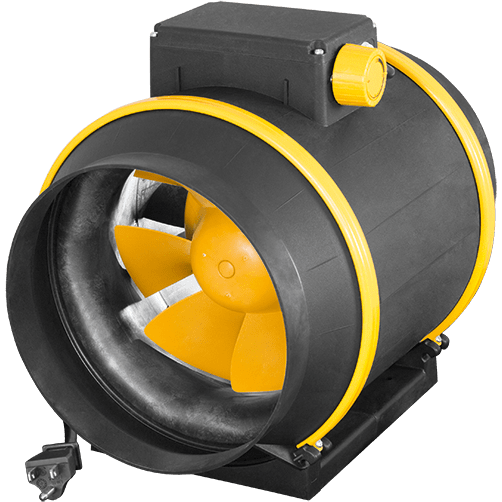

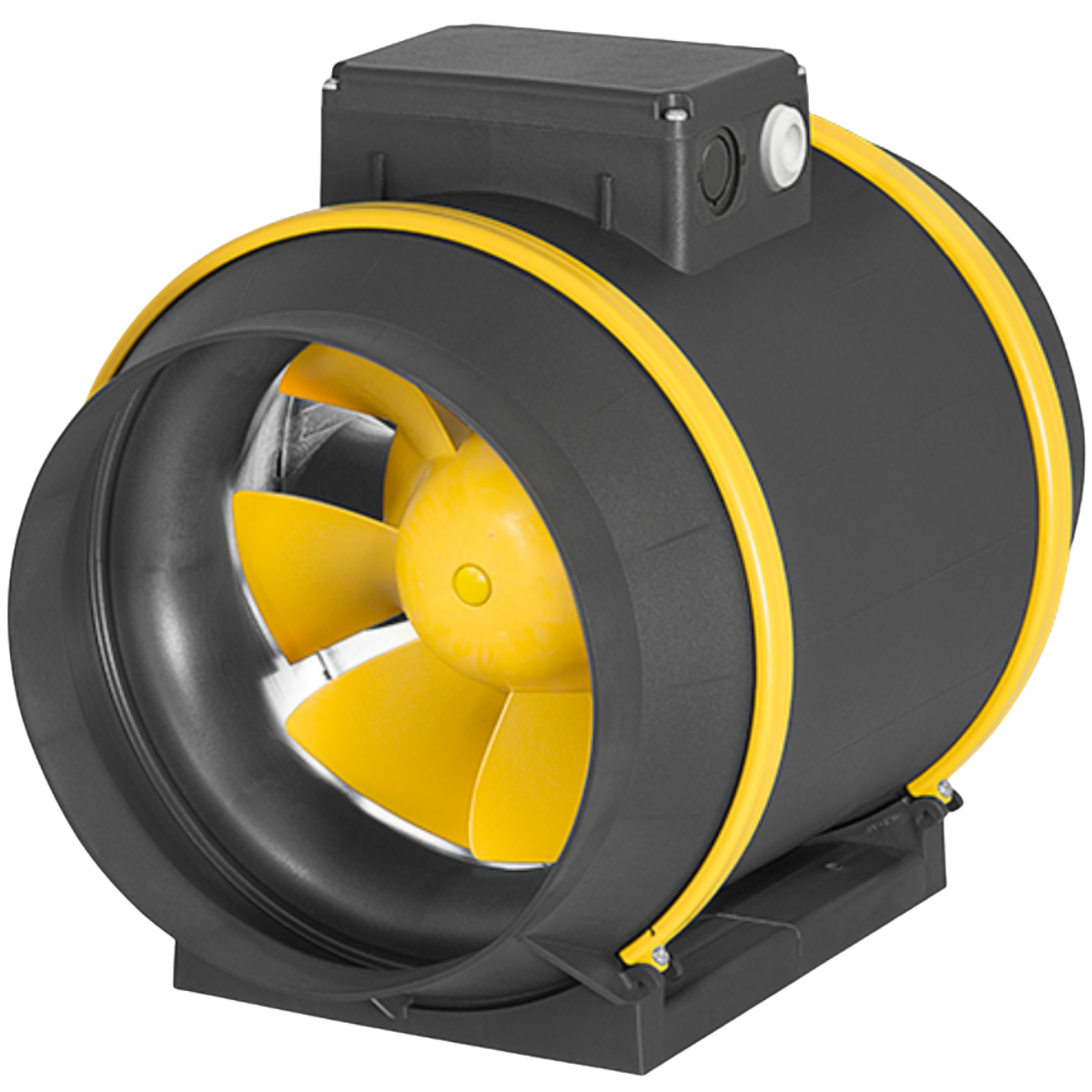

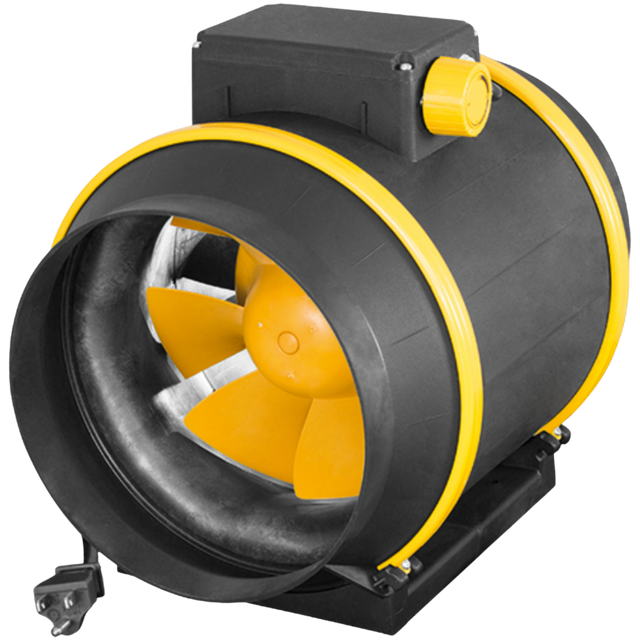

Ruck Air Movement 8-In. Prime EVO 859 CFM Mixed Flow Inline Duct Fan

Name: Ruck Air Movement 8-In. Prime EVO 859 CFM Mixed Flow Inline Duct Fan
Brand: Ruck Air Movement
Price: 216.0 USD
Availability: InStock

SKU: ru14518 | Model: 147644

$216.00

FREE shipping on orders over $45!

In Stock Usually ships in 3 business days.

Option

Product variants

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

3-Year Warranty

What's In The Box?

Ruck Air Movement 8-inch Prime EVO Mixed Flow Inline Duct Fan
Mounting Bracket
Owner's Manual

Info & Guides

Description

The Ruck Air Movement 8-inch Prime EVO Mixed Flow Inline Duct Fan features 3D-shaped impeller blades for the best aerodynamic design, resulting in high efficiency rates.

Engineered with a single-phase AC motor with integrated 3-speed switch, this mixed flow ventilation fan operates quietly thanks to the stepless speed control. This model is available as a 120 V or a 240 V version.

High Efficiency and Performance

This Ruck mixed flow duct fan is designed for the highest aerodynamic efficiency through computer-optimized impeller blades and guide vanes. Even more efficient than Ruck’s prime fans, the Prime EVO pulls only 1.7 amps at the highest operating speed.

Features and Highlights

8-inch Duct Fan
3D Shaped Impeller Blades
Corrosion-resistant Plastic Housing
One-phase AC motor
Dual Pole
859 Maximum CFM
Minimum Operating Temperature of -13 degrees F
Maximum Operating Temperature of 122 degrees F
Included Mounting Bracket

Sylvane's Expert Take

The Ruck Prime EVO Mixed Flow Inline Duct Fan is available in this 8-inch size, as well as 6-inch, 10-inch, and 16-inch sizes. It includes a mounting bracket and features corrosion-resistant housing and an integrated 3-speed stepless switch.

Specifications

Key Specifications

Number of Speeds

3
Sound Level (Sones) (sones)

34.0
Type

Mixed Flow Inline Duct Fan

General

Application

Ducting
Certifications

UL
Color

Black, Yellow
Controls

Manual
Maximum Air Temperature (degrees F)

122
Maximum Cubic Feet per Minute (CFM) (CFM)

859.0

Power

Amperage (Amps)

1.7
Power Supply

Hardwired
Voltage (V)

120V: 110-120

240V: 220-240
Watts (W)

192

Dimensions

Depth (in.)

12.79
Depth (with front cover) (in.)

12.79
Duct Diameter (in.)

8.0
Height (in.)

11.02
Height (with front cover) (in.)

11.02
Weight (lbs.)

11.22
Width (in.)

8.0
Width (with front cover) (in.)

8.0
