Senville 9,000 BTU Concealed Mini Split Heat Pump

Name: Senville 9,000 BTU Concealed Mini Split Heat Pump
Brand: Senville
Price: 1149.99 USD
Availability: InStock

SKU: sv11844 | Model: SENA-09HF-ID16

$1,149.99 ~~$1,199.99~~

FREE shipping on orders over $45!

In Stock Usually ships in 7 business days.

Add extended protection plan. (Select one)

2-Year Commercial Warranty - $119.99

learn more

A 2-year commercial-grade repair warranty for products less than $1,500.

4-Year Commercial Warranty - $239.99

learn more

A 4-year commercial-grade repair warranty for products less than $1,500.

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

<p>10-Year Compressor/ 5 Year Parts Warranty</p>

What's In The Box?

Senville 9,000 BTU Concealed Mini Split Heat Pump
Owner's Manual
Installation Manual
Remote Control Manual
Remote Control
Installation Kit

Info & Guides

Description

Designed for cooling and heating areas that would normally be difficult to condition like sunrooms, basements, new additions, and more, the Senville 9,000 BTU Concealed Mini Split Heat Pump is a must-have. Able to deliver a more finished look than other mini split options, this concealed unit is the perfect choice for rooms up to 400 square feet.

Concealed Mini Split

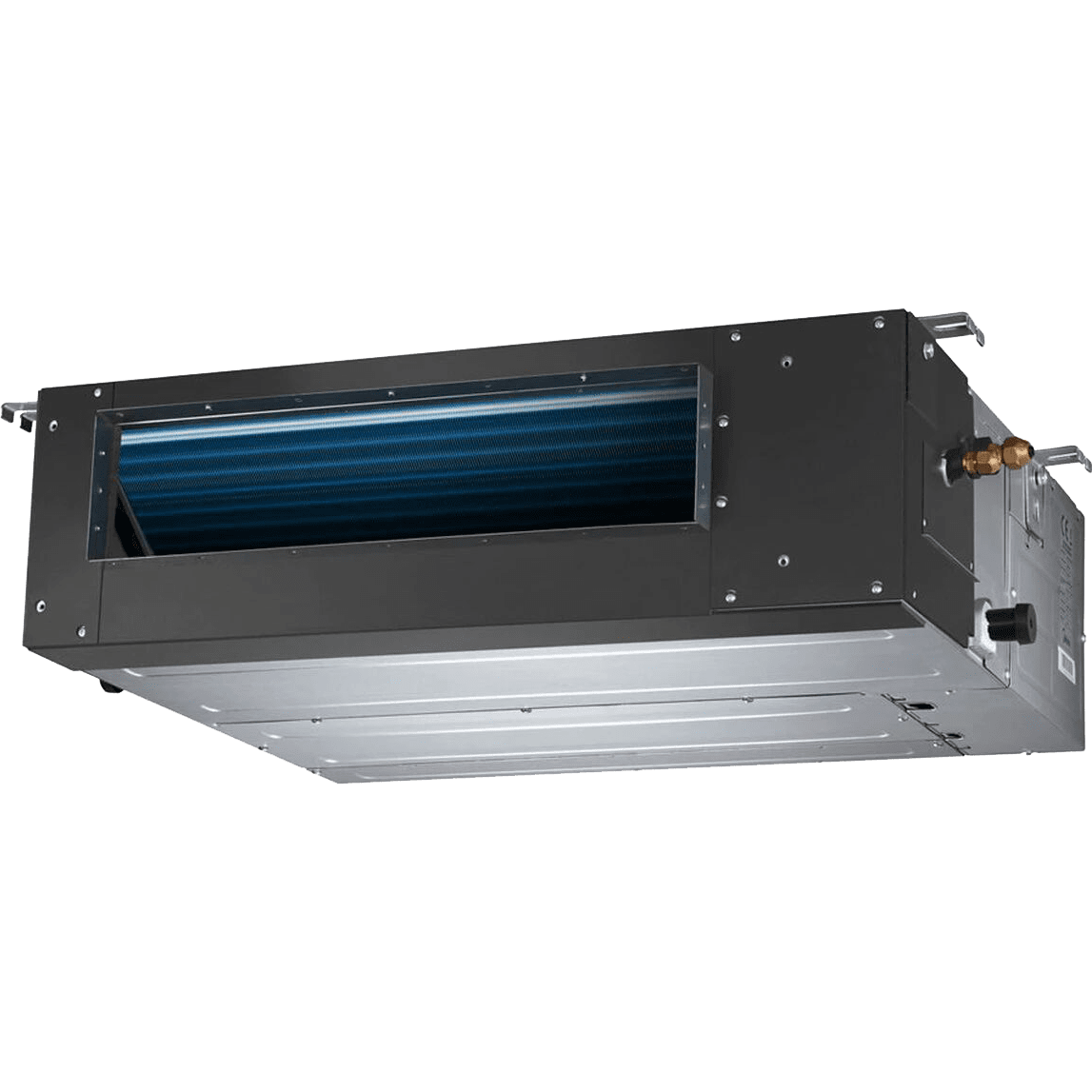

The Senville SENA-09HF-I-Q16 is a concealed duct air conditioner. Capable of being installed out-of-sight in attics, closets, crawlspaces, or utility rooms, the only visible part of this unit is its grille cover. Whether used in bedrooms, offices, or other living spaces, the Senville Concealed Mini Split is a perfect choice.

Year-Round Comfort

Use its easy-to-operate remote control to find the perfect temperature in any season with the Senville 9,000 BTU Mini Split and its multiple operating modes.

Cooling: Packing an impressive 9,000 BTUs of cooling power, you’ll keep bedrooms, offices, and more at the perfect temperature on even the hottest days.
Heating: When winter temperatures strike, stay warm indoors by setting any temperature between 62 and 86 degrees Fahrenheit.
Dehumidifies Too: If your space starts to feel a little muggy, turn to dry mode and remove excess moisture from your space.
Auto Mode: Choose your desired temperature and let this mini split choose the best operating mode to achieve it.

Energy Star Certification

With an EER of 14 and a SEER rating of 23.0, the Senville Concealed Mini Split has earned an Energy Star certification for money-saving operation. Using inverter technology, this single-zone heat pump regulates your room's temperature without large variations and energy spikes. It also won't cut on and off as often as traditional ACs, eliminating wasted energy.

Additional Features

Installation Materials: This unit comes with a 16-foot line set that’s pre-charged and features all the necessary piping for installation.
Onboard Diagnostics: Receive warnings of potential problems like leaks, get routine maintenance reminders, and much more.
Long Warranty: Has a 7-year compressor warranty and 3-year warranty on all other parts.
Anti-Microbial Filter: Keeps your air cleaner and protects the air conditioner by trapping harmful allergens and particles via a silver ion filter.
Swing Function: Use its vertical swing function to easily distribute air throughout your space.
Low-Temperature Operation: In sensitive areas, like server rooms, this mini split can continue cooling even when outside temperatures are as low as -22 degrees Fahrenheit.
Follow Me Function: Found on the remote control, this feature allows it to operate as a remote thermostat for optimal temperature control.

Summary

With its quiet, concealed performance, this Senville mini split heat pump is the perfect choice for year-round comfort in rooms up to 400 square feet.

What Customers Love

Concealed Design: Its concealed design allows this mini split to deliver powerful cooling and heating without being an eyesore.
Energy Star Rated: Get year-round comfort without breaking the bank thanks to this Energy Star certified model.

Things to Consider

Additional Line Set Length: This unit comes with a standard 16-foot line set. For additional line set length, consider the compatible Senville PJX-1-15 50 Ft. Insulated Line Set.

Specifications

Key Specifications

AHRI Estimated Annual Cooling Cost

59
AHRI Estimated Annual Heating Cost

195
Energy Efficiency Ratio (EER)

14
Mounting Type

Concealed
Number of Speeds

3
Total Cooling Capacity (BTUs)

9000
Total Heating Capacity (BTUs)

10000

General

California Residents

⚠ WARNING: This product can expose you to lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
Certifications

ETL
Color

Gray, White
Compressor Type

Inverter
Heat Mode

Yes
Installation Type

Professional Installation
Maximum Cubic Feet per Minute (CFM) (CFM)

600.0
Maximum Indoor Noise Level (dB)

38
Maximum Operating Temperature - Cooling (degrees F)

90
Maximum Operating Temperature - Heating (degrees F)

86
Minimum Operating Temperature - Cooling (degrees F)

62
Minimum Operating Temperature - Heating (degrees F)

32
Number of Zones

1
Recommended Coverage Area (sq. ft.)

400
Refrigerant Type

R-454B
Zone Cooling Capacity (BTUs)

12500
Zone Heating Capacity (BTUs)

15600

Power

Maximum Cooling Amperage (Amps)

3.05
Maximum Cooling Wattage (W)

667
Maximum Heating Amperage (Amps)

3.72
Maximum Heating Wattage (W)

814
Voltage (V)

208-230

Dimensions

Included Line Length (ft.)

16
Indoor Unit Depth (in.)

19.92
Indoor Unit Height (in.)

7.87
Indoor Unit Weight (lbs.)

39.46
Indoor Unit Width (in.)

27.56
Maximum Line Length (ft.)

50
Outdoor Unit Depth (in.)

12.99
Outdoor Unit Height (in.)

21.81
Outdoor Unit Weight (lbs.)

72.75
Outdoor Unit Width (in.)

31.69

Additional Features

Additional Features

Remote Control, Energy Star, Automatic Oscillation, Air Filter, Wi-Fi Capable, Line Set Included, Applicable for Indoor Growing, Pre-charged Refrigerant
