Senville Aura Concealed Duct 9,000 BTU Mini Split Heat Pump

SKU: sv18571  |  Model: SENA-09HF-IDNL
$1,04999
Line Set Length:

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Email

Manufacturer's Warranty

10-Year Compressor / 5-Year Parts Warranty

What's In The Box?

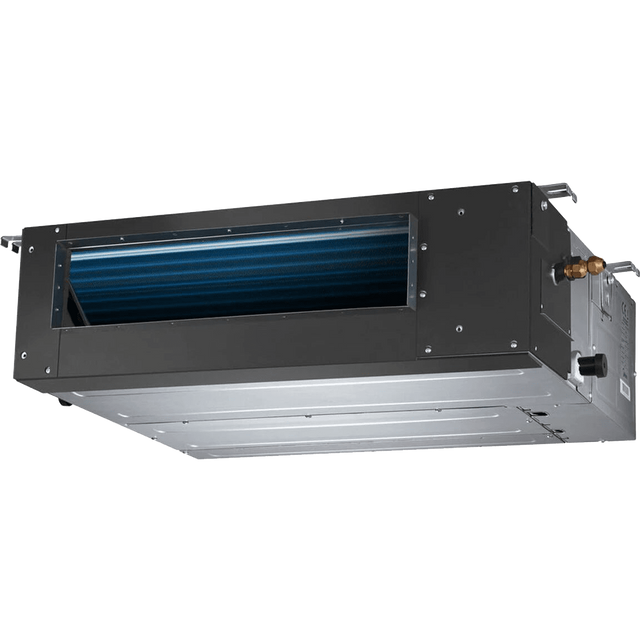

  • Senville 9,000 BTU Concealed Air Handler
  • Senville 9,000 BTU Outdoor Condensor
  • 16-Foot Line Set
  • Wired Remote Control
  • Installation Hardware
  • Owner's Manual, Guides, and Other Documents

Info & Guides

Description

A wall-mounted mini split puts an indoor head on the wall, and that can look out of place in a finished basement or a new addition. The Senville Aura Concealed Duct 9,000 BTU Mini Split Heat Pump puts its air handler in an attic, closet, crawl space, or utility room instead. The only part you see in the room is the grille cover.

This single-zone heat pump cools and heats. It also has a dry mode for muggy days and an auto mode that picks the right setting for your target temperature, so it works well in sunrooms and bedrooms that are uncomfortable for much of the year. Maximum airflow reaches 600 CFM, a measure of how much air the system can move through the room.

Key Features and Benefits of the Senville Aura Concealed Duct 9,000 BTU Mini Split Heat Pump

  • Cooling and Heating: Delivers 9,000 BTU for rooms up to 400 square feet, within a recommended coverage area of up to 500 square feet.
  • Energy Star Certified: Rated at 23.0 SEER and 14 EER, so it costs you less to keep the room comfortable all year.
  • Inverter Technology: The inverter-driven compressor raises and lowers its output gradually instead of switching on and off, so your room temperature stays steady and you avoid energy spikes.
  • Cold-Weather Cooling: Keeps cooling when outdoor temperatures drop as low as -22 degrees F, so it keeps working through cold snaps.
  • Wide Heating Range: You can set the heat anywhere from 62 to 86 degrees F, so you stay warm indoors through the coldest months.
  • Remote and Wi-Fi: Change settings with the included remote control or over Wi-Fi, and use the remote's Follow Me function to make it work as a thermostat.
  • Refrigerant: Ships pre-charged with R-454B, so installers can connect the system without adding a separate refrigerant charge.
  • Silver Ion Filter: An anti-microbial silver ion filter traps allergens and particles, which keeps your air cleaner and protects the heat pump's internal parts.
  • Fan Control: Choose from 3 fan speeds and use the vertical swing function to distribute air throughout your space.
  • Warranty Coverage: Includes a 7-year compressor warranty and a 3-year warranty on all other parts.
  • Voltage and Listing: Operates on 208-230 volts and carries an ETL listing, so confirm your power supply matches before installation.
  • Onboard Diagnostics: Warns you about potential problems like leaks and reminds you of routine maintenance.

Choose Your Line Set Length

You can order this heat pump with no line set, or with an insulated line set (1/4-inch and 3/8-inch lines) in a 16-foot, 25-foot, or 50-foot length.

The None option suits installs that already have a line set in place. The 16-foot line set is the length that comes with the SENA-09HF-I-Q16, so it covers a standard setup. The 25-foot and 50-foot options add distance for installs where the indoor and outdoor sections sit farther apart.

Note: The None option requires a compatible line set with 1/4-inch and 3/8-inch lines before installation.

Sylvane's Expert Take

If you're finishing a basement or addition and don't want an indoor head on the wall, this Aura heat pump suits rooms up to 400 square feet with an attic or closet nearby for the air handler. Measure the distance to the outdoor condenser before you choose a line set. Professional installation is required. If you want heating and cooling without a visible wall-mounted head, this is a clean-looking place to start.

Specifications

    Key Specifications

    • Energy Efficiency Ratio (EER)
      14.0
    • Mounting Type
      Concealed
    • Number of Speeds
      3

    General

    • Certifications
      ETL
    • Color
      Gray, White
    • Installation Type
      Professional Installation
    • Number of Zones
      1
    • Refrigerant Type
      R-454B

    Power

    • Voltage (V)
      208-230

    Dimensions

    • Included Line Length (ft.)
      16

    Additional Features

    • Additional Features
      Air Filter, Applicable for Indoor Growing, Automatic Oscillation, Energy Star, Line Set Included, Pre-charged Refrigerant, Remote Control, Wi-Fi Capable

    Warranty

    • Manufacturer's Warranty
      10-Year Compressor / 5-Year Parts Warranty
