Senville Aura 36,000 BTU Dual Zone Mini Split Heat Pump w/ Wi-Fi
Senville Aura 36,000 BTU Dual Zone Mini Split Heat Pump w/ Wi-Fi - 16 ft. is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty

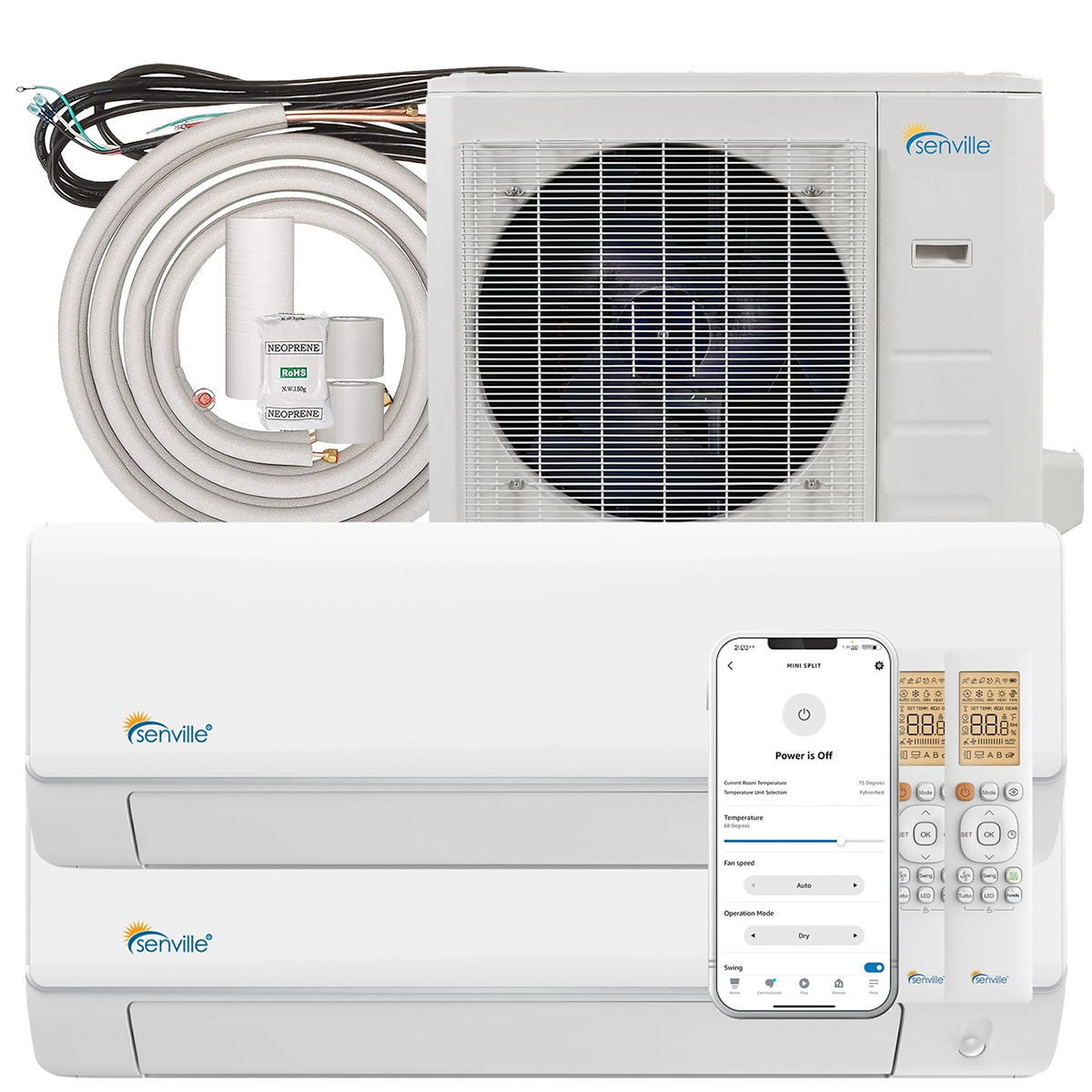

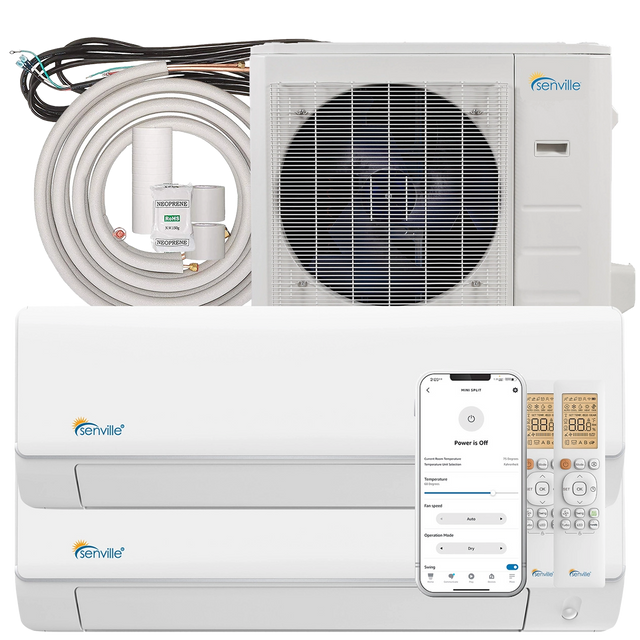

What's In The Box?
What's In The Box?

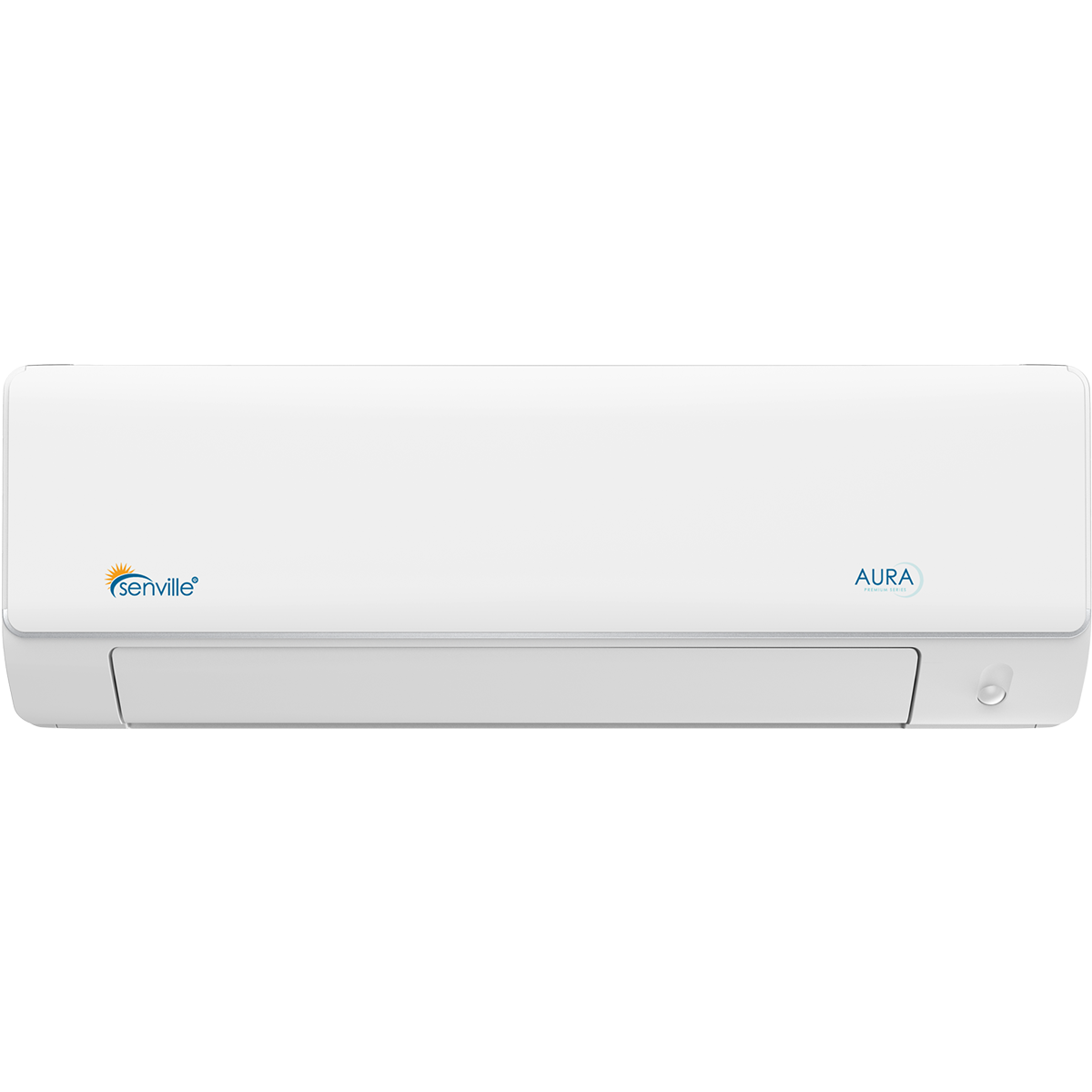

- Senville Aura 18,000 BTU Indoor Air Handler SENA-18HF-IQ (2)

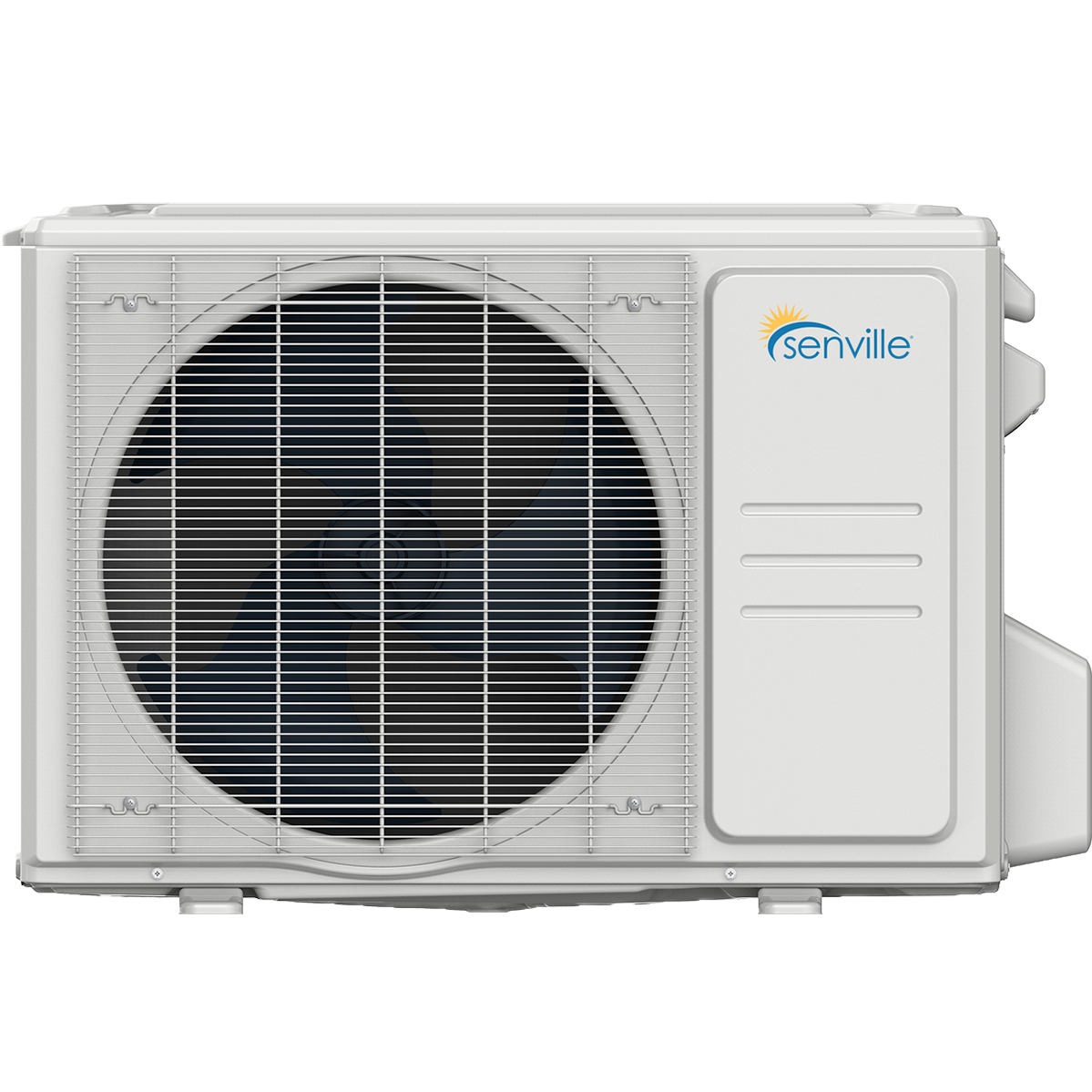

- Senville Aura 36,000 BTU Outdoor Compressor SENA-36HF-MOB

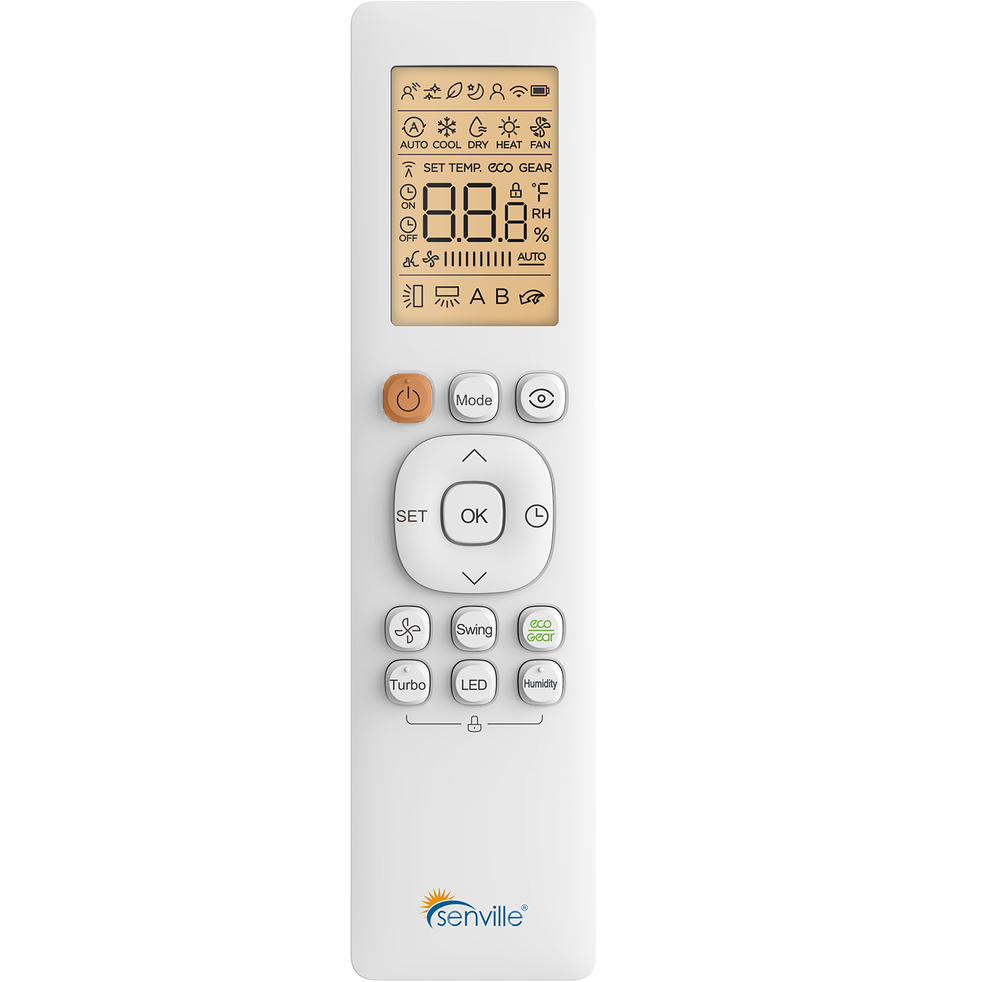

- Remote Control - AR2022-IRQ (2)
- AAA Batteries (4)
- Drain Joint and Seal (1)
- Mounting Plate (2)
- Senville 16-foot Line Set PJX-02 1/4 x 1/2 (2)
- Remote Control Holder and Fixing Screws (2)
- Owner's Manual
- Installation Instruction
Info & Guides
Info & Guides
Senville Aura 36,000 BTU Dual Zone Mini Split Heat Pump w/ Wi-Fi
Description
Description
Keep multiple rooms cool and warm quietly and efficiently with the Senville 36,000 BTU Dual Zone Mini Split-Heat Pump. This powerful unit uses two indoor air handlers and a single outdoor condenser to deliver year-round comfort to multiple zones.
Not only featuring cooling, heating, and more, with its 23 Seasonal Energy Efficiency Ratio and quiet inverter compressor design, it is easy to operate too.
One Unit, Multi-Room Comfort
Use a single unit to cool and heat multiple rooms with the Senville 36,000 BTU Mini-Split.
- Inverter Compressor: A single outdoor compressor that's quieter and more efficient than other options, connects to two 18,000 BTU indoor handlers for cooling and heating two individual rooms.
- Low-Temperature Operation: While this Senville mini-split is great for residential use, it can also work in sensitive areas like server rooms since it continues to cool even in temperatures as low as -22 degrees Fahrenheit.
Simple to Use
With the included remote control, changing between operating modes is easy.
- Auto Mode: This setting takes your desired temperature plus your room's current temperature and chooses the best operating mode (cooling, heating, fan-only) to achieve it.
- Sleep Mode: This setting keeps you comfortable and saves energy while you rest by gradually increasing the temperature (if cooling) or decreasing it (if heating).
Maximum Efficiency Ratings
In addition to its 23 SEER, this system also features an 11.3 Heating Seasonal Performance Factor (HSPF).
Additional Features
- Wi-Fi Capable: This mini-split system can be controlled via a smartphone or tablet with the Alexa app or with voice control using an Alexa-enabled device.
- Follow Me Feature: Located on your remote control, it turns the remote into a remote thermostat that relays precise room temperature information to the mini-split.
- Faster Cooling: For those times when you need to cool quickly, turn to the Turbo setting.
- Multi-Speed Fan: You have the option to manually choose between multiple fan speeds, including low, medium, high, and automatic.
- Automatic Restart: In the event of a power outage, this system will automatically resume operation in its previous settings.
- Angled Airflow: You can manually set the horizontal angle of the flow on the indoor unit and use the remote control to adjust the vertical airflow.
Summary
With 36,000 BTUs of total power yet efficient operation, this dual-zone mini-split keeps multiple large rooms comfortable all year long.
Specifications
Specifications
-
AHRI Estimated Annual Cooling Cost272
-
AHRI Estimated Annual Heating Cost765
-
Energy Efficiency Ratio (EER)11.5
-
Energy Efficiency Ratio 2 (EER2)13
-
Mounting TypeWall
-
Number of Speeds3
-
Seasonal Energy Efficiency Ratio 2 (SEER2)23
-
Total Cooling Capacity (BTUs)36000
-
Total Heating Capacity (BTUs)36000
-
California Residents⚠ WARNING: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer and reproductive harm. For more information go to www.p65warnings.ca.gov.
-
CertificationsUL
-
ColorWhite
-
Compressor TypeInverter
-
Heat ModeYes
-
Installation TypeProfessional Installation
-
Maximum Cubic Feet per Minute (CFM) (CFM)599.0
-
Maximum Indoor Noise Level (dB)45.5
-
Maximum Operating Temperature - Cooling (degrees F)122
-
Maximum Operating Temperature - Heating (degrees F)86
-
Minimum Operating Temperature - Cooling (degrees F)-22
-
Minimum Operating Temperature - Heating (degrees F)-22
-
Number of Zones2
-
Recommended Coverage Area (sq. ft.)1100
-
Refrigerant TypeR-454B
-
Zone Cooling Capacity (BTUs)43000
-
Zone Heating Capacity (BTUs)10,000-44,000
-
Maximum Cooling Amperage (Amps)13.6
-
Maximum Cooling Wattage (W)3125
-
Maximum Heating Amperage (Amps)13
-
Maximum Heating Wattage (W)3000
-
Voltage (V)208-230
-
Indoor Unit Depth (in.)9.7
-
Indoor Unit Height (in.)12.6
-
Indoor Unit Weight (lbs.)54
-
Indoor Unit Width (in.)40
-
Maximum Line Length (ft.)82
-
Outdoor Unit Depth (in.)16.34
-
Outdoor Unit Height (in.)38.39
-
Outdoor Unit Weight (lbs.)212
-
Outdoor Unit Width (in.)38.58
-
Additional FeaturesRemote Control, Energy Star, Automatic Oscillation, Air Filter, Adjustable Louvers, Automatic Mode, Auto-Restart, Wi-Fi Capable, Applicable for Indoor Growing, Pre-charged Refrigerant
-
Manufacturer's Warranty10-Year Compressor/ 5 Year Parts Warranty
