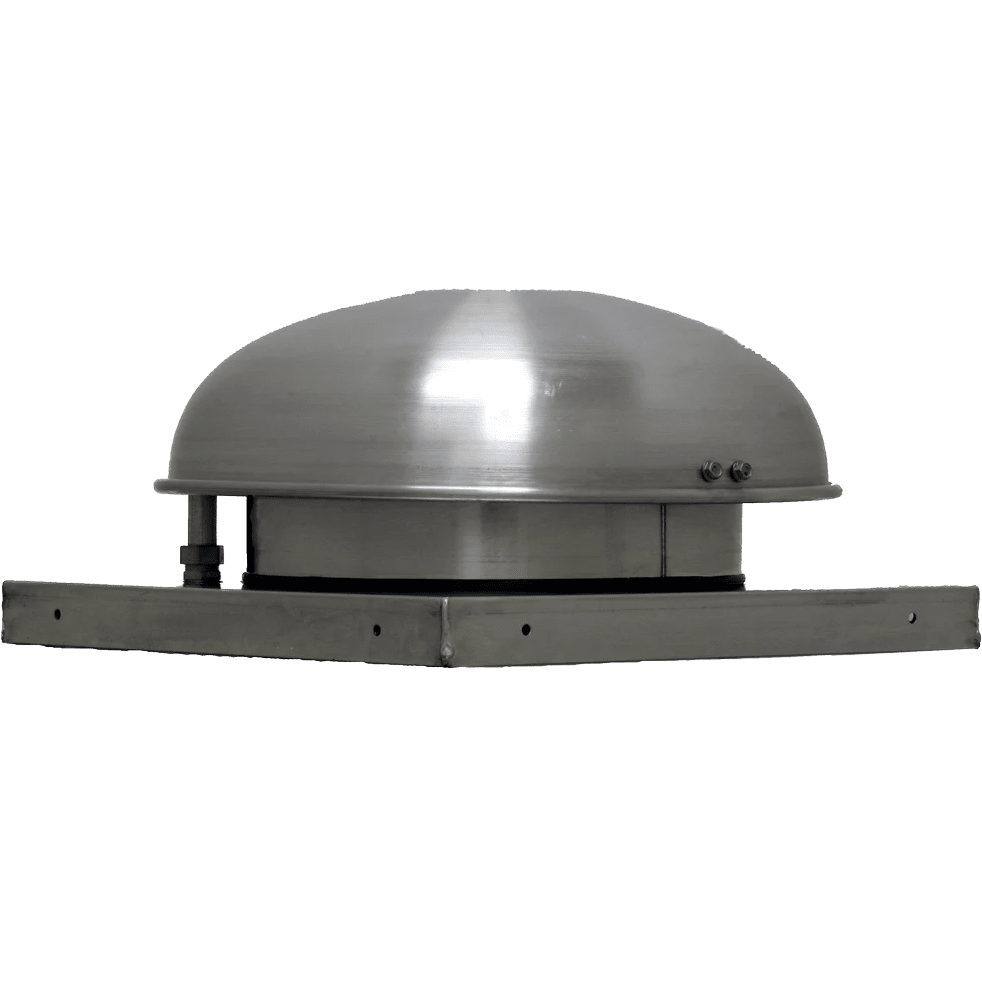

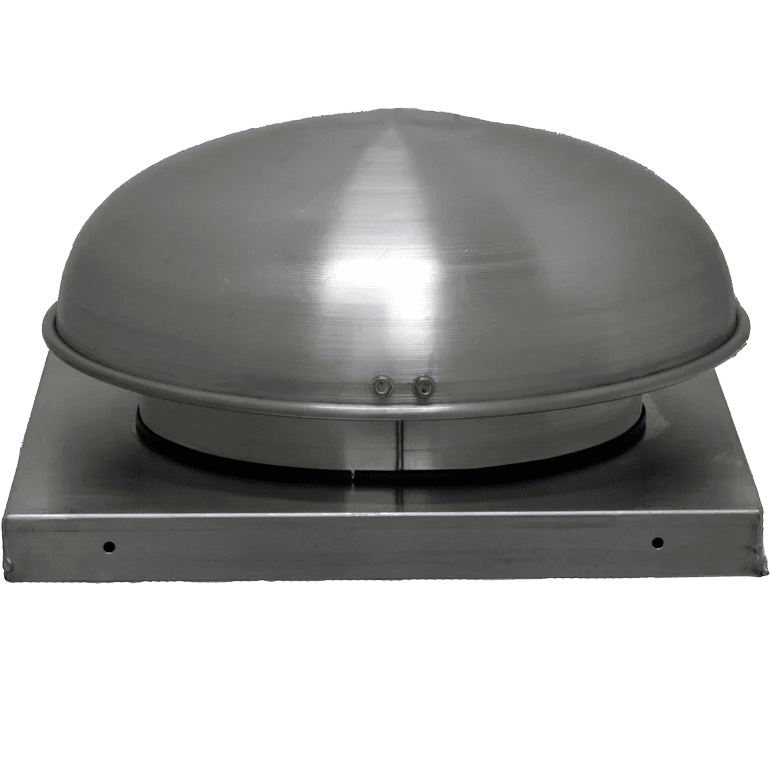

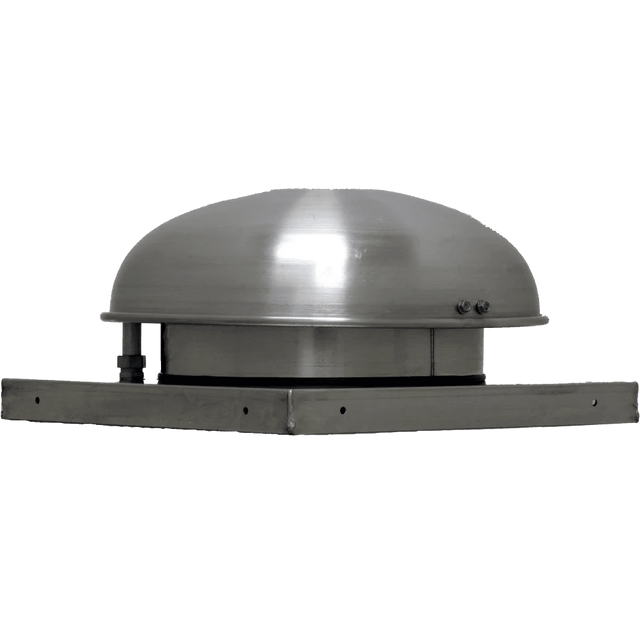

S&P LPD0-1AS Centrifugal Roof Sidewall Exhaust Fan
S&P LPD0-1AS Centrifugal Roof Sidewall Exhaust Fan - LPD08-1AS 8-Inch 387 CFM is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- S&P LPD Low-Profile Centrifugal Roof/Sidewall Exhaust Fan (6-inch or 8-inch)
- Bird Screen
- Owner’s Manual
Info & Guides
Info & Guides
S&P LPD0-1AS Centrifugal Roof Sidewall Exhaust Fan
Description
Description
The S&P LPD0-1AS Centrifugal Roof Sidewall Exhaust Fan is a low-profile exhaust fan installed on the roof or a wall to fit the application’s needs. These fans are generally used in ducted bathrooms, offices, or other light commercial ventilation systems. They have low sound levels for quiet operation, and feature these construction specifications.
- Sturdy Material: Ultra-low profile, aluminum construction with stainless steel exterior fasteners
- Efficient Operation: The curb cap has integral deep spun inlet for efficient performance and features pre-punched mounting holes for easy installation.
- Motor Support: Heavy-gauge motor support for better rigidity and strength.
- Protected: The spun aluminum hood and skirt for weather protection, and a bird screen is included on all standard models.
- Designed for Easy Installation: The LPD models have conduit passages for easy electrical connection and quick access to the motor.
Simple Installation and Maintenance
These S&P low-profile exhaust fans have non-overloading wheels and direct drive motors for more efficient and quiet operation. They can be installed easily on the roof or sidewall and can exhaust air up to 420 CFM in high static pressure applications.
- Motor: This heavy-gauge motor has an external rotor design with permanently lubricated bearings for practically maintenance-free operation.
- Wheel: The wheel is constructed from non-corrosive aluminum and is backward inclined for efficiency at high static pressure. It is statically and dynamically balanced for smoother running and features tapered blades for quieter operation.
Additional Features
- Two Sizes: These S&P LPD direct drive fans are available in both 6-inch and 8-inch duct sizes.
- Non-overloading: The backward inclined wheel is non-overloading, ensuring high efficiency at higher static pressures up to 1.75 inches w.g.
- High Temperature: These direct drive fans can function up to 140 degrees F airstream temperature.
- Safety Cut-Off: Designed with internal thermal protection and safety cut-out switch.
- Speed Control: The motors are single speed, speed controllable, and totally enclosed for protection from dust and debris.
- Safety Certifications: AMCA Air and Sound Licensed and cULus 705 Listed.
Sylvane’s Expert Take
These low-profile, direct drive exhaust fans from S&P are available in both 6-inch and 8-inch duct sizes and can be mounted on the roof or a side wall to provide exhaust for up to 420 CFM at high static pressure. Customers will appreciate the sturdy aluminum construction, easy installation, and very low maintenance.
- Operation: These fans have a direct drive motor with permanently lubricated bearings and a backward inclined, balanced wheel makes them quiet and efficient. The motor is also 100 percent speed-controllable.
Specifications
Specifications
-
Number of Speeds1
-
Sound Level (Sones) (sones)11.97.2
-
TypeSidewall Exhaust Fan, Roof Exhaust Fan
-
ApplicationResidential, Bathroom, Attic, Commercial/Industrial
-
California Residents⚠ WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. See: www.P65Warnings.ca.gov
-
CertificationscULus, UL, AMCA
-
ColorGray
-
ControlsElectronic
-
Housing MaterialAluminum
-
Maximum Air Temperature (degrees F)140
-
Maximum Cubic Feet per Minute (CFM) (CFM)387.0302.0
-
Maximum RPM27752800
-
Type of FanRoof Exhaust Fan
-
Amperage (Amps)10.8
-
Power SupplyHardwired
-
Voltage (V)110-120
-
Watts (W)11590
-
Depth (in.)16.5
-
Depth (with front cover) (in.)16.5
-
Duct Diameter (in.)8.06.0
-
Height (in.)8.5
-
Height (with front cover) (in.)8.5
-
Weight (lbs.)1512
-
Width (in.)16.5
-
Width (with front cover) (in.)16.5
-
Additional FeaturesThermal Cutoff Protection
-
Manufacturer's Warranty3-Year Motor Warranty, 5-Year Housing Warranty
