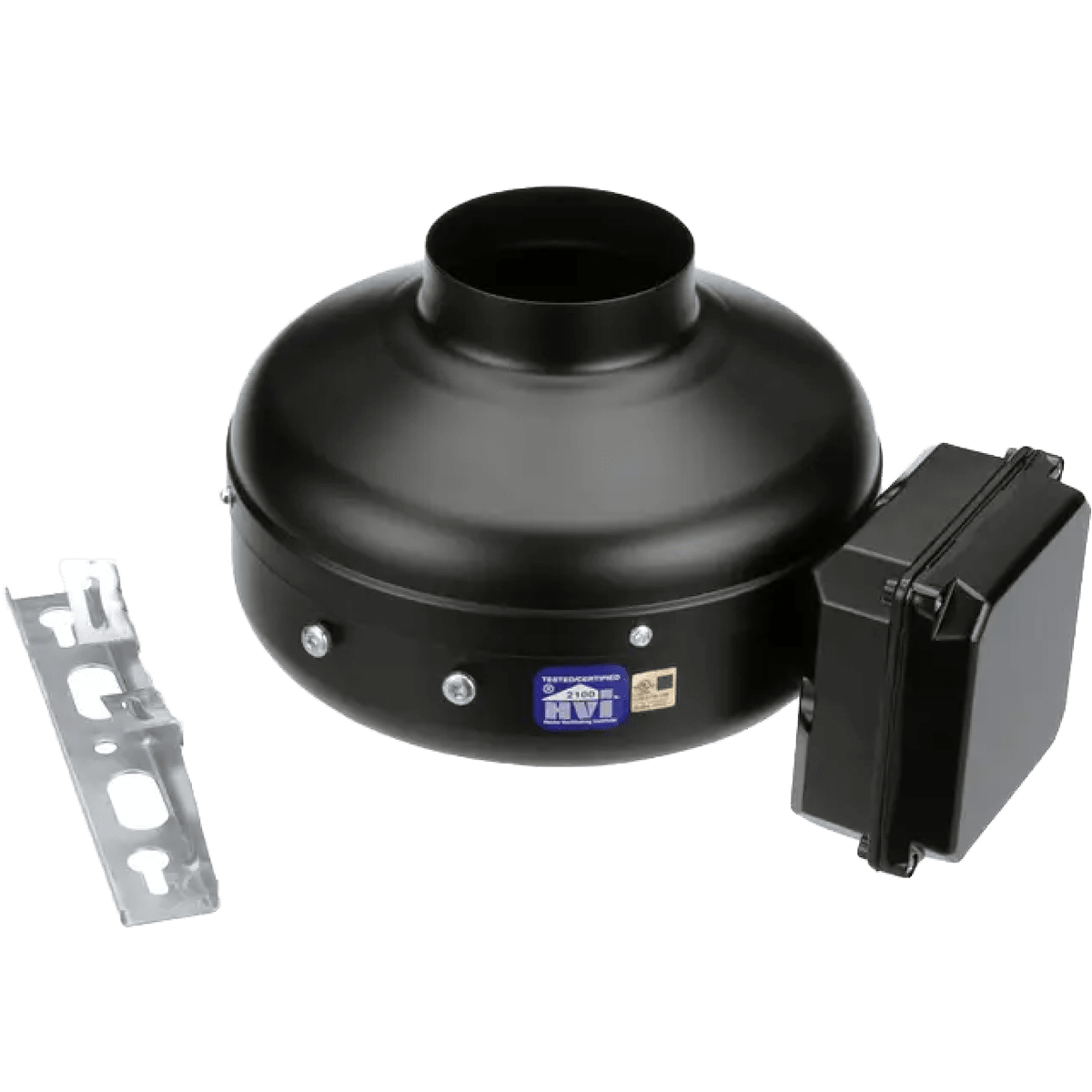

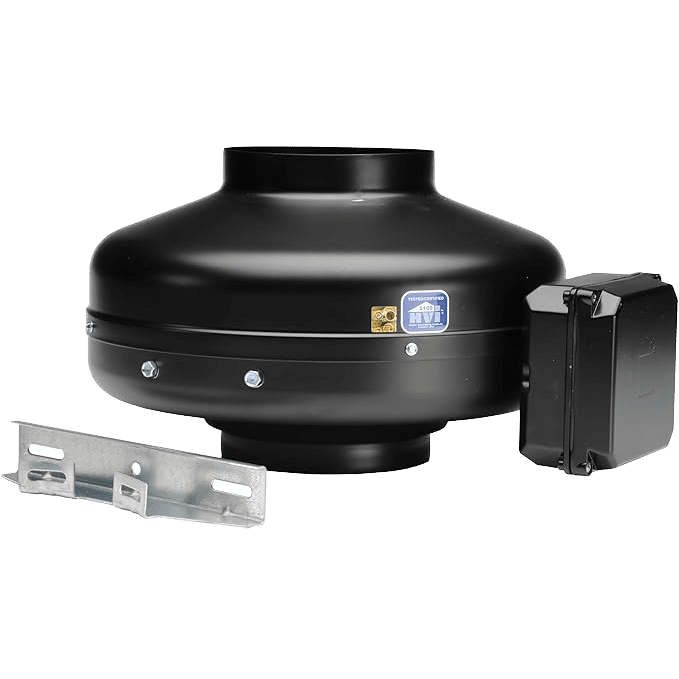

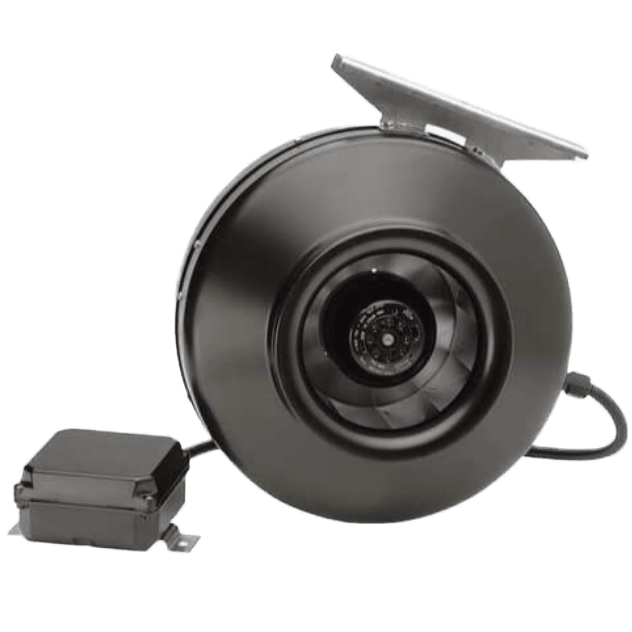

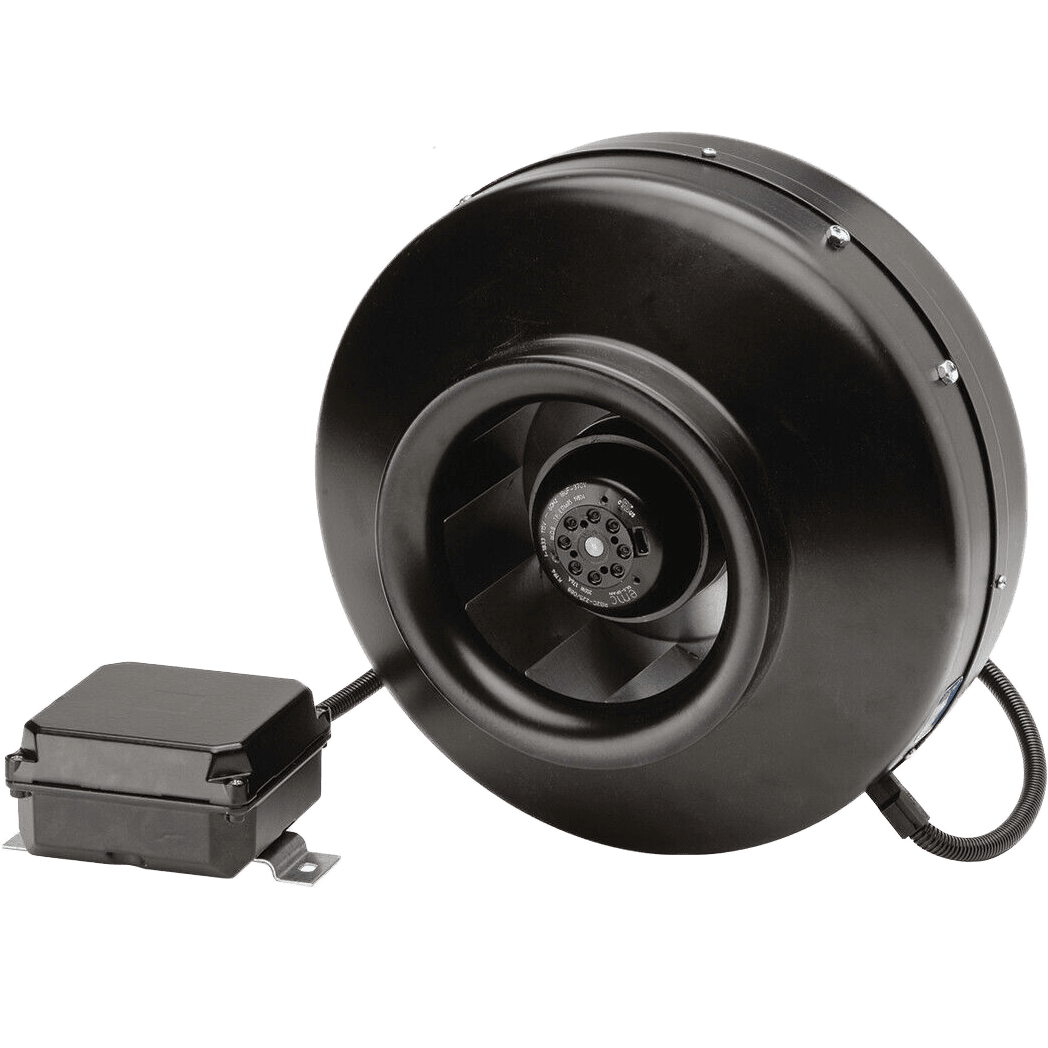

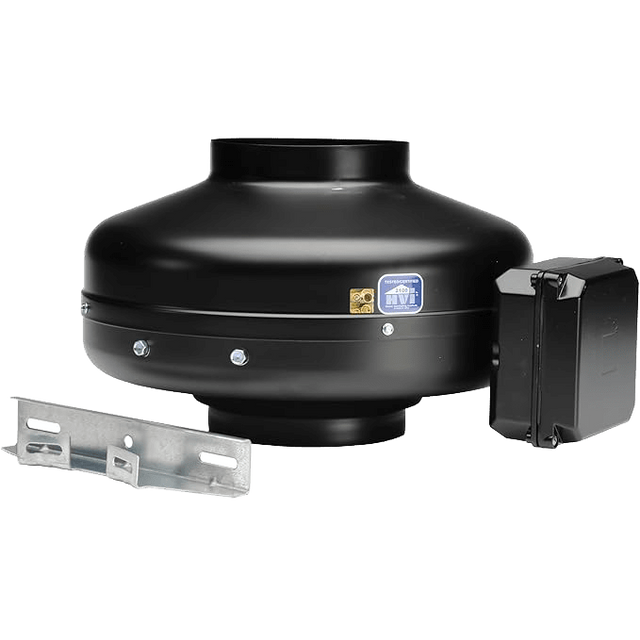

S&P PV-200X Powervent 8-in Inline Centrifugal Duct Fan

Name: S&P PV-200X Powervent 8-in Inline Centrifugal Duct Fan
Brand: S&P
Price: 356.0 USD
Availability: InStock

SKU: sp15697 | Model: PV-200X

$356.00

Add extended protection plan. (Select one)

1-Year Replacement Extended Warranty - $39.99

learn more

A 1-year replacement warranty plan for commercial or residential use items under $500.

2-Year Replacement Extended Warranty - $49.99

learn more

A 2-year replacement warranty plan for commercial or residential use items under $500.

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

5-Year Limited Warranty

What's In The Box?

S&P PV-200X Powervent 8-in. Inline Centrifugal Duct Fan
Pre-wired Junction Box
Mounting Bracket
Owner’s Manual

Info & Guides

Description

The S&P PV-200X Powervent 8-in. Inline Centrifugal Duct Fan provides powerful airflow for effective ventilation in 8-inch diameter round ducting applications. Delivering up to 544 CFM of airflow, this durable inline duct fan is ideal for limited-space applications.

Durable Low Maintenance: A galvanized steel casing with baked enamel coating ensures a long service life, and the permanently sealed, self-lubricating precision ball bearings need no maintenance.
High Efficiency: Designed with a non-overloading backward inclined wheel, this duct fan achieves greater efficiency at higher static pressures.
Smoother Operation: The S&P PV-200X duct fan’s backward inclined wheel is factory-matched to an external rotor motor and dynamically balanced to eliminate vibration.

The motor of this duct fan is fully enclosed, protecting it from moisture, lint, and high-particulate air. Fan speed can be controlled using voltage or frequency control regulators, adjusting the operation based on ventilation requirements.

Simple and Versatile Installation

The Powervent 8-in. inline duct fan is designed for direct connection in-line and includes a remote mounting, pre-wired junction box, and mounting bracket. In addition, the extra long inlet and discharge collars make installation quick and trouble-free.

Additional Features

Strict Safety Standards: The PV-200X is cULus and ETL listed, ensuring safe operation.
Standard Electrical: Inline duct fan operates on a 115 volt/60Hz single phase standard electrical connection.
Working Temperature: The S&P inline duct fan can operate up to 140 degrees F in working airstreams.
Independent Testing: This duct fan has been independently safety tested for airflow performance and is licensed to bear the AMCA seal for air performance.
HVI Certified: It is also certified by the Home Ventilating Institute (HVI) for air performance.
Automatic Cut-out: Equipped with a safety thermal overload protection cut-out switch.
Static Pressure: This S&P inline duct fan can handle static pressure levels up to 2.64 in.

Sylvane’s Expert Take

The impressive motor design of this S&P inline duct fan, with its permanently sealed rotor motor and backward curved centrifugal fan wheel, is able to withstand high static pressure. It delivers the dependable, outstanding airflow customers need for ventilation.

High Performance: S&P’s durable motor design creates impressive airflow and provides versatile placement/mounting options. The pre-wired junction box and mounting bracket make this duct fan fast and easy to install.
Dependable Durability: A totally enclosed motor with permanent ball bearings never needs lubrication and is protected from external damage.
