S&P MFL Filter Box w/ Metal Clips
SKU:
sp15724
| Model:
MFL-315
$298.00
Unit price
/
Unavailable
S&P MFL Filter Box w/ Metal Clips - MFL-315 12.4-Inch is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
What's In The Box?
What's In The Box?
- S&P MFL EU3 Filter Box w/ Metal Clips
Info & Guides
Info & Guides
S&P MFL Filter Box w/ Metal Clips
From
$196.00
Unit price
/
Unavailable
Description
Description

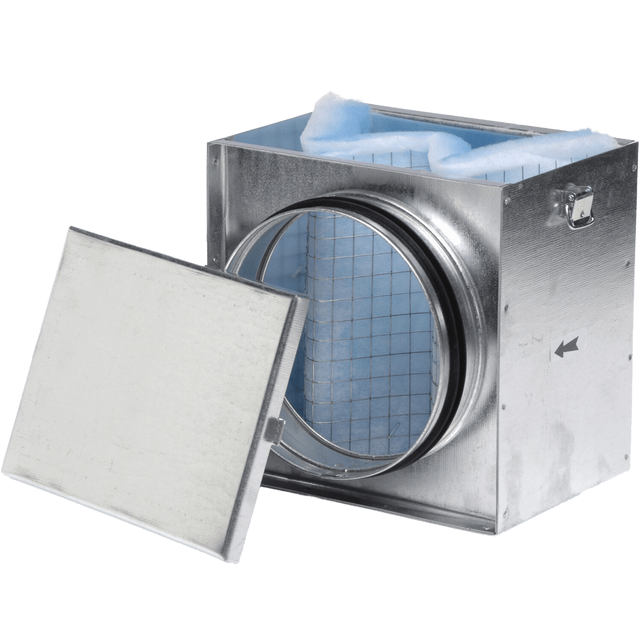

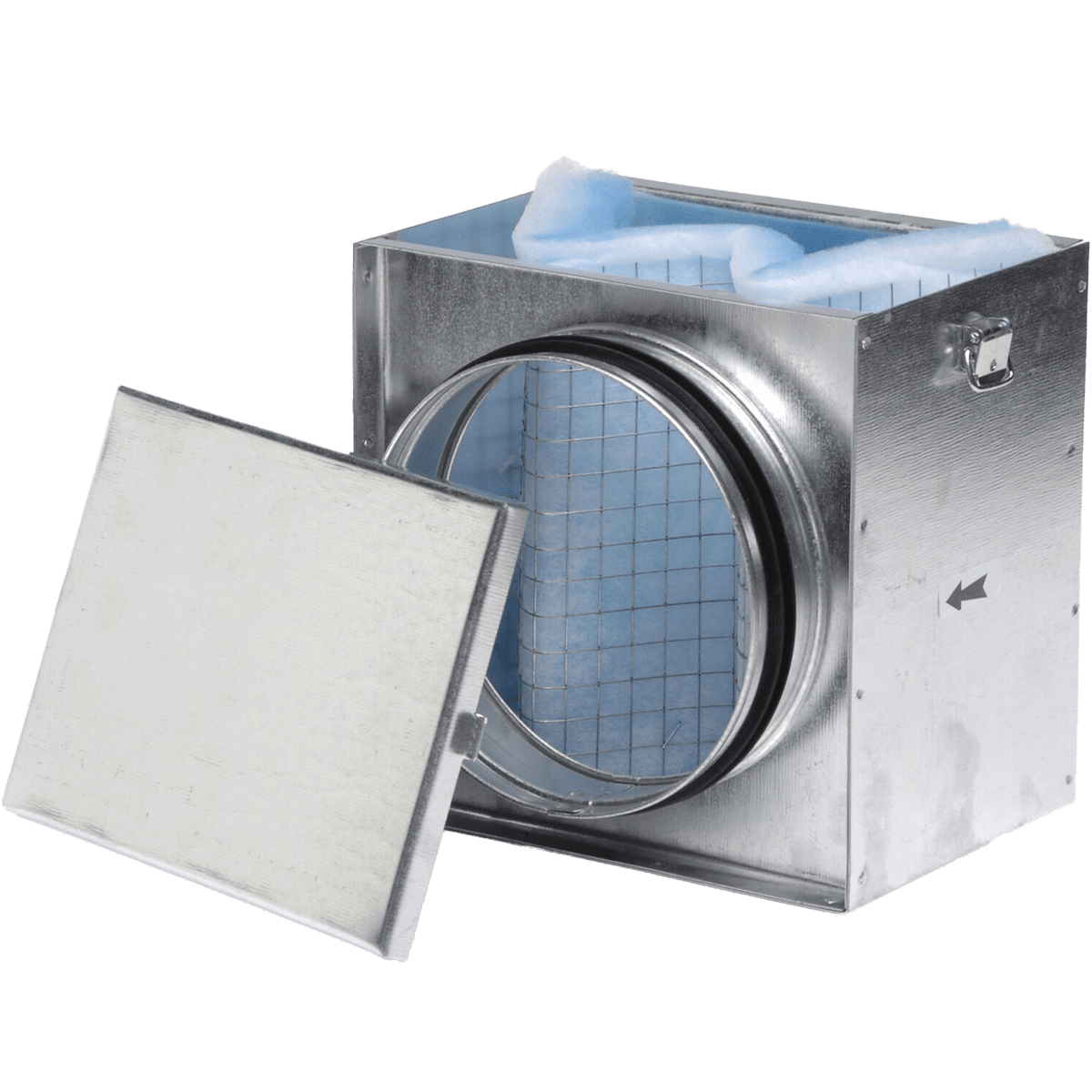

When the installation requires the introduction of filtered air, a filter box prevents dust and impurities from entering the ventilated area. This filter box is the Gravimetric EU3 type, engineered for direct connection with standard circular ducting and capable of filtering between 80 and 95 percent of particles larger than 10 microns with a MERV 6 filter. Part number MFL-200, MFL-250, MFL-315
Dimensions
- MFL-200 with 8-inch Duct: 9.625 W x 9.5625 H x 7.9375 D inches
- MFL-250 with 10-inch Duct: 11.875 W x 11.5625 H x 8.125 D inches
- MFL-315 with 12.4-inch Duct: 13.5 W x 13.4375 H x 8.125 D inches
Maximum Airflow
- MFL-200 with 8-inch Duct: 509 CFM
- MFL-250 with 10-inch Duct: 765 CFM
- MFL-315 with 12.4-inch Duct: 1,018 CFM
