S&P PV-250X Powervent 10-in Inline Centrifugal Duct Fan

Name: S&P PV-250X Powervent 10-in Inline Centrifugal Duct Fan
Brand: S&P
Price: 406.0 USD
Availability: InStock

SKU: sp15698 | Model: PV-250X

$406.00

FREE shipping on orders over $45!

In Stock Usually ships in 5 business days.

Add extended protection plan. (Select one)

1-Year Replacement Extended Warranty - $39.99

learn more

A 1-year replacement warranty plan for commercial or residential use items under $500.

2-Year Replacement Extended Warranty - $49.99

learn more

A 2-year replacement warranty plan for commercial or residential use items under $500.

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

5-Year Limited Warranty

What's In The Box?

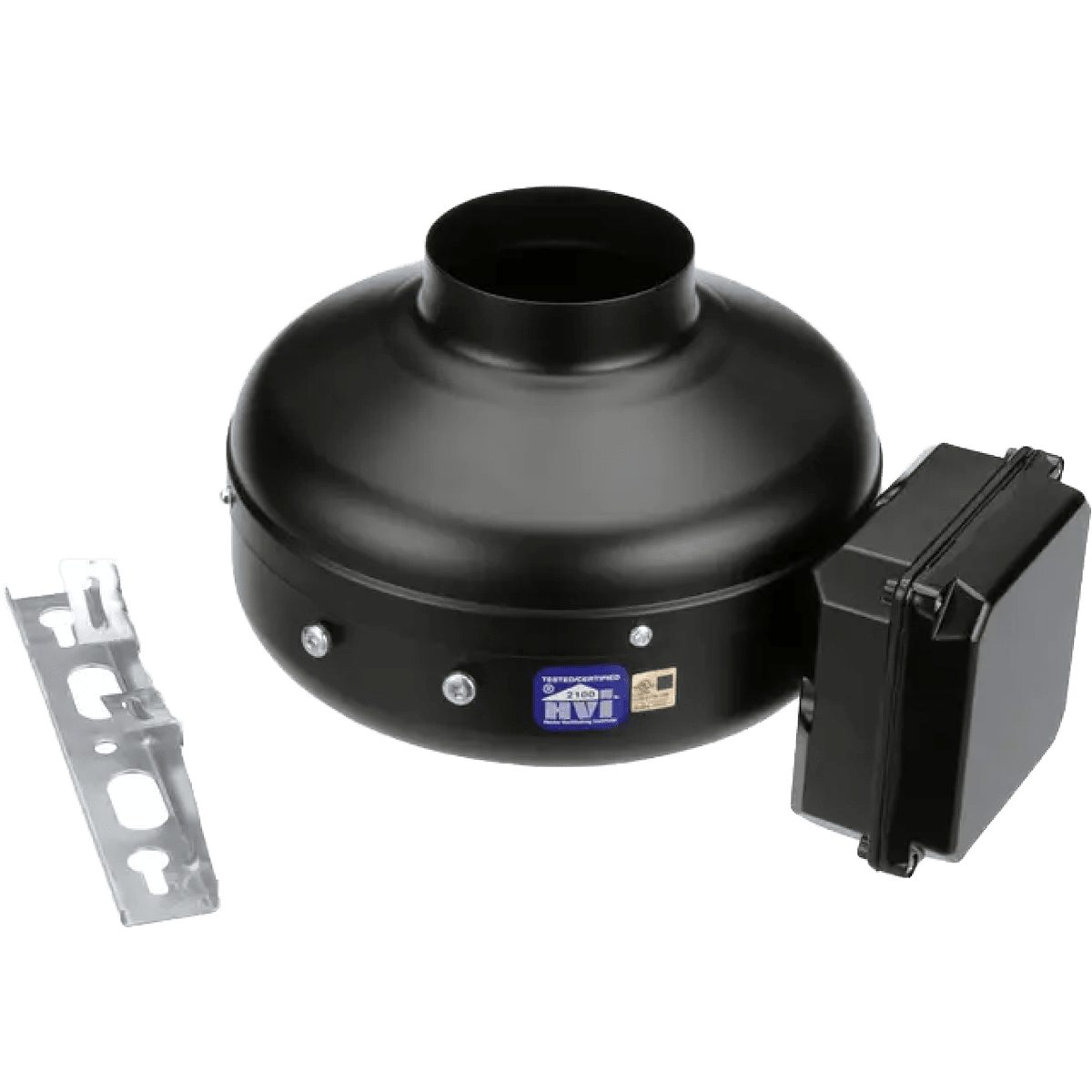

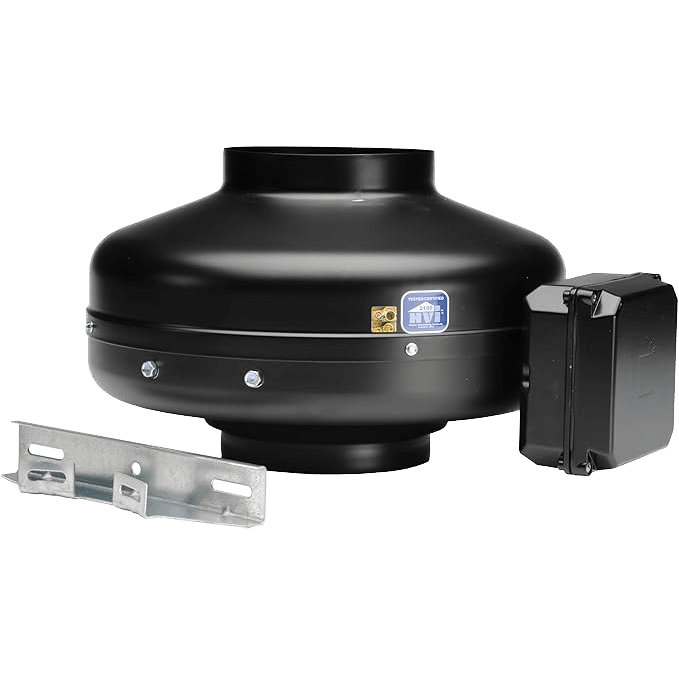

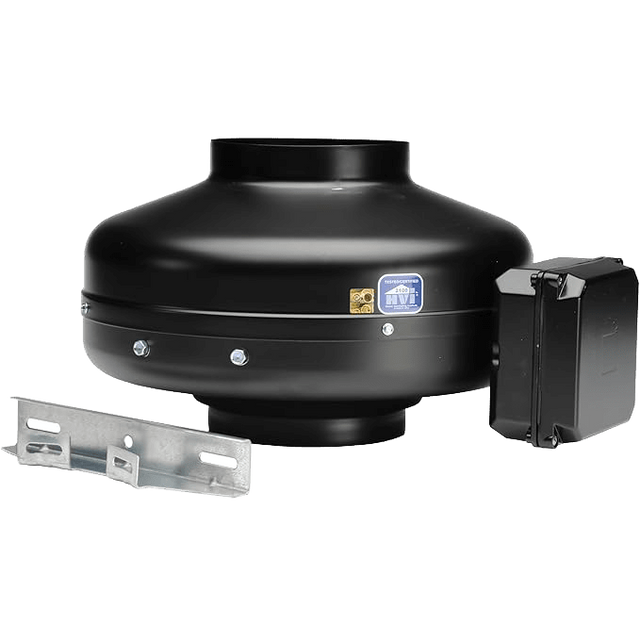

S&P PV-250X Powervent 10-in. Inline Centrifugal Duct Fan
Pre-wired Junction Box
Mounting Bracket
Owner’s Manual

Info & Guides

Description

The S&P PV-250X Powervent 10-inch Inline Centrifugal Duct Fan is a durable, long-lived powerhouse that can be used with complex ventilation systems or for passive cooling. This inline duct fan provides up to 618 CFM of airflow while allowing versatile placement in 10-inch round ducting.

Simple Installation: Includes steel mounting bracket and pre-wired junction box for installation. The extra-long inlet and discharge collars make installation easy.

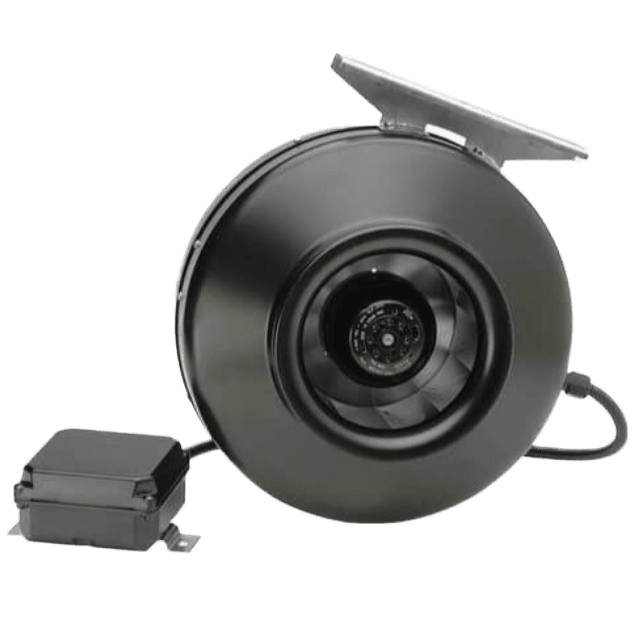

Versatile: The PV-250X can be mounted at any angle and at any point along the duct.
Durable: Galvanized steel casing with a baked enamel coating is designed to last.

Airflow Power

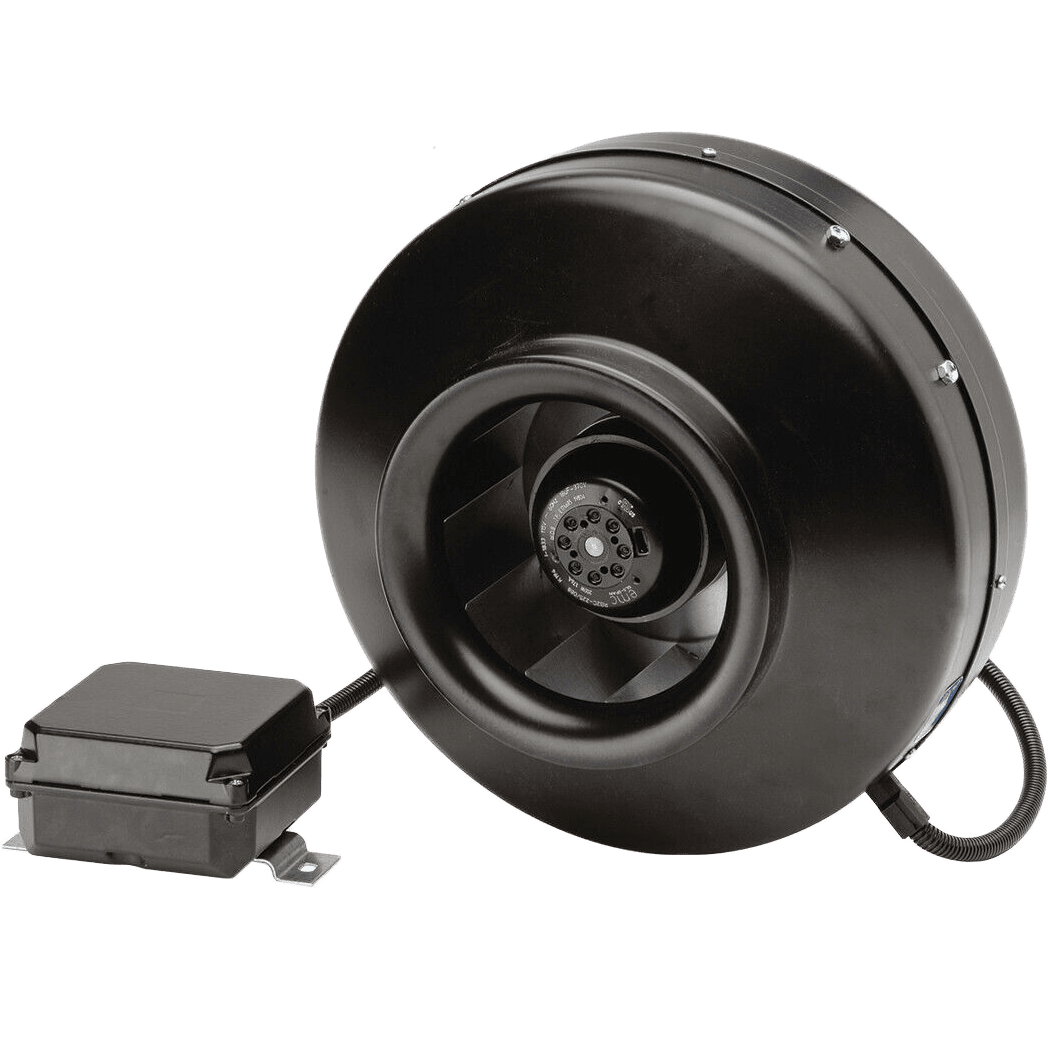

The external rotor motor is factory-matched to a non-overloading backward curved centrifugal fan wheel for exceptional airflow. Completely enclosed, the permanent split capacitor start and run external rotor motor is dynamically balanced to eliminate vibration. This inline centrifugal duct fan is virtually maintenance-free with permanently sealed, self-lubricating precision ball bearings.

Also featuring safety thermal overload protection with automatic cut-out, this motor design provides several benefits.

Outstanding Airflow: Provides excellent performance against the typically high static pressure found in ducted ventilation systems.
Long Life: The Powervent inline duct fan is designed for continuous operation up to 40,000 hours.
Protection: Because the motor is fully enclosed, it is also protected from moisture, lint, and high-particulate air.
Full Speed Control: Control fan speed using voltage or frequency control regulators.

Additional Features

Standard Electrical: Inline duct fan operates on a 115 volt/60Hz single phase standard electrical connection.
Fast Installation: A strong galvanized steel mounting bracket and pre-wired junction box are included for fast installation.
Working Temperature: The S&P inline duct fan can operate up to 158 degrees F in working airstreams.
Safety Listed: UL and cUL listed, ETL listed.
Airflow Tested: Bears the AMCA seal and is certified by the HVI (Home Ventilating Institute) for air performance.

Sylvane’s Expert Take

The impressive motor design of this S&P inline duct fan, with its permanently sealed rotor motor and backward curved centrifugal fan wheel, can withstand high static pressure and deliver the dependable, outstanding airflow customers need.

High Performance: S&P’s durable motor design creates impressive airflow and provides versatile placement/mounting options. The pre-wired junction box and mounting bracket make this duct fan fast and easy to install.
Dependable Durability: A totally enclosed motor with permanent ball bearings never needs lubrication and is protected from external damage.
