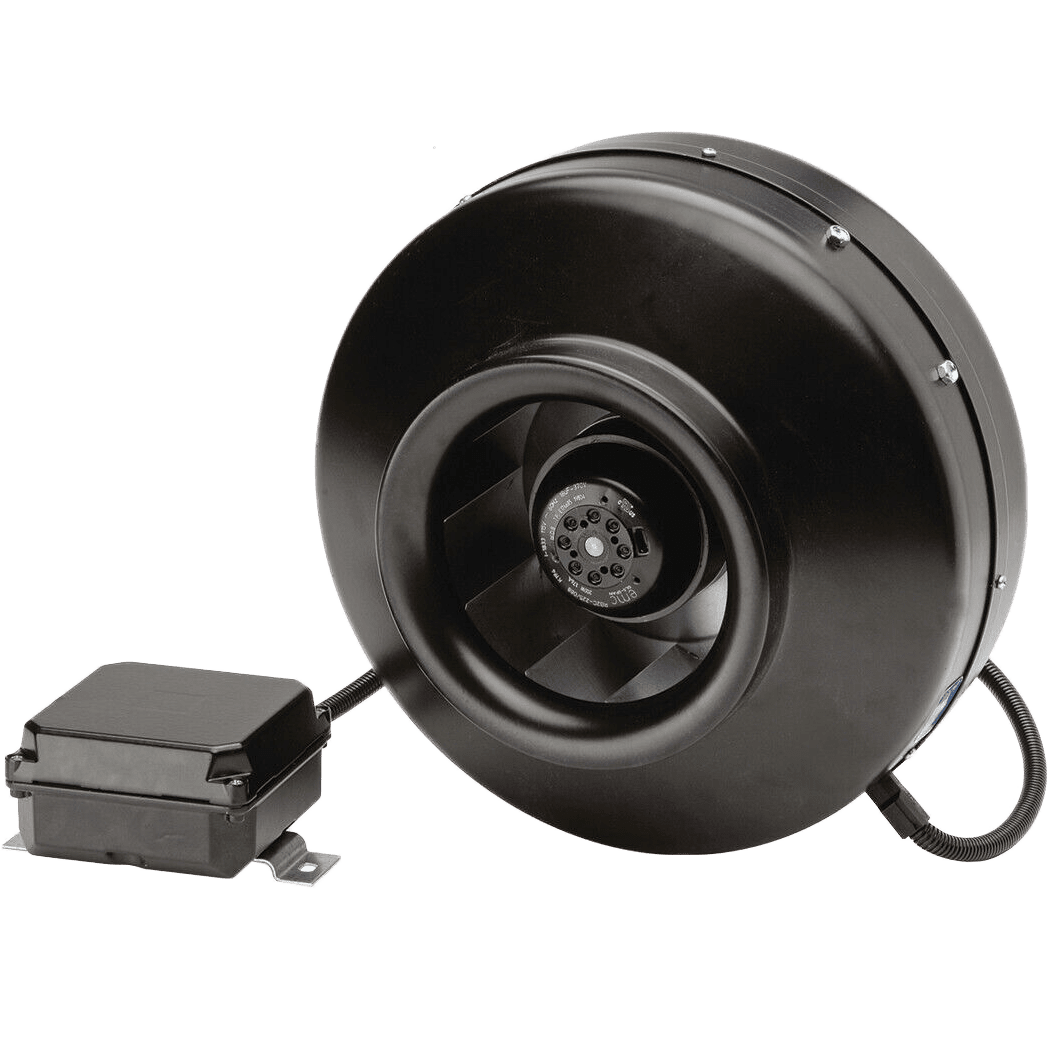

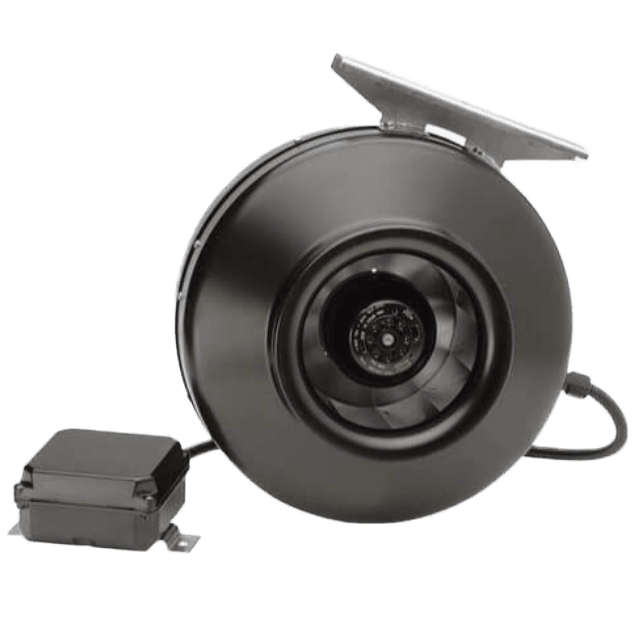

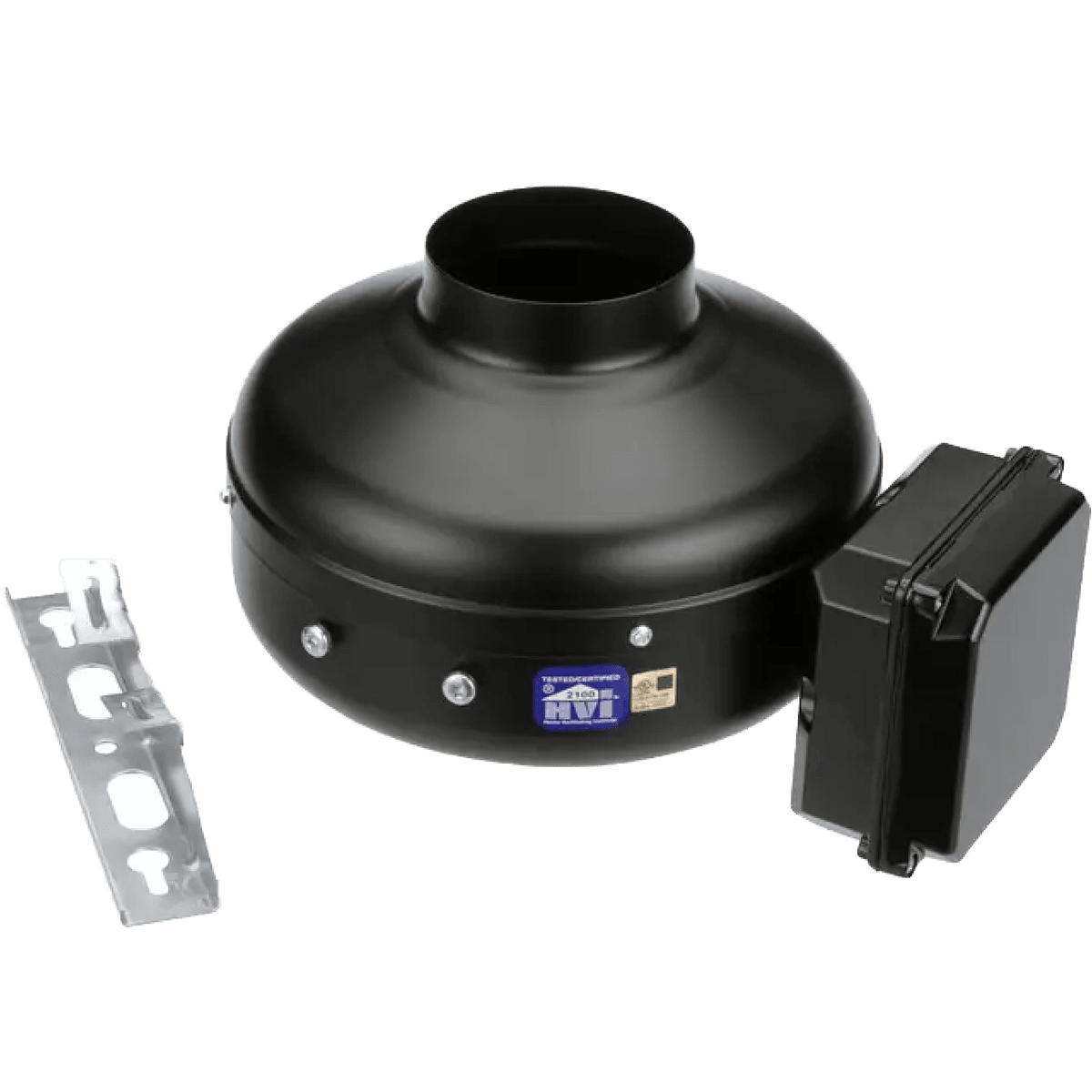

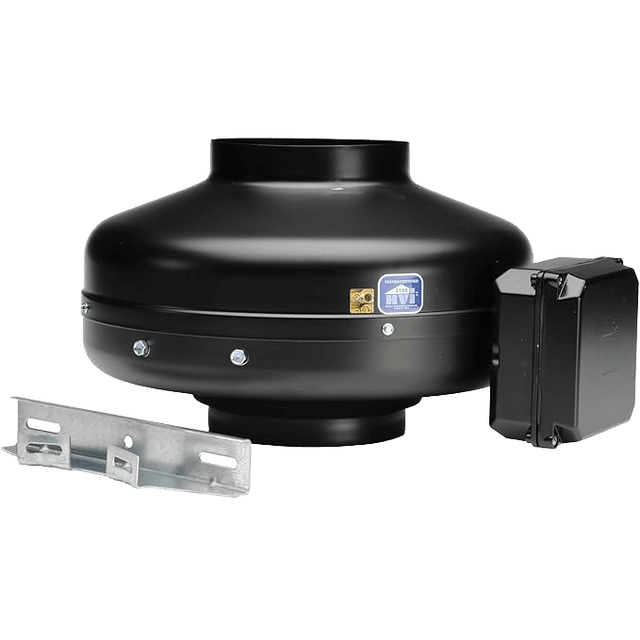

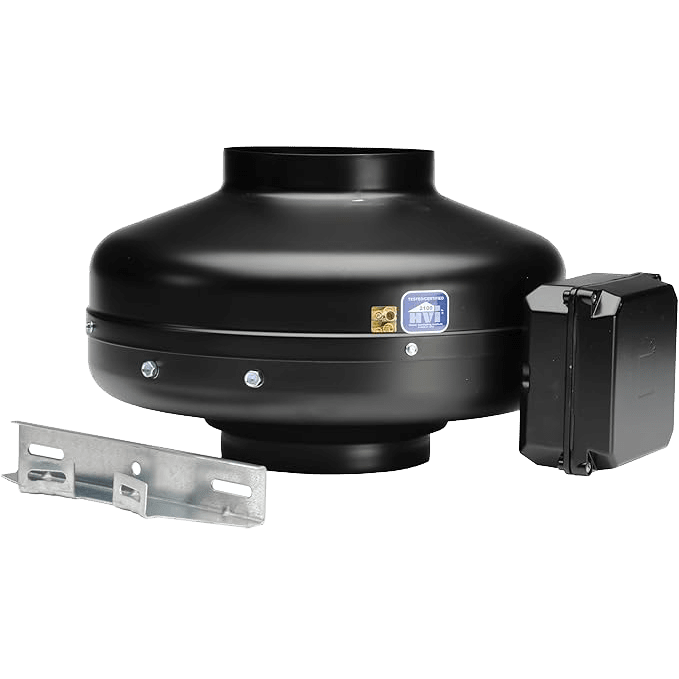

S&P PV-315X Powervent 12.4-in Inline Centrifugal Duct Fan

Name: S&P PV-315X Powervent 12.4-in Inline Centrifugal Duct Fan
Brand: S&P
Price: 532.0 USD
Availability: InStock

SKU: sp15699 | Model: PV-315X

$532.00

FREE shipping on orders over $45!

In Stock Usually ships in 5 business days.

Add extended protection plan. (Select one)

2-Year Warranty - $74.99

learn more

A 2-year major appliance warranty for products less than $1,500.

4-Year Warranty - $119.99

learn more

A 4-year major appliance warranty for products less than $1,500.

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

5-Year Limited Warranty

What's In The Box?

S&P PV-315X Powervent 12.4in. Inline Centrifugal Duct Fan
Pre-wired Junction Box
Mounting Bracket
Owner’s Manual

Info & Guides

Description

The S&P PV-315X Powervent 12.4-inch Inline Centrifugal Duct Fan provides reliable, powerful airflow that can be used for passive cooling of large areas or with complex ventilation. This inline duct fan provides up to 943 CFM of airflow with versatile placement in 12.4-inch duction applications.

Simple Installation: This duct fan includes a steel mounting bracket and a pre-wired junction box. The extra-long inlet and discharge collars make installation easy.
Durable: Galvanized steel casing with a baked enamel coating is designed to last.
Versatile: The PV-315X can be mounted at any angle and at any point along the duct.

Powerful Airflow

S&P has designed its powerful motor to be virtually maintenance-free. The external rotor motor is factory-matched to a non-overloading backward curved centrifugal fan wheel for exceptional airflow of 943 CFM. The completely enclosed, permanent split capacitor start and run external rotor motor is dynamically balanced to eliminate vibration for extra-smooth running.

This motor design provides several additional benefits, featuring safety thermal overload protection with automatic cut-out.

Outstanding Airflow: Provides excellent performance against the typically high static pressure found in ducted ventilation systems.
Long Life: The Powervent inline duct fan features sealed-for-life bearings which never require lubrication and is designed for continuous operation up to 40,000 hours.
Protection: Because the motor is fully enclosed, it is also protected from moisture, lint, and high-particulate air.
Full Speed Control: Control fan speed using voltage or frequency control regulators.

Additional Features

Standard Electrical: Inline duct fan operates on a 115 volt/60Hz single phase standard electrical connection.
Working Temperature: The S&P inline duct fan can operate up to 158 degrees F in working airstreams.
Safety Listed: UL and cUL listed, ETL listed.
Airflow Tested: Independently tested and is certified to bear the AMCA seal for air performance.
Fast Installation: A strong galvanized steel mounting bracket and pre-wired junction box are included for fast installation.

Sylvane’s Expert Take

The powerful motor design of this S&P 12.4-inch inline duct fan, with its permanently sealed rotor motor and backward curved centrifugal fan wheel, can withstand high static pressure. Customers will appreciate its dependable, outstanding airflow ventilation of large rooms or complex systems.

High Performance: S&P’s durable motor design creates impressive airflow and provides versatile placement/mounting options. The pre-wired junction box and mounting bracket make this duct fan fast and easy to install.
Dependable Durability: A totally enclosed motor with permanent ball bearings never needs lubrication and is protected from external damage.
