S&P reFresh Low Profile RF8 Air Supply Fan w/ AC Motor
S&P reFresh Low Profile RF8 Air Supply Fan w/ AC Motor - RF8 Fan w/ ES24V is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- S&P RF8 reFresh Low Profile Filtered Air Supply Fan with AC Motor
- Envirosense ES24V Controller (optional)
- Mounting Brackets (2)
- Owner’s Manual
S&P reFresh Low Profile RF8 Air Supply Fan w/ AC Motor
Description
Description

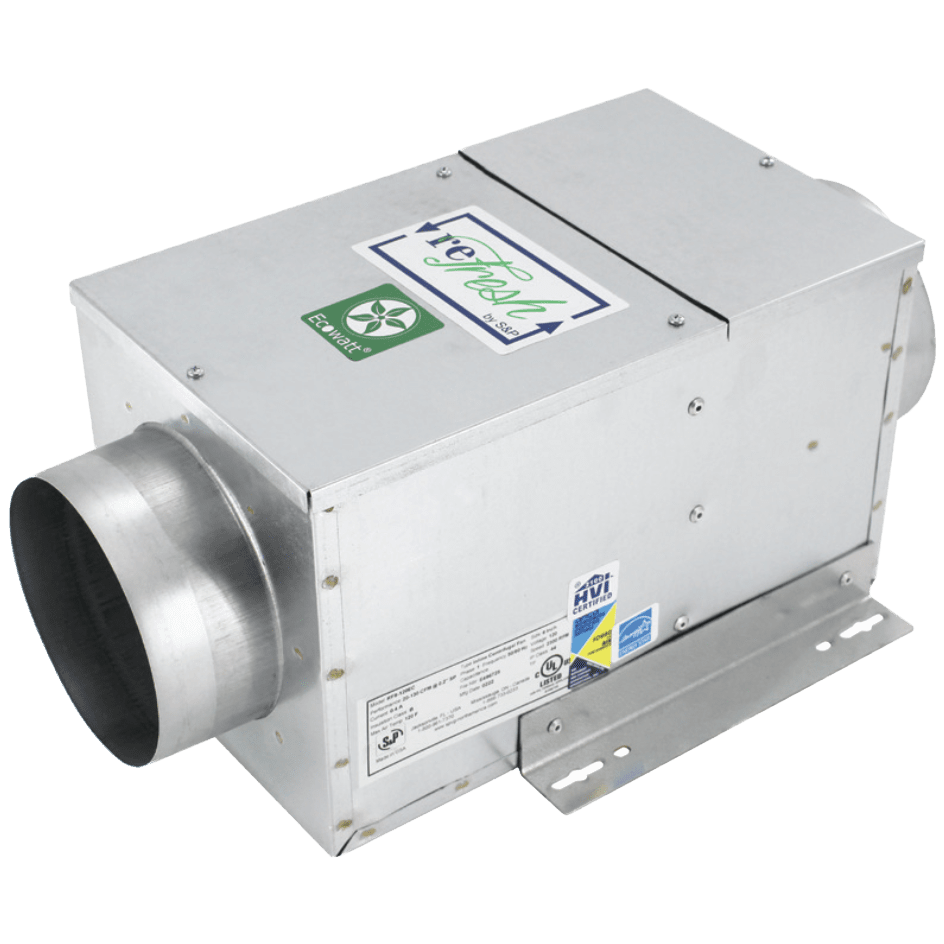

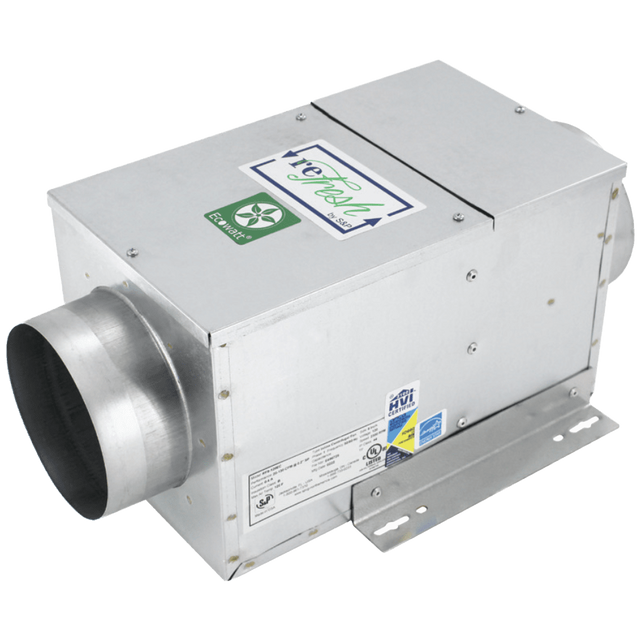

Refresh stale indoor air with the S&P reFresh Low Profile RF8 Air Supply Fan with AC Motor as it exchanges indoor air with fresh outside air. The reFresh series fits 6-inch round ducts and features an integral backdraft damper and mounting tabs that allow for mounting in any orientation to make installation easy. The centrifugal fan within is a backward inclined wheel for an angle to improve efficiency. This 10-inch, all-in-one unit is available with or without a controller.
- AC Motor: The high-quality AC impeller motor is a 4-pole, permanently lubricated, thermally protected motor. It is protected by an inlet guard.
- Durable Construction: This fresh air supply fan is made with galvanized 26-gauge steel. It has an insulated housing and sealed-for-life bearings.
- Speed Controllable: An internally mounted speed control sets the required intake at low (40 CFM), medium (100 CFM), and high (140 CFM). A built-in test port is easy to access for quick airflow measurement.
- Optional Air Filter: A 2-inch-wide air filter slot fits a MERV 8 or MERV 13 air filter, which reduces allergens and fine dust as fresh air flows through the building. Both filters are available for purchase separately.
Available Models

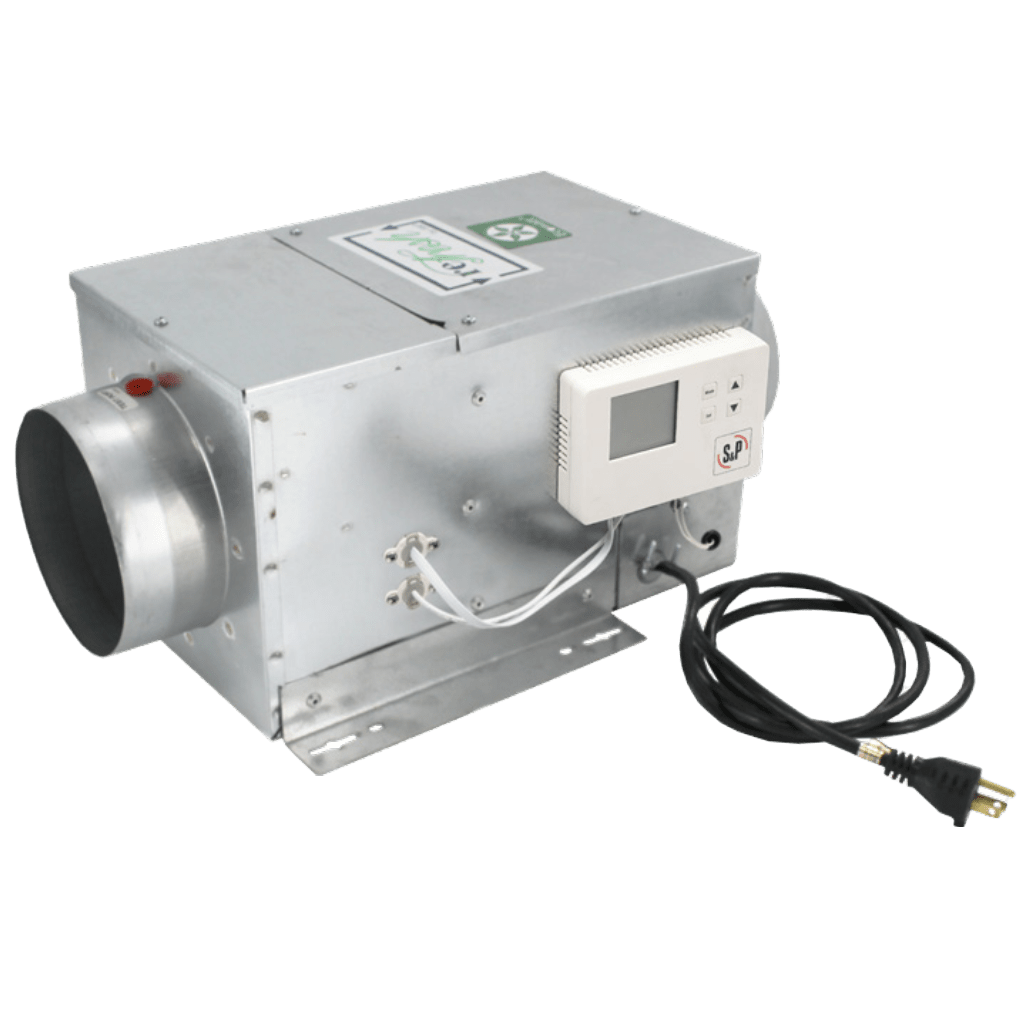

Each available model includes a 6-foot-long power cord. You can choose to include an Envirosense ES24V controller mounted on the outside of the unit. It features an easy-to-read back-lit LCD screen, humidity and temperature sensors, and an Eco mode for efficient operation.
Certifications and Licenses
The reFresh series complies with ASHRAE 62.2 CFM requirements for building and energy codes, including:
- AMCA Air and Sound Licensed
- HVI Certified performance
- cULus 507 Listed
- Buy American (2009) and Build America, Buy America (BABA), as part of IIJA (2022)
Sylvane’s Expert Take
This S&P air supply fan allows homeowners to enjoy fresh outside air of up to 140 CFM. This durable appliance meets all energy and building codes for ASHRAE 62.2 CFM requirements.
- EC Motor Option: The reFresh low-profile appliances equipped with an EC motor are Energy Star qualified.
- Filter Options: This supply fan contains a filter slot measuring 8 x 8 x 2 inches to add an optional MERV 8 or MERV 13 filter.
Specifications
Specifications
-
Number of Speeds3
-
California Residents⚠ WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.www.p65warnings.ca.gov.
-
CertificationscULus, HVI
-
ColorGray
-
ControlsElectronic
-
Maximum Cubic Feet per Minute (CFM) (CFM)140.0
-
Amperage (Amps)0.63
-
Power SupplyPlug
-
Voltage (V)110-120
-
Watts (W)74.1
-
Depth (in.)19.08
-
Depth (with front cover) (in.)19.08
-
Duct Diameter (in.)6.0
-
Height (in.)8.758.74
-
Height (with front cover) (in.)8.758.74
-
Weight (lbs.)1817
-
Width (in.)11.5
-
Width (with front cover) (in.)11.5
-
Additional FeaturesThermal Cutoff Protection
-
Manufacturer's Warranty5-Year Limited Warranty
