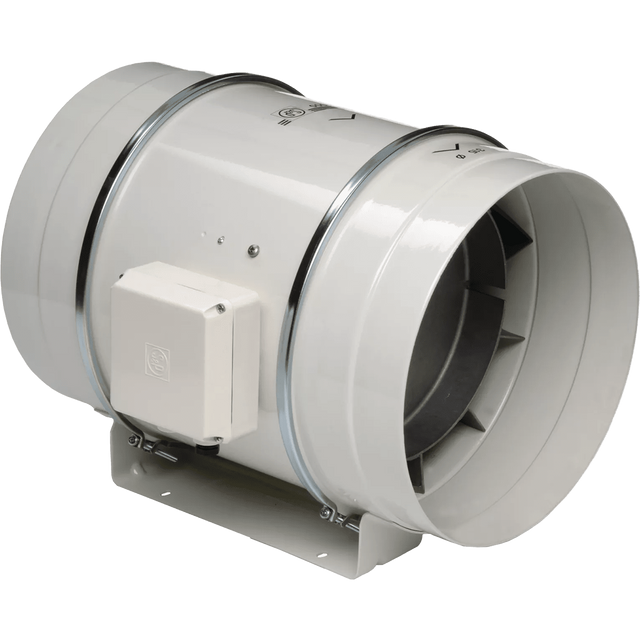

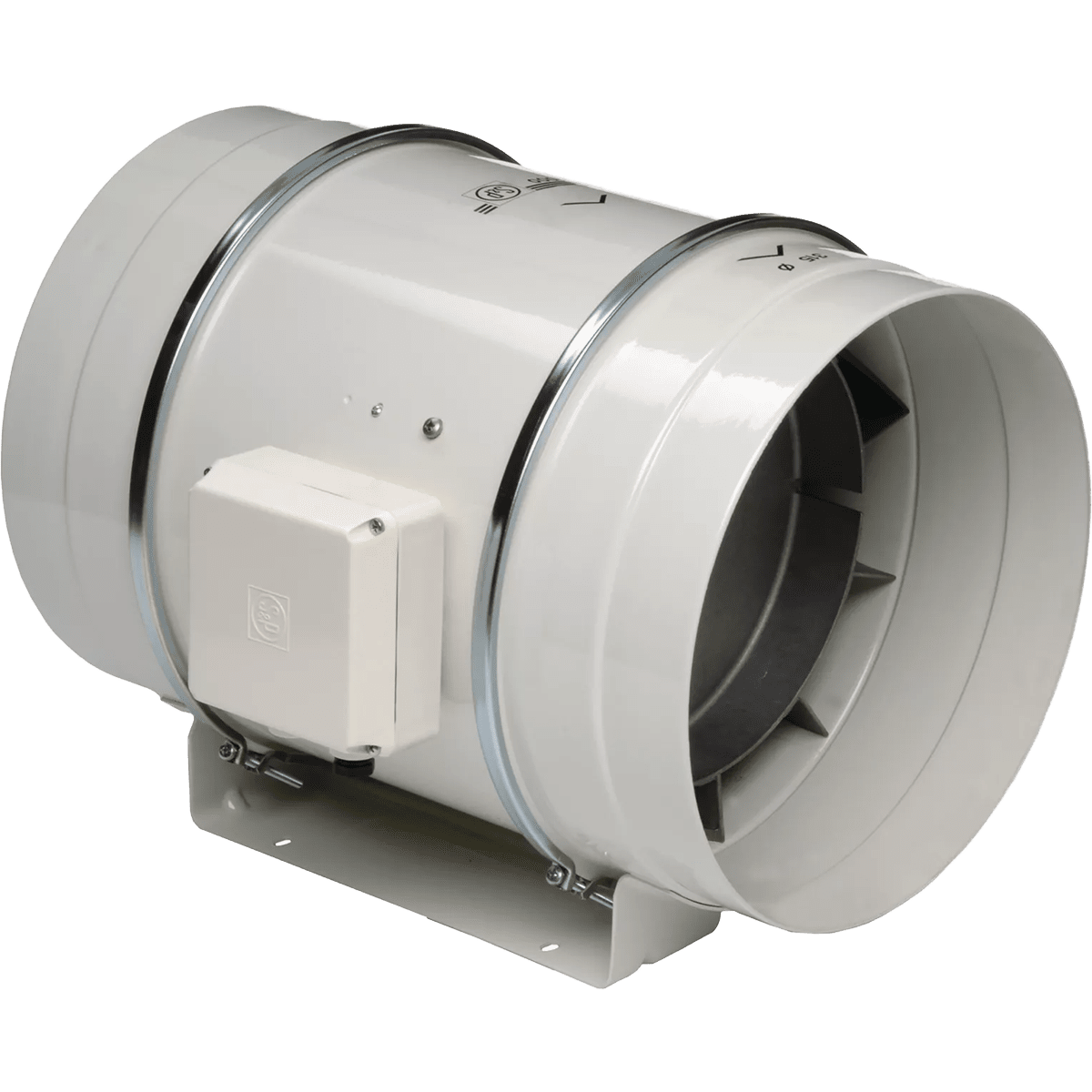

S&P TD-400 16-inch Mixed Flow Inline Duct Fan

Name: S&P TD-400 16-inch Mixed Flow Inline Duct Fan
Brand: S&P
Price: 1941.0 USD
Availability: InStock

SKU: sp15741 | Model: TD-400

$1,941.00

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

5-Year Fan Housing and Motor Warranty

What's In The Box?

S&P TD-400 Inline Duct Fan

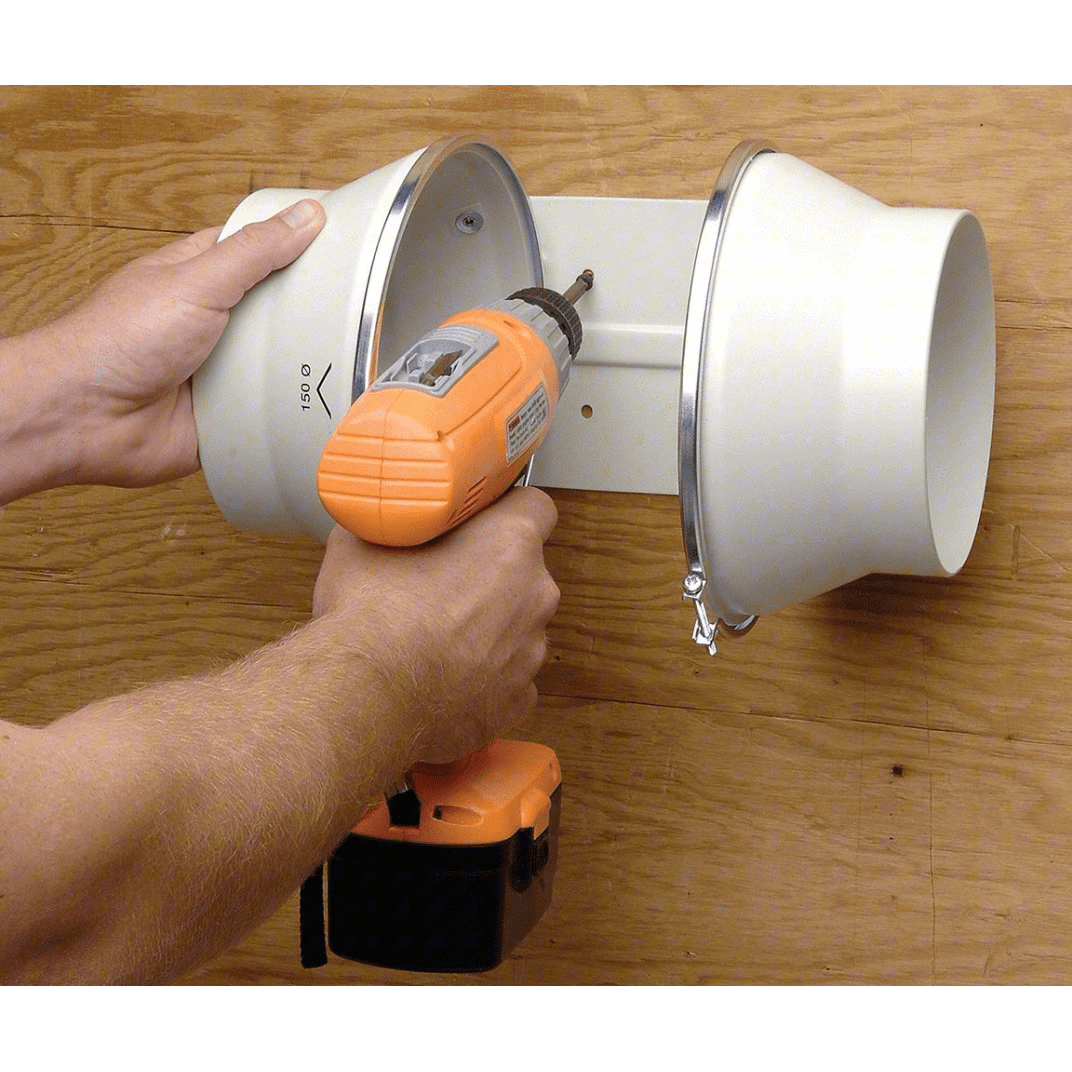

Mounting Brackets and Hardware
Installation and Operation Manual

Info & Guides

The S&P TD-400 16-inch Mixed Flow Inline Duct Fan is excellent when used for applications requiring high airflow and static pressure. It features a mixed-flow impeller and an innovative removable body design.

The TD-400 integrates into existing HVAC systems, offering professional contractors and installers flexibility and efficiency during ventilation setup.

Top Features

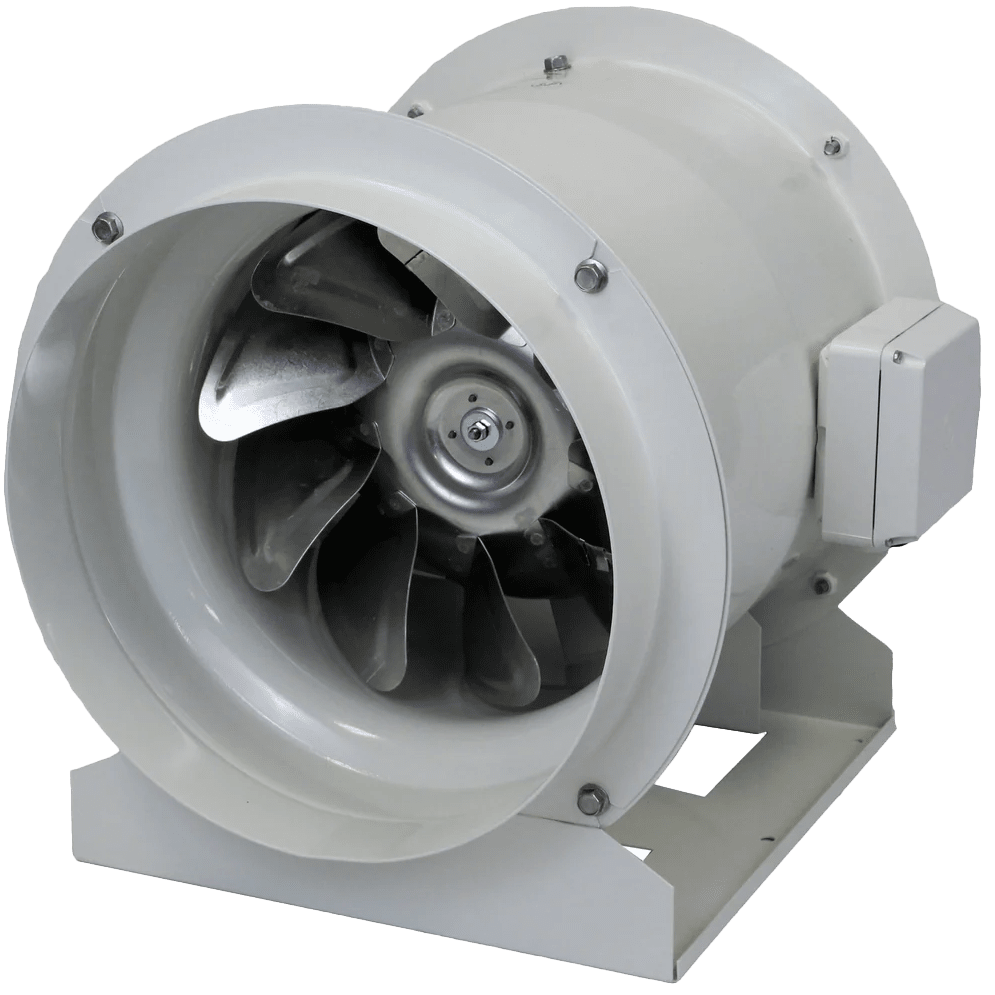

Mixed Flow Impeller: This model features a mixed flow impeller to deliver an exceptional airflow-to-pressure ratio. It produces an airflow of up to 3127 CFM and performs in static pressure conditions up to 1.2 inches w.g.
Energy Efficiency: This model has superior energy efficiency and cost-effectiveness and carries an Energy Star qualification.
Safety and Durability: This fan is built to last with IP44-rated protection, safety thermal overload protection, and housed in a tough epoxy-polyester coated metal casing.
Compact Design: This model is a lightweight and compact solution for installation in tight spaces like ceiling voids, cabinets, and other constrained environments.
Removable Body: The TD-400 motor-impeller assembly can be fitted or removed without disturbing the ducting, simplifying maintenance and reducing downtime.

Additional Features

Certified Performance: These models are AMCA-certified for air performance and have UL and cUL listings, ensuring compliance with industry standards.

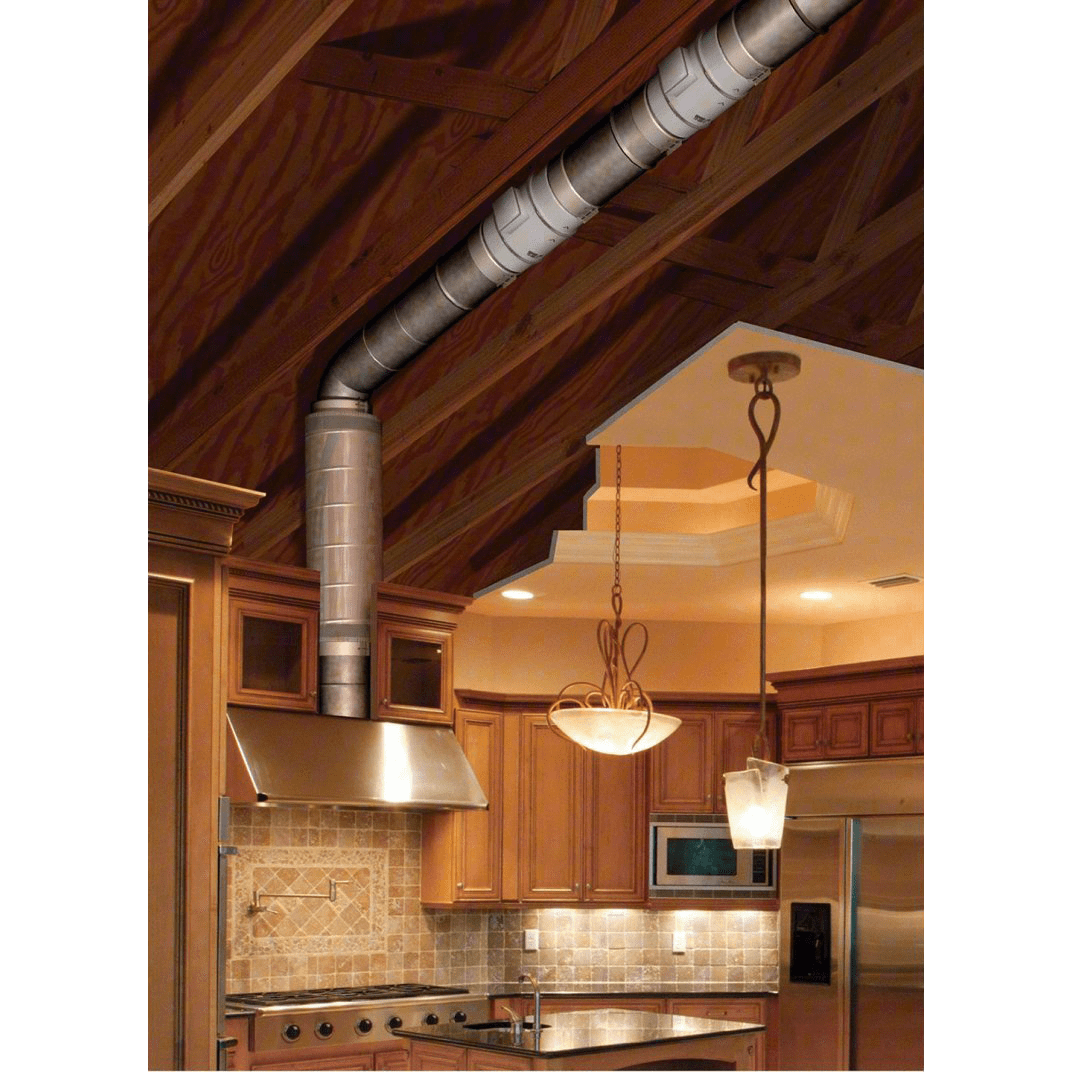

Various Applications: This fan series excels in residential and commercial kitchen, bathroom, and general ventilation applications.

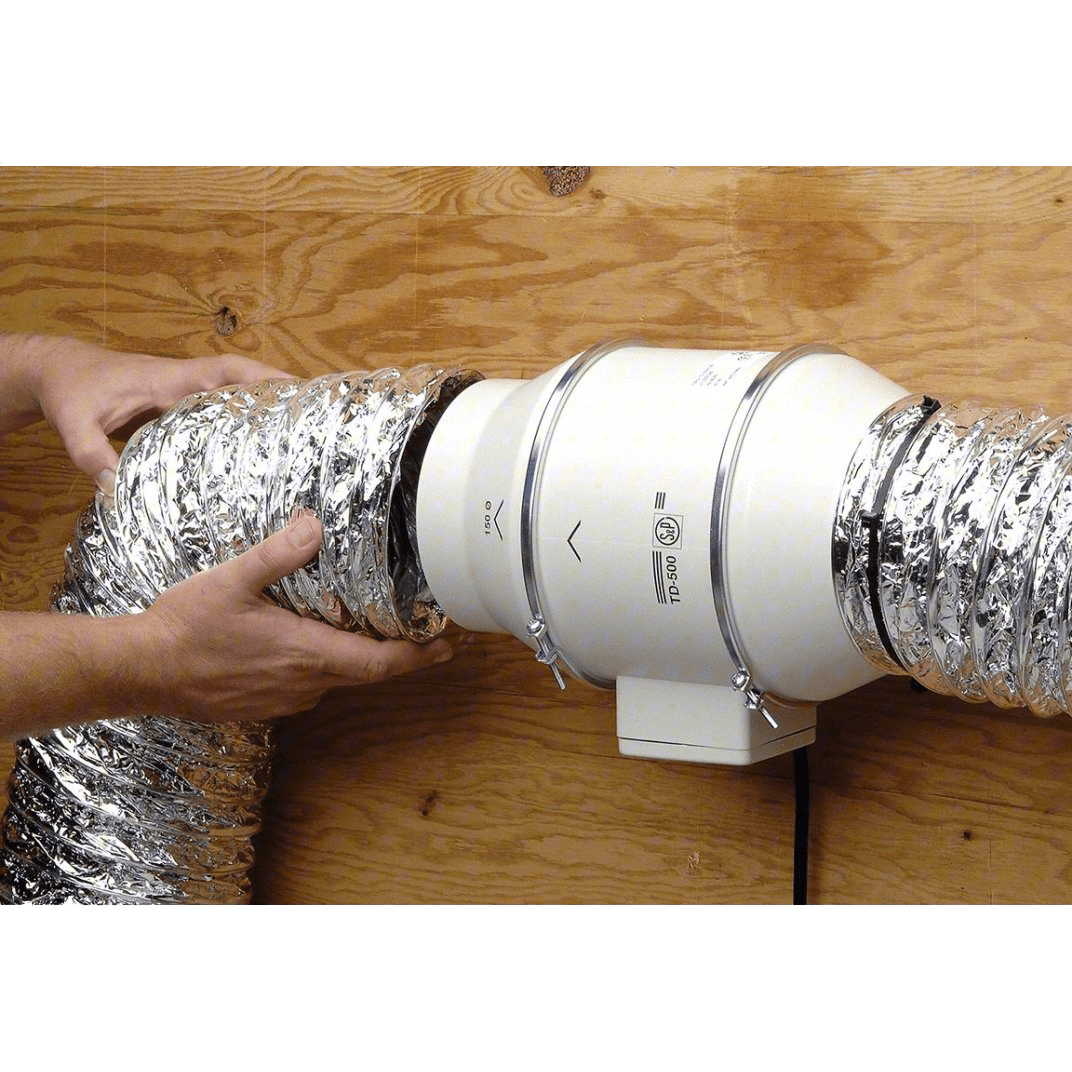

Installation Flexibility: The TD-400 can be installed in any orientation and fits 16-inch round ducts.
Quiet Operation: Designed to minimize in-duct and radiated noise, these fans are ideal for applications where noise reduction is critical.
Easy Electrical Connection: These units operate on a standard 120 VAC 60 Hz power supply and feature straightforward wiring requirements.

Sylvane’s Expert Take

Industry professionals and installers will appreciate the S&P TD-400 Inline Duct Fan’s powerful ventilation airflow and superior design for tight spaces. It provides airflows of up to 3127 CFM.

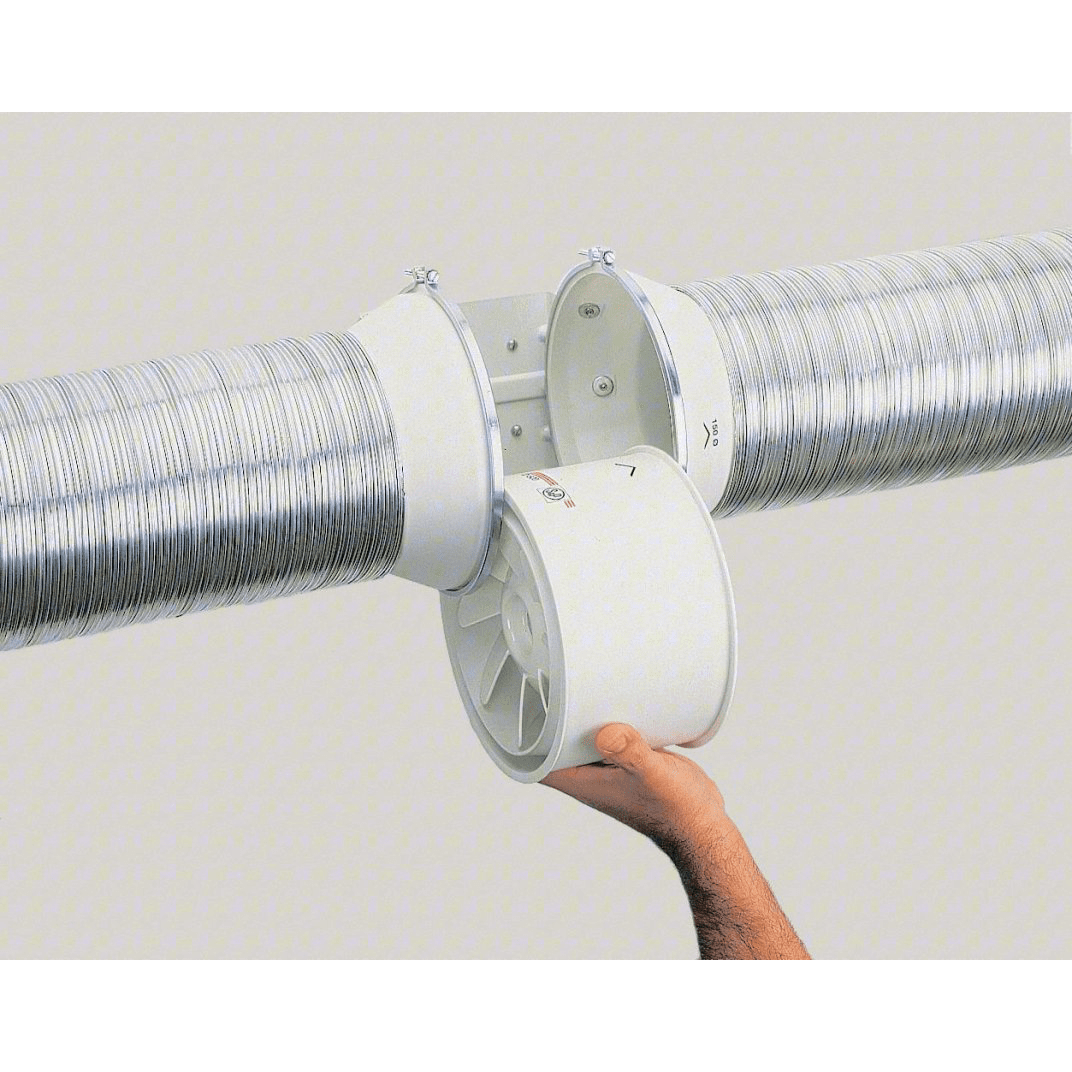

Removable Design: This fan’s support bracket design allows the motor and impeller assembly to be fitted or removed without dismantling adjacent ducting, making installation and maintenance easy.
Silent Operation: This model maximizes airflow performance while maintaining minimal noise levels.

Key Specifications

Number of Speeds

Variable
Type

Mixed Flow Inline Duct Fan

General

Application

Ducting, Residential, Commercial/Industrial
Certifications

UL, cUL, HVI, cULus
Color

White
Controls

Electronic
Maximum Air Temperature (degrees F)

104
Maximum Cubic Feet per Minute (CFM) (CFM)

3127.0
