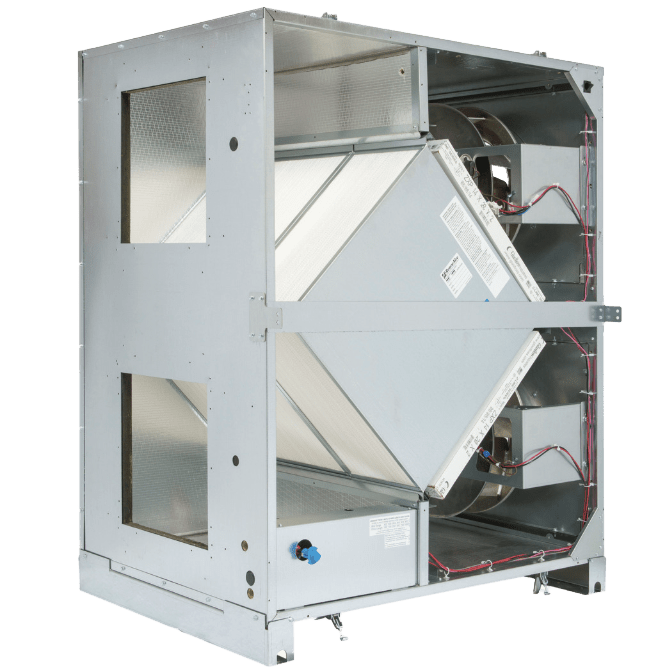

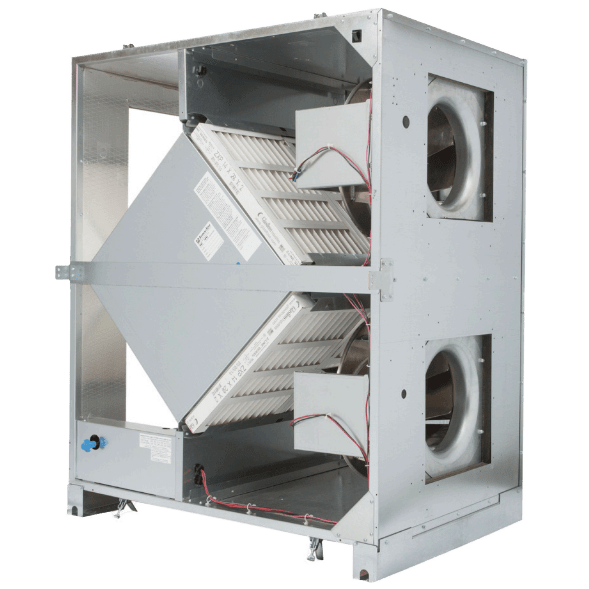

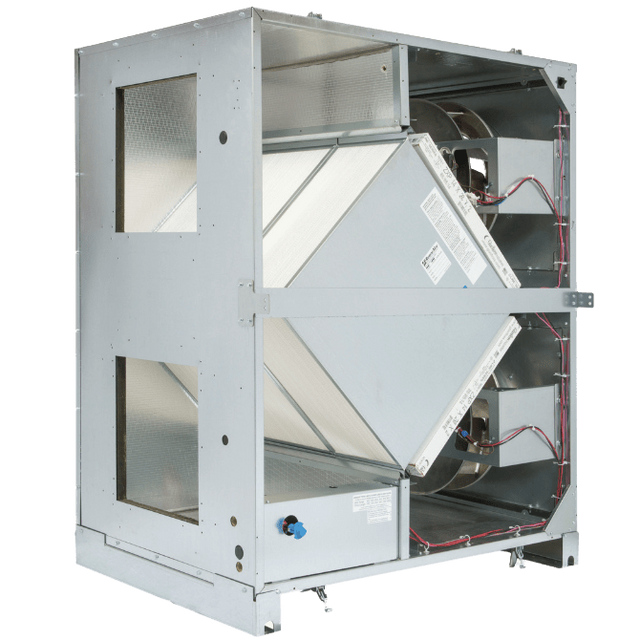

S&P TRC1200 1575 CFM Commercial Energy Recovery Ventilator
S&P TRC1200 1575 CFM Commercial Energy Recovery Ventilator - 460V 3Ph is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- S&P TRC1200 1575 CFM Commercial Energy Recovery Ventilator

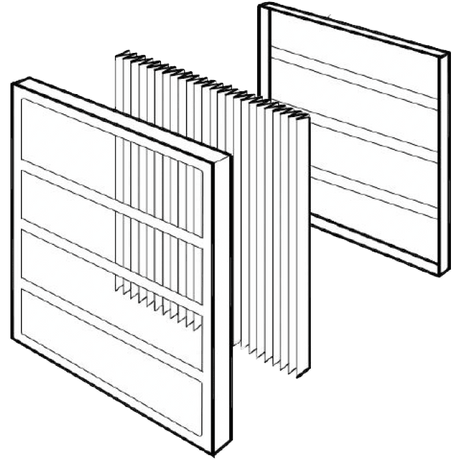

- MERV 8 - 14 x 20 x 2 (2)
- MERV 8 - 16 x 20 x 2 (2)
- Installation and Operating Manual
Info & Guides
Info & Guides
S&P TRC1200 1575 CFM Commercial Energy Recovery Ventilator
Description
Description
The S&P TRC1200 Commercial Energy Recovery Ventilator provides fresh air exchanges to improve the indoor air quality of commercial spaces in any climate.
This Commercial ERV uses two 1.0 HP direct drive motorized impellers and side-by-side AHRI 1060 certified energy recovery cores to deliver an airflow of 375 to 1575 cubic feet per meter with high efficiency and fan efficacy.

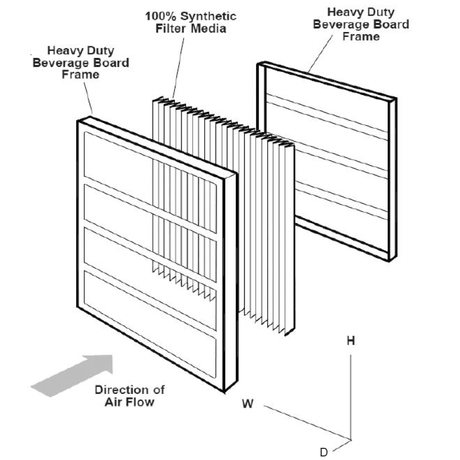

The fully insulated case features access doors for quick and easy access to the unit’s blowers, core, and filter. This model uses four MERV 8 filters (two 14 x 20 x 2-inch filters and two 16 x 20 x 2-inch filters) to remove impurities from outside air and room air.
Power Options
Customers can choose from four different models to best fit a space’s power requirements:
- 120 V 1P (Single Phase): 60 Hz, 6.5 FLA (per motor), 14.6 minimum circuit amps, 20 amps MOPD.
- 208-230 V 1P (Single Phase): 60 Hz, 3.3-3.4 FLA (per motor), 7.7 minimum circuit amps, 15 amps MOPD.
- 208-230 V 3P (Three Phase): 60 Hz, 2.2 FLA (per motor), 5.0 minimum circuit amps, 15 amps MOPD.
- 460 V 3P (Three Phase): 60 Hz, 1.1 FLA (per motor), 2.5 minimum circuit amps, 15 amps MOPD.
The TRC1200 also has a non-fused disconnect, and a 24 VAC transformer relay package to power and connect optional accessory controllers.
High Efficiency Cores
The TRC1200 uses one L125-G5 full core and a secondary L62-G5 half-core, which crossflows indoor and outdoor airflows using S&P’s “air-to-air” technology. This provides the highest energy recovery possible while keeping airflows separated.
The resin recovery cores have a unique moisture transfer capability that eliminates moisture and frost build-up in most applications, resulting in higher efficiency and more reliable operation. Additionally, this model does not require a condensate pan or draining solution.
Easy Installation
The TRC1200 is manufactured with two floor stands for upright, floor-level installation. It may also be hung on a wall or suspended from a ceiling by bolting mounting straps or brackets directly to the sheet metal case. This ERV connects to new or existing ducting with 18 x 18-inch square receiving flanges.
Certifications
The TRC1200 series is AHRI Certified, cETLus Listed, and meets the requirements of Buy American (2009) and Build America, Buy America (BABA) as part of IIJA (2022).
Sylvane’s Expert Take
Use the S&P TRC1200 to provide reliable and efficient air exchanges for commercial spaces. HVAC professionals will love this unit's easy installation and maintenance, powerful airflow, and effective energy recovery cores, which improve indoor air quality as required by modern building codes.
- Twin Motors: Airflow from this ERV is driven by two 1.0 HP single- or three-phase direct-drive motorized impeller packages.

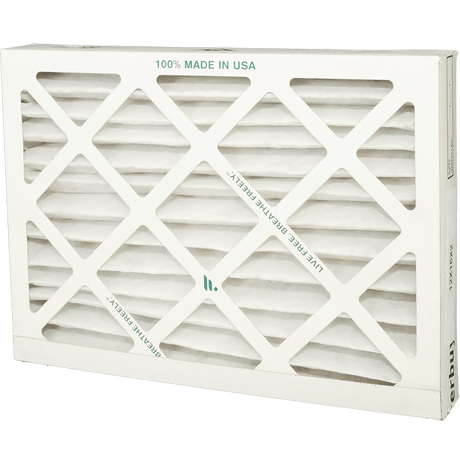

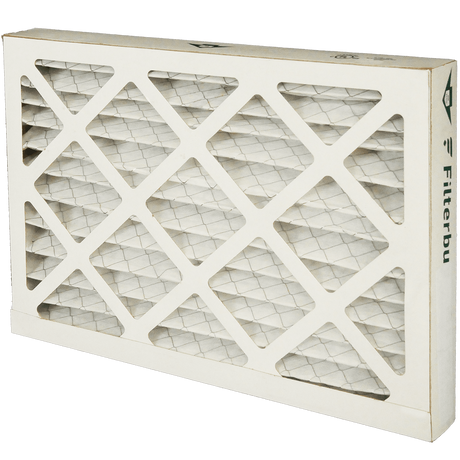

- Filters: This ERV's outdoor and room airflows are filtered by MERV 8 filters, so room air stays clean and stale air impurities are removed. An optional MERV 13 filter can be found here.
Specifications
Specifications
-
Minimum Cubic Feet per Minute (CFM) (CFM)375.0
-
Mounting TypeFloor, Wall, Suspended
-
Port LocationSide
-
TypeERV-Air Supply Fan
-
ApplicationCommercial/Industrial
-
California Residents⚠ WARNING: This product can expose you to chemicals including formaldehyde, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.www.p65warnings.ca.gov.
-
CertificationsAHRI, cETLus
-
ColorGray
-
ControlsElectronic
-
Maximum Cubic Feet per Minute (CFM) (CFM)1575.0
-
Amperage (Amps)1.12.23.46.5
-
Power SupplyHardwired
-
Voltage (V)440-460208-240208-240110-120
-
Watts (W)1545
-
Depth (in.)53.63
-
Depth (with front cover) (in.)53.63
-
Duct Diameter (in.)6.0
-
Height (in.)34.5
-
Height (with front cover) (in.)34.5
-
Weight (lbs.)337
-
Width (in.)48.75
-
Width (with front cover) (in.)48.75
-
Manufacturer's Warranty10-Year Core Warranty, 2-Year Unit Warranty
