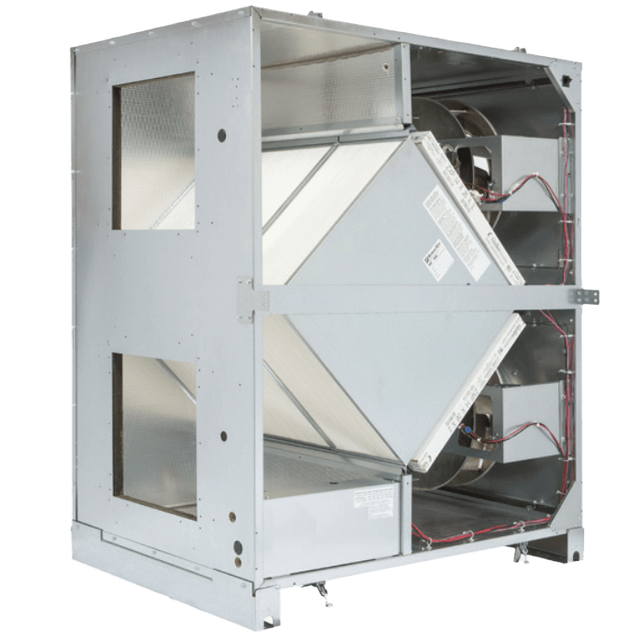

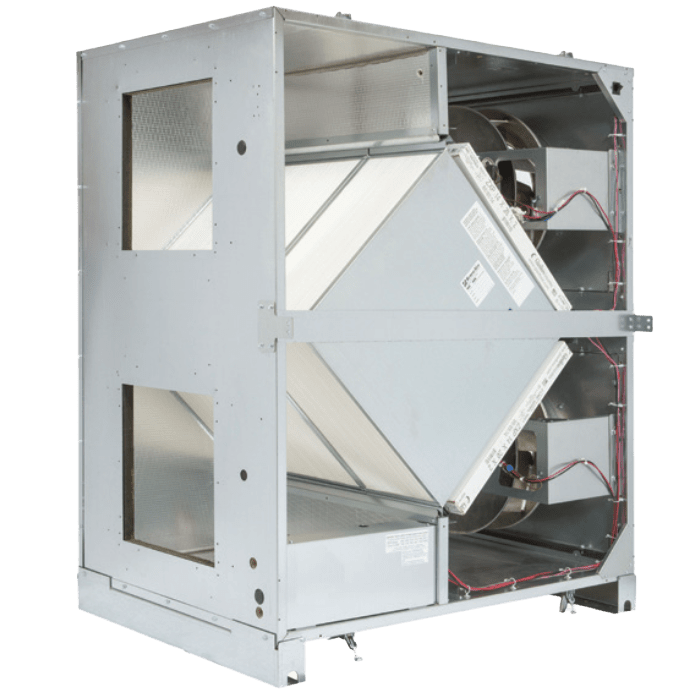

S&P TRCeN1200H 1575 CFM Commercial Energy Recovery Ventilator w/ EC Motor

SKU: sp15658 | Model: TRCeN1200H-115

$13,185⁰⁰

Voltage

120V 1Ph 230V 1Ph

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Email

Manufacturer's Warranty

10-Year Core Warranty, 2-Year Unit Warranty

What's In The Box?

S&P TRCeN1200H 1575 CFM Commercial Energy Recovery Ventilator
MERV 8 - 14 x 20 x 2 (2)
MERV 8 - 16 x 20 x 2 (2)
Installation and Operating Manual

Info & Guides

The S&P TRCeN1200H Commercial Energy Recovery Ventilator provides fresh air exchanges to improve the indoor air quality of commercial spaces in any climate.

This commercial ERV uses two direct-drive electronically commutated blower motors and an AHRI 1060 certified energy recovery core to deliver an airflow of 369 to 1621 cubic feet per meter (CFM) with high efficiency and fan efficacy.

The fully insulated case features access doors for quick and easy access to the unit’s blowers, core, and filter. This model uses four MERV 8 filters (two 14 x 20 x 2-inch filters and two 16 x 20 x 2-inch filters) to remove impurities from outside air and room air.

Power Options

Customers can choose from two different models to best fit a space’s power requirements:

120 V Single Phase: 60 Hz, 480W ea., 6.7 FLA (per motor), 15.1 minimum circuit amps, 20 amps MOPD.
208-230 V Single Phase: 60 Hz, 770W ea., 3.4 FLA (per motor), 7.7 minimum circuit amps, 15 amps MOPD.

The TRCeN1200H also has a non-fused disconnect and a 24 VAC transformer relay package for simple on/off control, cross-core differential pressure ports, and independent blower control.

High Efficiency Cores

The TRCeN1200H uses one L62-G5 full core and a secondary L125-G5 half-core, which crossflows indoor and outdoor airflows using S&P’s “air-to-air” technology. This provides the highest energy recovery possible while keeping airflows separated.

The resin recovery cores have a unique moisture transfer capability that eliminates moisture and frost build-up down to -10 degrees F and 40 degrees RH, so no mechanical or electrical defrost systems are needed, resulting in higher heat recovery efficiencies and more reliable operation.

Easy Installation

The preferred mounting location is sitting on a concrete floor using the factory-provided leveling legs, or attached to a structural support or ceiling.

Cross-core differential pressure ports can be used for airflow adjustment and balancing with Dial-A-Flow.

Certifications

AHRI Certified
Ecowatt Certified
cETLus Listed
Buy American (2009) and Build America, Buy America (BABA) as part of IIJA (2022).

Sylvane’s Expert Take

Use the S&P TRCeN1200H to provide reliable and efficient air exchanges for commercial spaces. HVAC professionals will love this unit's easy installation and maintenance, powerful airflow, and effective energy recovery cores, which improve indoor air quality as required by modern building codes.

Twin Motors: Airflow from this ERV is driven by two single-phase direct-drive EC blower motor packages equipped with an on-board potentiometer for easy speed variation.
Filters: This ERV's outdoor and room airflows are filtered by MERV 8 filters, so room air stays clean and stale air impurities are removed. An optional MERV 13 filter can be found here.

Key Specifications

Minimum Cubic Feet per Minute (CFM) (CFM)

375.0
Mounting Type

Floor, Ceiling
Port Location

Side
Type

ERV-Air Supply Fan

General

Application

Commercial/Industrial
Certifications

AHRI, cETLus
Color

Gray
Controls

Electronic
Maximum Cubic Feet per Minute (CFM) (CFM)

1575.0
