S&P TRCeN800RT-230 1100 CFM Rooftop Commercial Energy Recovery Ventilator w/ EC Motor

SKU: sp16276  |  Model: TRCeN800RTV-230-1P
$10,836.00
Option

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

2-Year Warranty, 10-Year Core Warranty

What's In The Box?
  • S&P TRCeN800RT-230 1 PH Rooftop Commercial ERV (Horizontal or Vertical)
  • MERV 8 Filters - 20 x 20 x 2 inches (2)
  • Installation Kit
  • Owner’s Manual

Info & Guides

The S&P TRCeN800RT-230 Rooftop Commercial ERV is a high-performance ventilation solution for commercial or industrial building applications.

This model improves indoor air quality using an advanced energy recovery core that exchanges stale indoor air with fresh outdoor air while transferring humidity and heat between them. The transfer process minimizes energy loss, making it a sustainable choice for maintaining comfort and air quality in any facility.

The TRCeN800RT-230 features two electronically commutated motors for precise, energy-efficient airflow control with a high airflow output. Its rugged, galvanized steel cabinet and weather-resistant design ensure durability in outdoor installations.

Horizontal or Vertical Design

Depending on the system requirements, you can choose between horizontal (TRCeN800RTH) or vertical (TRCeN800RTV) airflow configuration. Each configuration includes attached hoods for exhaust and supply airstreams.

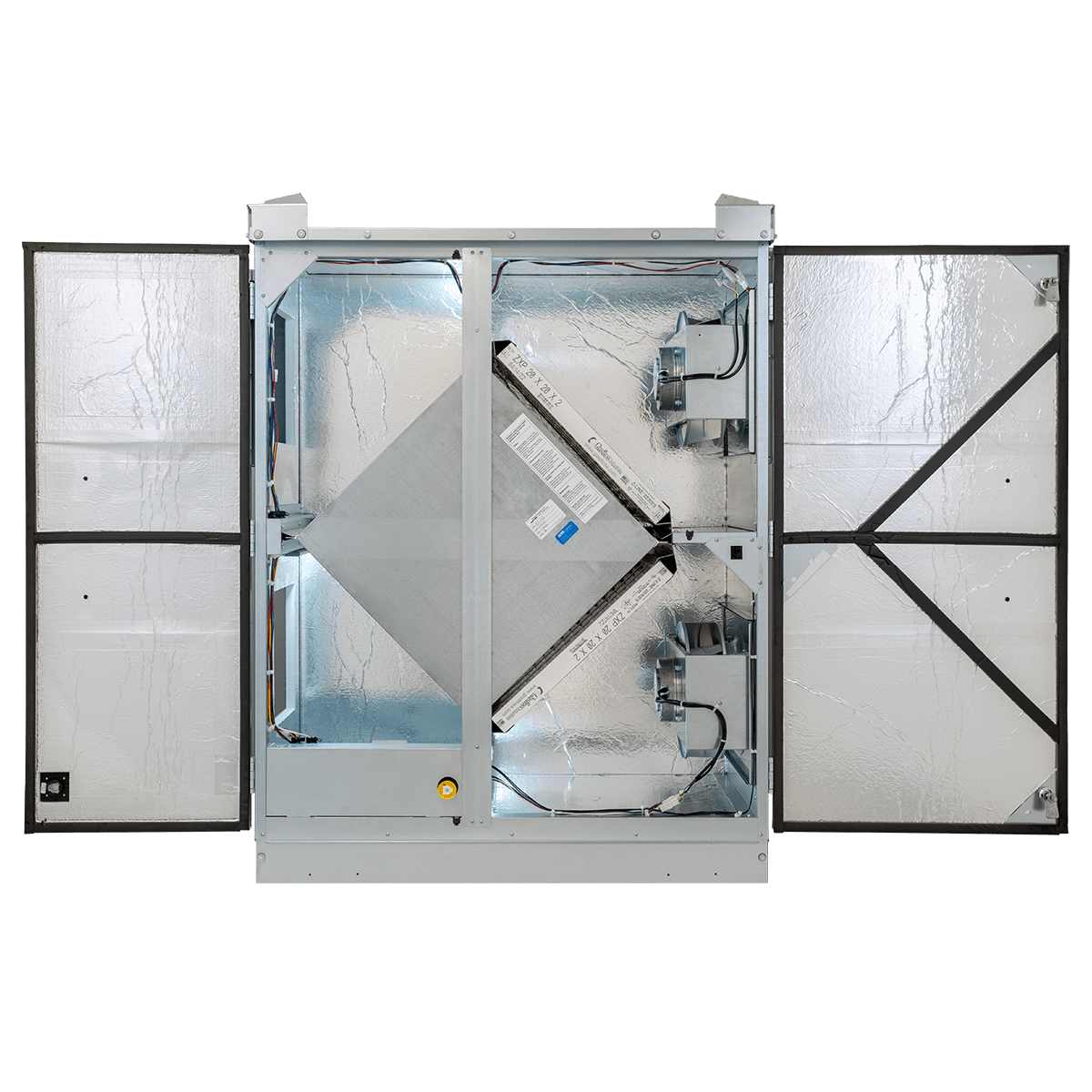

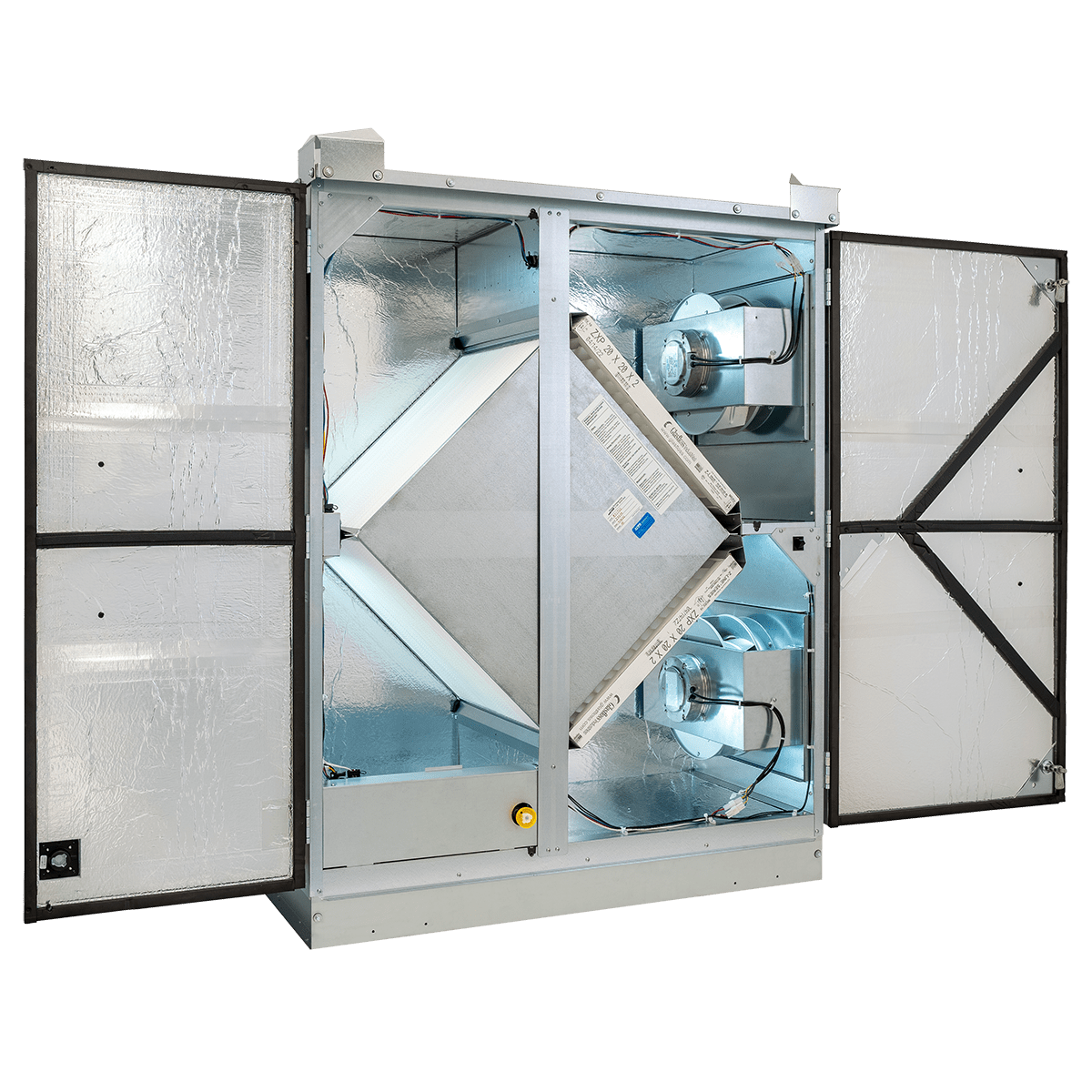

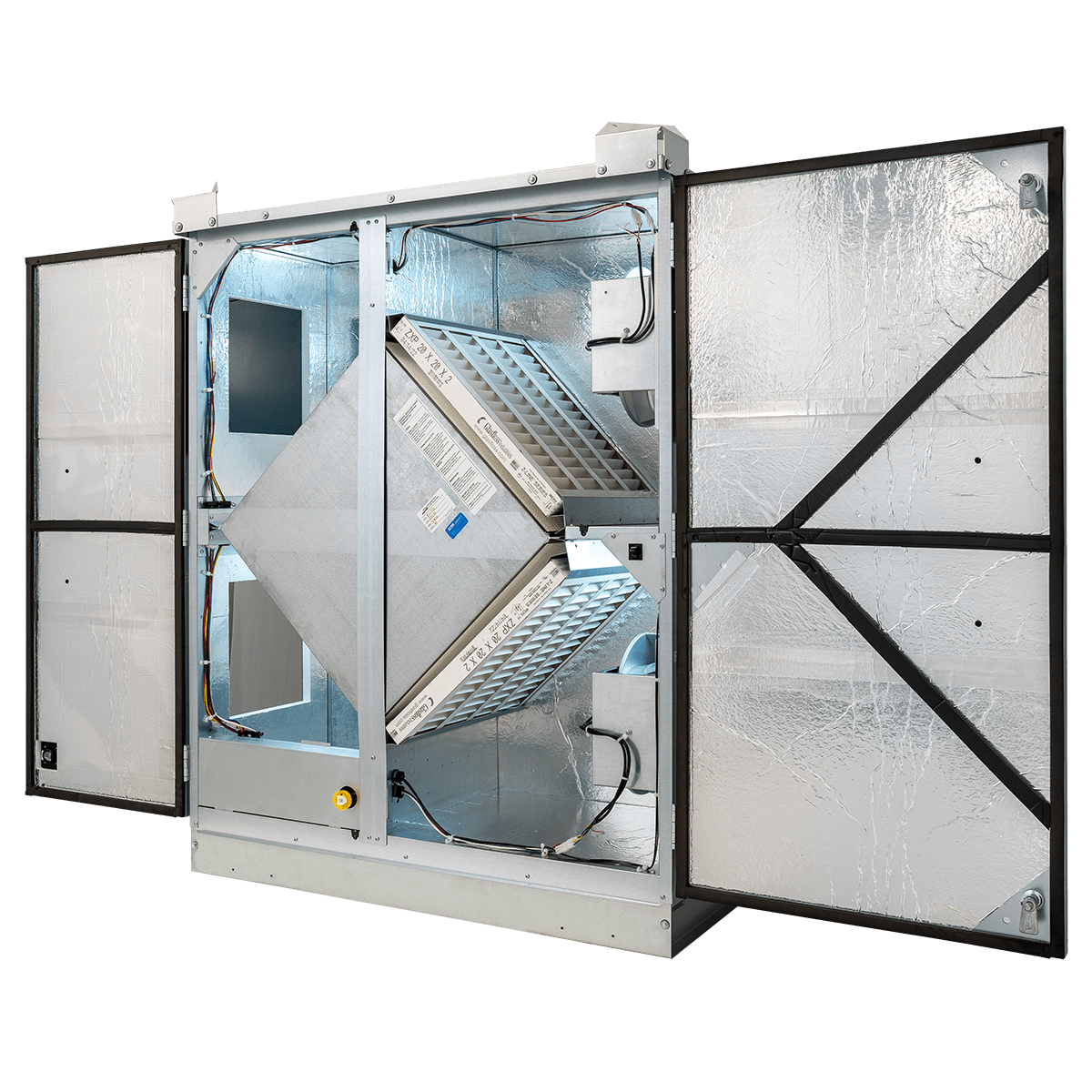

Ventilation Core

The TRCeN800RT-230 features an AHRI 1060-certified static plate core that efficiently transfers heat and humidity. Its ventilation is powered by dual 370W direct-drive motors that control precise, energy-efficient airflow.

  • Dual Filtration: It uses two MERV 8 filters (20 x 20 x 2 inches) to remove dust and debris from the air before it enters indoor spaces.
  • Airflow Capacity: This ERV produces airflow between 250 to 1,100 CFM (cubic feet per minute) for varying static pressure conditions.

Tough Enough for Any Environment

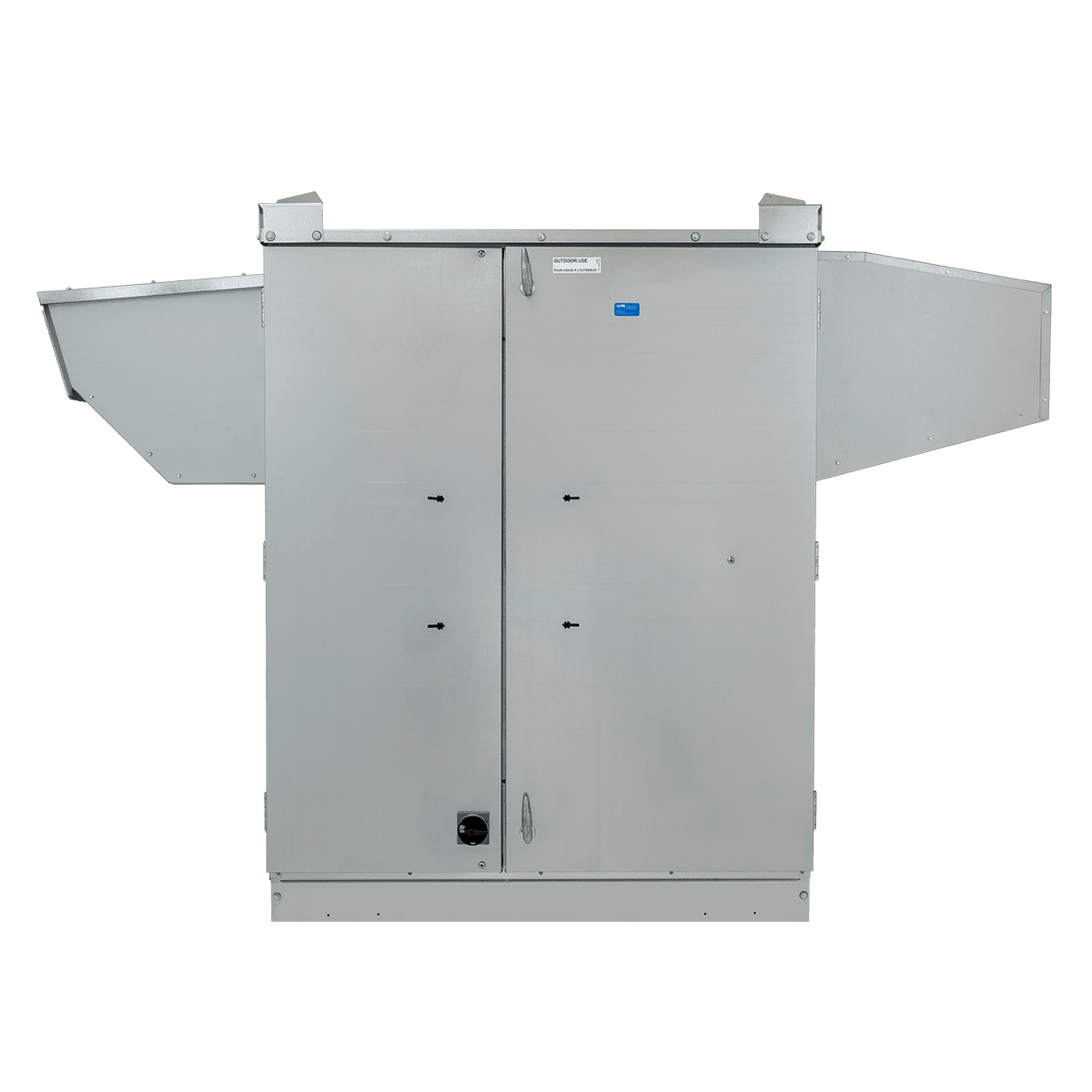

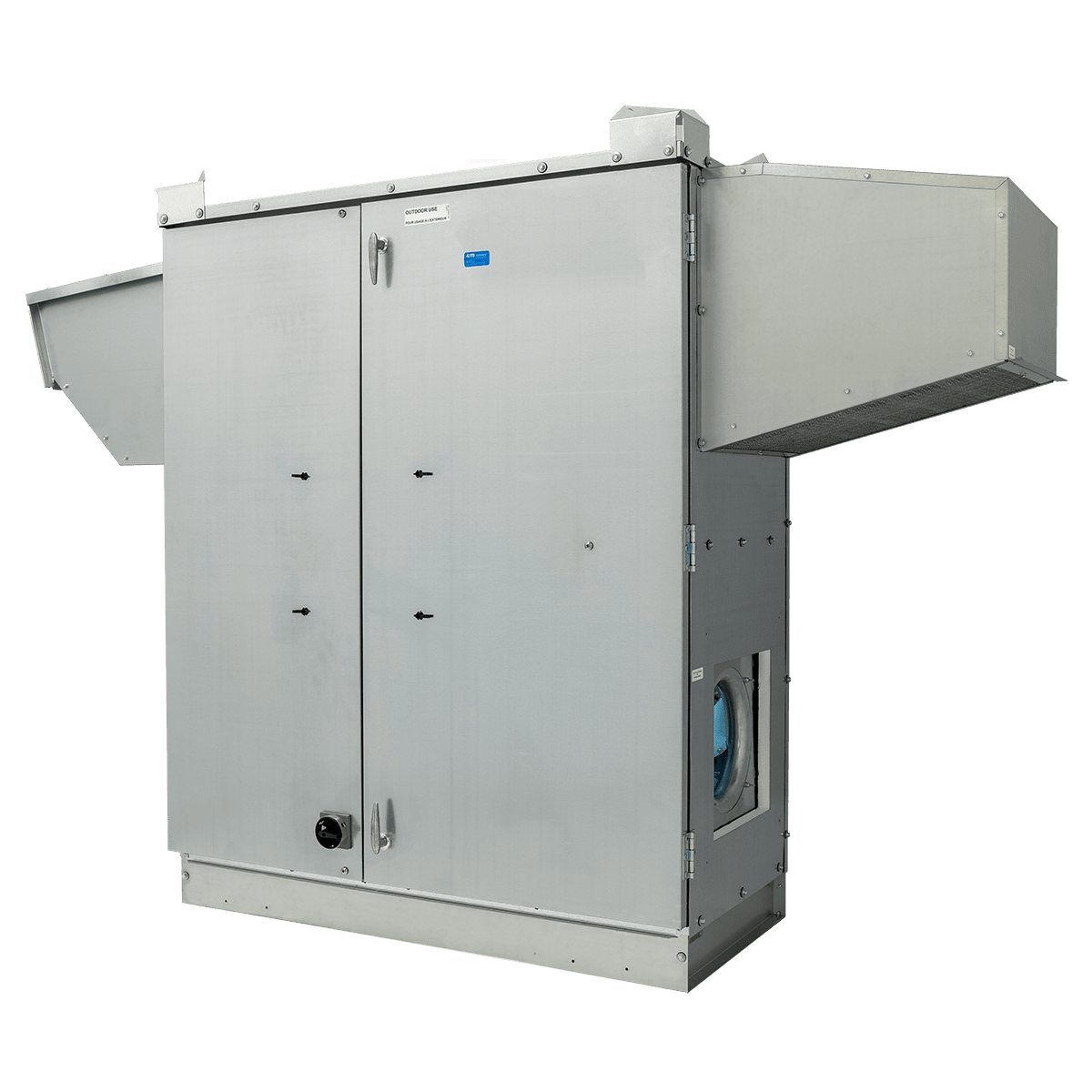

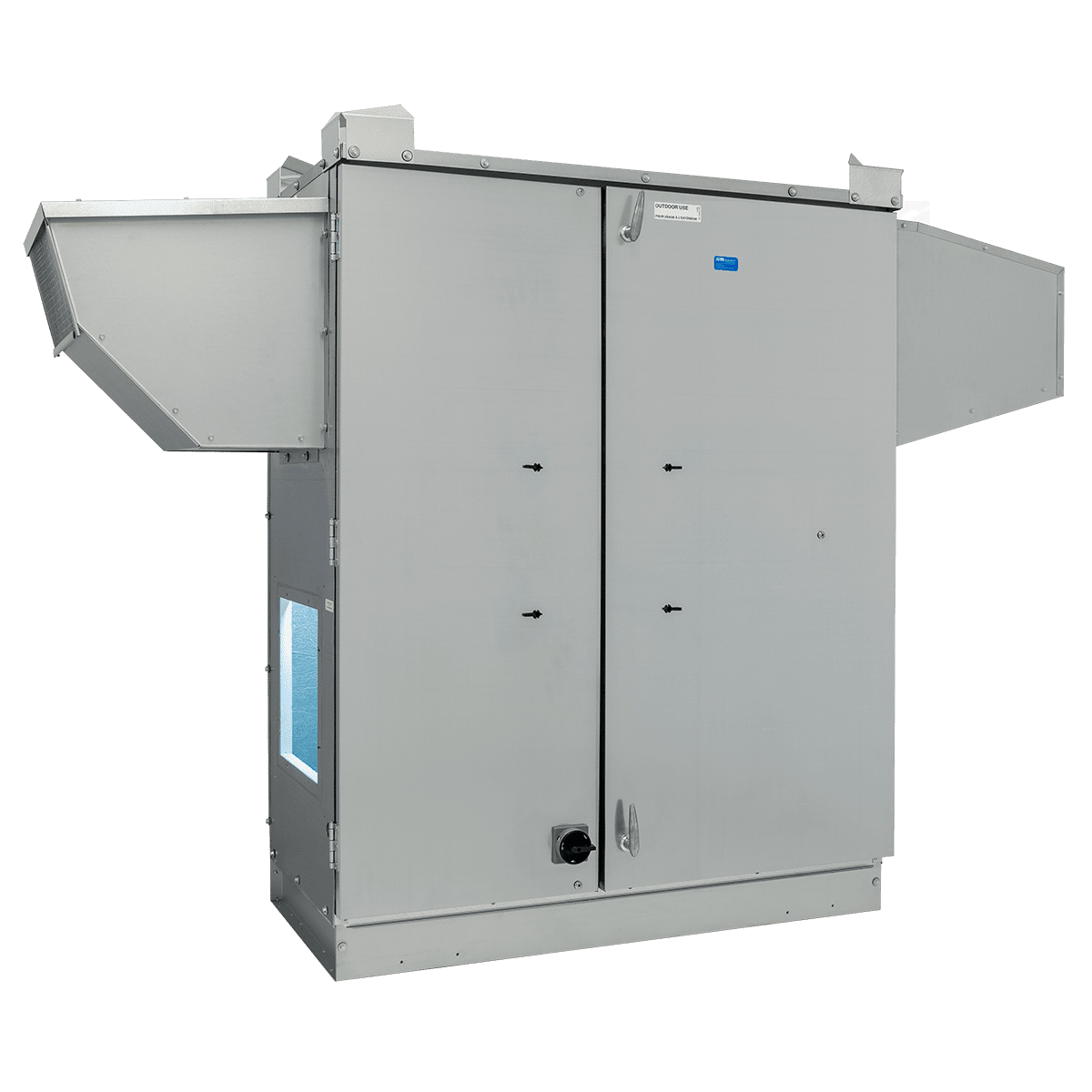

The ERV’s cabinet was designed for rooftop installation and can withstand the harshest outdoor conditions. The fully insulated case is relatively compact, allowing it to fit on rooftops with limited space.

  • Transformer and Relay Package: This model has a 24VAC transformer and relay package, which allows seamless integration with the building management system.
  • Tough Construction: The 20-gauge galvanized steel cabinet includes high-density insulation for thermal and acoustic efficiency.
  • Simple Installation: The design features lifting lugs, hinged doors, and a non-fused disconnect for quick setup and maintenance.
  • Buy American: It meets the requirements for the Buy American (2009) and Build American, Buy America (BABA) as part of the IIJA (2022).

Sylvane's Expert Take

This high-performance rooftop ERV stands out for its AHRI-certified energy recovery core that efficiently transfers heat and humidity, reducing energy costs. Its advanced motors and durable design ensure consistent airflow and reliable operation, even in harsh outdoor conditions.

  • Energy Savings: This ERV offers potential long-term savings by reducing HVAC load and supporting sustainable building goals.
  • HVAC Integration: Fully integrates with building automation systems to streamline monitoring, optimize performance, and simplify maintenance.
