S&P TRCeN800RT-230 1100 CFM Rooftop Commercial Energy Recovery Ventilator w/ EC Motor

SKU: sp16276  |  Model: TRCeN800RTV-230-1P
$10,83600
Option

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Email

Manufacturer's Warranty

2-Year Warranty, 10-Year Core Warranty

What's In The Box?
  • S&P TRCeN800RT-230 1 PH Rooftop Commercial ERV (Horizontal or Vertical)
  • MERV 8 Filters - 20 x 20 x 2 inches (2)
  • Installation Kit
  • Owner’s Manual

Info & Guides

Description

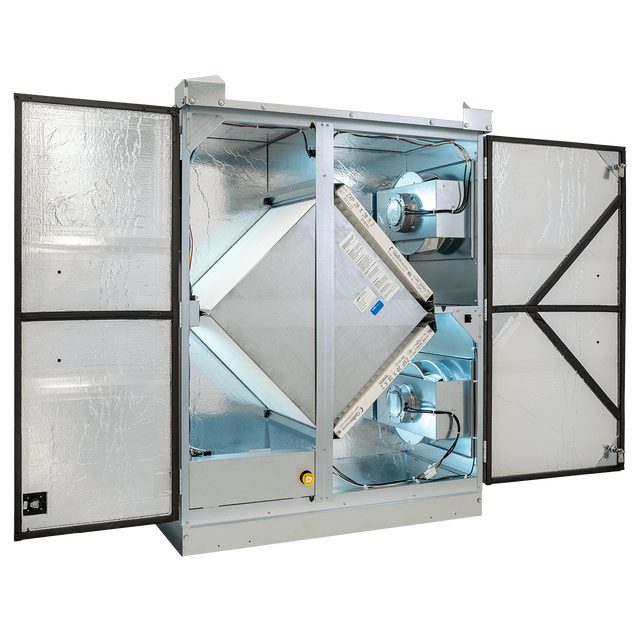

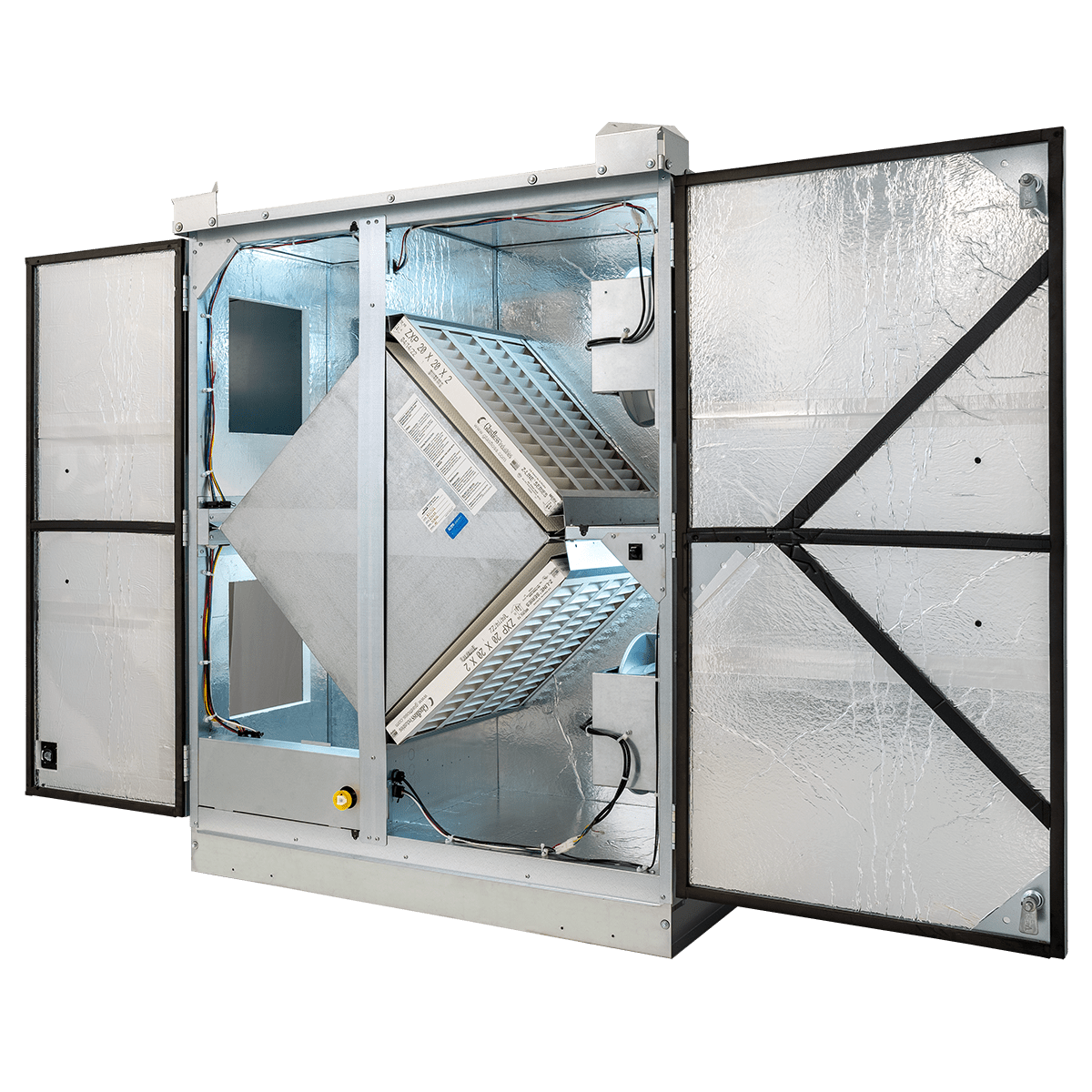

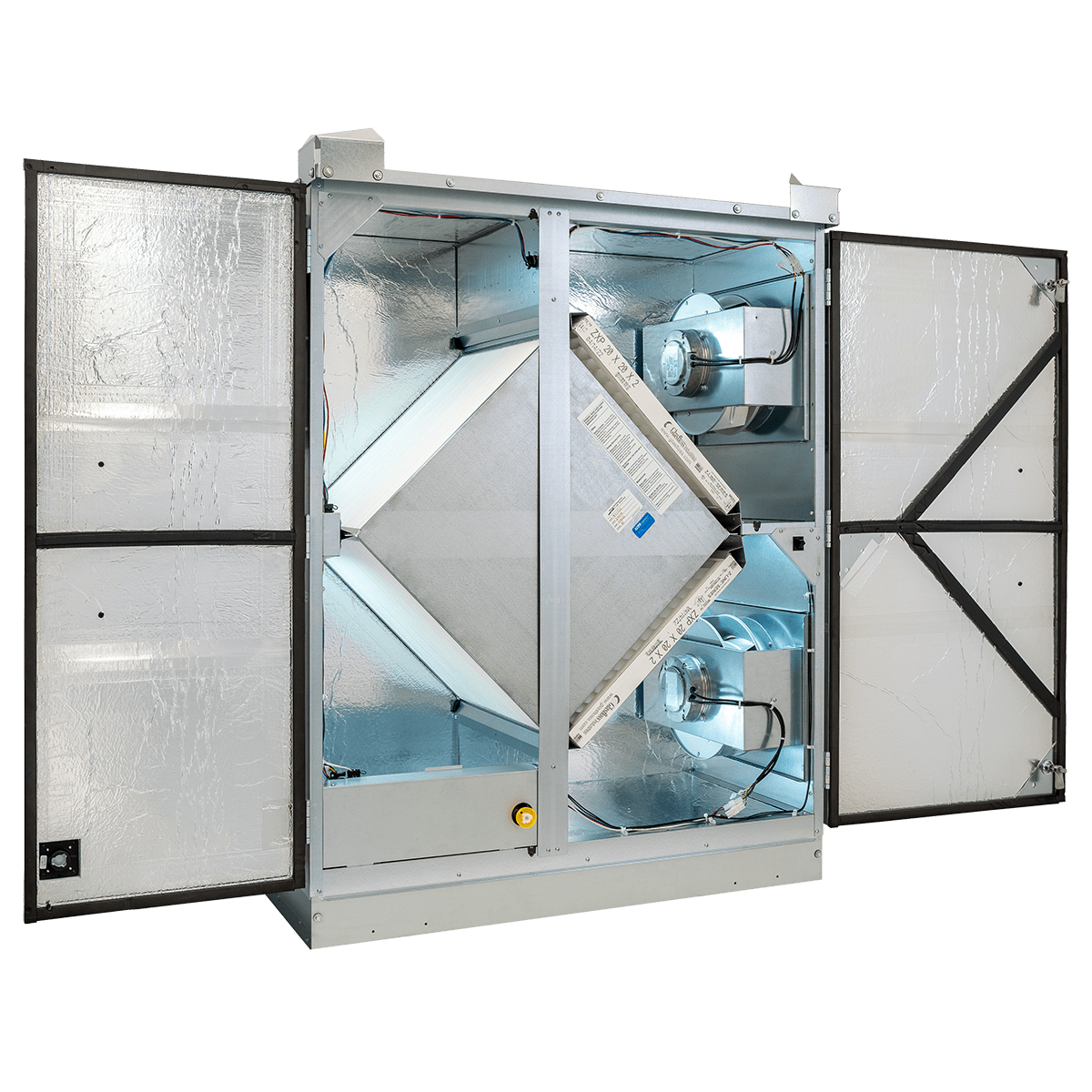

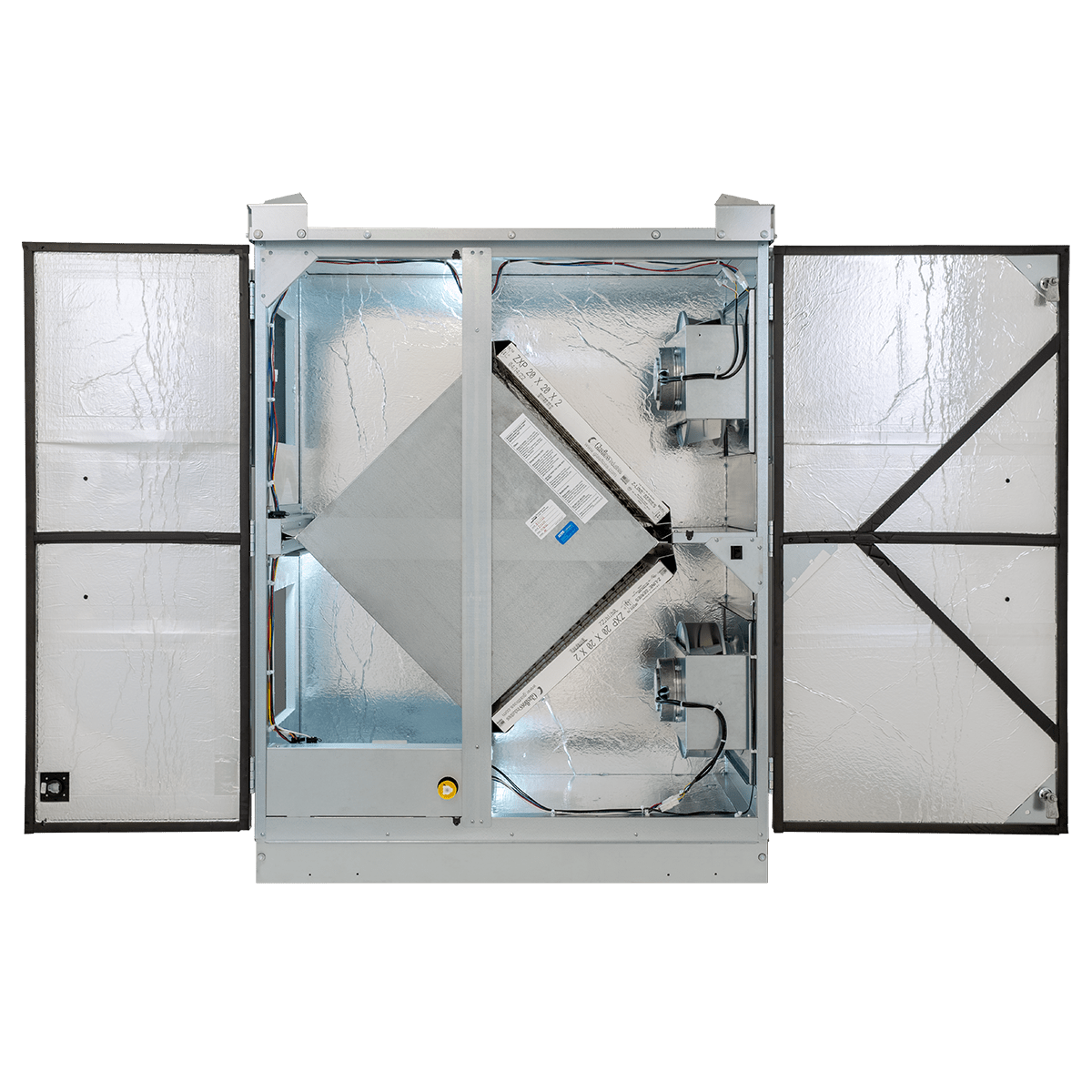

When you bring outdoor air into a commercial or industrial building, you usually pay to heat or cool it all over again. The S&P TRCeN800RT-230 Rooftop Commercial Energy Recovery Ventilator reduces that cost. Incoming and outgoing air pass through a static plate core that trades heat and moisture between the 2 streams, so fresh air arrives closer to indoor conditions.

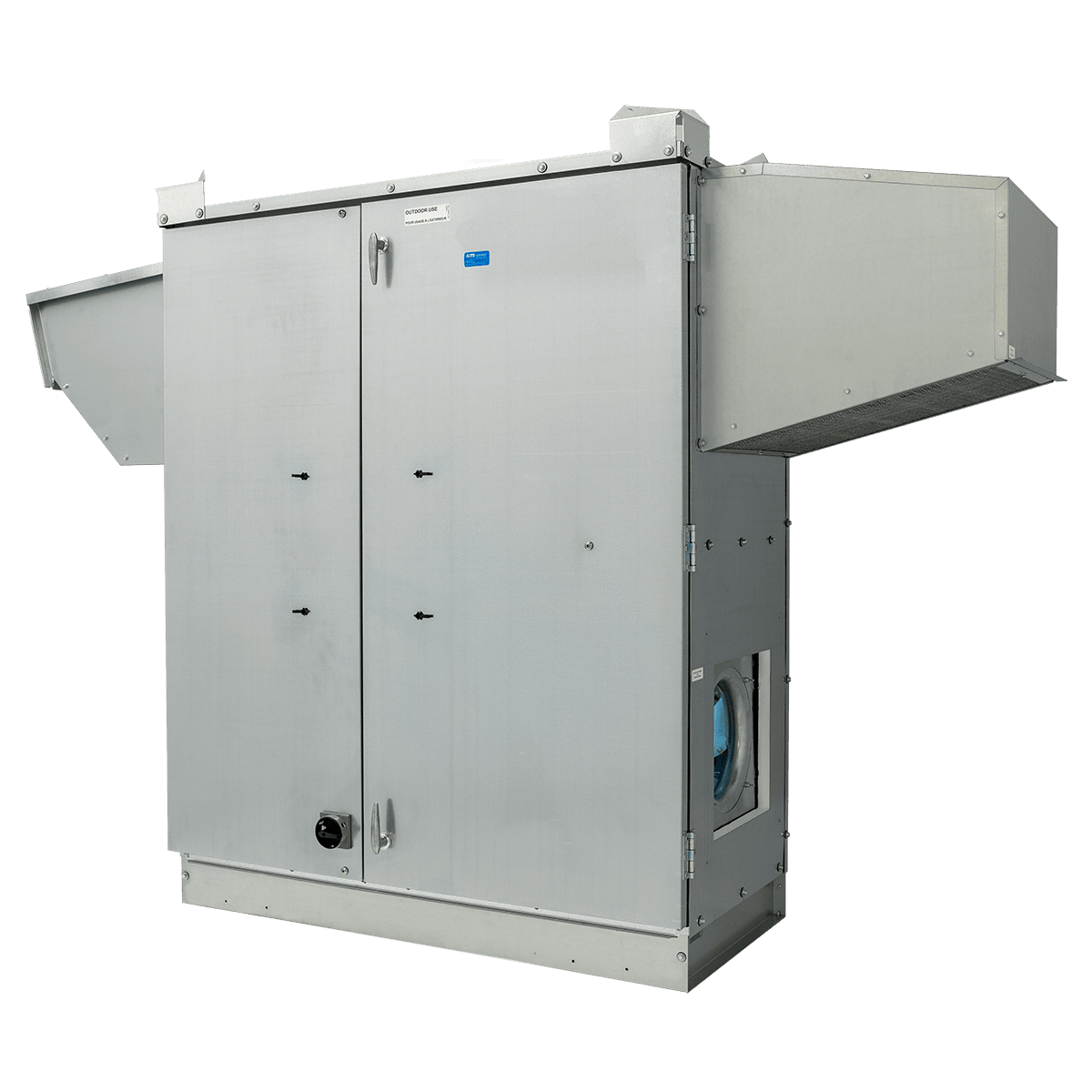

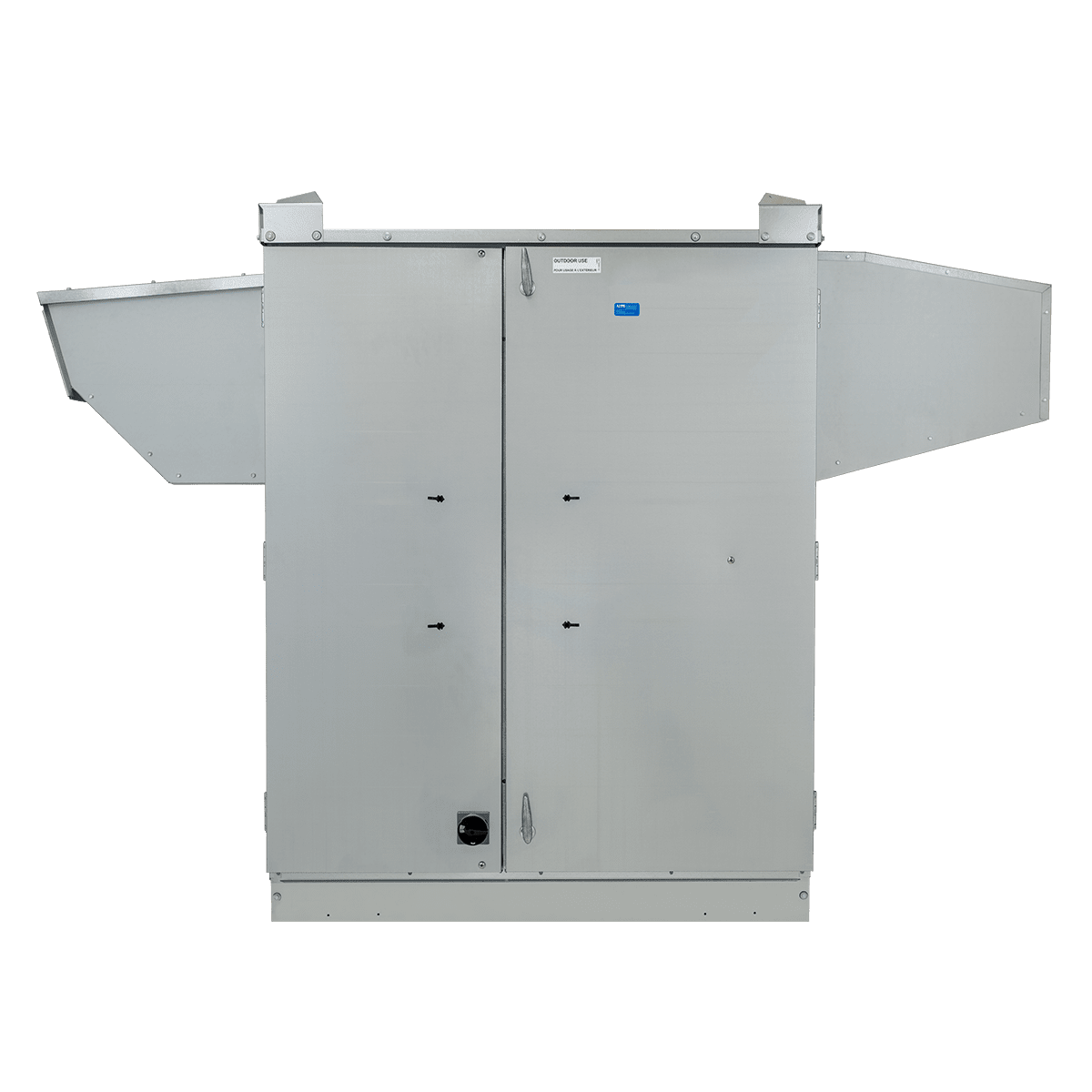

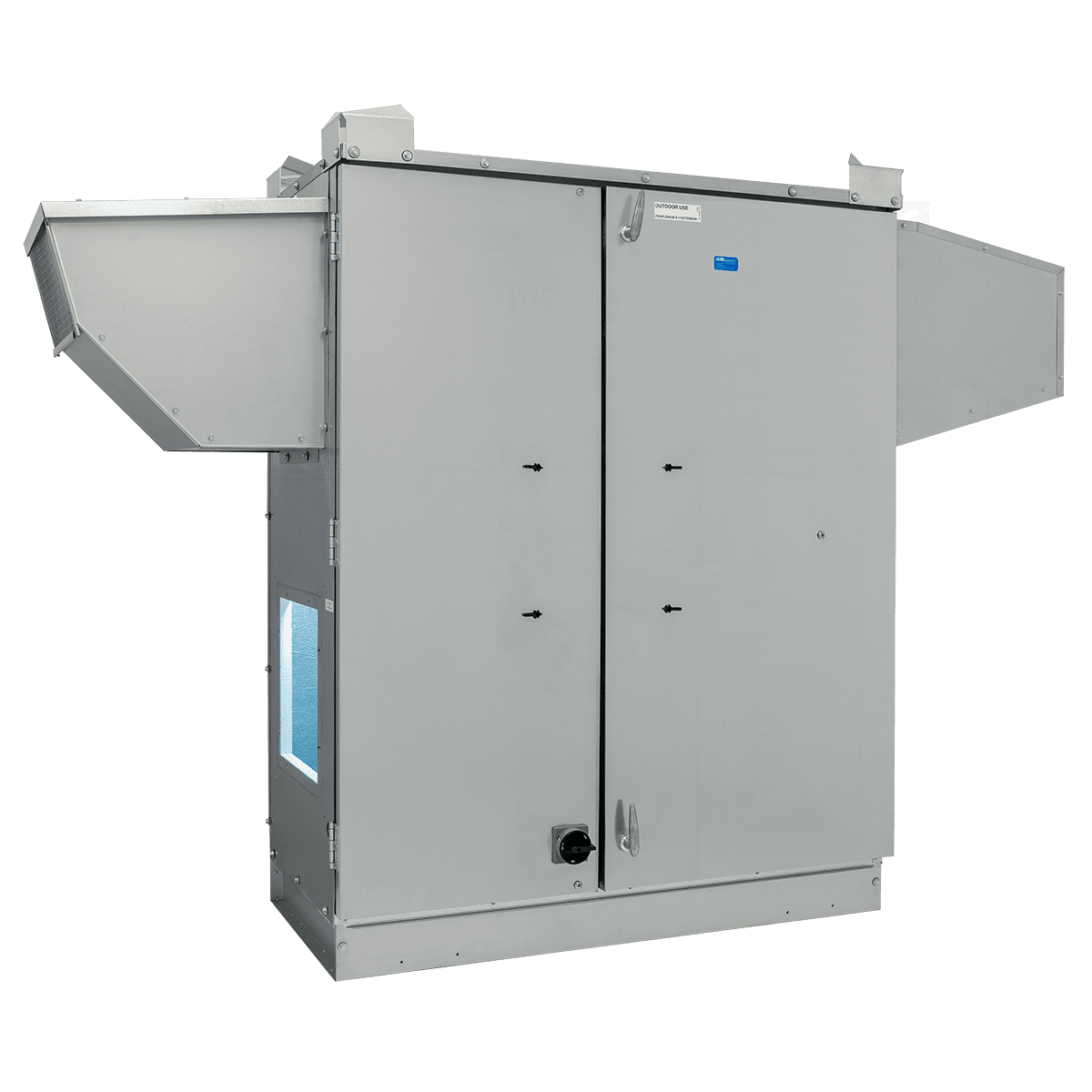

The cabinet is made for rooftop installation and handles harsh outdoor conditions. Its fully insulated case is relatively compact, so it fits on roofs where space is tight. Both configurations come with attached hoods for the exhaust and supply airstreams, which means you can connect your ductwork without fabricating weather hoods on site.

Key Features and Benefits of the S&P TRCeN800RT-230 1100 CFM Rooftop Commercial Energy Recovery Ventilator w/ EC Motor

  • Energy Recovery Core: An AHRI 1060-certified static plate core transfers heat and humidity between airstreams, which lightens the load on your heating and cooling equipment.
  • Wide Airflow Range: Variable output from 250 to 1,100 CFM lets you match ventilation to occupancy and to changing static pressure conditions.
  • Dual EC Motors: Each of the 2 direct-drive electronically commutated motors is rated 370 watts, giving you precise, energy-efficient airflow control that helps keep your operating costs down.
  • MERV 8 Filtration: Both MERV 8 filters, each 20 x 20 x 2-Inches (L x W x H), trap dust and debris before outdoor air reaches the occupied spaces.
  • BMS Integration: Electronic controls and a built-in 24VAC transformer and relay package let you connect the ventilator directly to your building management system.
  • Rugged Cabinet: A 20-gauge galvanized steel cabinet with high-density insulation stands up to rooftop weather and dampens operating noise.
  • Service-Friendly Design: Lifting lugs, hinged doors, and a non-fused disconnect make rooftop placement faster and routine maintenance easier for your crew.
  • Electrical Requirements: It runs on hardwired 208-230-volt power with a 3.46-amp maximum draw, so your electrician can size the circuit accurately.
  • Safety Protection: A cETLus listing confirms compliance with US and Canadian safety standards, and thermal cutoff protection helps guard the motors against overheating.
  • Domestic Sourcing: It meets the 2009 domestic-sourcing provisions and the BABA requirements of the IIJA (2022), which helps keep your federally funded projects compliant.
  • Duct Connections: Side-located ports take 12-inch ducts, so you can route supply and exhaust air without bulky transitions.
  • Size and Weight: It measures 60 x 32 x 82.5-Inches (L x W x H) and weighs 271 pounds, a compact footprint for crowded commercial roofs.

Horizontal vs. Vertical: Choose Your Airflow Configuration

The TRCeN800RT-230 comes in a horizontal or a vertical airflow configuration, and the right choice depends on how your ductwork meets the ventilator.

  • Horizontal Model TRCeN800RTH: It sends supply and exhaust air out horizontally, which suits roofs where your duct runs travel sideways across the deck before entering the building.
  • Vertical Model TRCeN800RTV: It moves air vertically, which suits installations where your ducts drop straight down through the roof into the space below.

Sylvane's Expert Take

If you run a commercial or industrial facility that needs a steady supply of outdoor air without higher heating and cooling bills, this ERV is a strong rooftop option. Settle the horizontal or vertical choice by checking your roof penetrations and duct routing first. The features that matter most are the certified recovery core and the variable EC motors, which let you set airflow for the space you actually have. For federally funded projects, the domestic-sourcing compliance makes approval simpler.

Specifications

    Key Specifications

    • Minimum Cubic Feet per Minute (CFM) (CFM)
      250.0
    • Mounting Type
      Rooftop
    • Number of Speeds
      Variable
    • Port Location
      Side
    • Type
      ERV-Air Supply Fan

    General

    • Application
      Commercial/Industrial
    • Certifications
      cETLus
    • Color
      Gray
    • Controls
      Electronic
    • Maximum Cubic Feet per Minute (CFM) (CFM)
      1100.0
    • California Residents
      ⚠ WARNING: This product can expose you to chemicals including formaldehyde, which is known to the State of California to cause cancer. For more information go to www.p65warnings.ca.gov.

    Power

    • Maximum Amperage (Amps)
      3.46
    • Power Supply
      Hardwired
    • Voltage (V)
      208-230
    • Watts (W)
      370

    Dimensions

    • Depth (in.)
      60.0
    • Duct Diameter (in.)
      12.0
    • Height (in.)
      82.5
    • Weight (lbs.)
      271
    • Width (in.)
      32.0

    Additional Features

    • Additional Features
      Thermal Cutoff Protection

    Warranty

    • Manufacturer's Warranty
      2-Year Warranty, 10-Year Core Warranty
