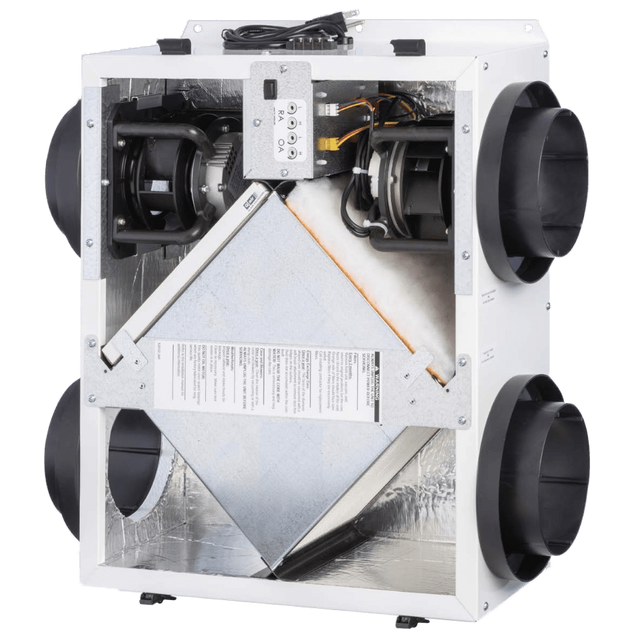

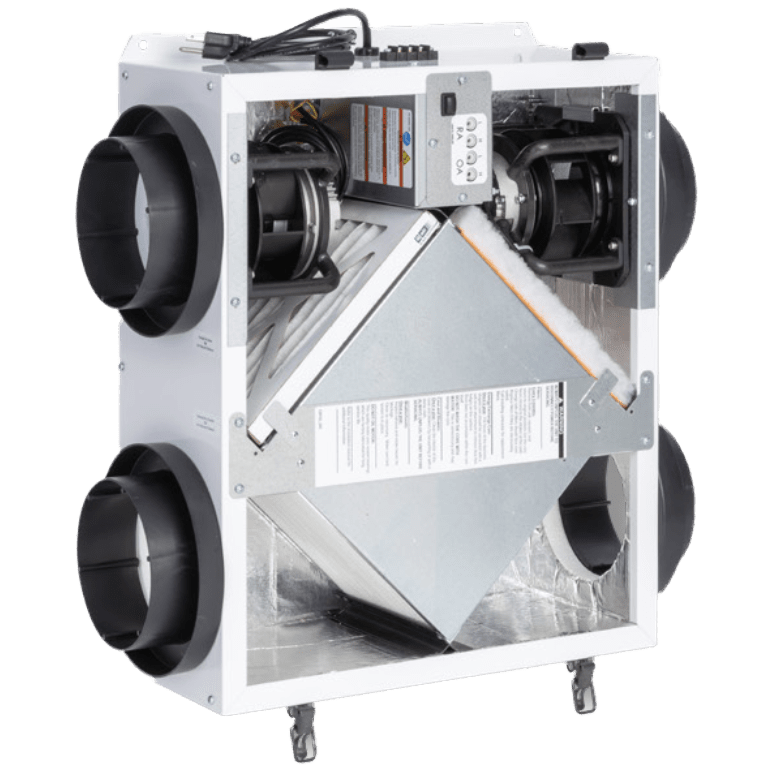

S&P TRe90 130 CFM Energy Recovery Ventilator w/ EC Motor

SKU: sp15639 | Model: TRe90

$1,218⁰⁰

Option

Plug Hardwired

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Email

Manufacturer's Warranty

10-Year Core Warranty, 5-Year Unit Warranty

What's In The Box?

S&P TRe90 or TRe90H 30-130 CFM Energy Recovery Ventilator
6-inch Duct Collars
MERV 8 Filter (2) - 7 1/2 x 10 1/2 x 1 inches
Installation Manual

Info & Guides

Description

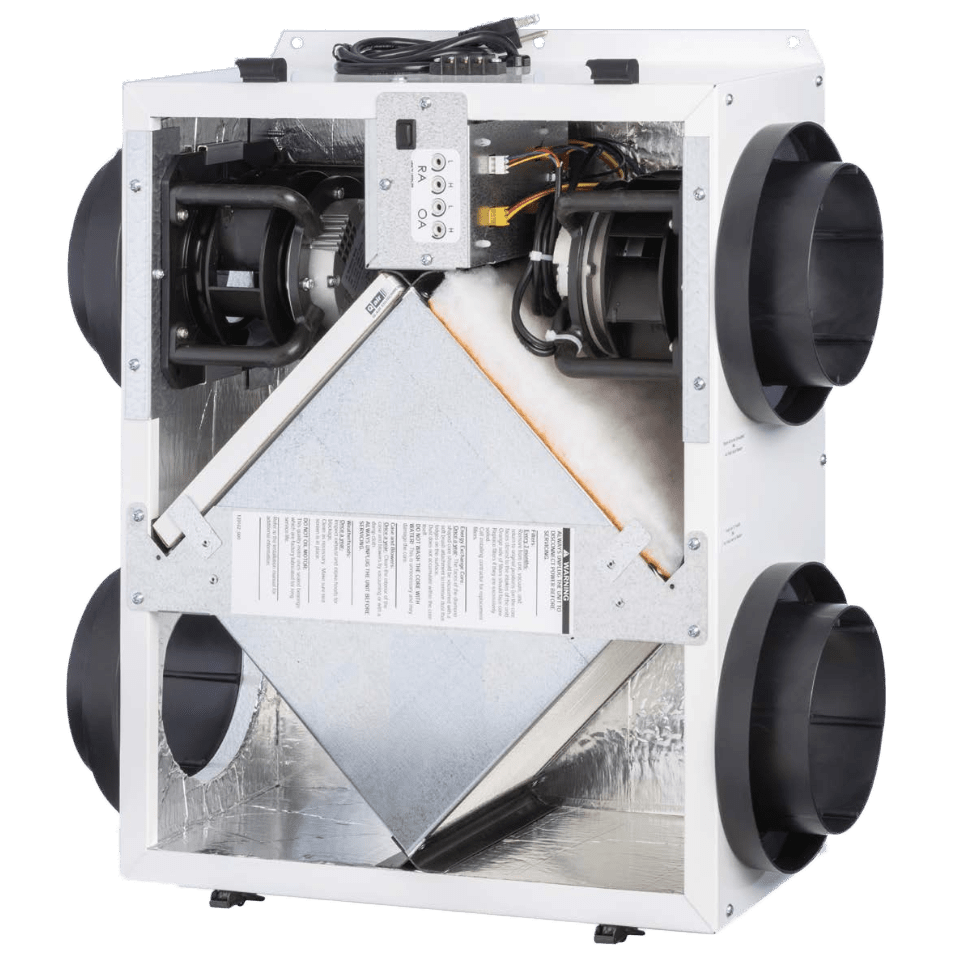

Sealing a home tightly keeps heating and cooling bills down, but it also traps stale air inside. The S&P TRe90 Energy Recovery Ventilator fixes that by swapping indoor air for outdoor air through a crossflow core that moves heat and moisture between the airstreams without mixing them. It comes in plug-in and hardwired configurations, so you can match it to how your space is wired.

The TRe90 line is easy to fit into almost any space. You can mount it on a wall or suspend it in any orientation, in heated or unheated spaces, and balance each airstream separately to suit different duct run lengths. The side-mounted ports come with plastic double collars for direct connection to 6-inch or 8-inch ducts, and the case door slides off its hinges when you need to service it.

Key Features and Benefits of the S&P TRe90 130 CFM Energy Recovery Ventilator w/ EC Motor

Energy Recovery: Rated for up to 67 percent energy recovery at 112 CFM against 0.5 inches w.g., so less of your heating and cooling goes out with the stale air.
Seasonal Efficiency: Recovers 63 percent of energy in winter and 43 percent in summer, which helps keep your home comfortable as outdoor temperatures change.
Air-to-Air Core: The S&P air-to-air crossflow core reaches 82 percent efficiency at 35 CFM and 62 percent at 138 CFM, and it keeps incoming and outgoing air separated.
Dual EC Motors: The 2 electronically commutated impellers run on 110 to 120 volts and draw 53 watts at 0.85 amps, so they use less energy than AC motors.
Digital Controller: The onboard electronic controller sets variable airflow from 30 to 130 CFM and has an adjustable high-speed boost mode for faster fresh-air exchange.
MERV 8 Filtration: Included MERV 8 filters clean both the outdoor supply and return airstreams, so incoming air is filtered before it reaches your rooms.
Frost-Free Core: The engineered resin core transfers moisture to prevent condensation and frost buildup, so you don't need a condensate pan or drain line.
Insulated Case: The fully insulated case weighs 32 pounds, which keeps it efficient in unheated spaces and manageable to hang or mount on a wall.
Certified Performance: HVI certified with cETLus, cULus, and CSA listings, and built to meet American-made product and parts requirements for verified performance and safety.

Plug-In vs. Hardwired: Choosing Your Power Connection

You can choose between the Plug-In and Hardwired configurations, depending on how power reaches your installation site.

Plug-In Model TRe90: The TRe90 connects with a plug-in power cord for a simple hookup to an outlet, and it measures 25.5 x 22.5 x 9.63-Inches (L x W x H), so it is slightly shorter for tight mechanical spaces.
Hardwired Model TRe90H: This version wires directly into your electrical system for a permanent connection with no cord, and it measures 26.25 x 22.5 x 9.63-Inches (L x W x H), so plan for a little extra length.

Sylvane's Expert Take

If you're a homeowner trying to get fresh air into a tightly sealed house, the TRe90 line does it without losing much of your heating or cooling. It works best in homes with moderate ventilation needs, where 30 to 130 CFM covers both everyday and boost airflow. The no-drain resin core is the detail to know, because it lets you mount the ventilator nearly anywhere. Both versions share the same core and motors, so choose plug-in for the easiest hookup or hardwired for a permanent installation.
