TPI BD24-2-WHS 24-In. 2-Speed Heavy Duty Belt Drive Whole House Fan
SKU:
tp13505
| Model:
BD24-2-WHS
Regular price
$836.00
Unit price
/
Unavailable
TPI BD24-2-WHS 24-In. 2-Speed Heavy Duty Belt Drive Whole House Fan is backordered and will ship as soon as it is back in stock.
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- TPI 24-In. 2-Speed Heavy Duty Belt Drive Whole House Fan
- Owner's Manual
TPI BD24-2-WHS 24-In. 2-Speed Heavy Duty Belt Drive Whole House Fan
Regular price
$836.00
Unit price
/
Unavailable

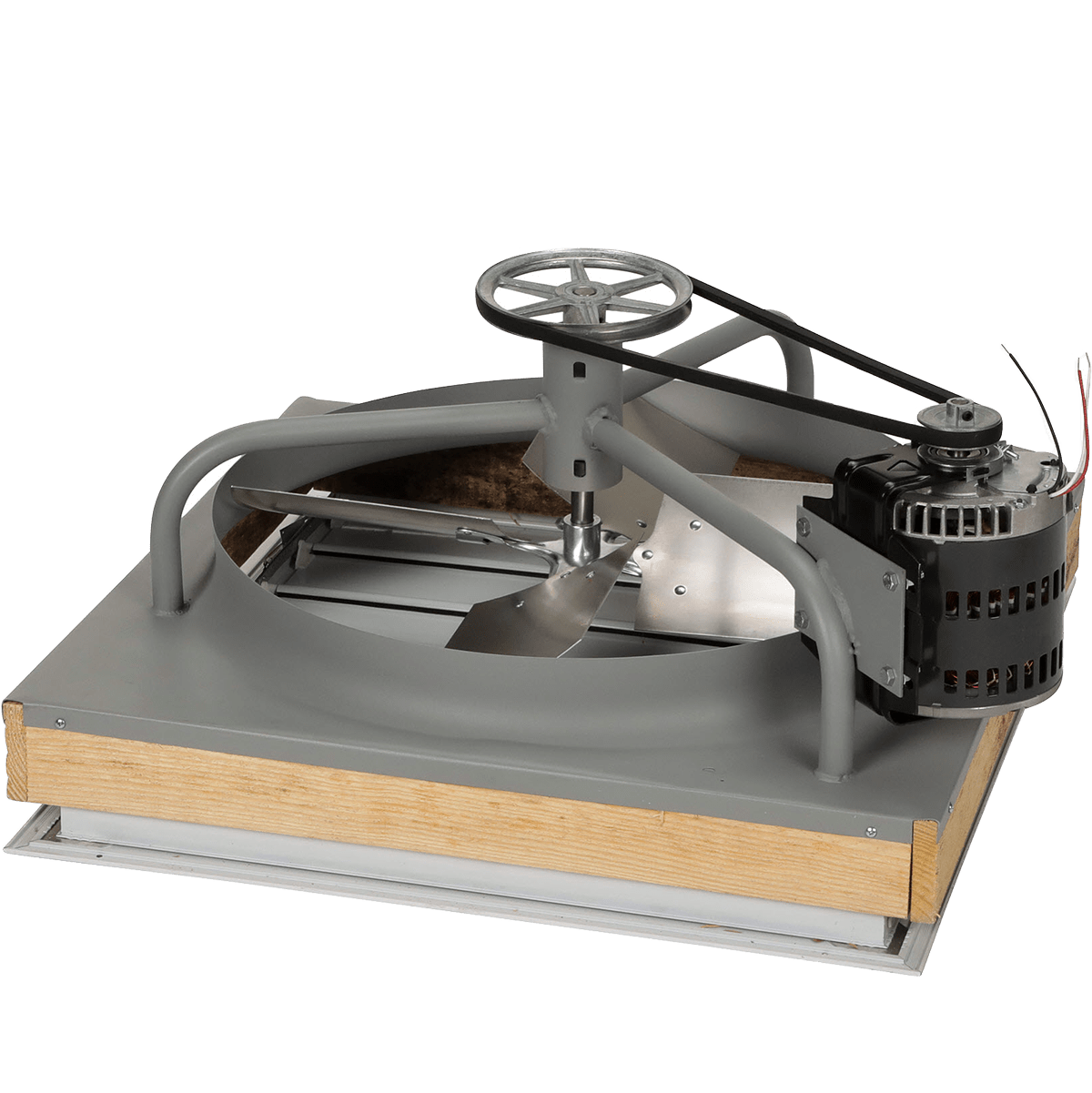

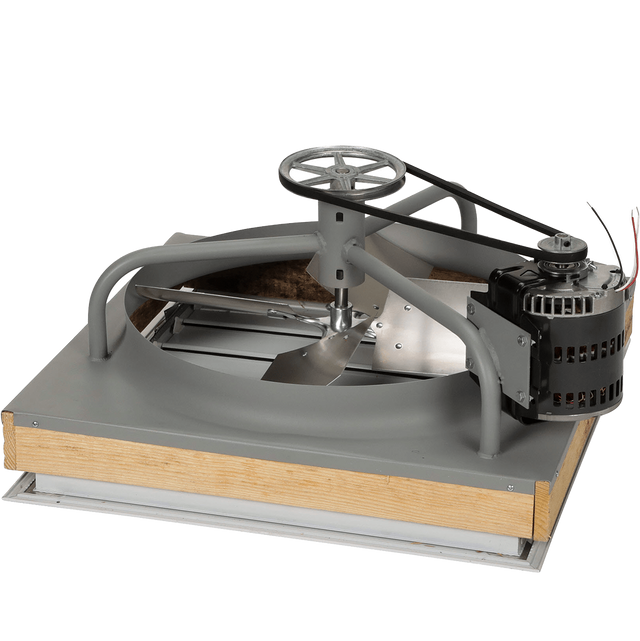

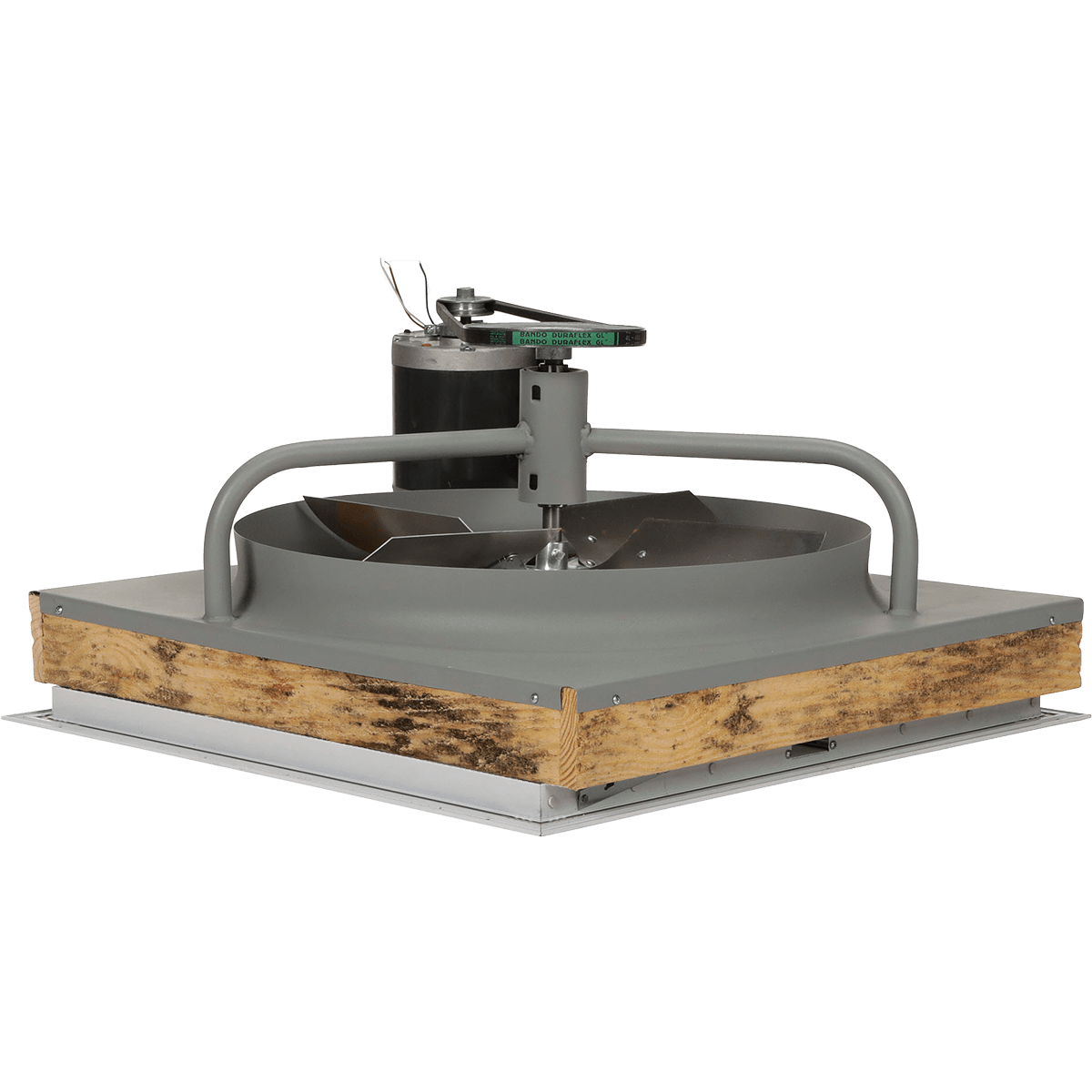

Perfect for use in industrial and commercial applications, the TPI 24-Inch. 2-Speed Heavy Duty Belt Drive Whole House Fan mounts to your attic ceiling, helping to save space. Designed to push air into your building, helping to regulate the temperature, it's a must-have for a more comfortable environment. With its two fan speeds, this unit provides an airflow of up to 4,500 CFM.
Top Features Of The TPI BD242WHS
- No Joist Cut Shutter: Automatically opens when the fan is turned on and closes when the fan is turned off.
- Powerful Performance: This multi-speed, 1/3 horsepower fan provides up to 612 RPMs.

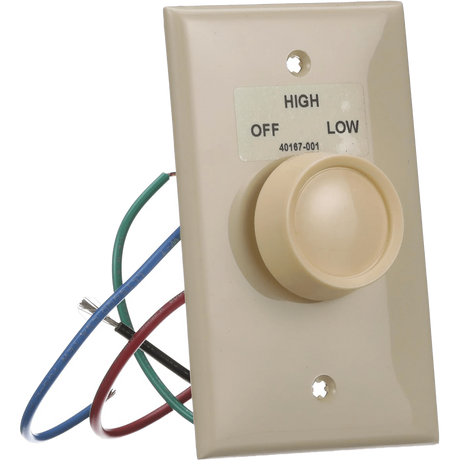

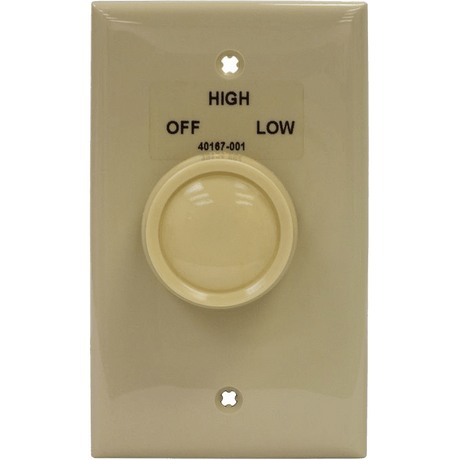

- Two Speeds: Choose from two fan speeds - Low (2,700 CFM) or High (4,500 CFM) with the TPI 2-SW two-speed controller (sold separately).
- Durable Fan Blade: Its 24-inch fan blade lets this unit move a high volume of air.
- Hardwired Design: This unit uses a 120-volt, single-phase electrical connection.
- American-Made: It's made in the U.S.A. with domestic and foreign components.
Overall Dimensions
- Height: 14.5 inches
- Width: 29.5 inches
- Length: 28 inches
Summary
Perfect for use in industrial and commercial applications, the TPI BD242WHS mounts to your attic ceiling, helping to save space.
-
Number of Speeds2
-
TypeWhole House Fan
-
ApplicationAttic, Residential
-
California Residents⚠ WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. See: www.P65Warnings.ca.gov
-
CertificationsETL
-
ColorGray
-
ControlsElectronic
-
Housing MaterialSteel
-
Maximum Cubic Feet per Minute (CFM) (CFM)4500.0
-
Maximum RPM612
-
Type of FanWhole House Fan
-
Amperage (Amps)5.7
-
Power SupplyHardwired
-
Voltage (V)110-120
-
Depth (in.)28.0
-
Depth (with front cover) (in.)28.0
-
Duct Diameter (in.)24.0
-
Height (in.)14.5
-
Height (with front cover) (in.)14.5
-
Weight (lbs.)40
-
Width (in.)29.5
-
Width (with front cover) (in.)29.5
-
Manufacturer's Warranty1-Year Limited Warranty
