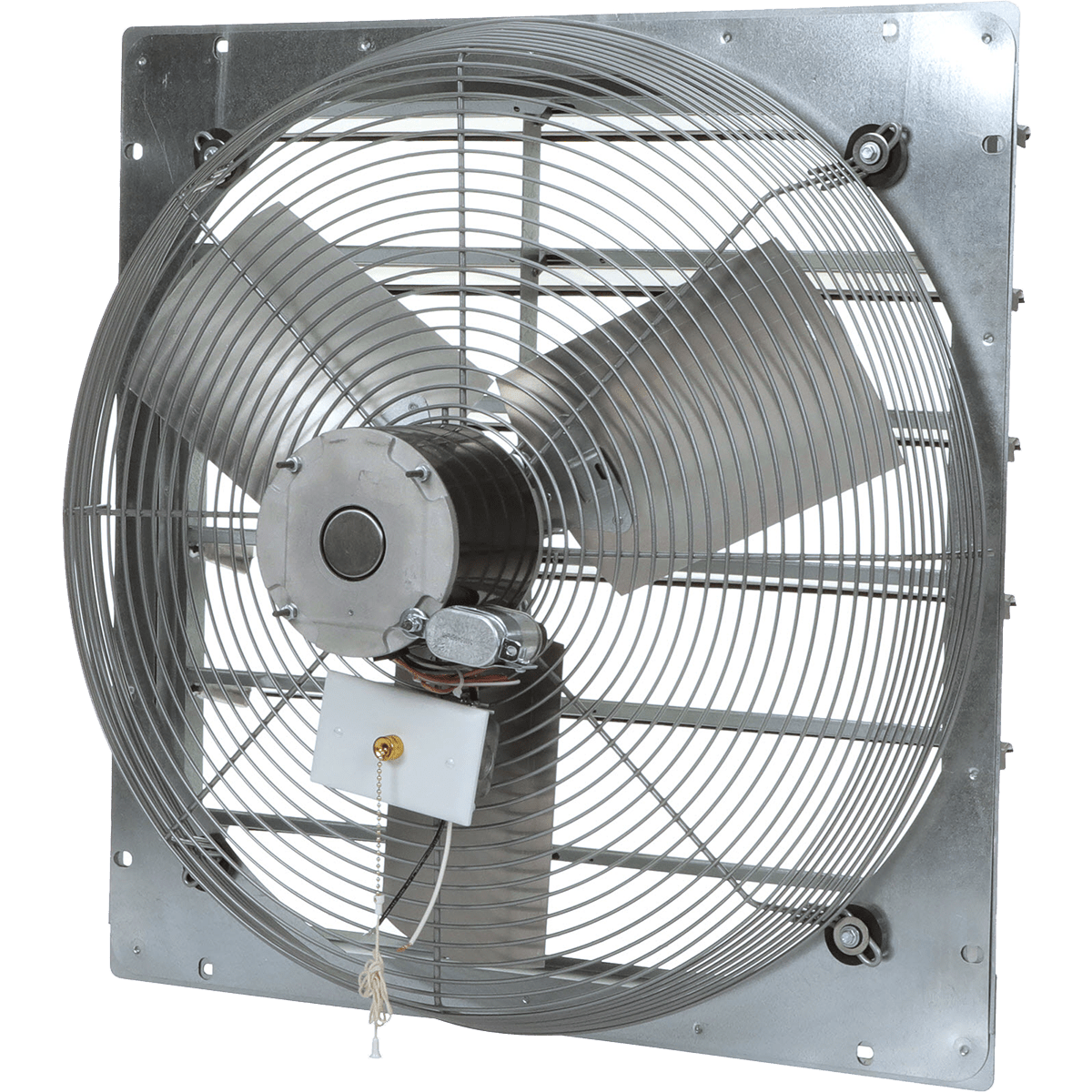

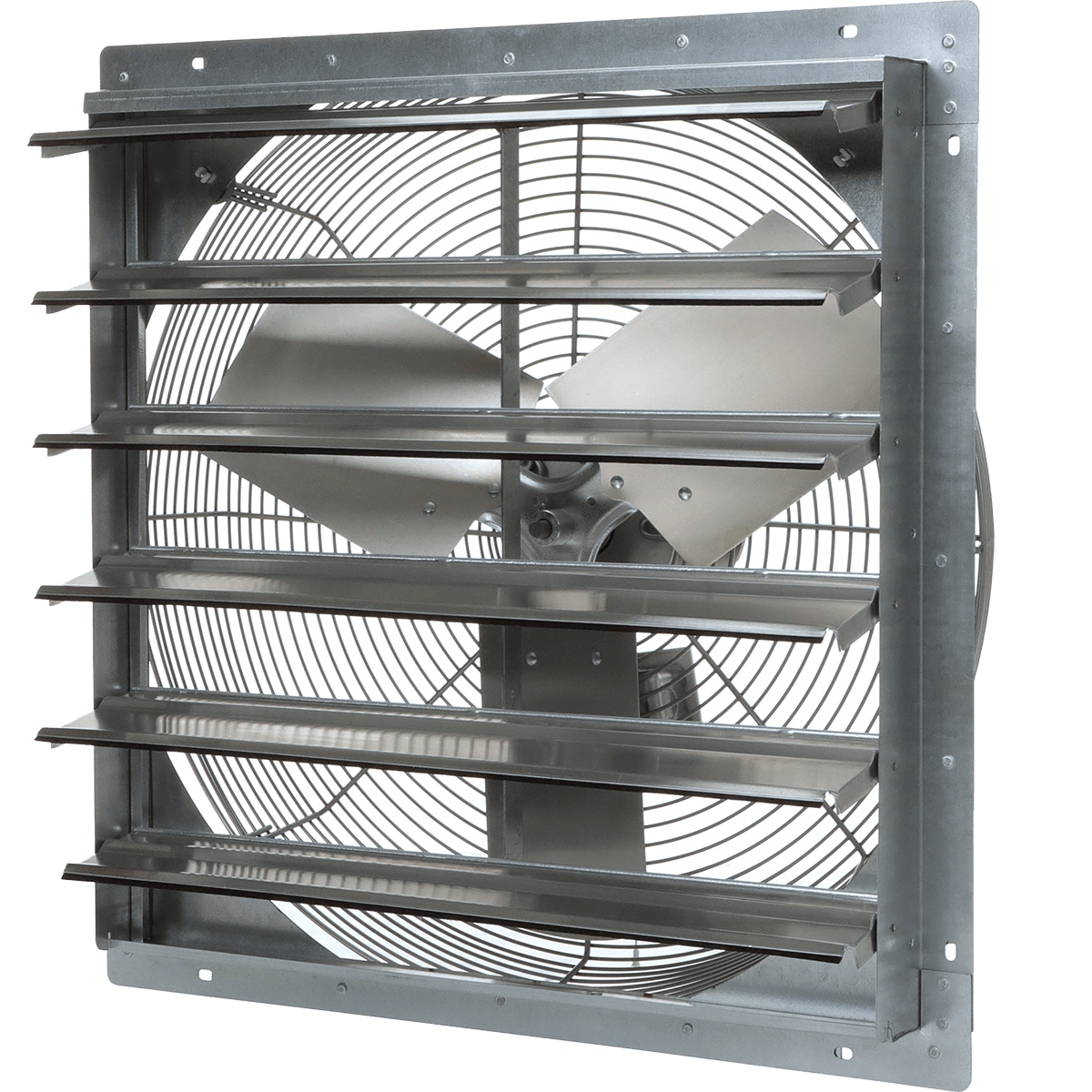

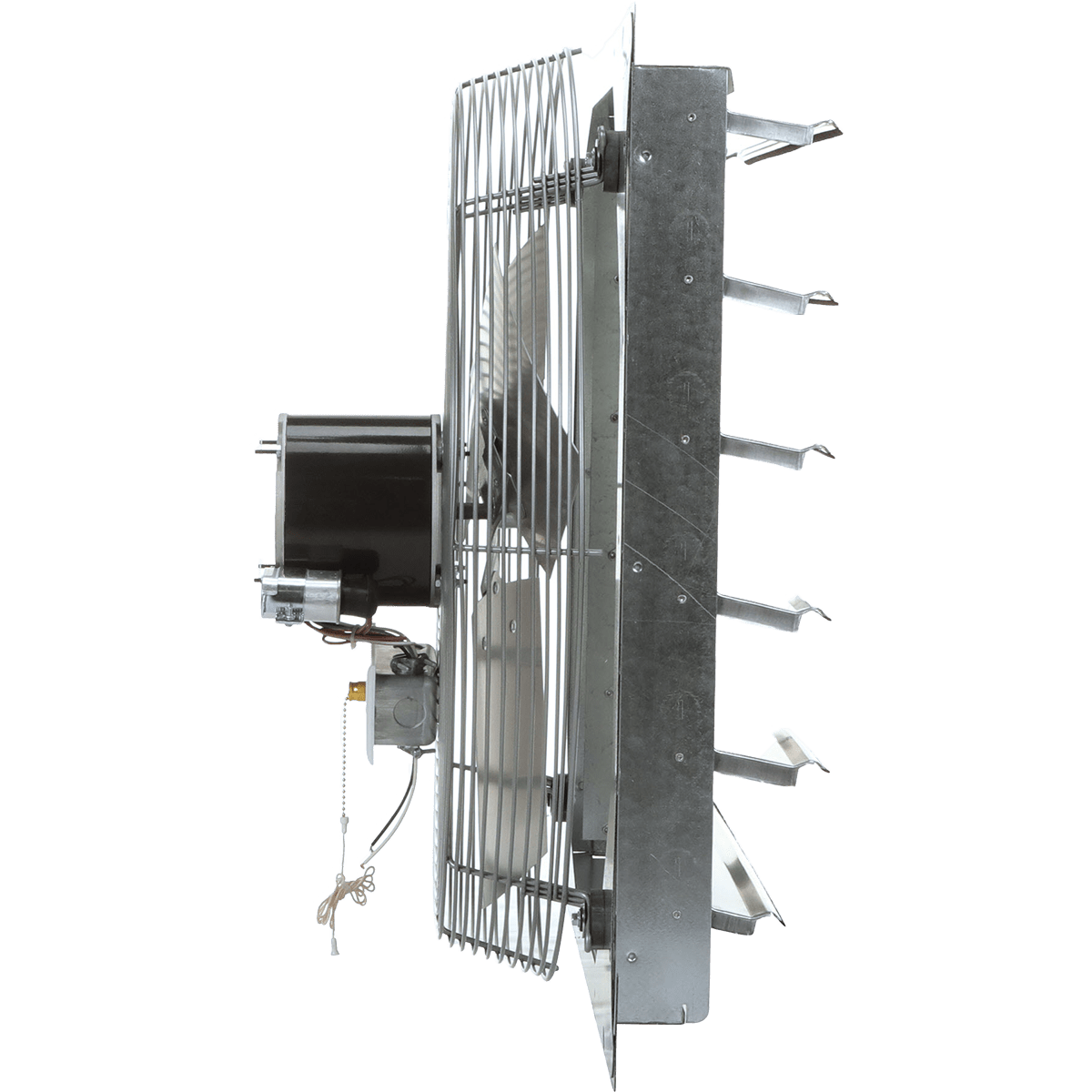

TPI CE24DS 24-In. 2-Speed 1/4 HP Direct Drive Shutter Mounted Exhaust Fan
TPI CE24DS 24-In. 2-Speed 1/4 HP Direct Drive Shutter Mounted Exhaust Fan is backordered and will ship as soon as it is back in stock.
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
TPI CE24DS 24-In. 2-Speed 1/4 HP Direct Drive Shutter Mounted Exhau...
TPI CE24DS 24-In. 2-Speed 1/4 HP Direct Drive Shutter Mounted Exhaust Fan is backordered and will ship as soon as it is back in stock.
For effective and reliable ventilation in commercial and industrial facilities, choose the TPI 24-In. 2-Speed 1/4 HP Direct Drive Shutter Mounted Exhaust Fan. Easily installing on inside walls, it doesn't require external framing or shutters. A pull-chain design makes finding the right airflow level for your space simple.
Top Features Of The TPI CE24DS
- Powerful Performance: This multi-speed, 1/4 horsepower fan provides up to 1,140 RPMs.
- Two Speeds: Choose from two fan speeds - Low (2,770 CFM) or High (3,400 CFM).
- Easy Operation: Use the pull chain to easily switch between speed settings.
- Designed For Safety: Its durable 24-inch aluminum fan blades are protected by steel spiral wire guards.
- Enclosed Motor: Has a low-maintenance design thanks to its completely closed and permanently lubricated split capacitor motor.
- Simple to Install: It installs from inside the wall without the need for external framing or shutters.
- Hardwired Design: This unit uses a 120-volt, single-phase electrical connection. A no-cord junction box is provided for direct wiring.
- American-Made: It's made in the U.S.A. with domestic and foreign components.
Overall Dimensions
- Height: 27.125 inches
- Width: 27.125 inches
- Depth: 7.18 inches
Summary
Easily ventilate commercial and industrial facilities with TPI CE24DS Shutter Exhaust Fan.
-
Number of Speeds2
-
TypeShutter Exhaust Fan
-
ApplicationCommercial/Industrial
-
California Residents⚠ WARNING: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer, and chromium, which is known to the state of California to cause birth defects and/or reproductive harm. For more information go to www.P65Warnings.ca.gov.www.p65warnings.ca.gov.
-
ColorGray
-
ControlsToggle Switch
-
Housing MaterialSteel
-
Maximum Cubic Feet per Minute (CFM) (CFM)3400.0
-
Maximum RPM1140
-
Amperage (Amps)2.5
-
Power SupplyHardwired
-
Voltage (V)110-120
-
Ceiling or Wall Cutout Length (in.)24.5
-
Ceiling or Wall Cutout Width (in.)24.5
-
Depth (in.)7.18
-
Depth (with front cover) (in.)7.18
-
Height (in.)27.125
-
Height (with front cover) (in.)27.125
-
Shutter Fan Size (in.)24
-
Weight (lbs.)47
-
Width (in.)27.125
-
Width (with front cover) (in.)27.125
-
Manufacturer's Warranty1-Year Limited Warranty
