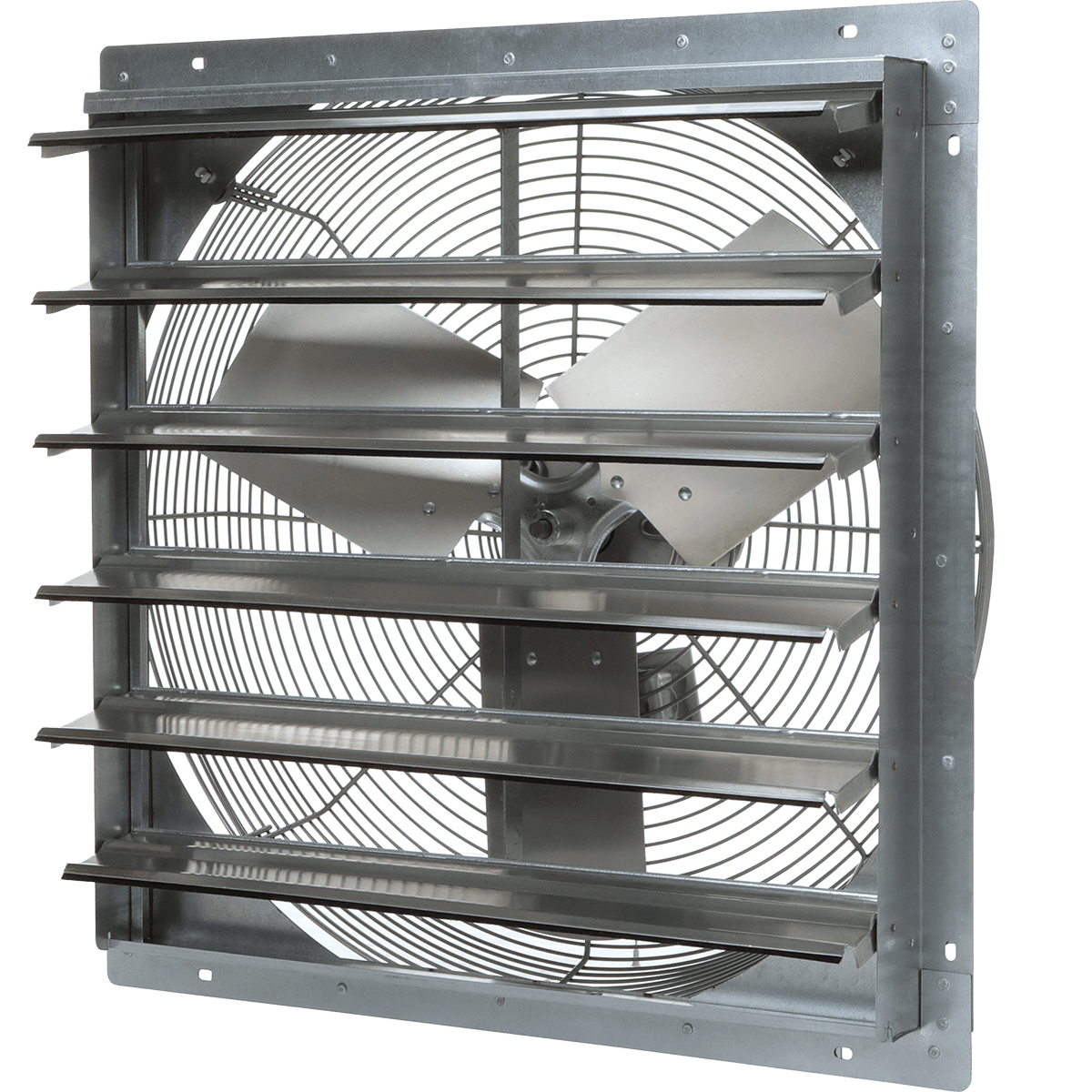

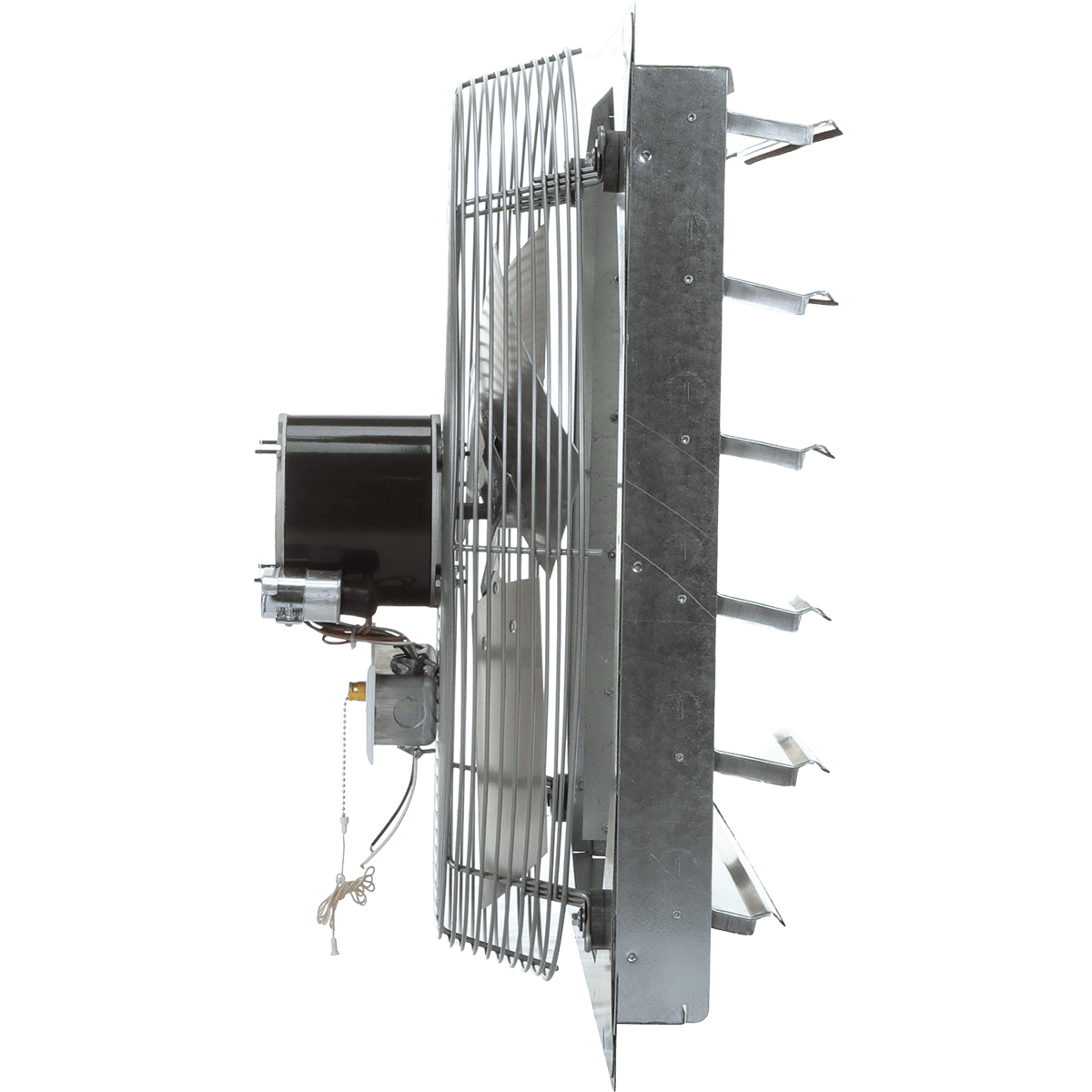

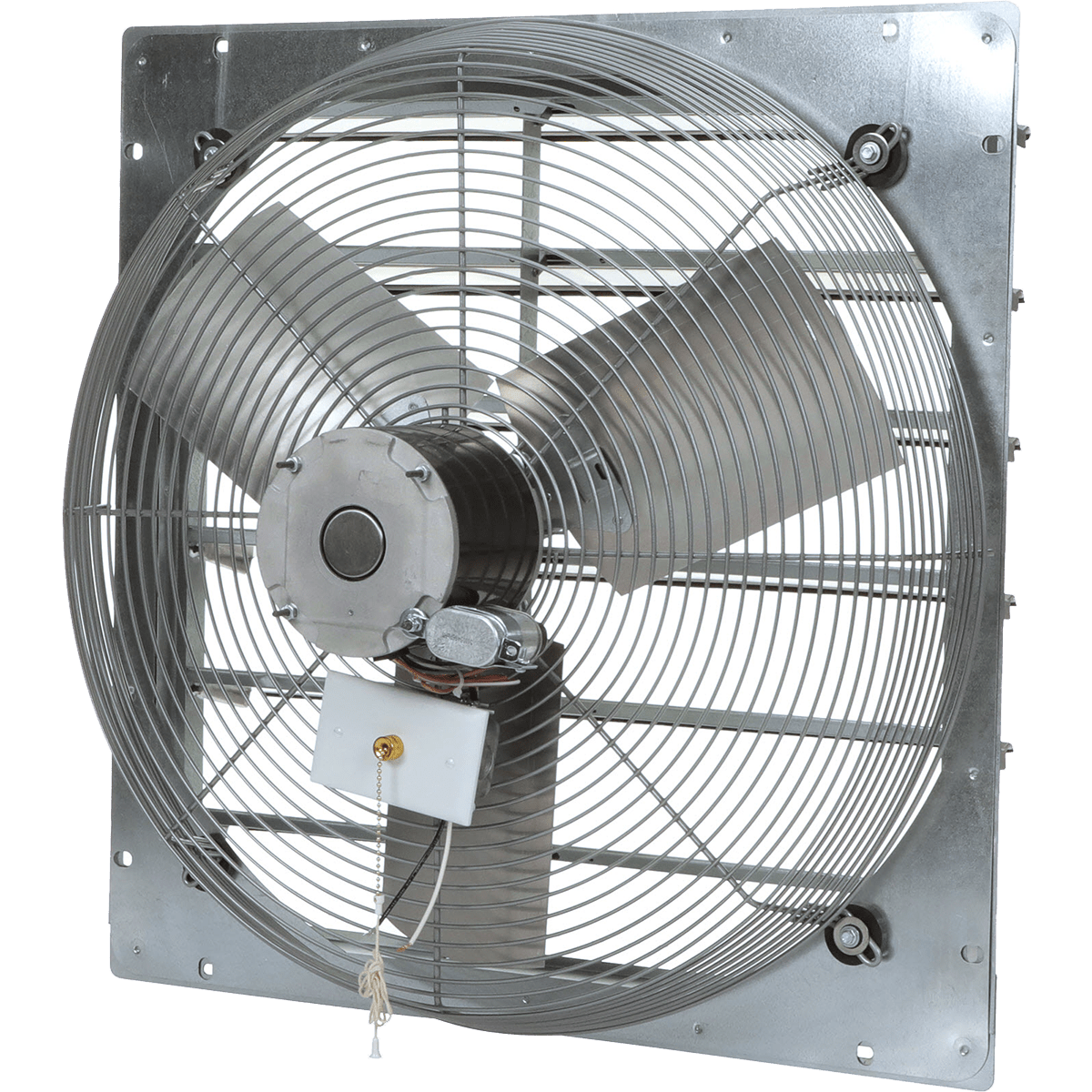

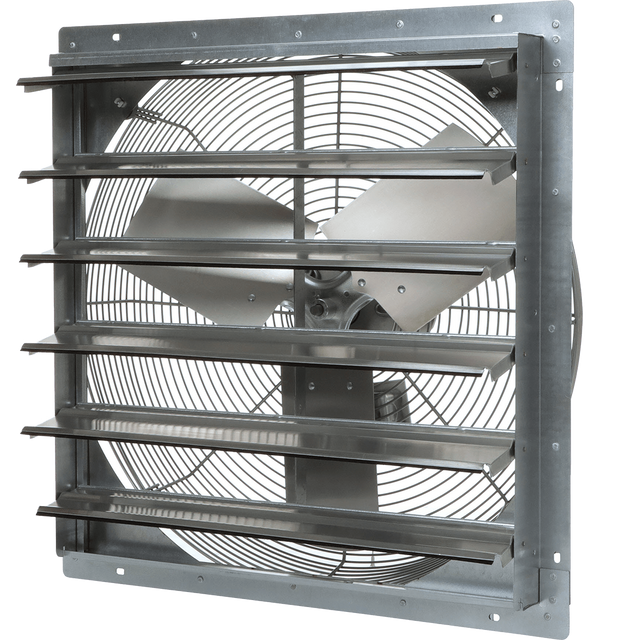

TPI CE24DS 24-In. 2-Speed 1/4 HP Direct Drive Shutter Mounted Exhaust Fan

Name: TPI CE24DS 24-In. 2-Speed 1/4 HP Direct Drive Shutter Mounted Exhaust Fan
Brand: TPI
Price: 629.0 USD
Availability: InStock

SKU: tp13503 | Model: CE 24-DS

$629.00

FREE shipping on orders over $45!

In Stock Usually ships in 10 business days.

Add extended protection plan. (Select one)

2-Year Warranty - $74.99

learn more

A 2-year major appliance warranty for products less than $1,500.

4-Year Warranty - $119.99

learn more

A 4-year major appliance warranty for products less than $1,500.

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

1-Year Limited Warranty

What's In The Box?

TPI CE24DS 24-In. 2-Speed 1/4 HP Direct Drive Shutter Mounted Exhaust Fan
Owner's Manual
No-Cord Junction Box

Description

For effective and reliable ventilation in commercial and industrial facilities, choose the TPI 24-In. 2-Speed 1/4 HP Direct Drive Shutter Mounted Exhaust Fan. Easily installing on inside walls, it doesn't require external framing or shutters. A pull-chain design makes finding the right airflow level for your space simple.

Top Features Of The TPI CE24DS

Powerful Performance: This multi-speed, 1/4 horsepower fan provides up to 1,140 RPMs.
Two Speeds: Choose from two fan speeds - Low (2,770 CFM) or High (3,400 CFM).
Easy Operation: Use the pull chain to easily switch between speed settings.
Designed For Safety: Its durable 24-inch aluminum fan blades are protected by steel spiral wire guards.
Enclosed Motor: Has a low-maintenance design thanks to its completely closed and permanently lubricated split capacitor motor.
Simple to Install: It installs from inside the wall without the need for external framing or shutters.
Hardwired Design: This unit uses a 120-volt, single-phase electrical connection. A no-cord junction box is provided for direct wiring.
American-Made: It's made in the U.S.A. with domestic and foreign components.

Overall Dimensions

Height: 27.125 inches
Width: 27.125 inches
Depth: 7.18 inches

Summary

Easily ventilate commercial and industrial facilities with TPI CE24DS Shutter Exhaust Fan.

Specifications

Key Specifications

Number of Speeds

2
Type

Shutter Exhaust Fan

General

Application

Commercial/Industrial
California Residents

⚠ WARNING: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer, and chromium, which is known to the state of California to cause birth defects and/or reproductive harm. For more information go to www.P65Warnings.ca.gov.www.p65warnings.ca.gov.
Color

Gray
Controls

Toggle Switch
Housing Material

Steel
Maximum Cubic Feet per Minute (CFM) (CFM)

3400.0
Maximum RPM

1140

Power

Amperage (Amps)

2.5
Power Supply

Hardwired
Voltage (V)

110-120

Dimensions

Ceiling or Wall Cutout Length (in.)

24.5
Ceiling or Wall Cutout Width (in.)

24.5
Depth (in.)

7.18
Depth (with front cover) (in.)

7.18
Height (in.)

27.125
Height (with front cover) (in.)

27.125
Shutter Fan Size (in.)

24
Weight (lbs.)

47
Width (in.)

27.125
Width (with front cover) (in.)

27.125

Warranty

Manufacturer's Warranty

1-Year Limited Warranty
