TPI PBX Direct Drive Industrial Portable Drum Fan

Name: TPI PBX Direct Drive Industrial Portable Drum Fan
Brand: TPI
Price: 1064.0 USD
Availability: InStock

SKU: tp13515 | Model: PBX-42-D

$1,064.00

FREE shipping on orders over $45!

In Stock Usually ships in 10 business days.

Option

Product variants

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

1-Year Warranty

What's In The Box?

TPI PBX Direct Drive Industrial Portable Drum Fan
Owner's Manual

Info & Guides

Owner's Manual

Description

TPI PBX Direct Drive Industrial Portable Drum Fans are proudly made in the USA and feature corrosion and dent proof high-density polyethylene housings and aluminum, three-paddle fan blades for years of dependable operation.

Available in three sizes and motor power options, these standard drum blowers can deliver up to 9000 CFM of airflow, based on size.

Optional Sizes

Depending on the size of the area you need to cool, TPI offers their heavy-duty portable blowers in three fan-diameters and motor sizes.

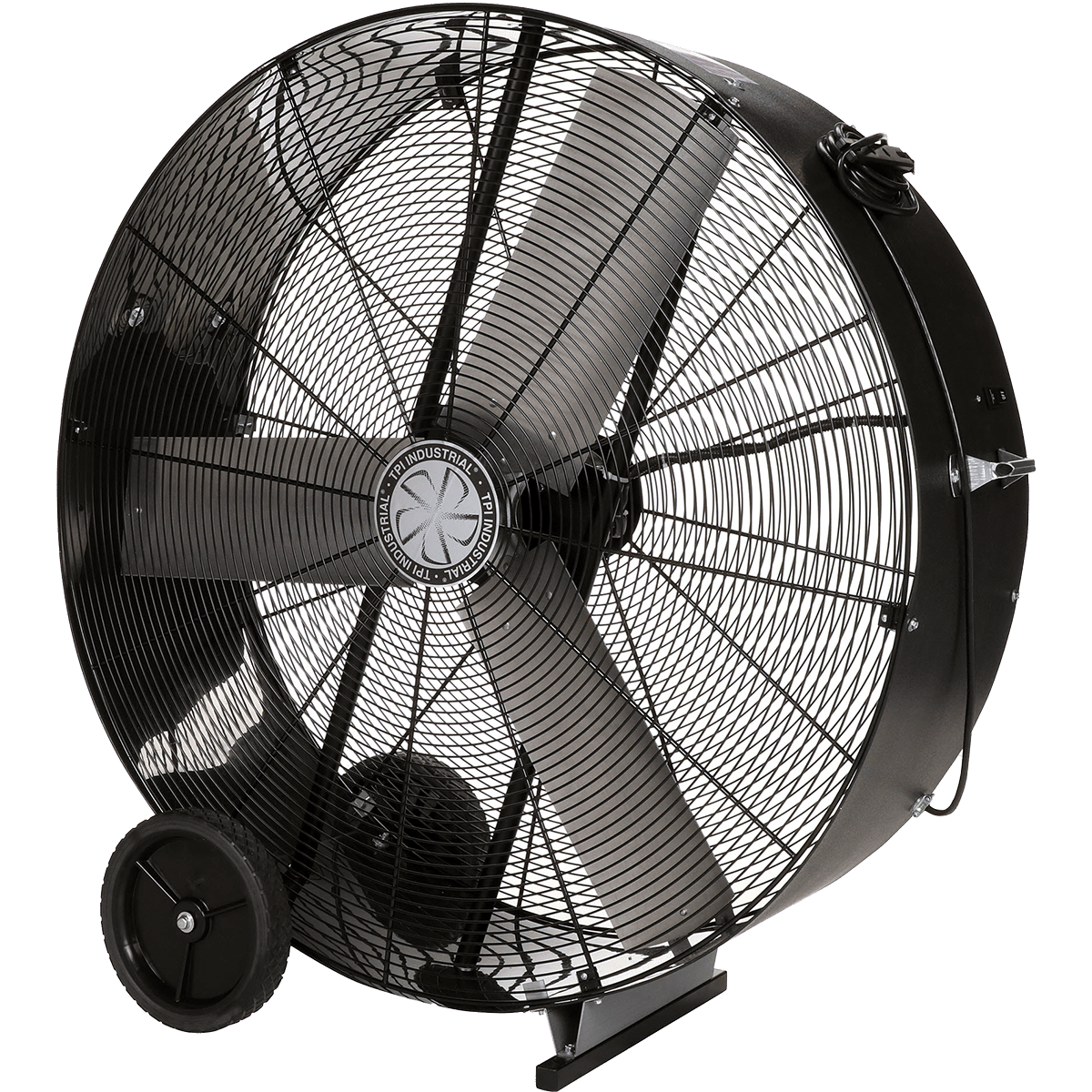

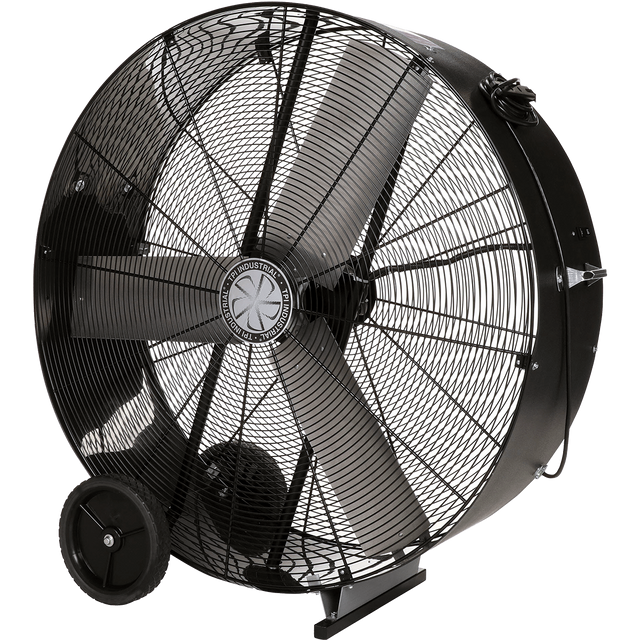

TPI PBX-30-D: This 30-inch diameter fan has a 1/4 horsepower 2-speed motor, maximum CFM of 4400, 8-inch wheels, and a cooling area of 250 square feet.

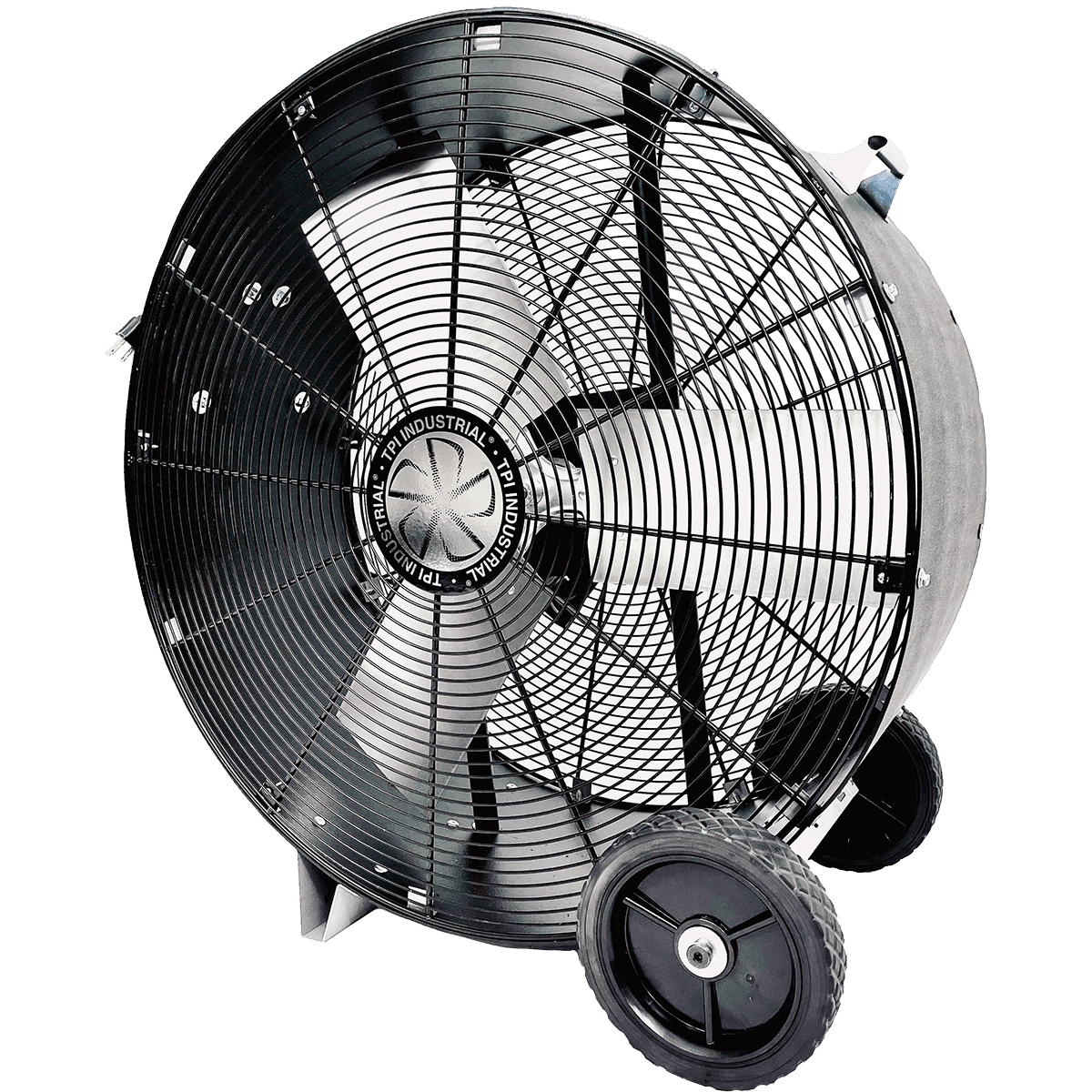

TPI PBX-36-D: 36-inch fan diameter with 1/3 horsepower 2-speed motor, maximum CFM of 6500, 8-inch wheels, and cooling are of 320 square feet.

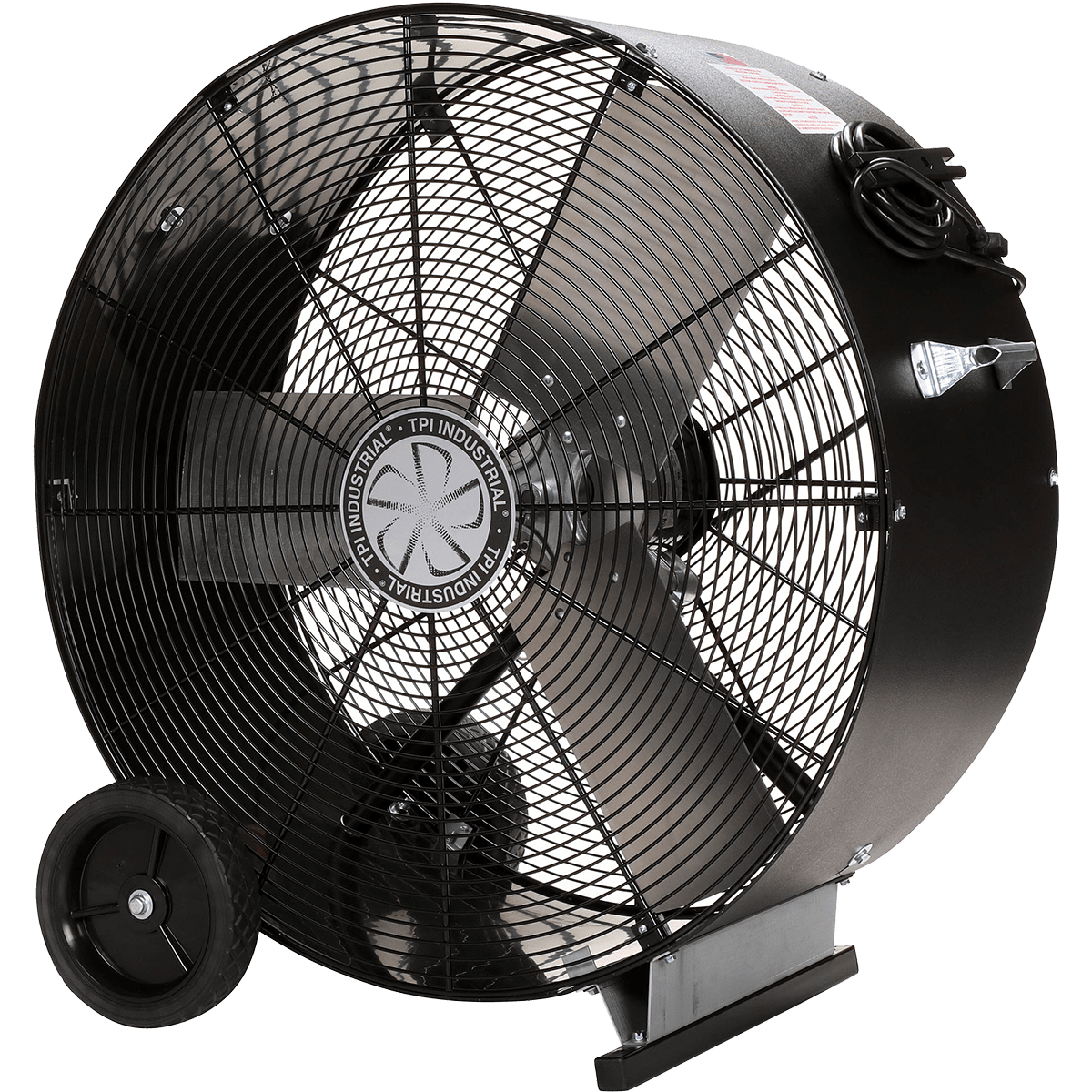

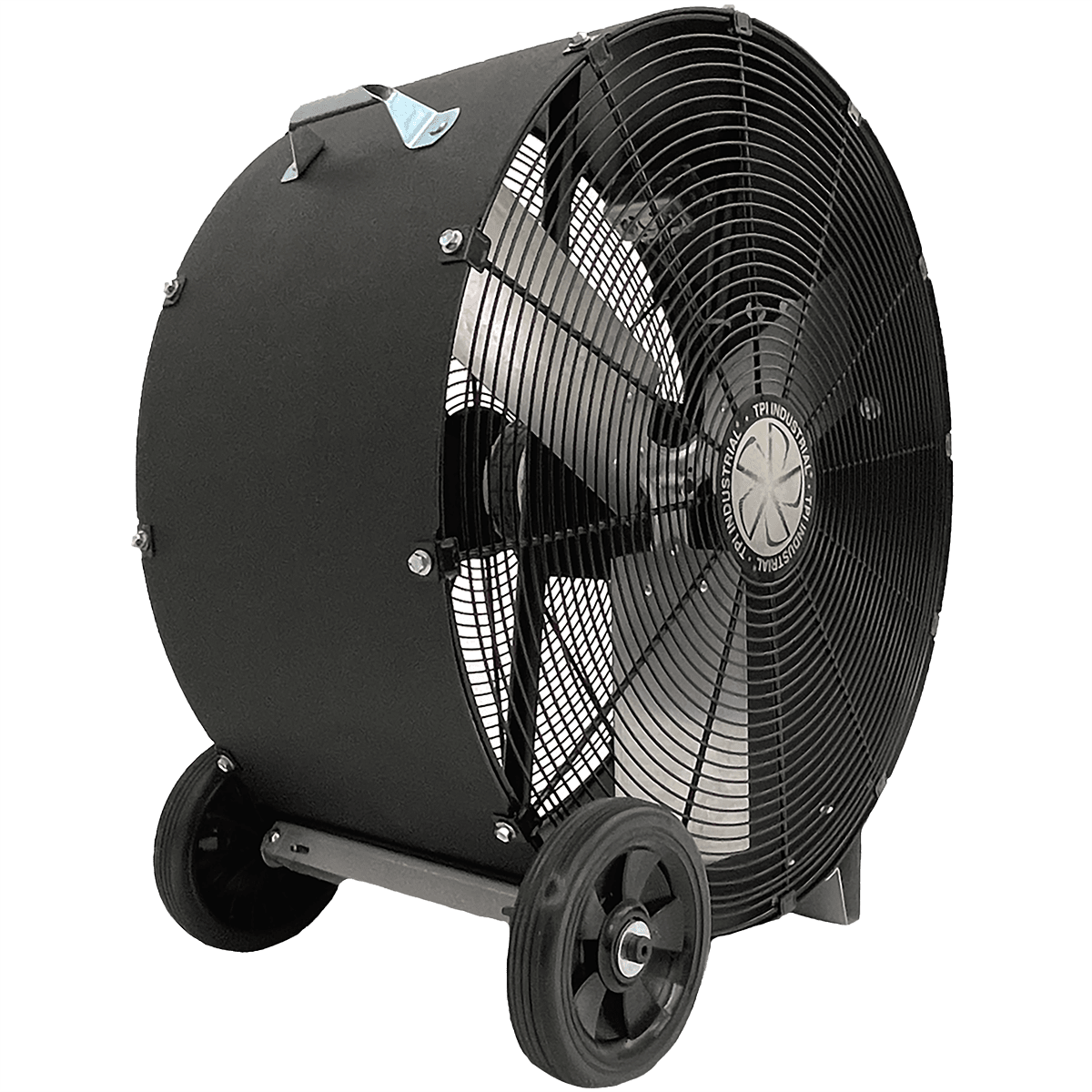

TPI PBX-42-D: Large fan with 42-inch diameter, 1/2 horsepower single speed motor, maximum CFM of 9000, 10-inch wheels and a cooling area of 340 square feet.

Heavy-Duty Motors & Materials

All of these TPI portable drum fans have rugged motors designed for durability and low maintenance.

120-Volt, Single Phase
Permanently Lubricated
Totally Enclosed
Ball Bearing
Permanent Split Capacitor

Finished with a black powder coat for the housing and the spiral wire front and rear guards, these fans are built to last for years of reliable service.

Additional Features

USA Made: TPI PBX Drum Blowers are designed, engineered, tested, and assembled in America.
Power Cord: The SJT type 3 conductor power cord measures a generous 12 feet.
Control: Simple to use rocker switch on all models.
Safe Operation: All fans are ETL CUS certified and meet OSHA standards for safe operation.

Summary

TPI Industrial Direct Drive Portable Drum Fans are available in three sizes and feature heavy-duty wheels and handles for easy portability. Featuring permanently lubricated motors, 12-foot power cords, and 3-paddle blade construction.

Specifications

Key Specifications

Number of Speeds

42-in, 1/2 Motor HP: 1

36-in, 1/3 Motor HP: 2

30-in, 1/4 Motor HP: 2
Type

Drum Blower, Portable

General

California Residents

⚠ WARNING: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer, and chromium, which is known to the state of California to cause birth defects and/or reproductive harm. For more information go to www.P65Warnings.ca.gov.www.p65warnings.ca.gov.
Certifications

cETLus
Color

Black
Controls

Toggle Switch
Indoor/Outdoor

Indoor
Maximum Cubic Feet per Minute (CFM) (CFM)

42-in, 1/2 Motor HP: 9000.0

36-in, 1/3 Motor HP: 6500.0

30-in, 1/4 Motor HP: 4400.0
Recommended Coverage Area (sq. ft.)

42-in, 1/2 Motor HP: 340

36-in, 1/3 Motor HP: 320

30-in, 1/4 Motor HP: 250

Power

Maximum Amperage (Amps)

42-in, 1/2 Motor HP: 7.9

36-in, 1/3 Motor HP: 5.5

30-in, 1/4 Motor HP: 2.7
Power Cord Length (ft.)

12
Power Supply

Plug
Voltage (V)

110-120

Dimensions

Weight (lbs.)

42-in, 1/2 Motor HP: 102

36-in, 1/3 Motor HP: 82

30-in, 1/4 Motor HP: 65

Warranty

Manufacturer's Warranty

1-Year Warranty
