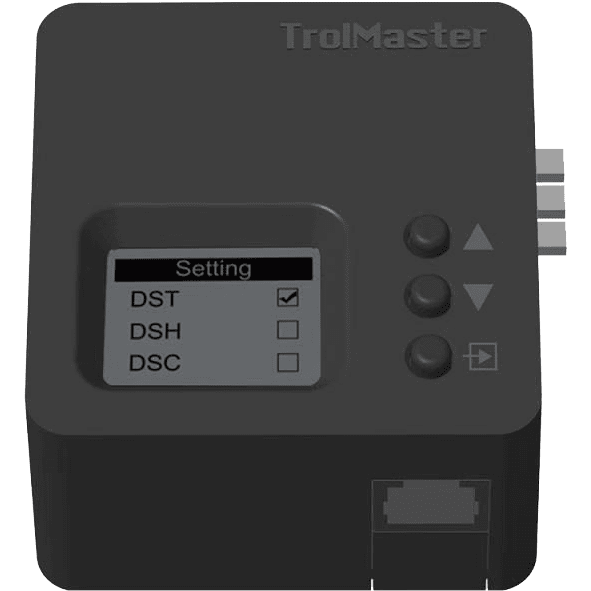

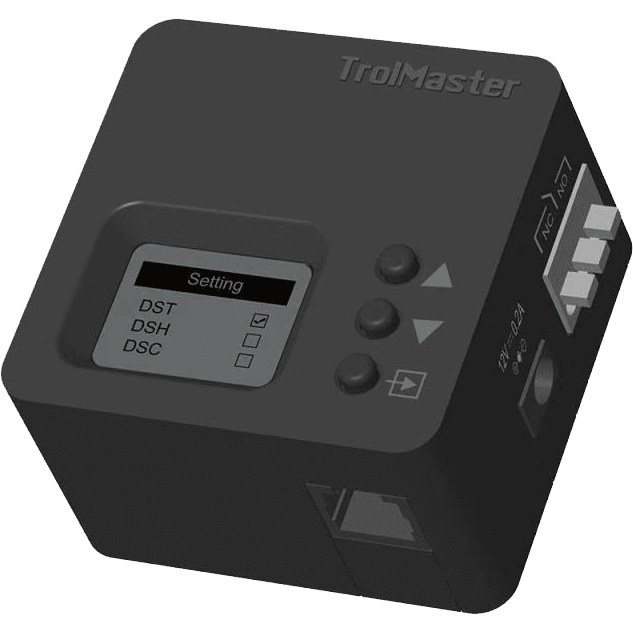

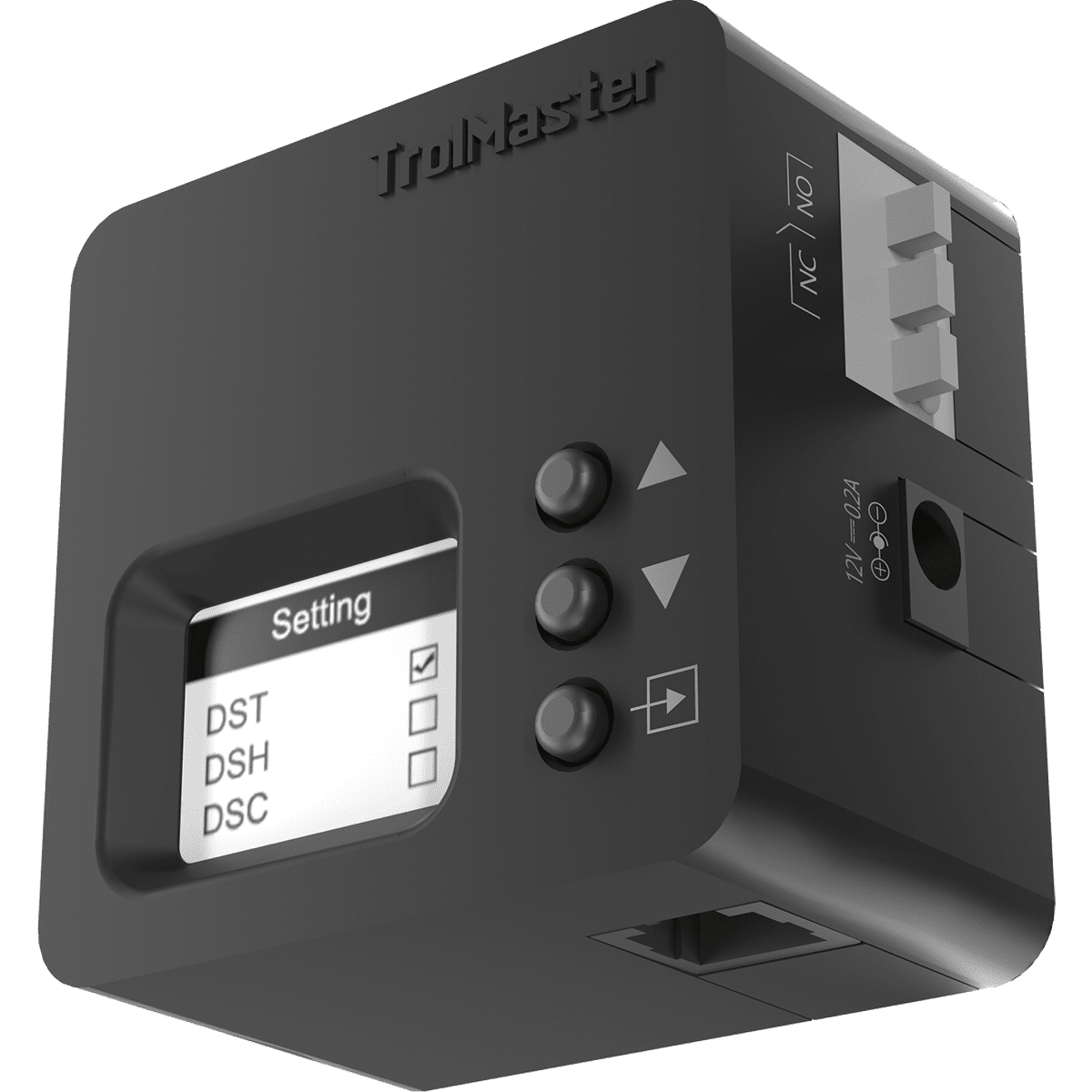

TrolMaster Hydro-X Dry Contact Station
TrolMaster Hydro-X Dry Contact Station is backordered and will ship as soon as it is back in stock.
What's In The Box?
What's In The Box?
- TrolMaster Dry Contact Station (DSD-1)
- 16-ft. RJ12 Cable
- 4-ft. RJ12 Cable
- RJ12 T-Splitter
TrolMaster Hydro-X Dry Contact Station is backordered and will ship as soon as it is back in stock.

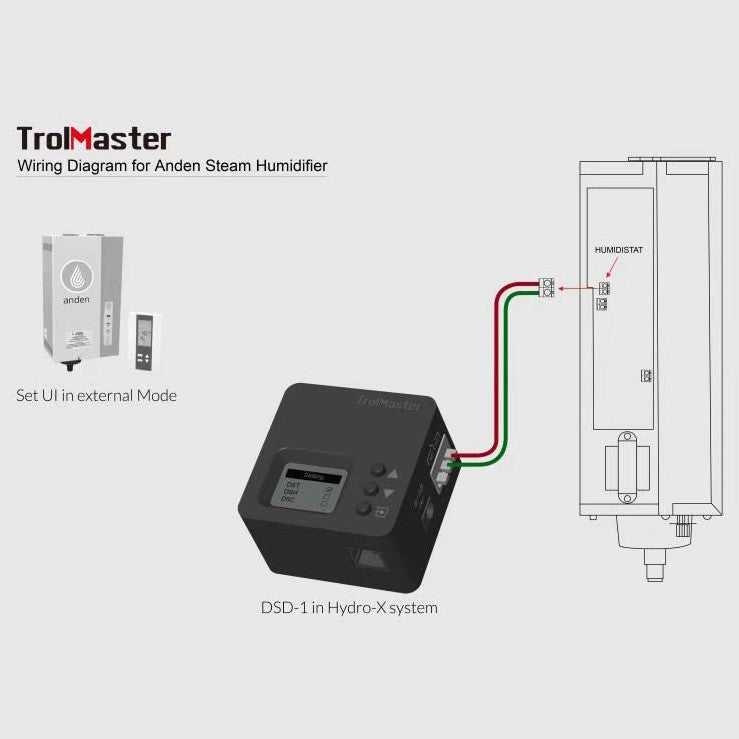

The TrolMaster DSD-1 Dry-contact module provides a simple and flexible solution to who want to connect & control devices to the Hydro-X using a “dry-contact” or relay to activate the device. Some equipment requires either normally open or normally closed contact closure in order to activate the equipment. The DSD-1 is ideal for controlling those types of devices.
Multi-Functional
The DSD-1 can be configured to work as the other TrolMaster power modules work. The DSD-1 connects into the “devices” line on the Hydro-X and can be set to control an almost infinite number and types of devices such as:
- Lighting Contactors
- Light Deprivation Curtains
- Pump Contactors
- Temperature Devices
- Humidity Devices
- CO2 Devices
Additional Features
- LCD Display, Easy Operation
- Seamless Connection with Hydro-X
- Multiple Purposes Assignment
- Plug & Play Functionality
-
Growing Product TypeDevice Station
-
System ControlsMulti-function Growing
-
Environment Temperature (degrees F)32-122
-
Maximum Operating Temperature (degrees F)122
-
Minimum Operating Temperature (degrees F)32
-
Maximum Amperage (Amps)5
-
Voltage (V)110-120, 220-240
-
Depth (in.)3.35
-
Depth (with front cover) (in.)3.35
-
Height (in.)3.54
-
Height (with front cover) (in.)3.54
-
Weight (lbs.).75
-
Width (in.)3.15
-
Width (with front cover) (in.)3.15
-
Additional FeaturesApplicable for Indoor Growing
