Vectorfog H100SF Thermal Fogger
Vectorfog H100SF Thermal Fogger is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- Vectorfog H100SF Thermal Fogger
- Owner's Manual
Info & Guides
Info & Guides

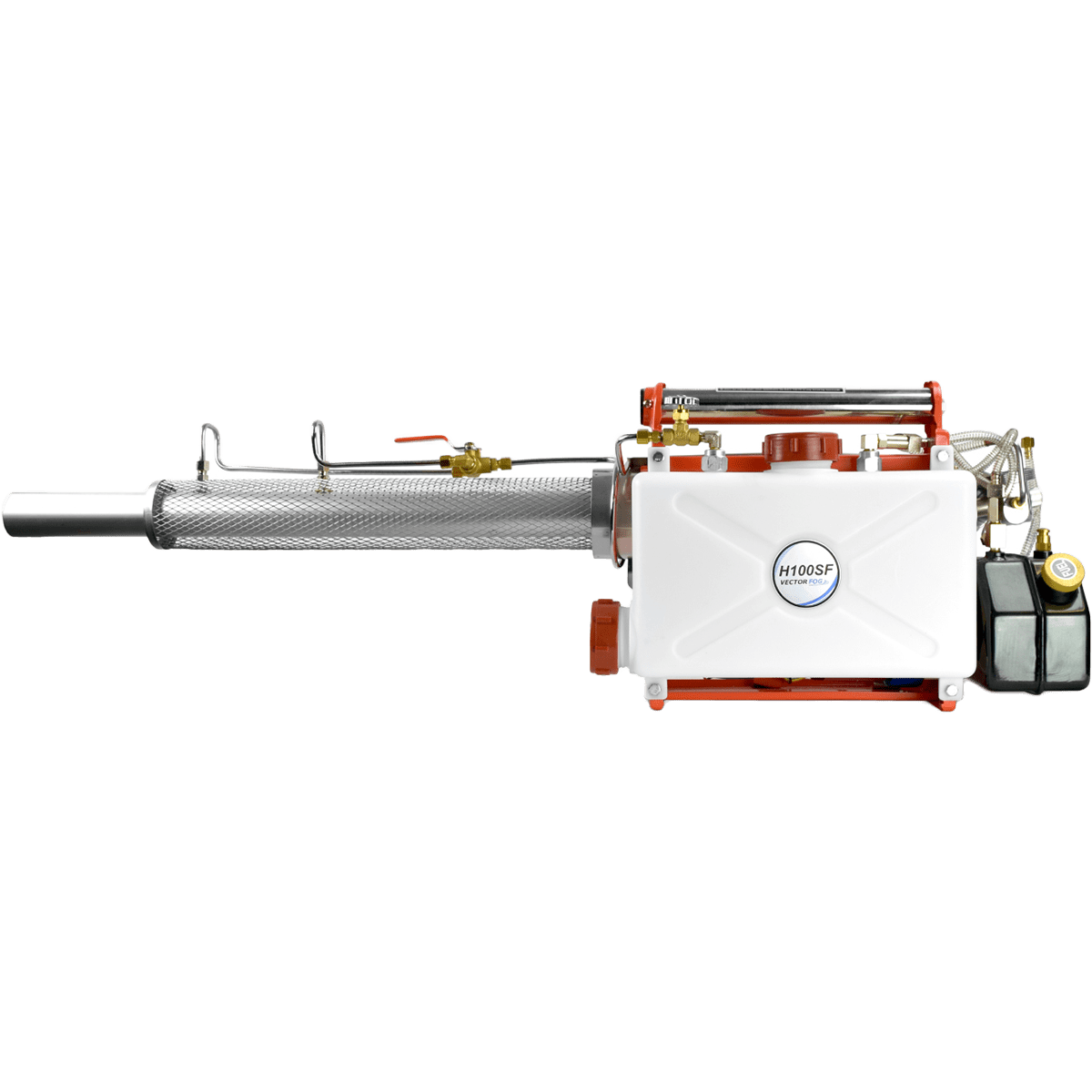

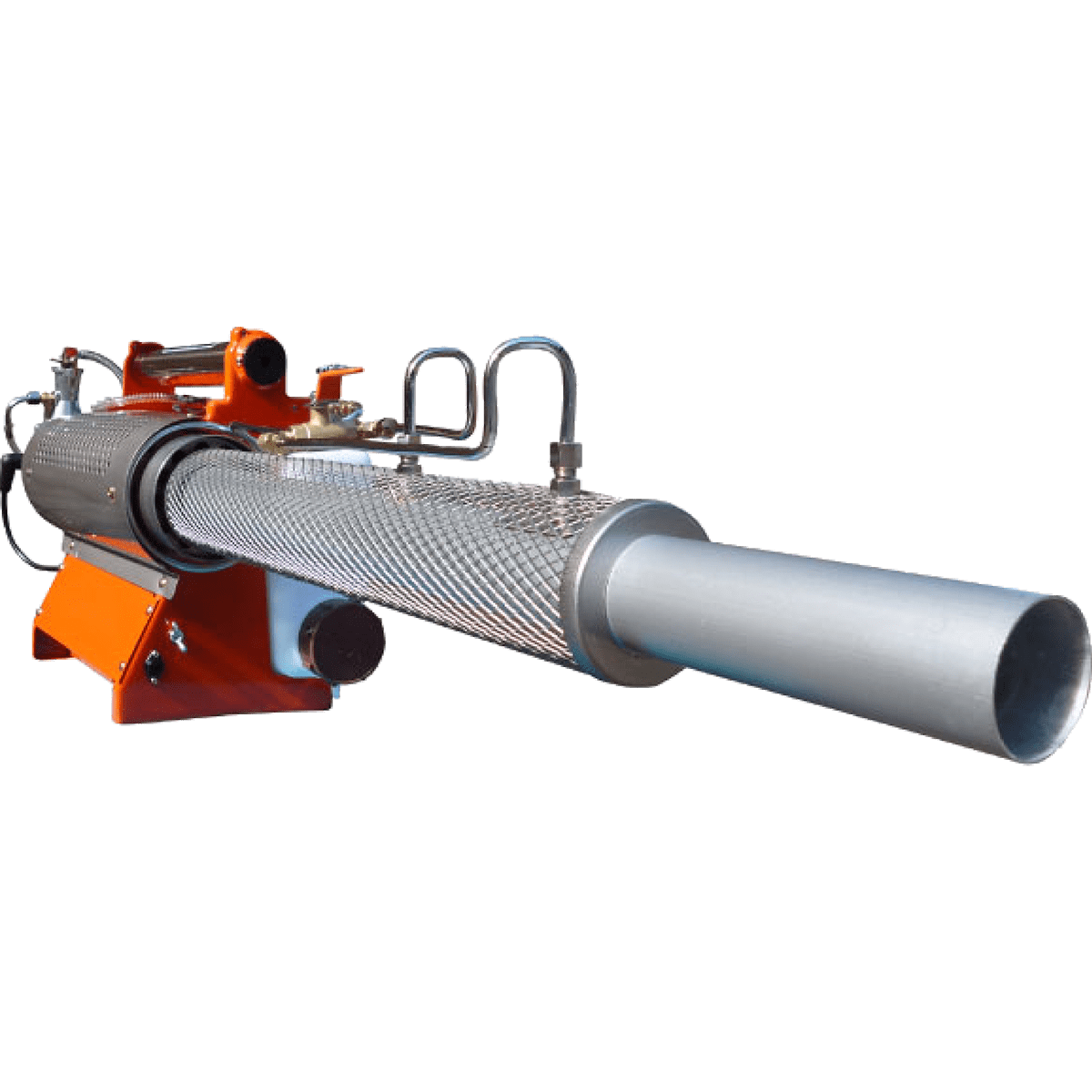

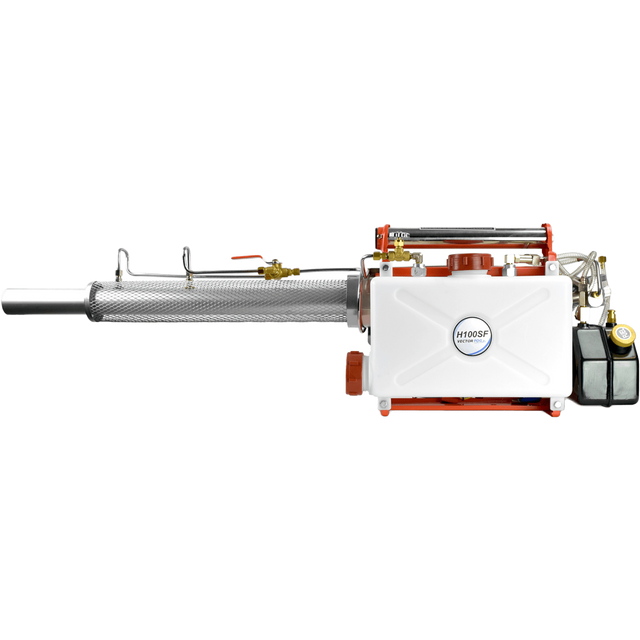

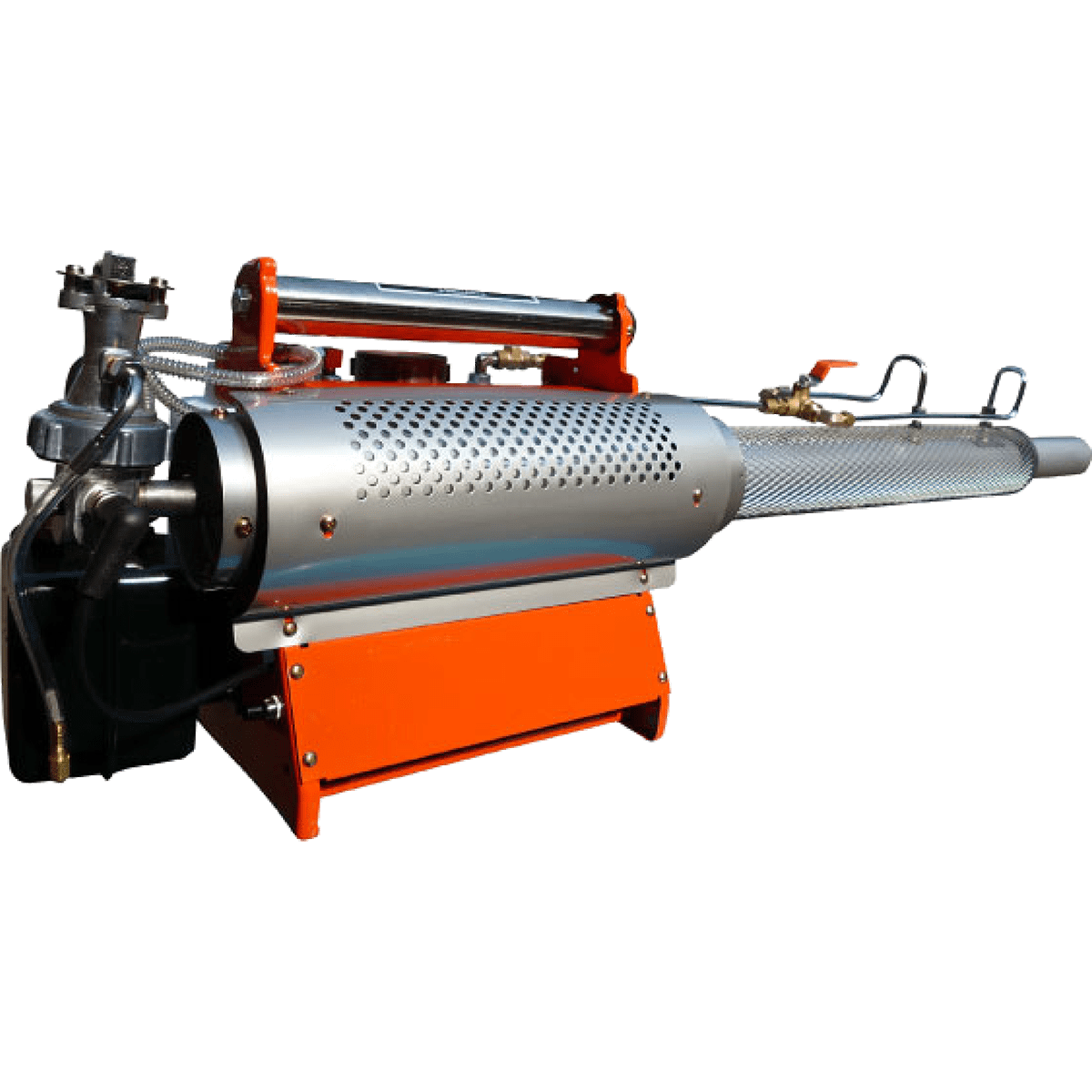

Vectorfog H100SF Thermal Fogger
Description
Description
The Vectorfog H100SF Thermal Fogger is a mid-size portable machine which can be used for both oil-based and water-based chemicals.
With a maximum spray distance of over 65 feet, this gasoline-powered thermal fogger is lightweight and durable, ideal for applying a variety of chemicals in small to medium-sized locations.
*Note: Make certain the chemical you are using is approved for use with a thermal fogger.
Dual Functionality
This thermal fogger is equipped with a directional valve which is used for selecting the type of chemical being applied.
- Water-Based: These solutions are usually odorless, safe for the environment, and won’t stain anything in the area being fogged. This makes them great for indoor fogging and short-term solutions such as fogging for mosquitos prior to an event.
- Oil-Based: These types of solutions have a longer-lasting effect since they stay on treated surfaces longer. They are less effective as short-term solution; however, they are better in bad weather and strong wind.
Useful for applying disinfectants, pesticides, herbicides, fungicides, and odor neutralizers.
Note: Always be sure the chemical you have can be safely used in a thermal fogger.
Thermal Fogging
Vectorfog’s H100SF is powered by an engine designed on the pulse jet principle which uses a combustion chamber and compressed air. Once the machine starts, the chemical tank also becomes pressurized by means of a non-return valve.
The directional and supply valves are then opened to allow chemicals to flow into the resonator where they are heated and dispersed as a visible, dense smoke.
Featured Specifications
- Chemical Tank Capacity: 1.2 Gallons
- Fuel Tank: 0.3 Gallons
- Flow Rate: 10.56 GPH (660 ml/minute) Oil-based; 7.9 GPH (500 ml/minute) Water-based
- Droplet Size: 5 – 30 microns
Summary
The Vectorfog H100SF thermal Fogger is a durable, lightweight machine with dual functionality for applying water- or oi-based chemicals to small and medium-sized spaces.
Specifications
Specifications
-
Number of Speeds1
-
TypeThermal
-
Average Droplet Size (Microns)5-50
-
Fogger Flow Rate500-660
-
Tank Capacity (gallons)1.2
-
Power SupplyGasoline
-
Depth (in.)45.2
-
Depth (with front cover) (in.)45.2
-
Height (in.)9.8
-
Height (with front cover) (in.)9.8
-
Weight (lbs.)18.7
-
Width (in.)13.38
-
Width (with front cover) (in.)13.38
-
Additional FeaturesApplicable for Indoor Growing
-
Manufacturer's Warranty1-Year Warranty
