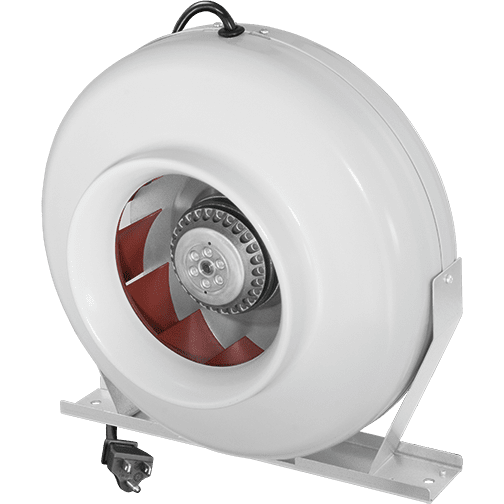

Ruck Air Movement 4-In. Classic Series Inline Centrifugal Duct Fan

SKU: ru14500 | Model: 147815

$66⁰⁰

Option

Classic HO Classic

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Email

Manufacturer's Warranty

3-Year Limited Warranty

What's In The Box?

Ruck Air Movement 4-in Classic Series Inline Centrifugal Duct Fan
Owner’s Manual

Info & Guides

Owner's Manual

Description

A long or restrictive 4-inch duct run can leave a room stuffy even when there is a fan at one end. The Ruck Air Movement 4-In. Classic Series Inline Centrifugal Duct Fan mounts in the duct itself and pushes air along the run from inside the line.

The Classic Series is rated for air temperatures from -13 to 176 degrees F. That lets you mount it in an unheated attic, a crawl space, or a warm utility area. Every fan in the series is made in Germany and carries UL and CSA certifications for electrical safety.

Key Features and Benefits of the Ruck Air Movement 4-In. Classic Series Inline Centrifugal Duct Fan

Backward-Curved Impeller: Backward-curved impeller blades keep airflow efficient in compact spaces, so you get strong output from a small 4-inch duct fan.
Variable Speed Control: Manual variable-speed control lets you turn airflow up or down to match ventilation demand and keep sound levels in check.
Built-In Brackets: Mounting brackets are built into the powder-coated metal casing, so you can fasten the fan in place with less setup work.
4-Inch Duct Fit: The diameter lets you cut the fan straight into an existing ducting run.
Plug-In Power: A 5.5-foot power cord and a plug-in supply rated for 110 to 120 volts let you connect to a standard household outlet without hardwiring.
1-Phase AC Motor: The motor pairs with the plug-in supply, so the fan runs on standard household power.
Compact Dimensions: The fan measures 11.81 x 9.84 x 8.66-Inches (L x W x H), so it fits into tight ceiling cavities and closets.

Classic vs Classic HO: Choose Your Airflow

You can choose between the Classic and Classic HO models depending on how much airflow your duct run needs and how much sound you can accept.

Classic: The Classic moves up to 123 CFM (cubic feet of air per minute) and draws 0.7 amps, a light load for a standard outlet. It is rated IPX4 for splash resistance. Its 12-sone sound rating makes it the quieter of the 2 models (sones measure how loud a fan sounds to you), and it weighs 6.68 pounds, light enough for one person to lift and mount.
Classic HO: The Classic HO steps up from the Classic to 165 CFM for longer or more restrictive ducting, and it draws 0.8 amps, only slightly more than the Classic. It has a 17-sone sound rating and weighs 6.79 pounds, barely more than the Classic.

Sylvane's Expert Take

If you're dealing with weak airflow at the end of a 4-inch duct run, the Ruck Classic Series lets you fix it inline instead of replacing the fan at the grille. Sound is the trade-off to weigh, because the Classic HO's extra airflow comes with the louder rating.

Choose the Classic for modest runs and the Classic HO when the duct is long or has several bends. Variable speed is the feature to lean on, since it lets you dial airflow back when full output is not needed.
