Ruck Air Movement 6-In. Prime 234 CFM Mixed Flow Inline Duct Fan
Ruck Air Movement 6-In. Prime 234 CFM Mixed Flow Inline Duct Fan is backordered and will ship as soon as it is back in stock.
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- Ruck Air Movement 6-inch Prime Mixed Flow Inline Duct Fan
- Mounting Bracket
- Owner's Manual
Info & Guides
Info & Guides

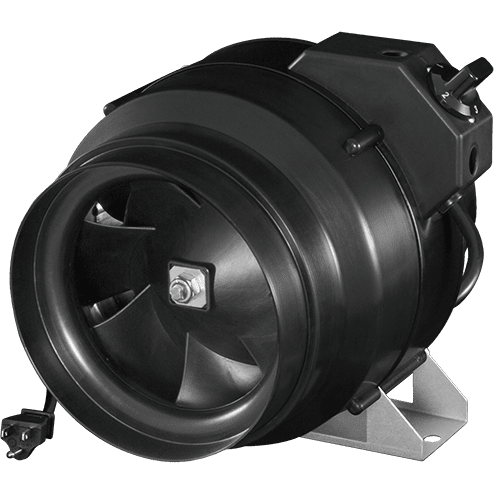

Ruck Air Movement 6-In. Prime 234 CFM Mixed Flow Inline Duct Fan
Description
Description
This Ruck Air Movement 6-inch Prime Mixed Flow Inline Duct Fan is equipped with a single-phase AC motor with an integrated 3-speed switch.
Designed and manufactured in Germany, with three-dimensionally shaped impeller blades for the highest aerodynamic efficiency and powerful airflow, this fan also carries an IPX4 rating for use in moist areas.
Ideal for Small Spaces
With a maximum airflow of 234 CFM, the Ruck Air Movement mixed airflow inline duct fan is sized for ventilation in smaller areas.
Features & Highlights
- 6-inch Inline Duct Fan
- 3D Shaped Impeller Blades
- Corrosion Resistant Plastic Housing
- Integrated 3-speed Switch
- Dual Pole
- IPX4 Unit Rating
- Minimum Operating Temperature of -13° Fahrenheit (-25° C)
- Maximum Operating Temperature of 104° Fahrenheit (40° C)
- Included Mounting Bracket
- Motor is located in the protected Hub
Summary
The Ruck Air Movement 6-inch Prime Mixed Flow Inline Duct Fan is available in this 6-inch size. Equipped with a single-phase AC motor, integrated 3-speed switch, and 3D impeller blades. Also available in 8-in, 10-in, 12-in, 14-in, 16-in, 18-in, and 20-in sizes.
Specifications
Specifications
-
Number of Speeds3
-
Sound Level (Sones) (sones)24.0
-
TypeMixed Flow Inline Duct Fan
-
ApplicationDucting
-
CertificationsUL, CSA
-
ColorBlack
-
ControlsToggle Switch
-
Maximum Air Temperature (degrees F)104
-
Maximum Cubic Feet per Minute (CFM) (CFM)234.0
-
Amperage (Amps)0.8
-
Power SupplyHardwired
-
Voltage (V)110-120
-
Watts (W)80
-
Depth (in.)8.66
-
Depth (with front cover) (in.)8.66
-
Duct Diameter (in.)6.0
-
Height (in.)8.54
-
Height (with front cover) (in.)8.54
-
Weight (lbs.)5.03
-
Width (in.)8.66
-
Width (with front cover) (in.)8.66
-
Additional FeaturesApplicable for Indoor Growing
-
Manufacturer's Warranty3-Year Warranty
