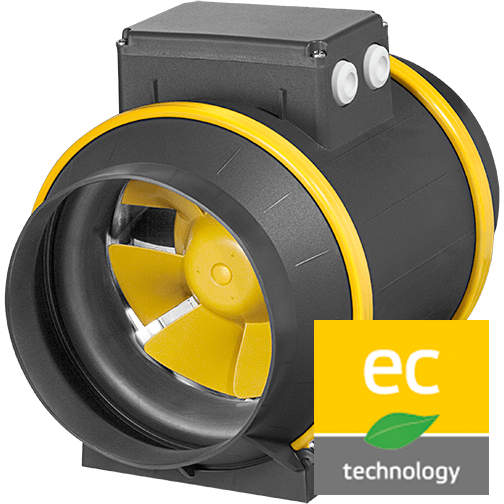

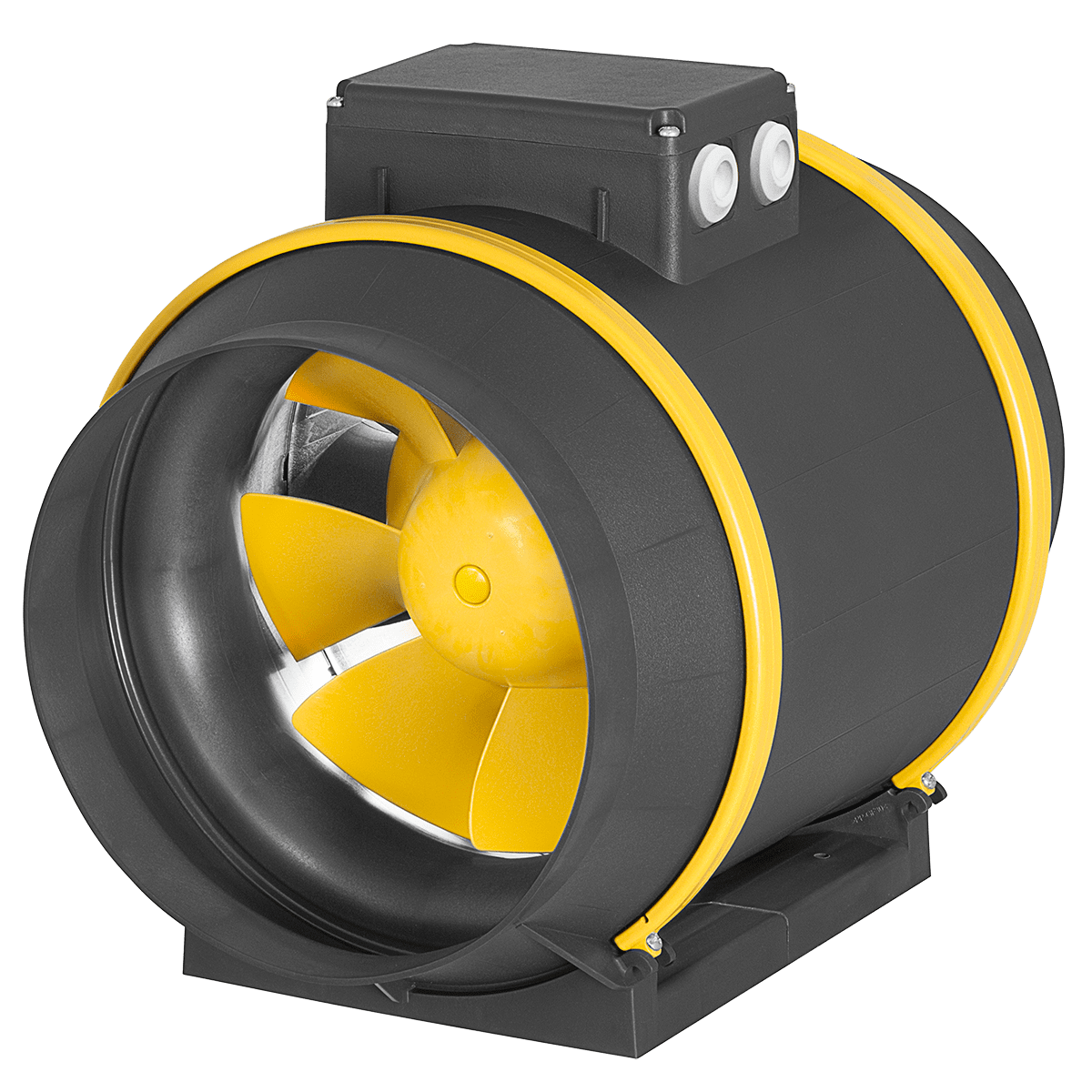

Ruck Air Movement 6-In. Prime EVO EC 483 CFM Mixed Flow Inline Duct Fan

SKU: ru14525  |  Model: 147617
$302.00

FREE shipping on orders over $45!

In Stock Usually ships in 3 business days.


Add extended protection plan. (Select one)

learn more

A 1-year replacement warranty plan for commercial or residential use items under $500.

learn more

A 2-year replacement warranty plan for commercial or residential use items under $500.


Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

3-Year Warranty

What's In The Box?

  • Ruck Air Movement 6-inch Prime EVO EC Mixed Flow Inline Duct Fan
  • Mounting Bracket
  • Owner's Manual

Info & Guides

Description

The Ruck 6-inch Prime EVO EC Mixed Flow Inline Duct Fan boasts a powerful EC motor with the highest efficiency. Designed with 3D shaped impeller blades for top aerodynamic operation.

Manufactured in Germany, this fan is ETL-listed and IPX4 rated (complete unit) for high-humidity environments, and costs less to operate than traditional centrifugal fans.

Efficient Ventilation

Pulling only 1 amp at maximum operation, the Prime EVO EC fan can run at as much as 3870 RPM, producing up to 483 CFM.

Features & Highlights

  • 6-inch Duct Fan
  • 3D Shaped Impeller Blades
  • Corrosion Resistant Plastic Housing
  • 0-10V Speed Control
  • IP54 Motor
  • IP44 Terminal Box
  • Minimum Operating Temperature of -22° Fahrenheit (-30° C)
  • Maximum Operating Temperature of 140° Fahrenheit (60° C)
  • Included Mounting Bracket
  • Motor is protected in the Hub

Summary

The Ruck Air Movement Prime EVO EC Mixed Flow Inline Duct Fan is available in this 6-inch duct size. Equipped with corrosion-resistant housing, 0-10V speed control, and carries an IPX4 rating for humid environments. Also available in 8-inch, 10-inch, 12-inch, 14-inch, and 16-inch duct sizes.

Specifications

    Key Specifications

    • Number of Speeds
      Variable
    • Sound Level (Sones) (sones)
      34.0
    • Type
      Low Noise Inline Duct Fan

    General

    • Application
      Ducting
    • Certifications
      UL, CSA
    • Color
      Black
    • Controls
      Manual
    • Maximum Air Temperature (degrees F)
      140
    • Maximum Cubic Feet per Minute (CFM) (CFM)
      483.0

    Power

    • Amperage (Amps)
      1
    • Power Supply
      Hardwired
    • Voltage (V)
      110-120
    • Watts (W)
      72

    Dimensions

    • Depth (in.)
      9.02
    • Depth (with front cover) (in.)
      9.02
    • Duct Diameter (in.)
      6.0
    • Height (in.)
      12.6
    • Height (with front cover) (in.)
      12.6
    • Weight (lbs.)
      6.17
    • Width (in.)
      10.28
    • Width (with front cover) (in.)
      10.28

    Additional Features

    • Additional Features
      Applicable for Indoor Growing

    Warranty

    • Manufacturer's Warranty
      3-Year Warranty
