TrolMaster Hydro-X Humidistat Station
TrolMaster Hydro-X Humidistat Station is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
What's In The Box?
What's In The Box?
- TrolMaster Hydro-X Humidistat Station w/ 24V Terminal (HS-1)
- 16-ft. RJ12 Cable
- 4-ft. RJ12 Cable
- RJ12 T-Splitter
- Owner's Manual
Info & Guides
Info & Guides
Description
Description
The TrolMaster Hydro-X HS-1 Humidistat Station is specially designed to control commercial dehumidifiers with a 24V terminal to eliminate the need for to control high-amperate / inrush current.
Four data lines through four ports on the back panel allows the user to control any commercial dehumidifier based on preselected set points.
Simple Set-Up

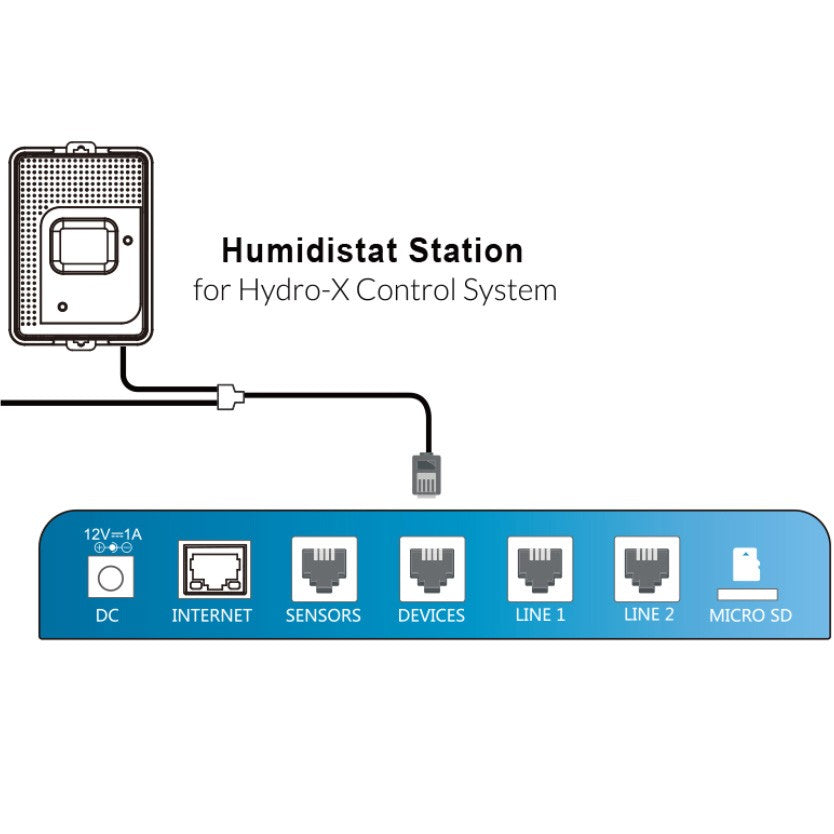

Connect the HS-1 Humidistat Station to the Hydro-X controller with the included RJ12 cable and the signal wires to the back panel. Then, press the addressing button to assign and address to the HS-1 unit. Then you can select fan setting and humidity set-points.

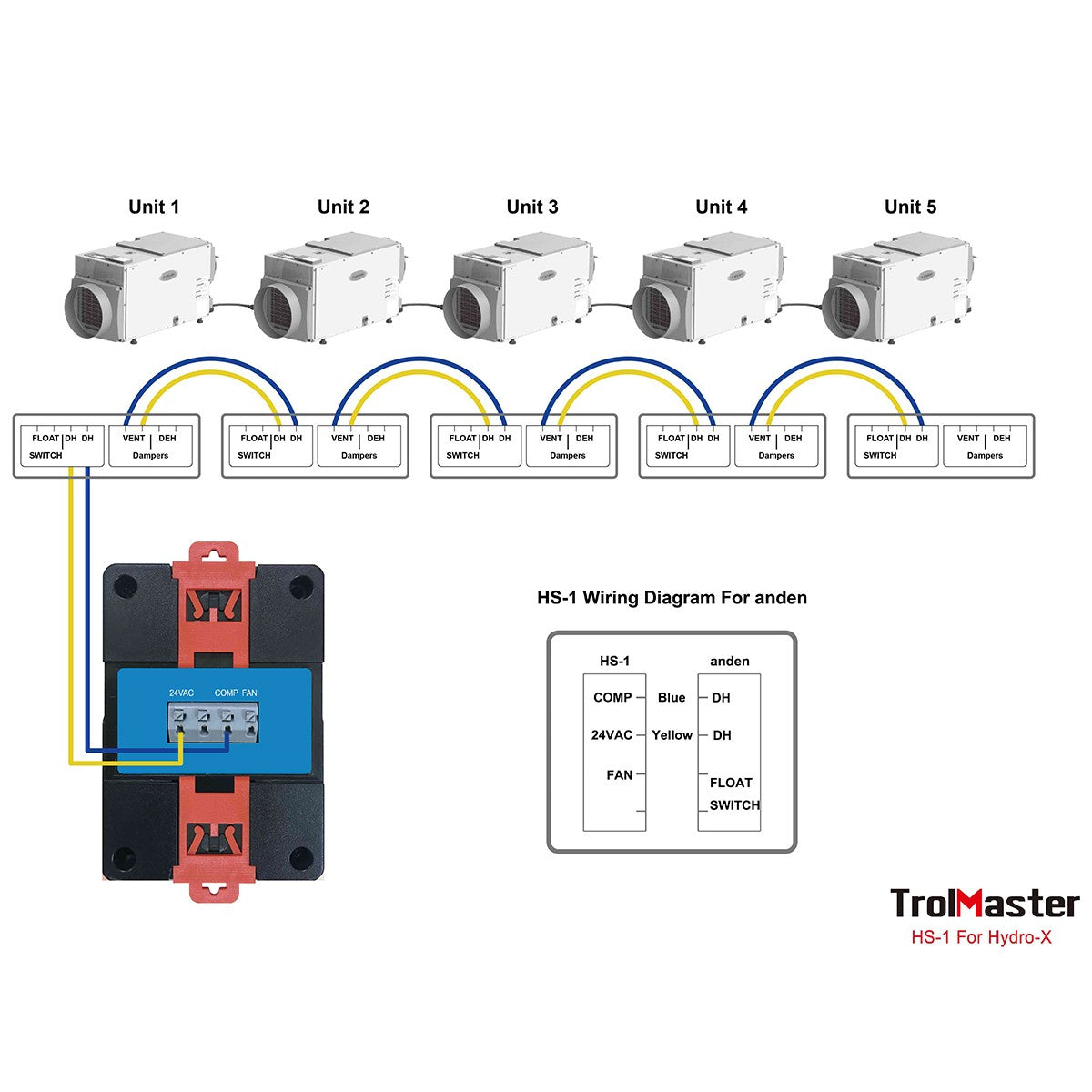

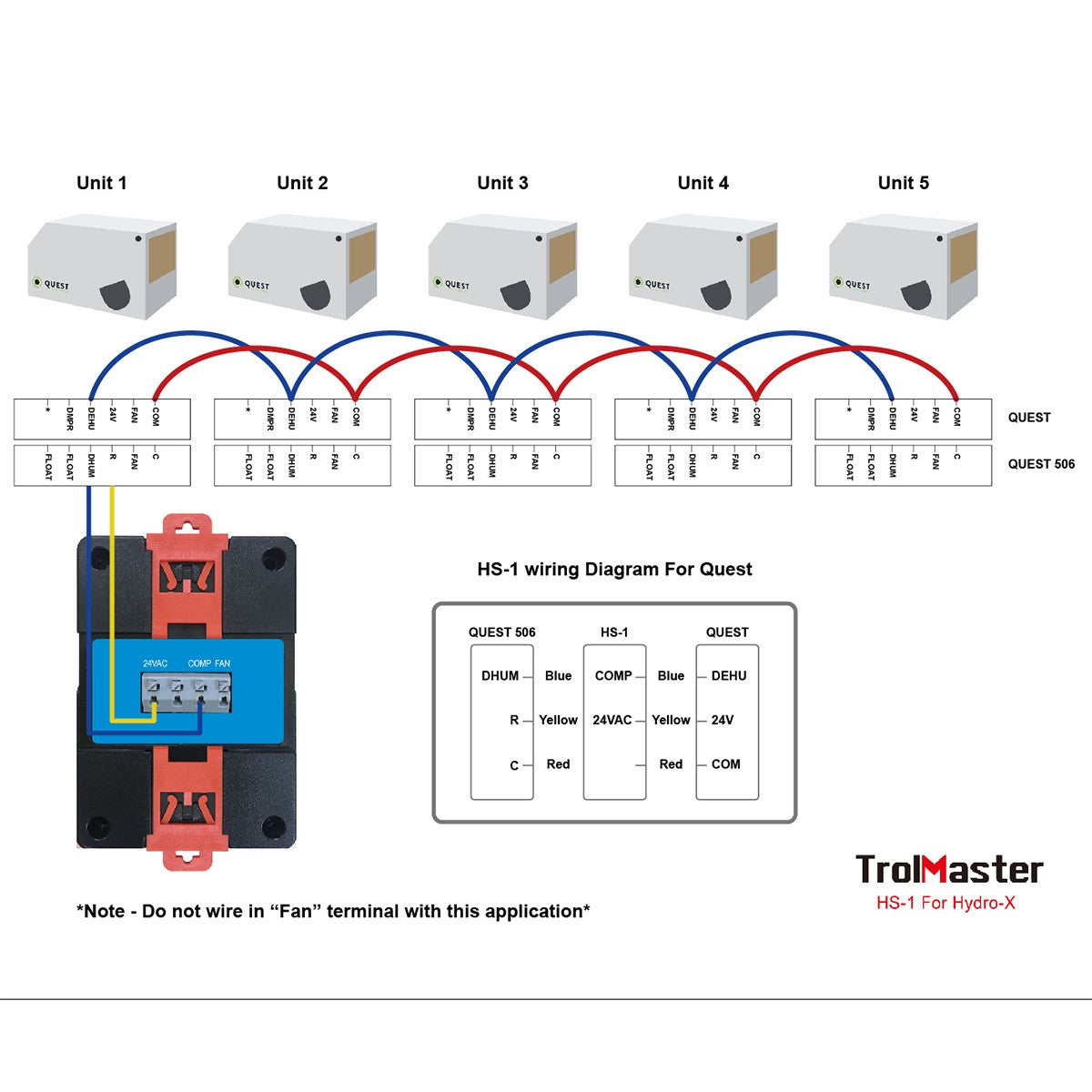

The HS-1 can accommodate up to 5 commercial dehumidifier units such as Quest or Anden models.
Additional Features
- Ambient Temperature for Operation: 32 - 122 degrees Fahrenheit
- Ambient Humidity for Operation: Less than or equal to 90% RH
- ETL Certified
- LCD Display
- Micro-SD for Firmware Upgrade
- Plug & Play Functionality
Specifications
Specifications
-
Growing Product TypeController
-
System ControlsHumidity
-
Environment Temperature (degrees F)32-122
-
Maximum Operating Temperature (degrees F)122
-
Minimum Operating Temperature (degrees F)32
-
Maximum Amperage (Amps)0.1
-
Depth (in.)6.3
-
Depth (with front cover) (in.)6.3
-
Height (in.)3.39
-
Height (with front cover) (in.)3.39
-
Weight (lbs.)0.88
-
Width (in.)3.39
-
Width (with front cover) (in.)3.39
-
Additional FeaturesApplicable for Indoor Growing
