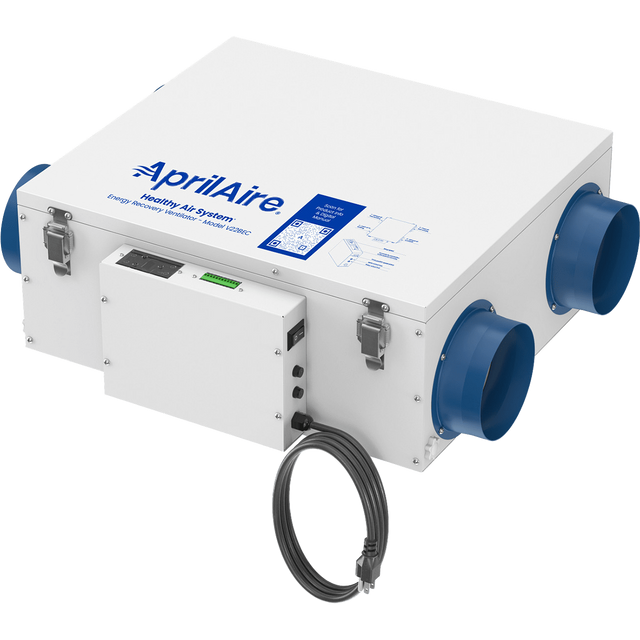

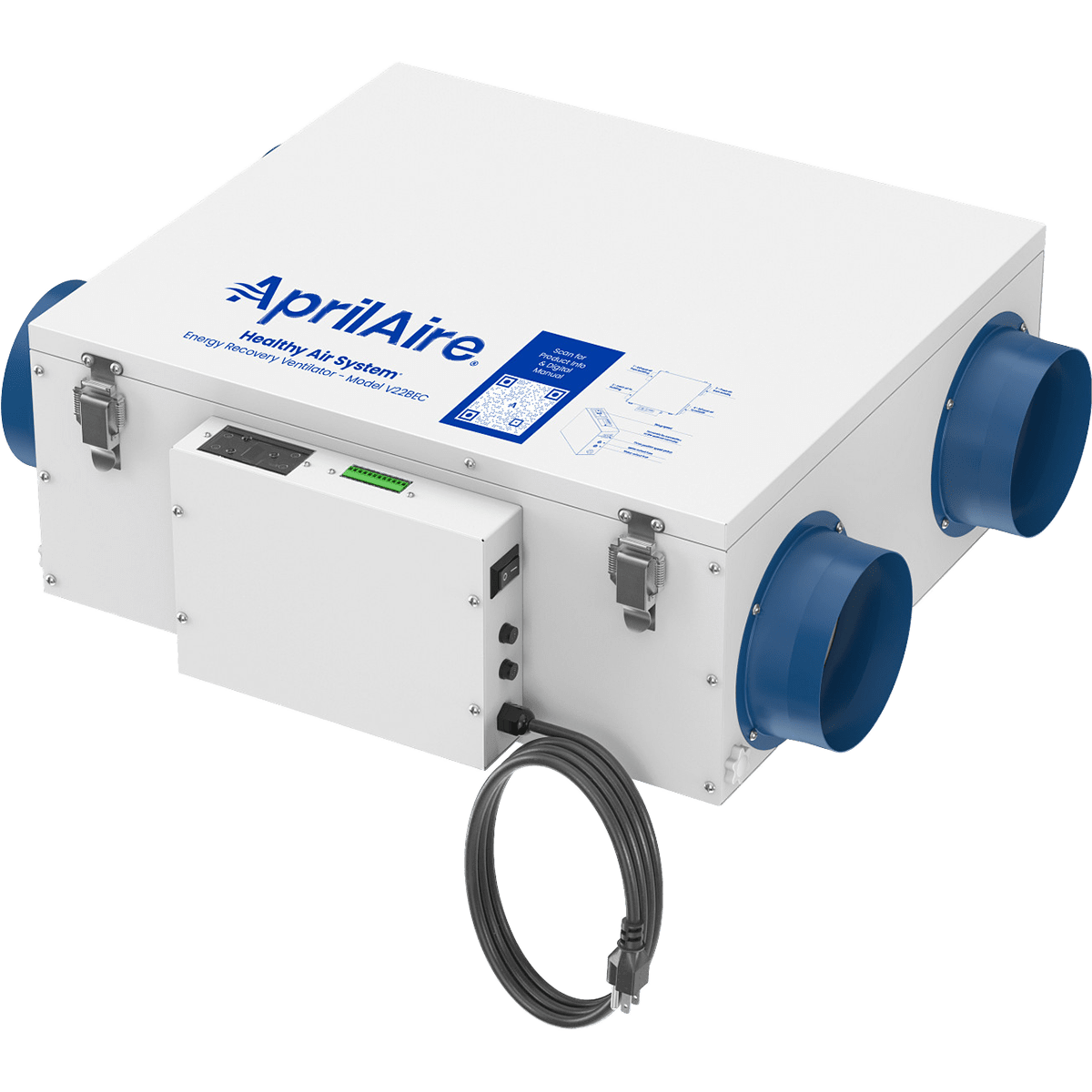

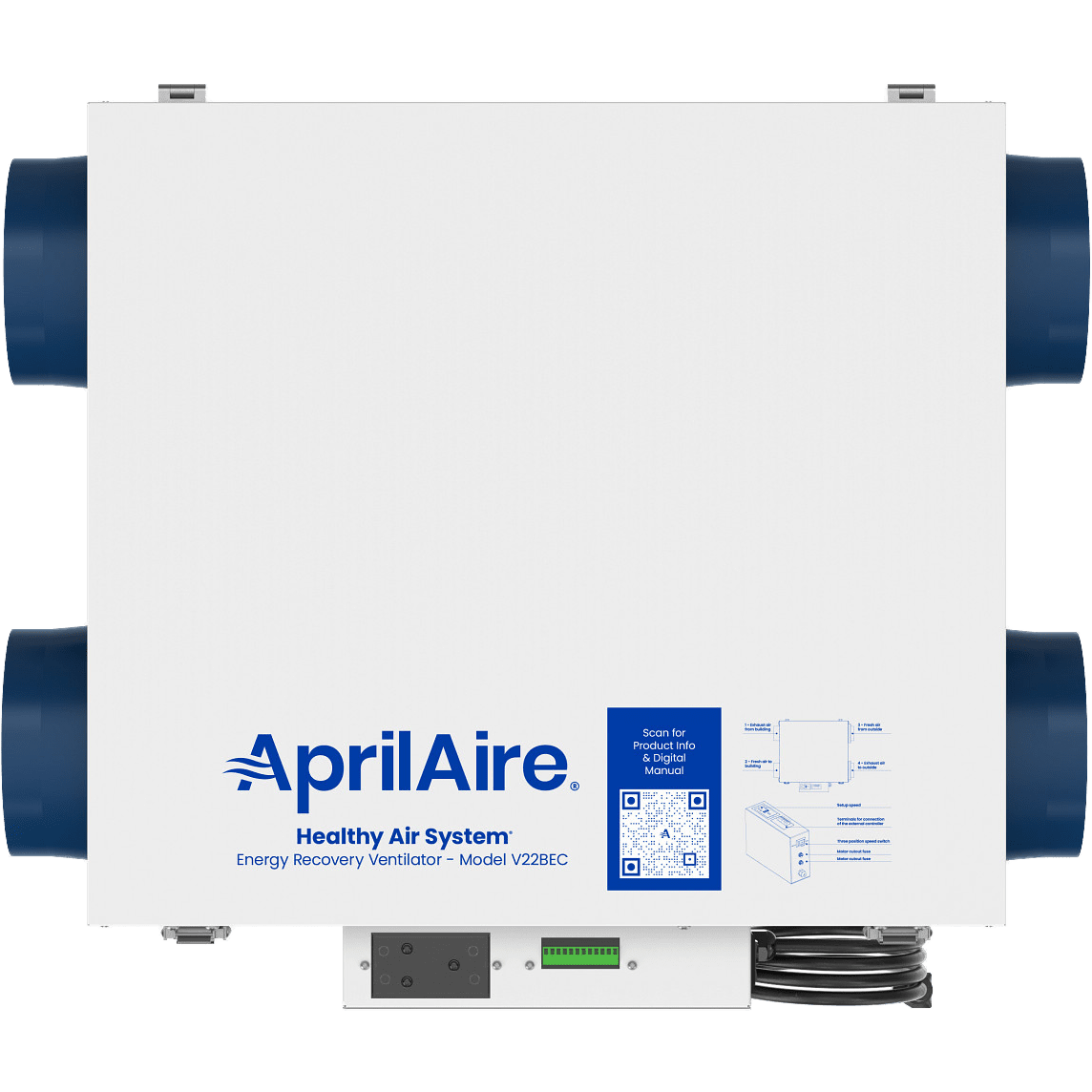

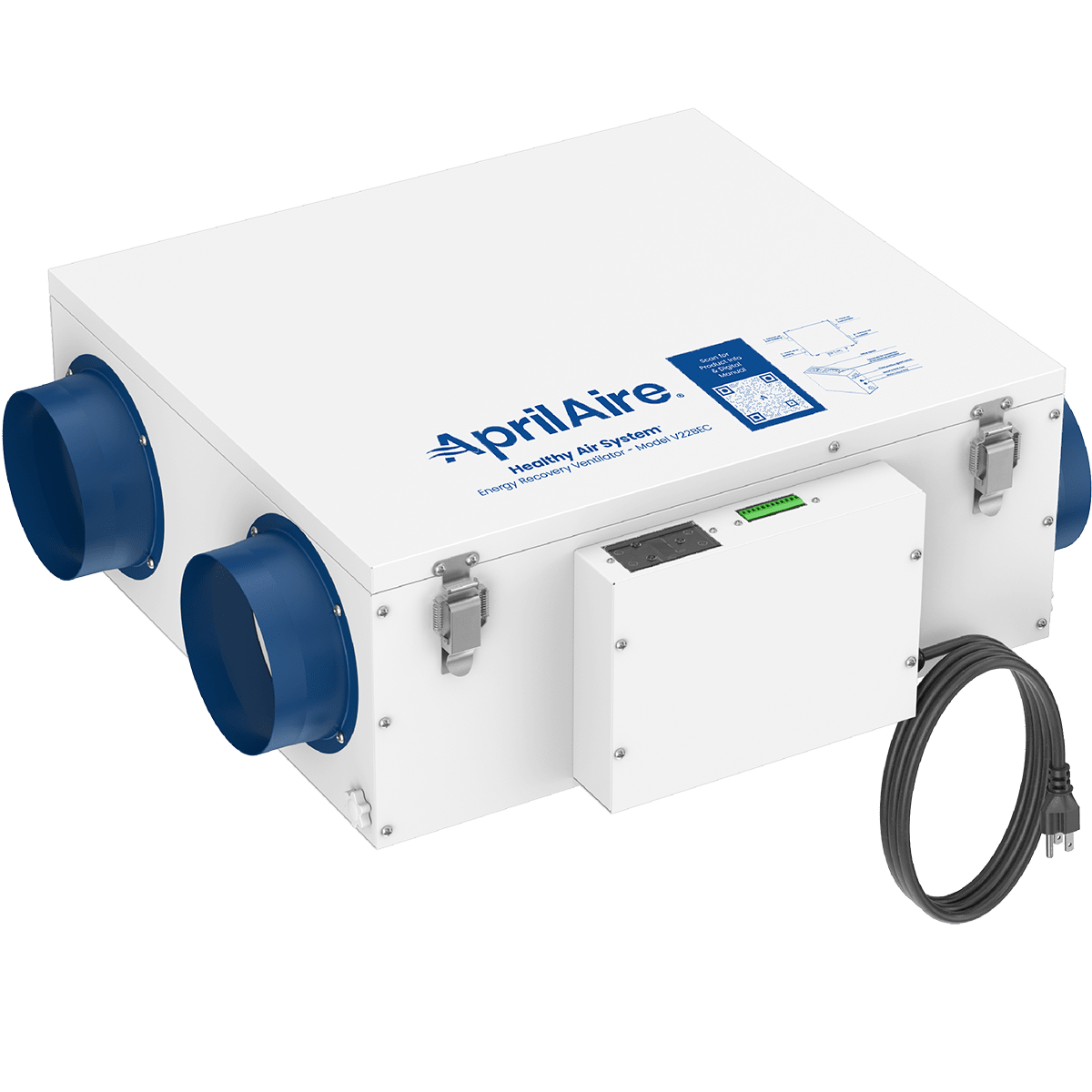

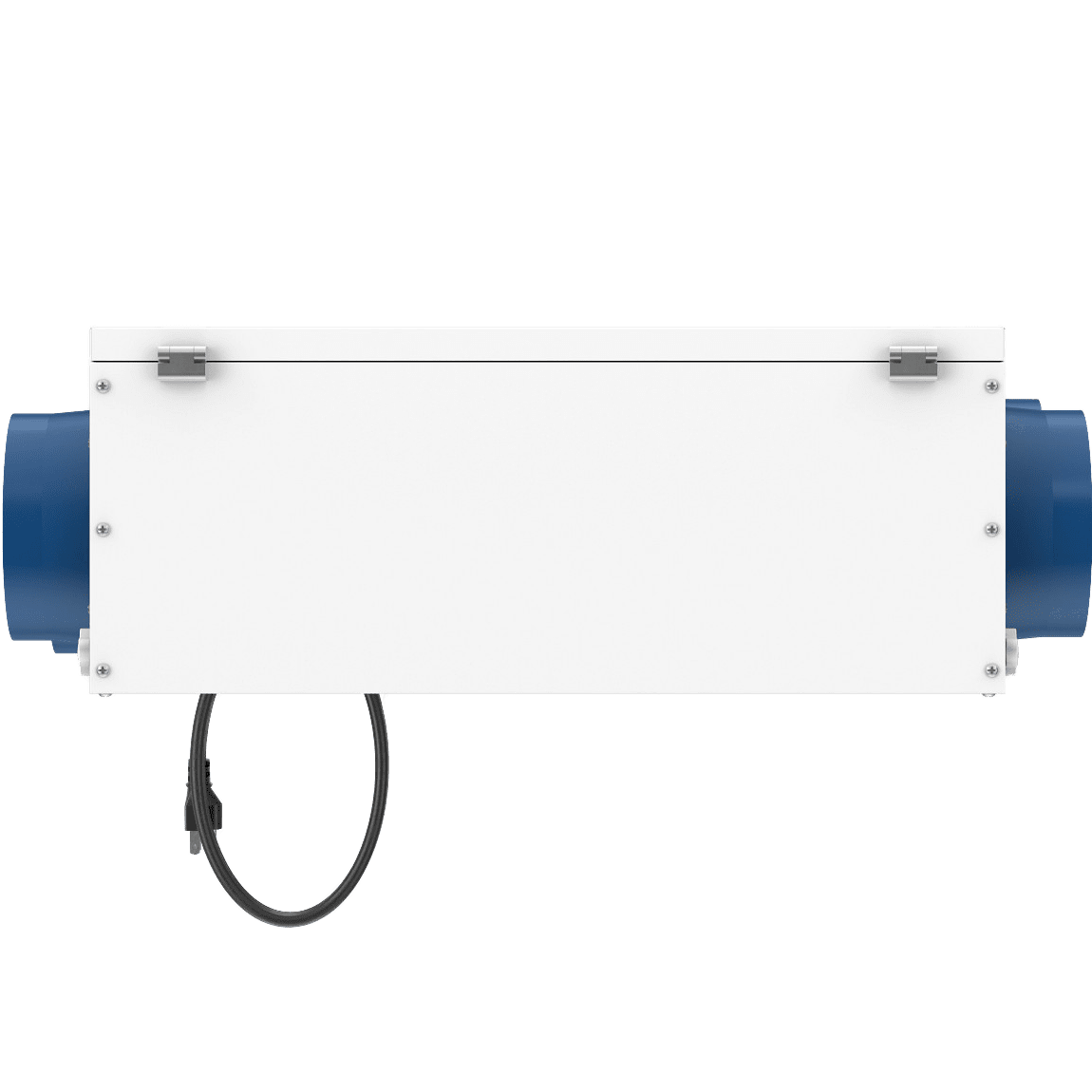

Aprilaire V22BEC Healthy Air System 120 CFM Energy Recovery Ventilator
Aprilaire V22BEC Healthy Air System 120 CFM Energy Recovery Ventilator is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty

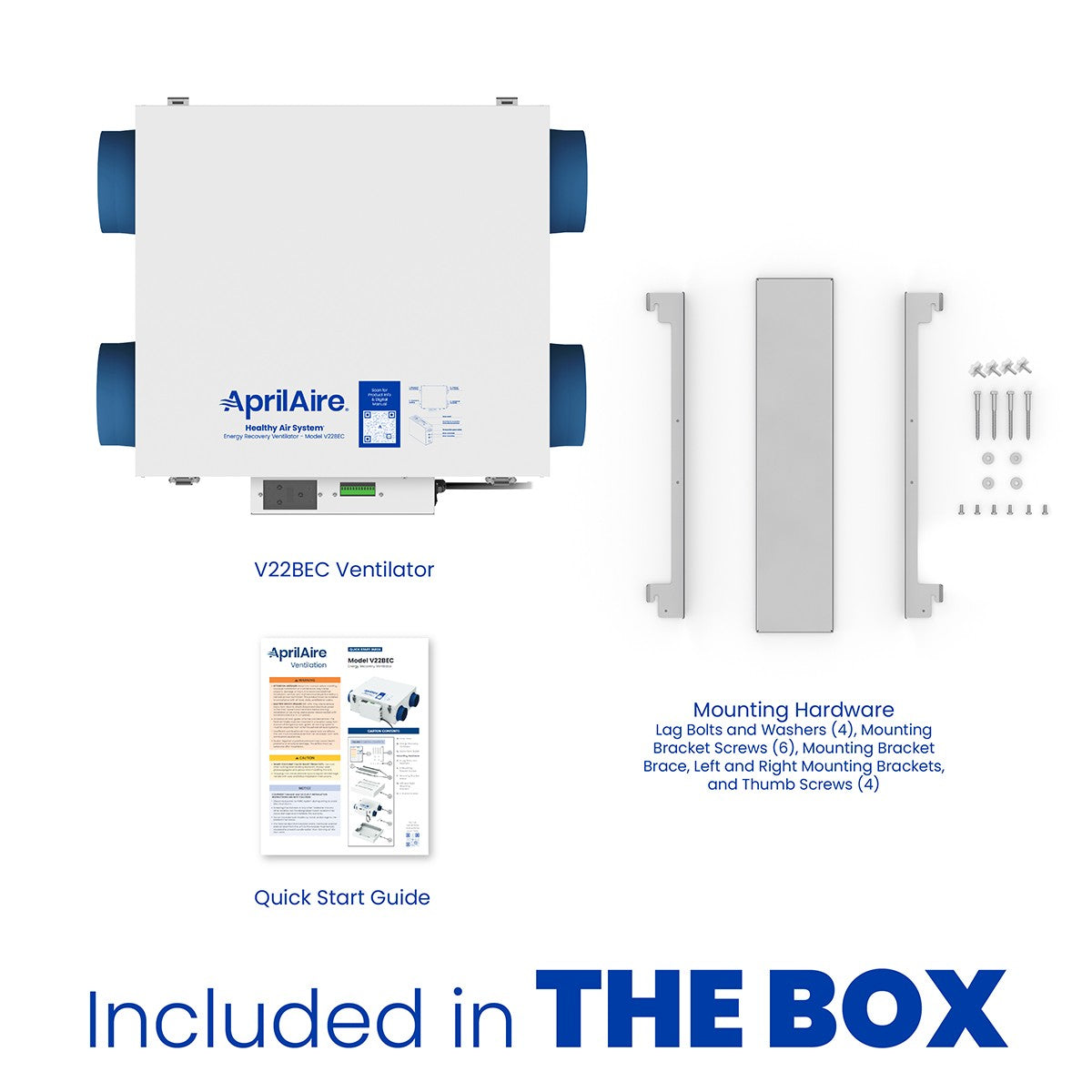

What's In The Box?
What's In The Box?
- Aprilaire 120 CFM Energy Recovery Ventilator
- Mounting Bracket
- Mounting Hardware
- Quick Start Guide
Aprilaire V22BEC Healthy Air System 120 CFM Energy Recovery Ventilator
Description
Description
The Aprilaire Healthy Air System 120 CFM Energy Recovery Ventilator is essential for maintaining optimal indoor air quality in homes with tight construction. This system efficiently exchanges indoor air with fresh outdoor air while moderating humidity and preserving energy.
-
Health and Comfort: Ensures the delivery of fresh, healthy air, minimizing energy impacts.
-
Combat VOCs: Reduces indoor pollutants and odors by replacing stale air with fresh external air.
-
Balanced Ventilation: Equally exhausts and supplies air, maintaining optimal air conditions.
-
Climate Versatility: Effectively manages indoor moisture levels in both hot and dry and cold climates by exchanging heat and humidity.
Cost-Efficient and Effective
This Energy Recovery Ventilator provides 120 cfm of airflow, effectively ventilating homes up to 4,500 square feet.
-
Efficiency: Moves air at 1.45 cfm per watt at 0.2 in. w.c at maximum fan setting, with 72 to 74 percent energy recovery efficiency.
-

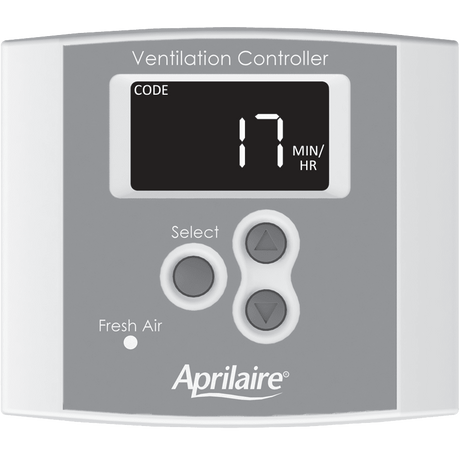

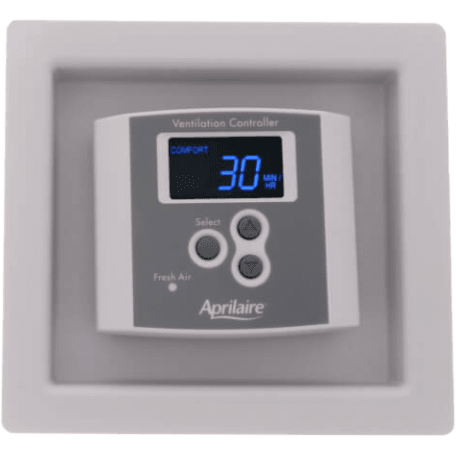

Convenient Controls: Operate this unit with the onboard controls or wire it to a compatible outside controller. It is compatible with AprilAir 8120X Controls and IAQ Thermostats.
-
Operating Modes: Ventilation can be fine-tuned with two continuous fan speeds and a standby mode.
-

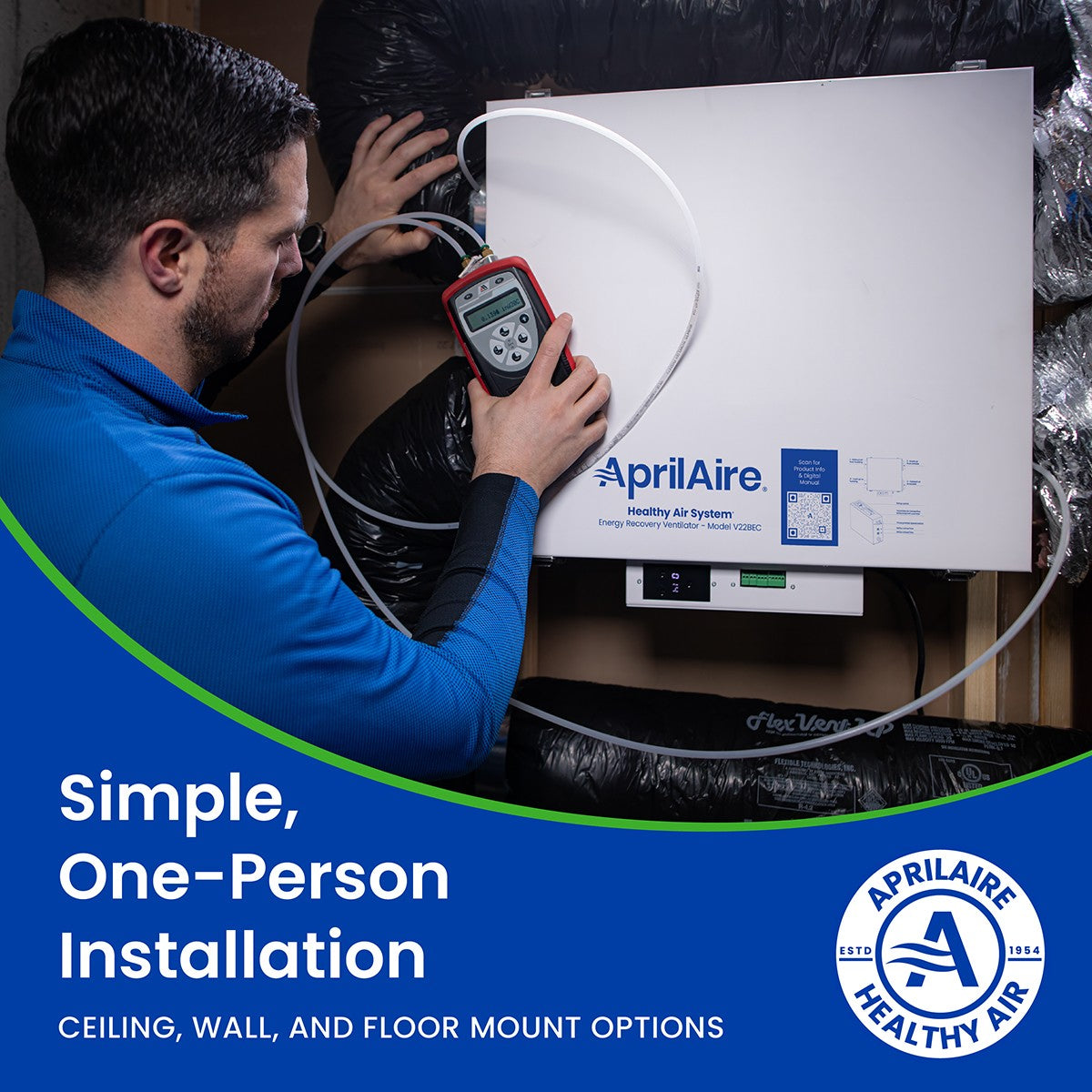

Flexible Mounting Options: Ceiling, Wall, and Floor Mount capable with included templated mounting bracket and hardware
Meets Highest Standards
This ventilation solution is perfect for new and tightly built residential spaces that require an ample supply of fresh air.
-
Building Code Requirements: This system meets the requirements of the International Energy Conservation Code (IECC) 2021, International Residential Code (IRC) 2021, International Mechanical Code (IMC) 2021, and American Society of Heating, Refrigerating and Air-Conditioning Engineers (ASHRAE) Standard 62.2
Easy Installation and Use
-
Easy Setup: Convenient control with easy-to-use push buttons for airflow, supply, and exhaust features.
-

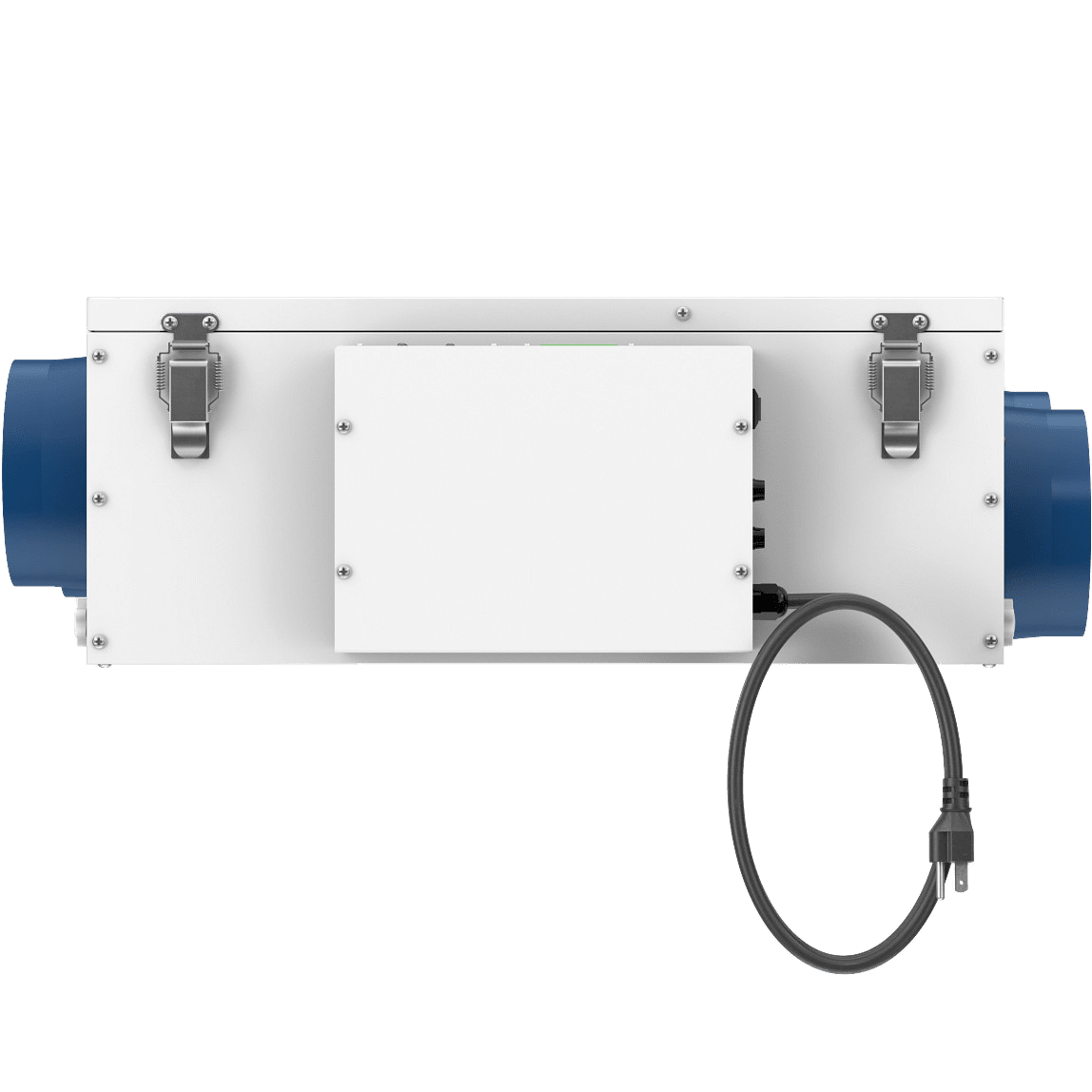

Balanced Air Exchange: Four ports on the ERV exhaust air from the building while drawing in fresh outside air in an even exchange. No balancing dampers are required.
-
Lightweight Design: Aprilaire has designed this model to be lightweight and easy for one professional to install.
-
Air Filtration: Includes two washable foam air filters that remove impurities from the return air supply.
Note: Professional installation is required.
Sylvane's Expert Take
For new and tightly built homes, this simple yet reliable Aprilaire Energy Recovery Ventilator is a vital tool for providing cost-effective ventilation to large spaces. This easy-to-use model balances cost-effectiveness and performance while providing required air exchanges for homes up to 4,500 square feet.
Specifications
Specifications
-
Minimum Cubic Feet per Minute (CFM) (CFM)30.0
-
Mounting TypeCeiling, Wall, Floor
-
Number of SpeedsVariable
-
Port LocationSide
-
TypeERV-Air Supply Fan
-
ApplicationResidential
-
CertificationsUL
-
ColorWhite
-
ControlsElectronic
-
Maximum Cubic Feet per Minute (CFM) (CFM)120.0
-
Amperage (Amps)1.3
-
Power SupplyPlug
-
Voltage (V)110-120
-
Watts (W)95
-

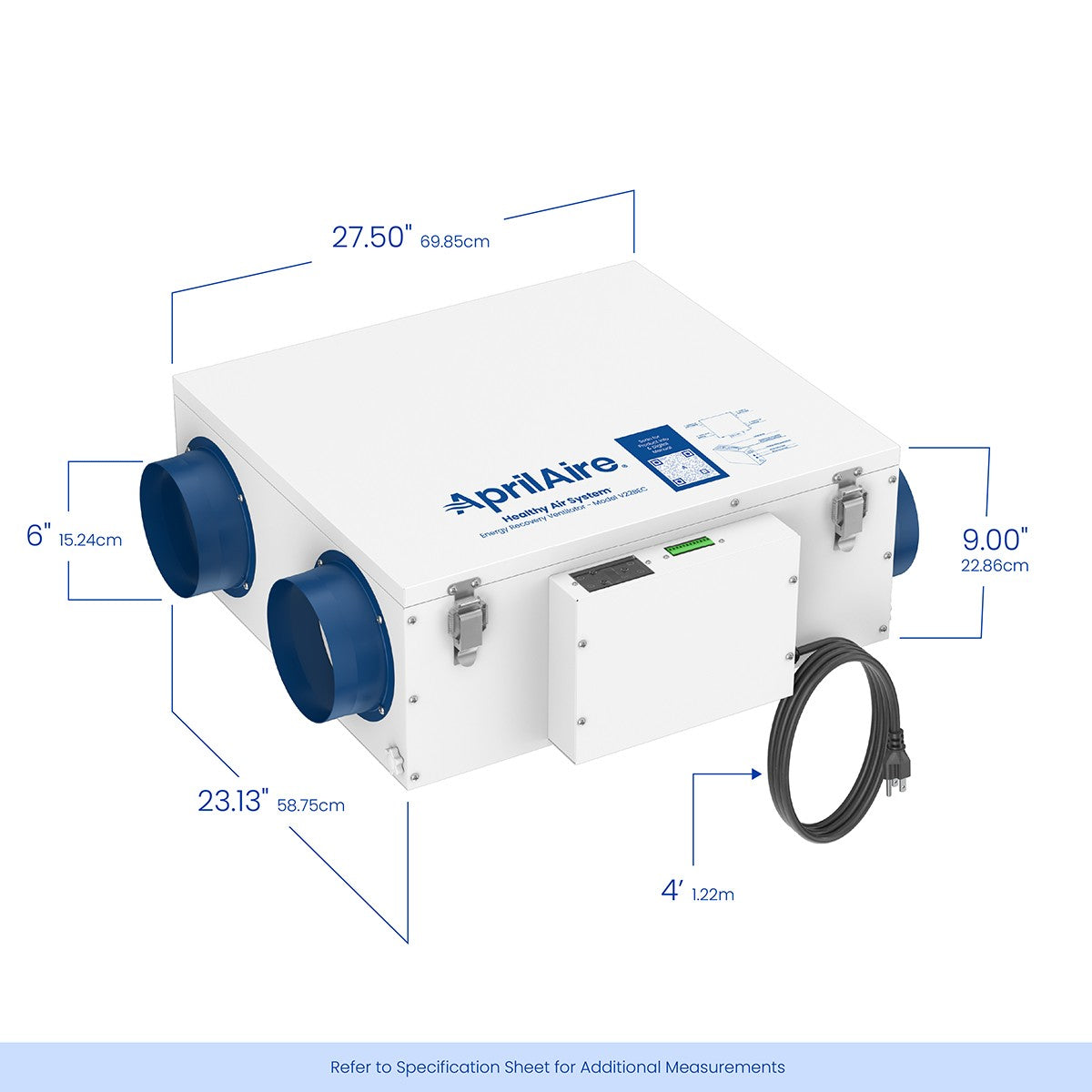

Depth (in.)27.5
-
Depth (with front cover) (in.)27.5
-
Duct Diameter (in.)6.0
-
Height (in.)23.13
-
Height (with front cover) (in.)23.13
-
Weight (lbs.)50
-
Width (in.)9.0
-
Width (with front cover) (in.)9.0
-
Additional FeaturesThermal Cutoff Protection
-
Manufacturer's Warranty5-Year Limited Parts and Labor Warranty
