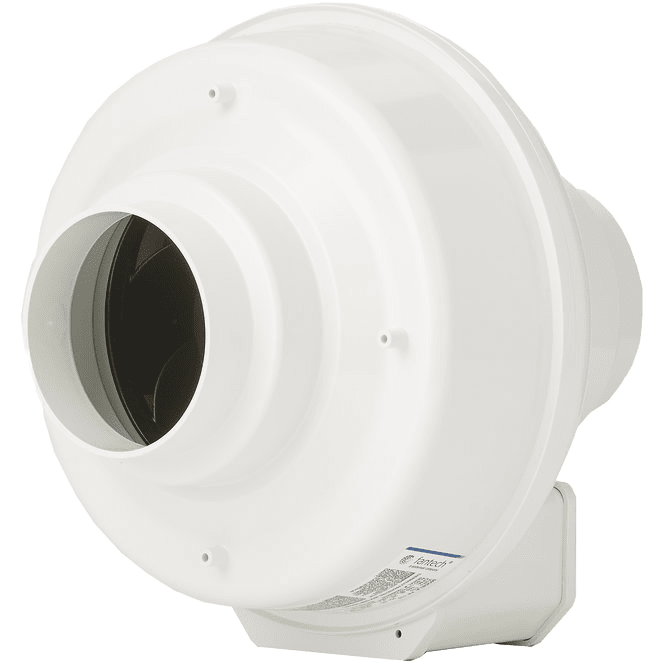

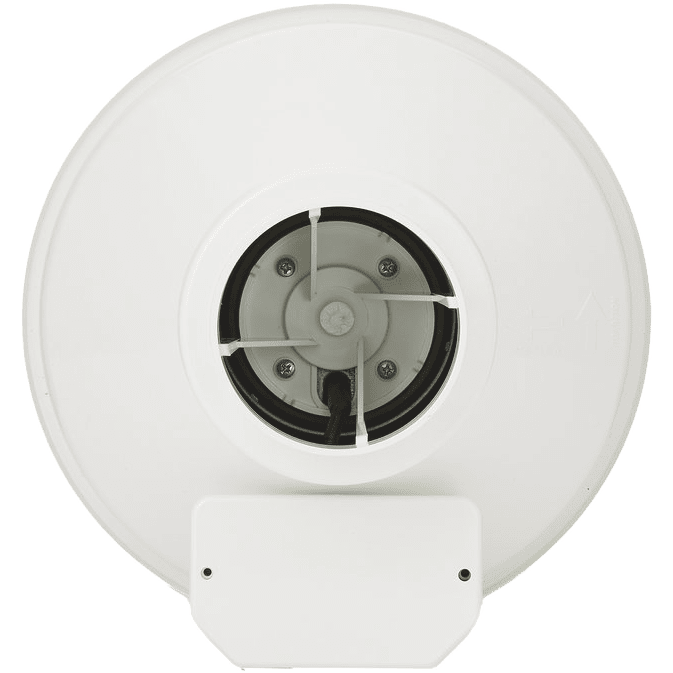

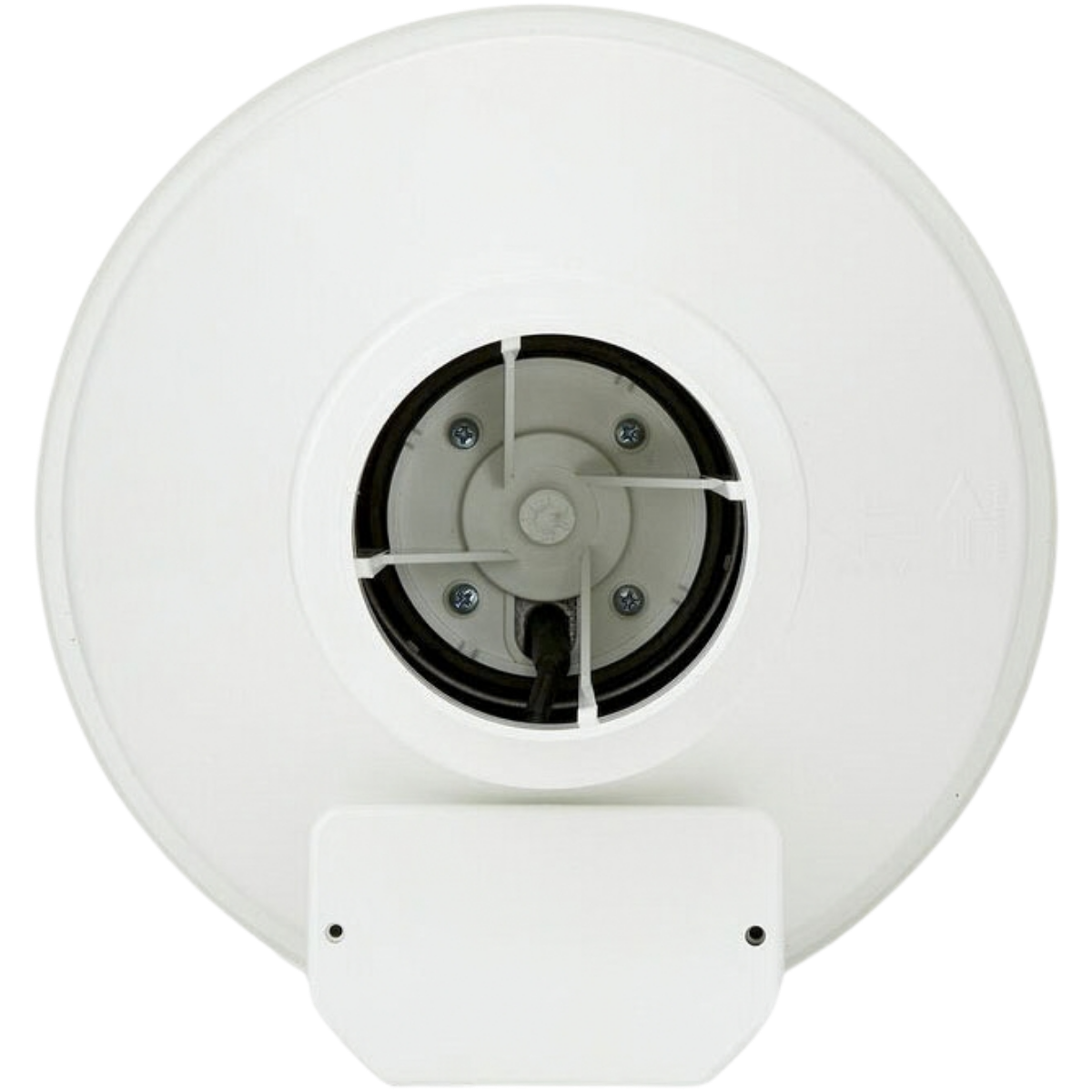

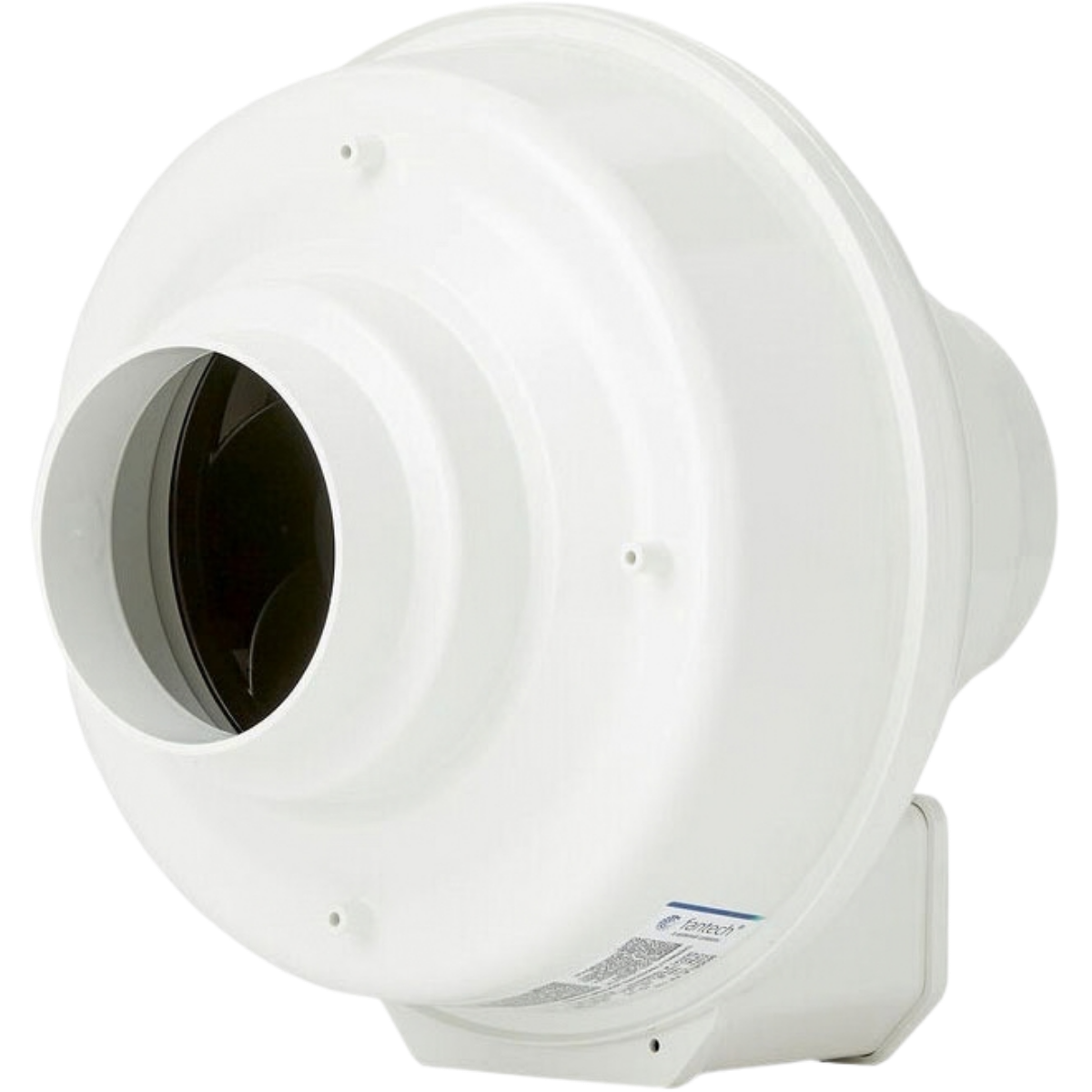

Fantech FR Series 4-in. Inline Centrifugal Fan

SKU: fn12482  |  Model: 411331
$204.00

FREE shipping on orders over $45!

In Stock Ships within 1-2 business days.

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

5-Year Limited Warranty

What's In The Box?

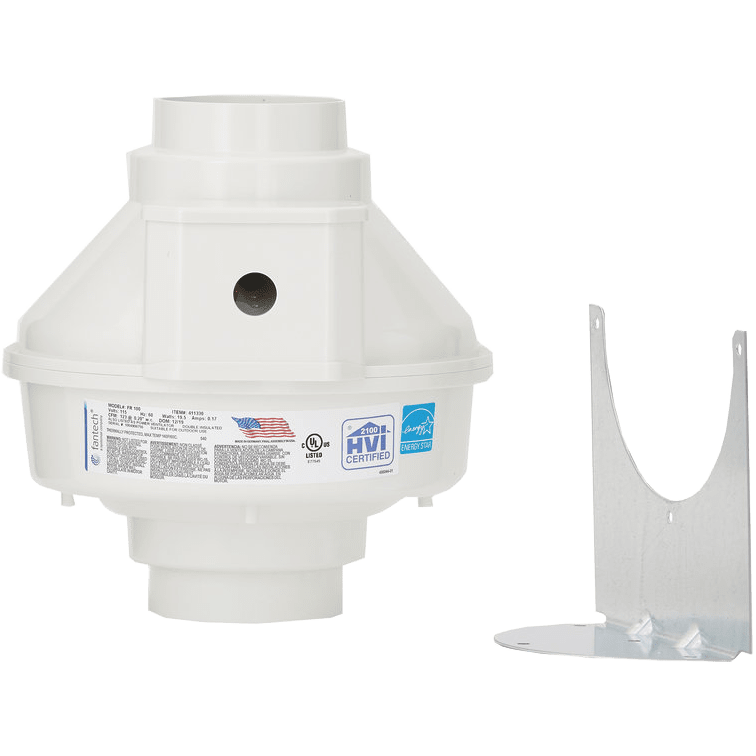

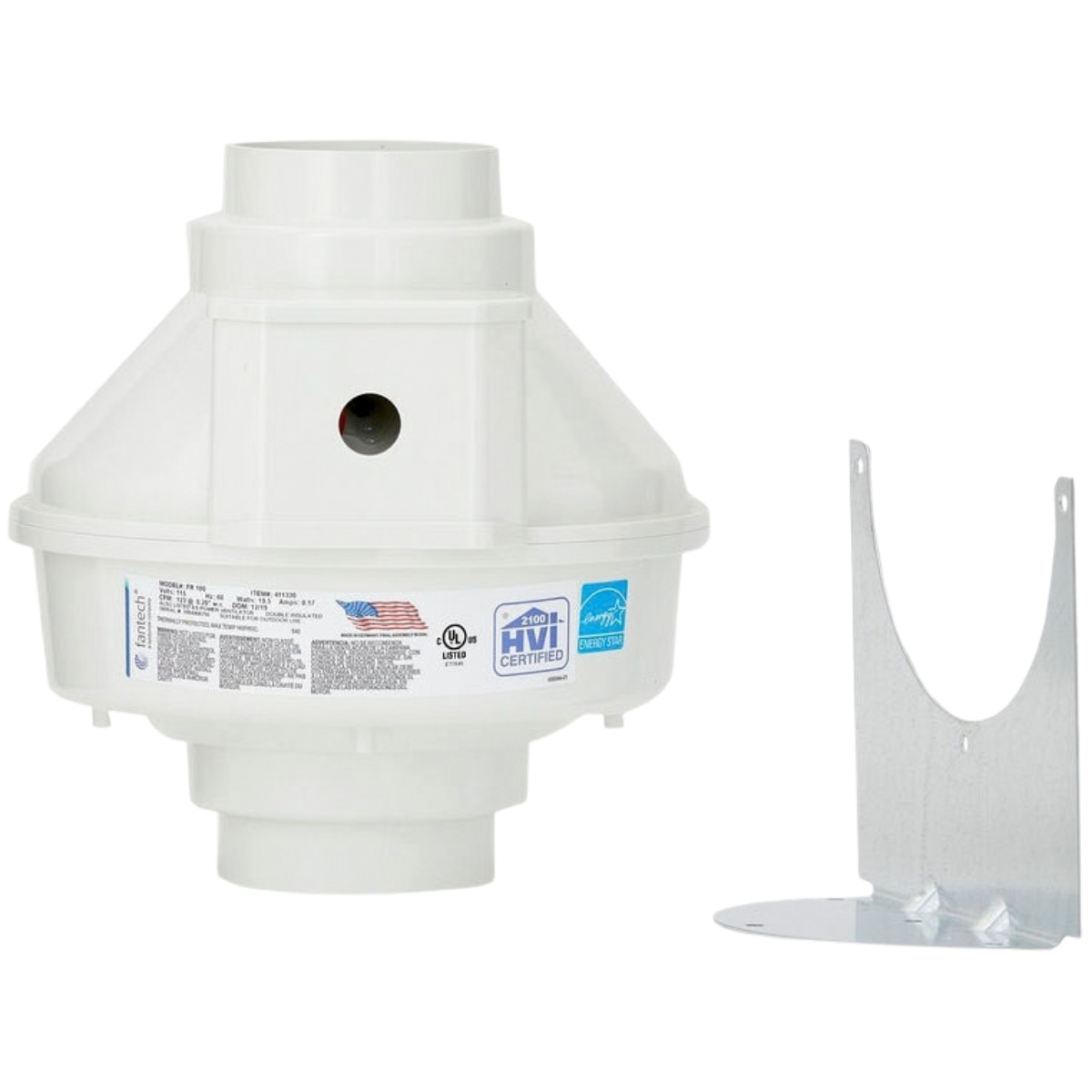

  • Fantech FR Series 4-Inch Inline Centrifugal Fan
  • Owner's Manual
  • Mounting Bracket and Hardware

Info & Guides

Description

Solve air movement problems in residential and commercial areas with the Fantech FR Series 4-Inch Inline Centrifugal Fan. Capable of being used indoors and out, with its plastic molded housing this fan is a reliable solution for ventilation in wet settings. Easy to install and delivering a reliable performance, this fan is fully caulked to prevent moisture from entering the housing.

It's available in two airflow options.

Two Models To Choose From

Select the right Fantech FR Series 4-Inch Fan for your space:

  • Fantech FR100: 151 CFM Airflow
  • Fantech FR110: 188 CFM Airflow

Key Features

  • Versatile Uses: This fan is approved for residential and commercial applications and for wet locations.
  • Easy to Install: It's prewired and features an included mounting bracket for a simple setup.
  • Certifications: The Fantech FR Series is UL listed and CSA certified.
  • Works In Extreme Temperatures: It's suitable for use in airstream temperatures up to 104 degrees Fahrenheit.
  • External Wiring Box: Has an external wiring box with a waterproof gasket.
  • Speed Control: This fan is 100% speed controllable.
  • Long Warranty: It's backed by a 5-year limited warranty.

Summary

Solve air movement problems in indoor and outdoor residential and commercial areas with the Fantech FR Series 4-Inch Inline Centrifugal Fan.

Specifications

    Key Specifications

    • Number of Speeds
      Variable
    • Sound Level (Sones) (sones)
      2.5
    • Type
      Classic Inline Duct Booster Fan

    General

    • Application
      Ducting
    • California Residents
      ⚠ WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. See: www.P65Warnings.ca.gov
    • Certifications
      CSA, HVI, UL
    • Color
      Gray
    • Controls
      Manual
    • Maximum Air Temperature (degrees F)
      104
    • Maximum Cubic Feet per Minute (CFM) (CFM)
      FR110 - 188 CFM: 167.0
      FR100 - 151 CFM: 151.0

    Power

    • Amperage (Amps)
      FR110 - 188 CFM: 0.72
      FR100 - 151 CFM: 0.17
    • Power Supply
      Hardwired
    • Voltage (V)
      110-120
    • Watts (W)
      FR110 - 188 CFM: 80
      FR100 - 151 CFM: 20

    Dimensions

    • Depth (in.)
      10.5625
    • Depth (with front cover) (in.)
      10.5625
    • Duct Diameter (in.)
      4.0
    • Height (in.)
      10.0
    • Height (with front cover) (in.)
      10.0
    • Weight (lbs.)
      FR110 - 188 CFM: 5.6
      FR100 - 151 CFM: 4.3
    • Width (in.)
      4.0
    • Width (with front cover) (in.)
      4.0

    Additional Features

    • Additional Features
      Energy Star

    Warranty

    • Manufacturer's Warranty
      5-Year Limited Warranty
