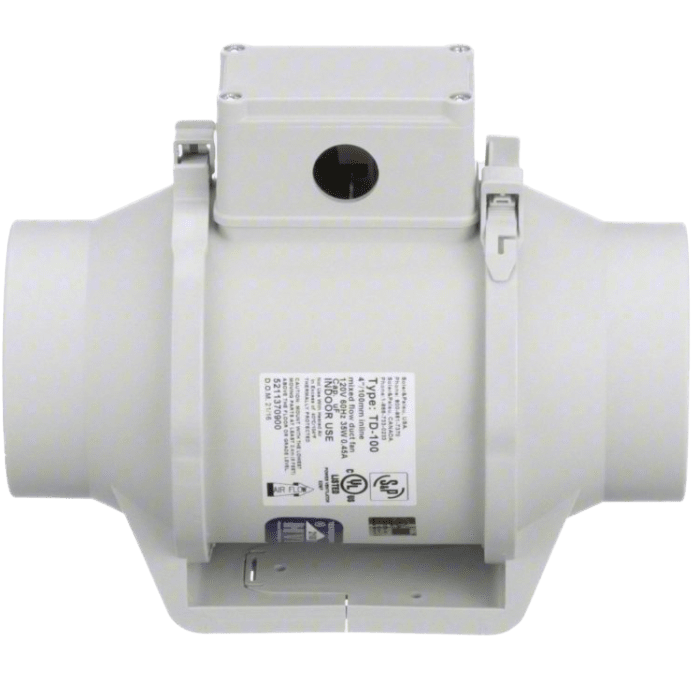

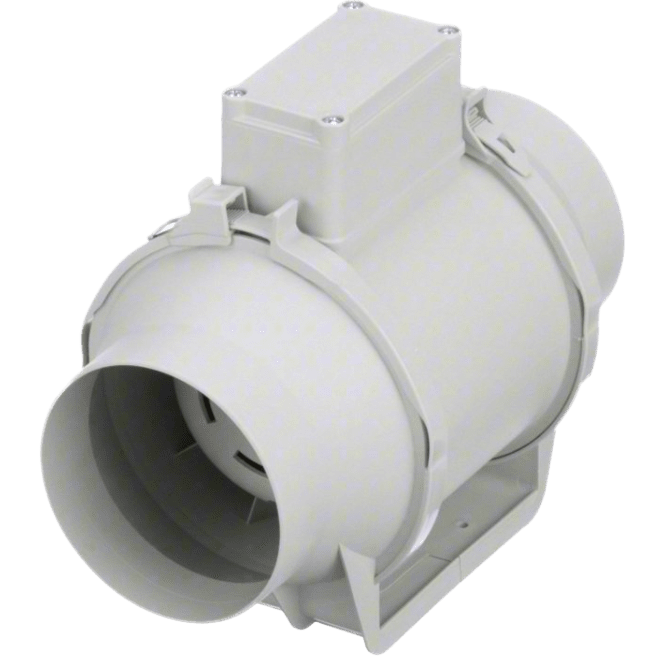

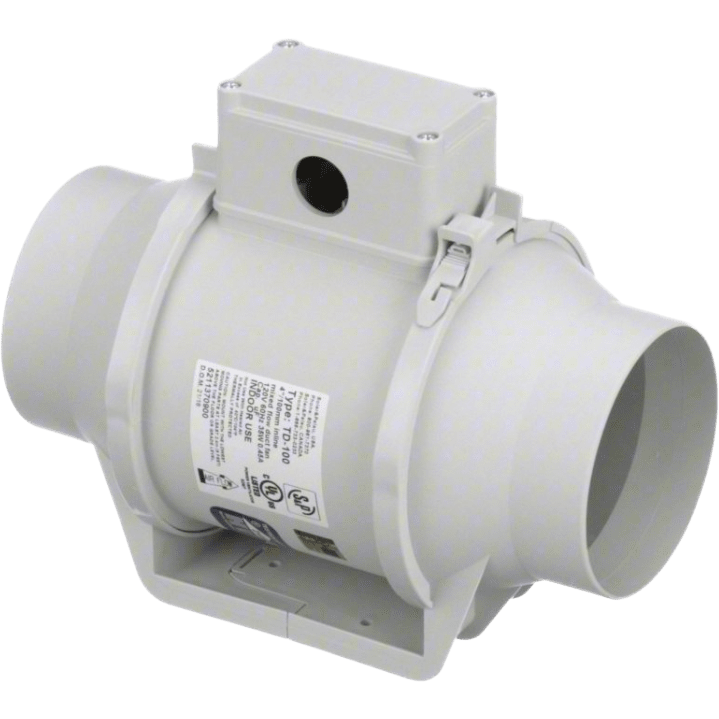

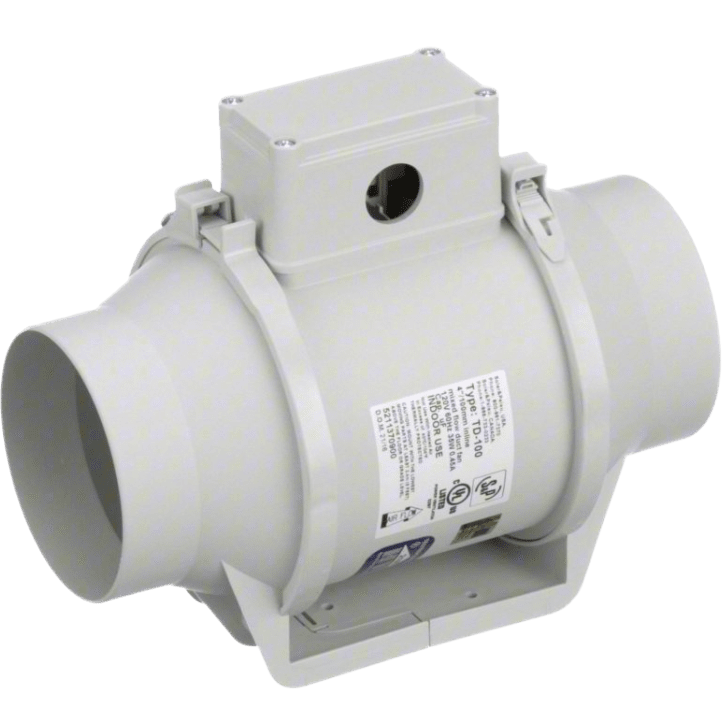

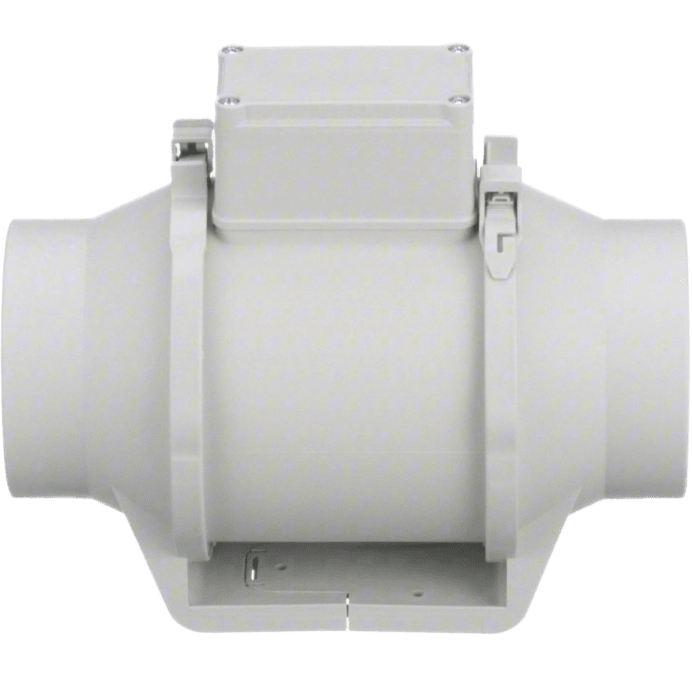

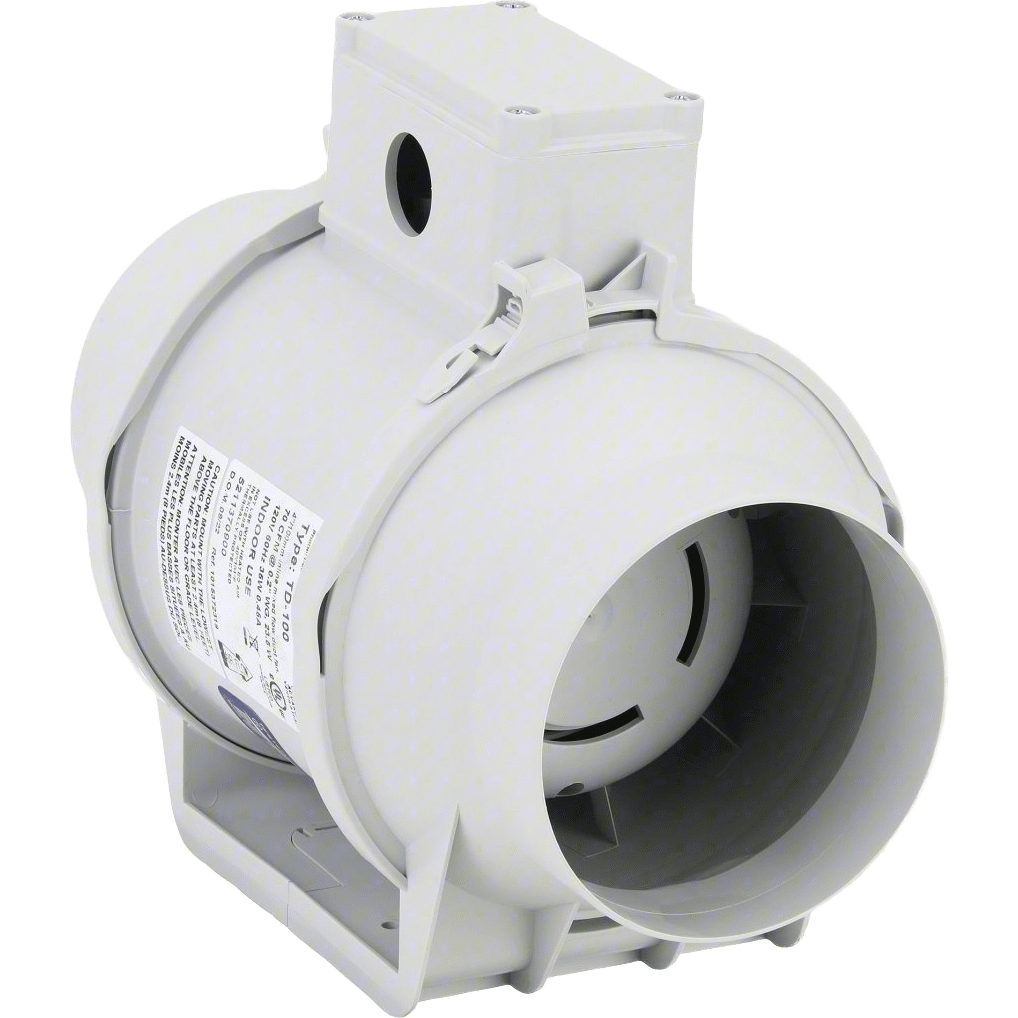

S&P TD-150 6-inch Mixed Flow Inline Duct Fan

SKU: sp15736  |  Model: TD-150
$24200

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Email

Manufacturer's Warranty

5-Year Fan Housing and Motor Warranty

What's In The Box?
  • S&P TD-150 Inline Duct Fan
  • Mounting Brackets and Hardware
  • Installation and Operation Manual

Info & Guides

Description

Ceiling voids and cabinets rarely leave room for a bulky fan, and that is the kind of space the S&P TD-150 6-inch Mixed Flow Inline Duct Fan is made for. Model TD-150 sits in a compact housing that fits into tight duct runs, so you can put ventilation where the building allows instead of rerouting ductwork around a bigger fan.

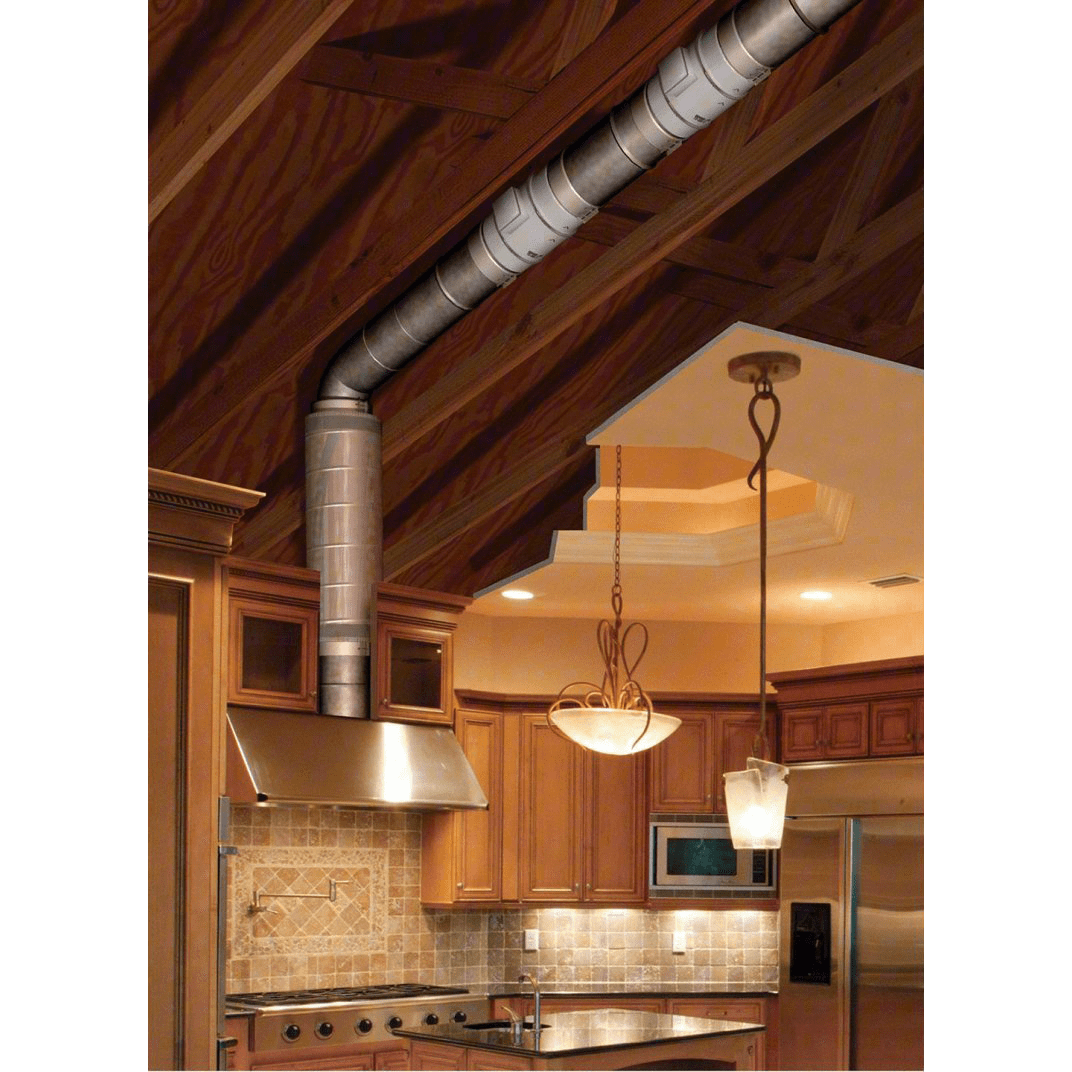

You can tie the TD-150 into existing HVAC ductwork serving kitchens, bathrooms, or general ventilation zones in homes and commercial spaces. Its variable-speed electronic control lets you set airflow to suit the space, so you aren't running at full output when a lower setting does the job.

Key Features and Benefits of the S&P TD-150 6-inch Mixed Flow Inline Duct Fan

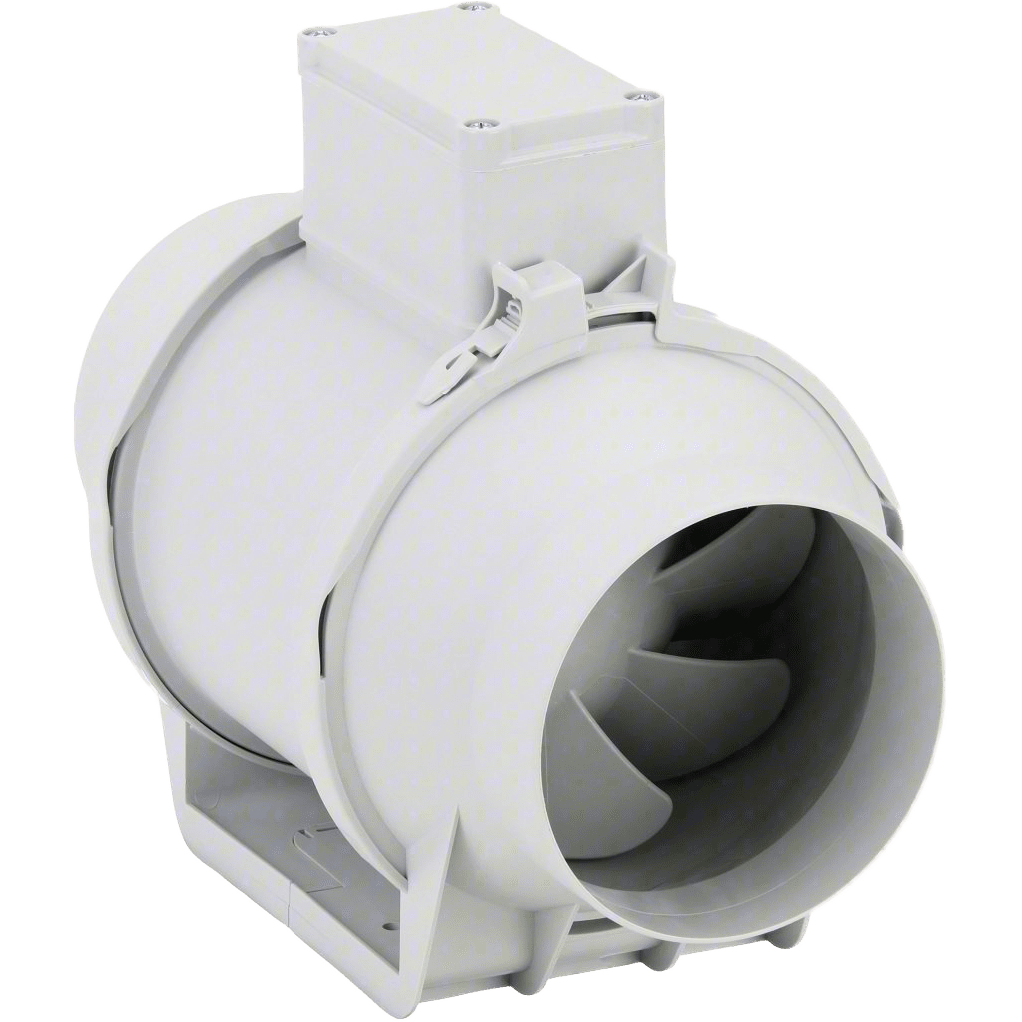

  • Mixed-Flow Impeller: Moves up to 293 CFM and keeps working against static pressure up to 1.0 inch water gauge, so longer or restrictive duct runs still get strong airflow.

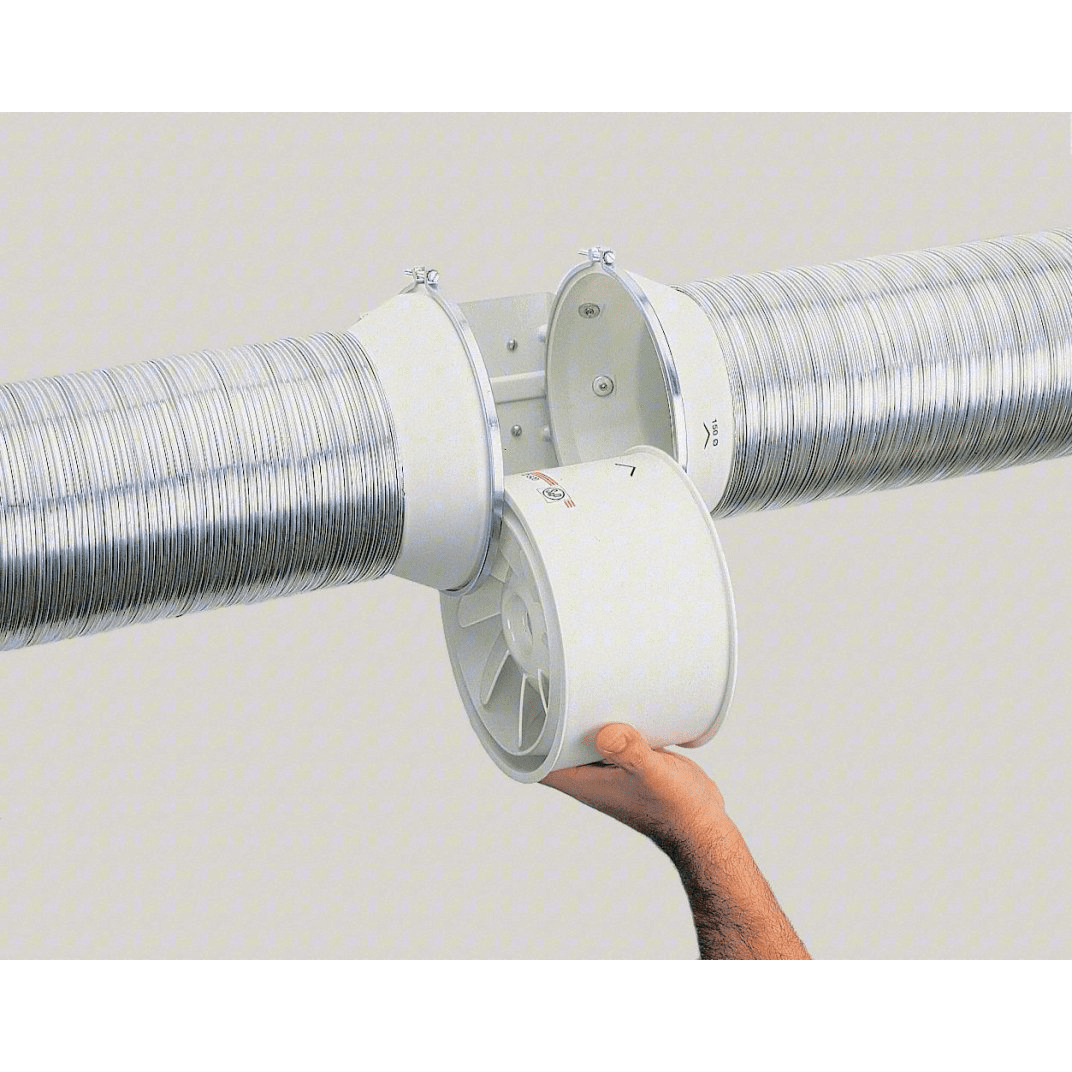

  • Removable Body: The motor-impeller assembly fits in or lifts out without disturbing the 6-inch ducting, which cuts your maintenance time and downtime.
  • Energy Star Qualified: Draws 65 watts and 0.54 amps and carries Energy Star qualification, helping you keep operating costs in check during long ventilation cycles.
  • Certified Performance: AMCA-certified air performance plus UL, cUL, cULus, and HVI listings give you documented ratings for inspections and project specifications.
  • Thermal Protection: Thermal cutoff protection and an IP44 rating guard the motor against overheating and splashing water, so you can trust it in bathroom and kitchen exhaust runs.

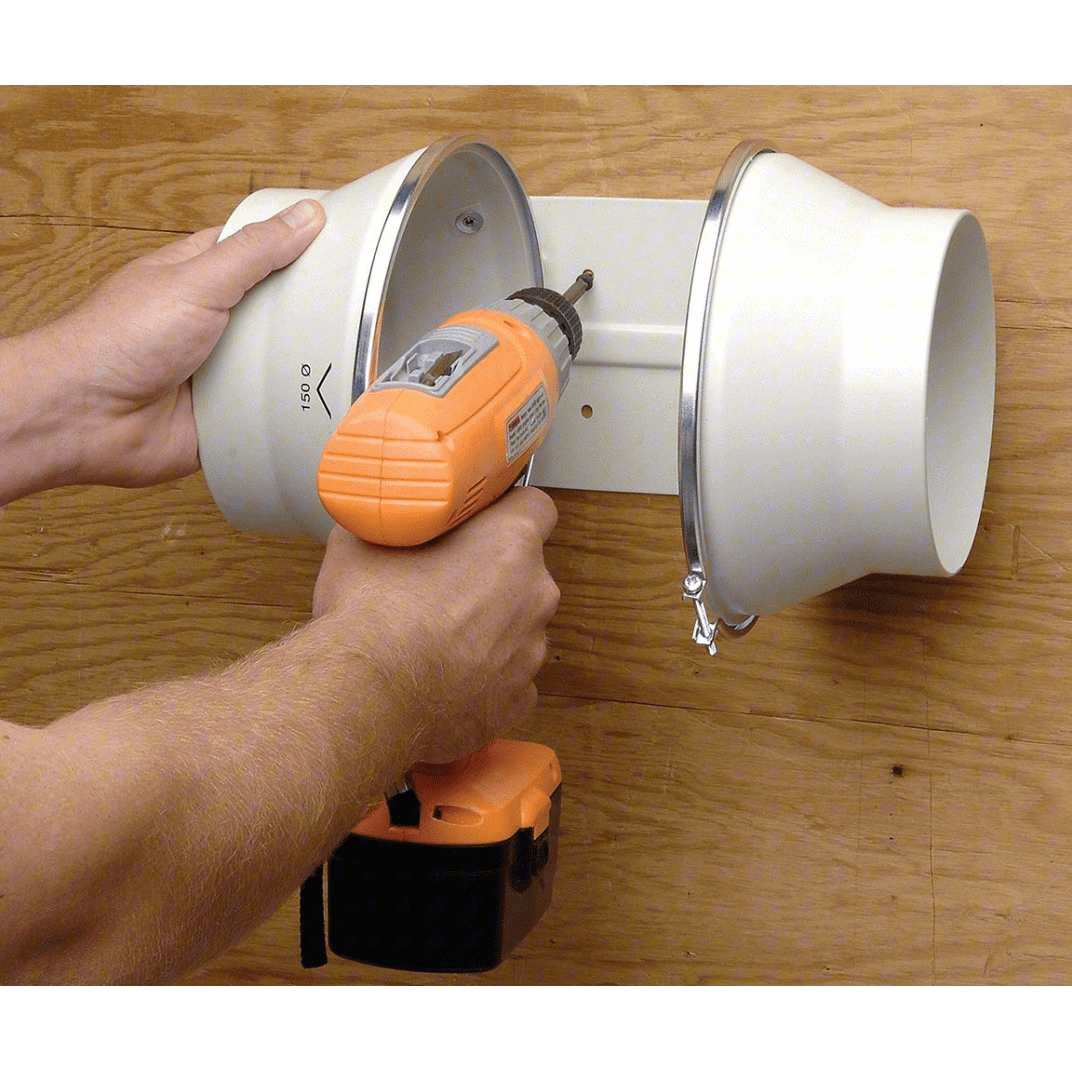

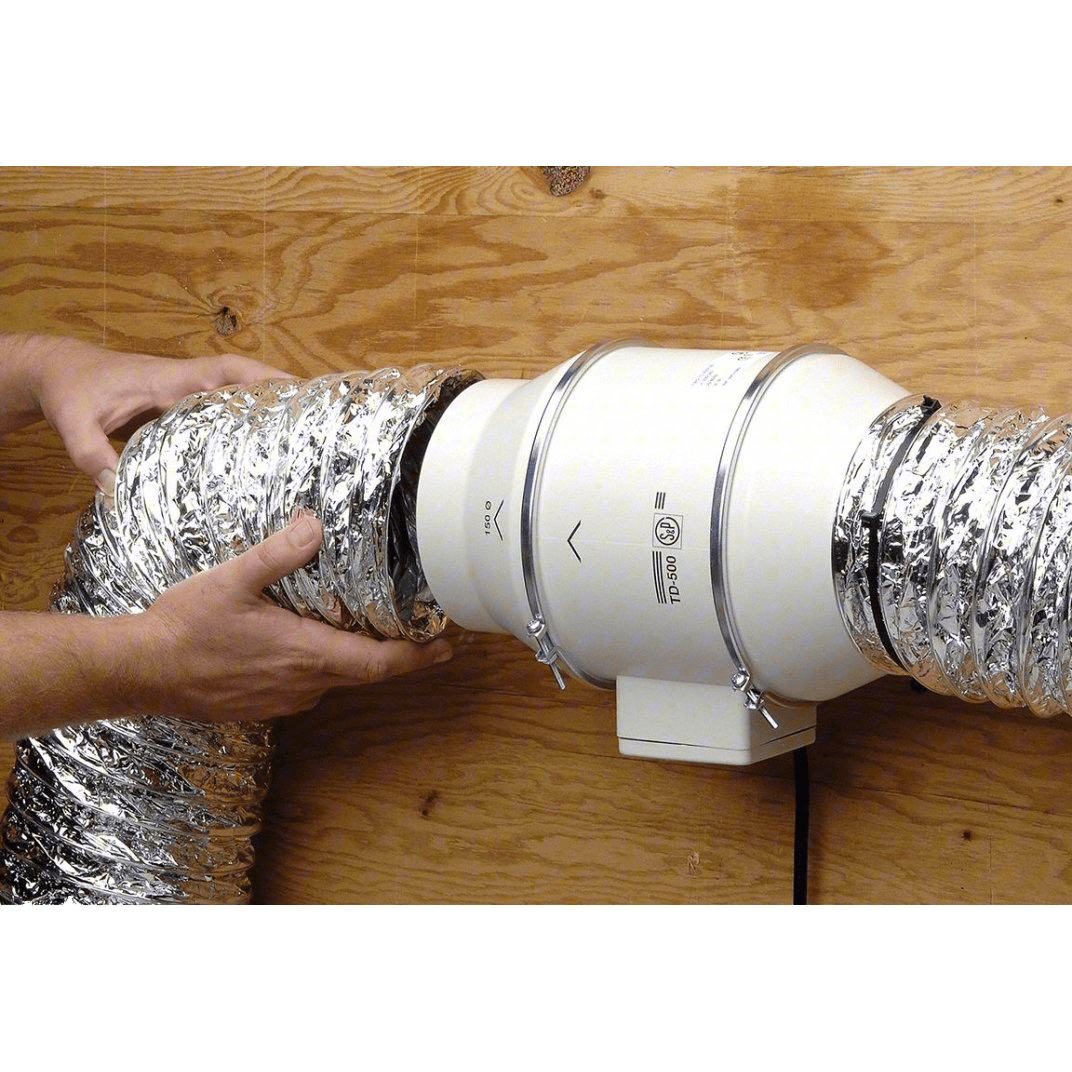

  • Any-Orientation Mounting: Installs in any orientation on 6-inch round ducts, so you can follow the duct path already in place instead of rebuilding it.
  • Warm Air Rated: Handles air temperatures up to 140 degrees F, so you can exhaust warm, humid air from kitchens and bathrooms with confidence.
  • Hardwired Power: Connects to a 110- to 120-volt hardwired supply with simple wiring, so your electrician can tie it into standard building circuits.

Will the TD-150 Fit Your Ceiling Void or Cabinet?

The TD-150 measures 11.63 x 8.38 x 8.38-Inches (L x W x H) and weighs 9 pounds. That compact square profile lets it slip between framing and into cabinet spaces where a wider fan housing would not clear. When you plan the install, allow for the 11.63-inch length along the duct run plus room for your duct connections at each end. The housing is finished in white.

Sylvane's Expert Take

If you're a contractor or homeowner ventilating a bathroom or kitchen through 6-inch ductwork, the TD-150 suits jobs where access is tight. It does its best work on runs with some resistance, because the mixed-flow impeller is built to balance airflow and pressure.

The removable body is the detail worth knowing, since future motor service won't mean cutting into finished ceilings. Add variable-speed control and you can match airflow to each room you ventilate.

Specifications

    Key Specifications

    • Number of Speeds
      Variable
    • Type
      Mixed Flow Inline Duct Fan

    General

    • Application
      Ducting, Residential, Commercial/Industrial
    • Certifications
      UL, cUL, HVI, cULus
    • Color
      White
    • Controls
      Electronic
    • Maximum Air Temperature (degrees F)
      140
    • Maximum Cubic Feet per Minute (CFM) (CFM)
      293.0
    • California Residents
      ⚠ WARNING: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.

    Power

    • Maximum Amperage (Amps)
      0.54
    • Power Supply
      Hardwired
    • Voltage (V)
      110-120
    • Watts (W)
      65

    Dimensions

    • Depth (in.)
      11.63
    • Duct Diameter (in.)
      6.0
    • Height (in.)
      8.38
    • Weight (lbs.)
      9
    • Width (in.)
      8.38

    Additional Features

    • Additional Features
      Energy Star, Thermal Cutoff Protection

    Warranty

    • Manufacturer's Warranty
      5-Year Fan Housing and Motor Warranty
