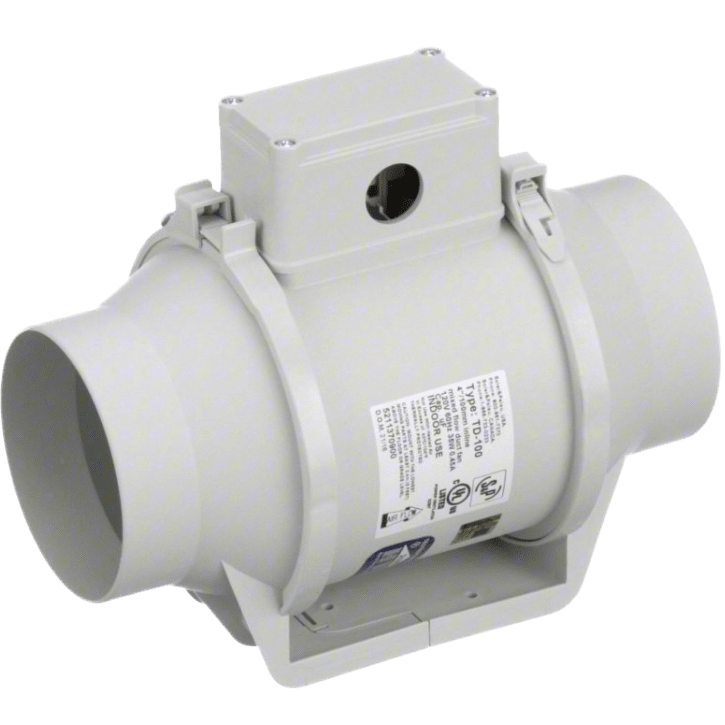

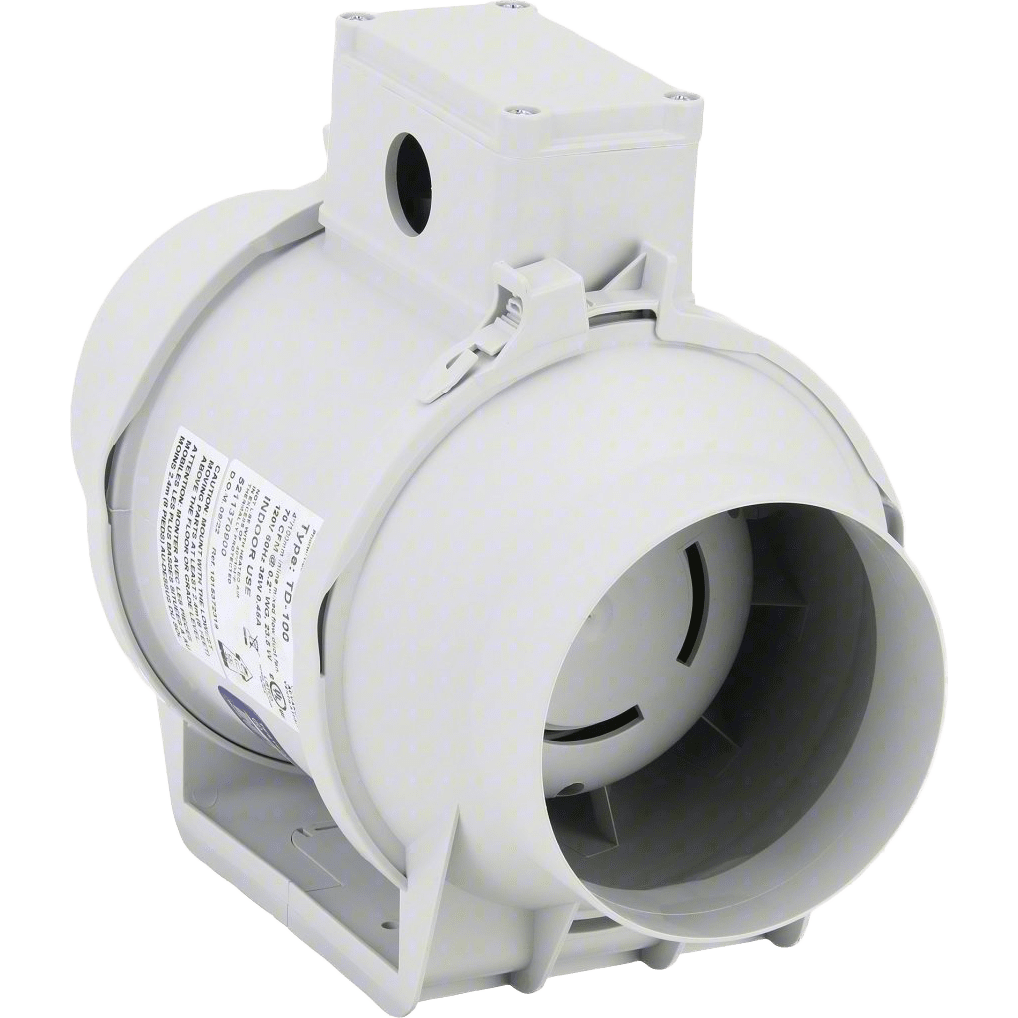

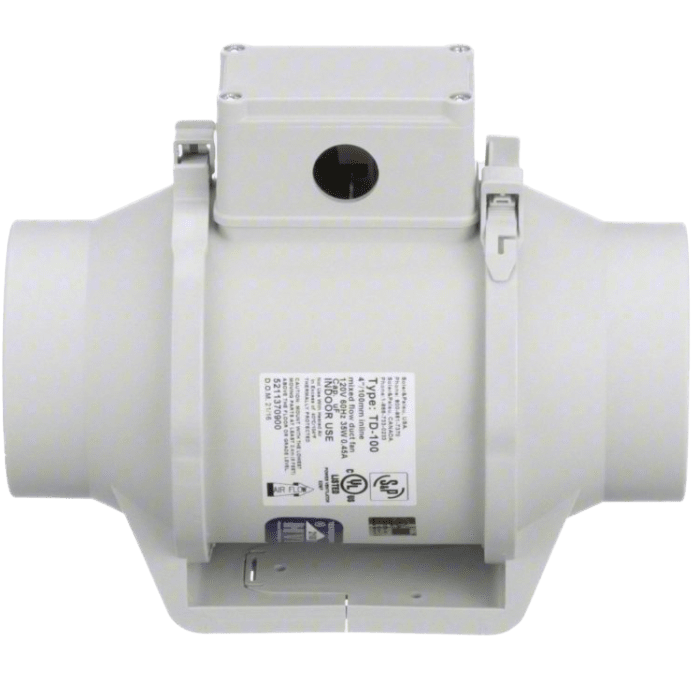

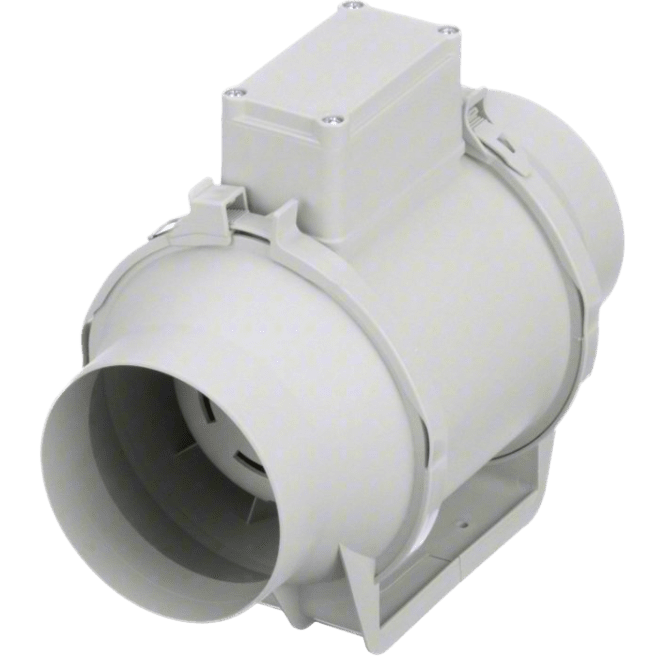

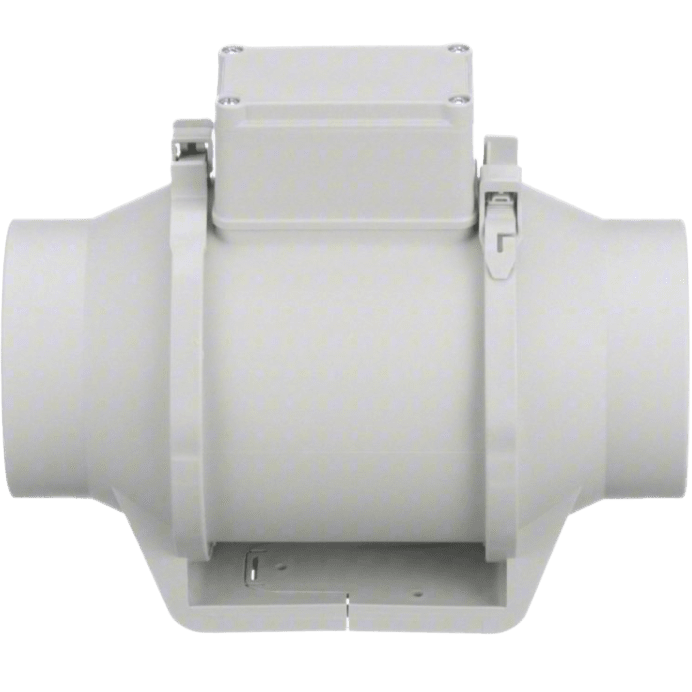

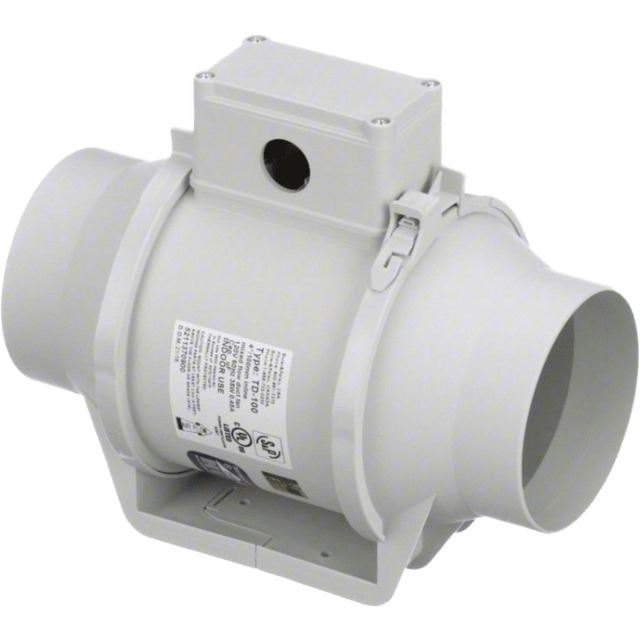

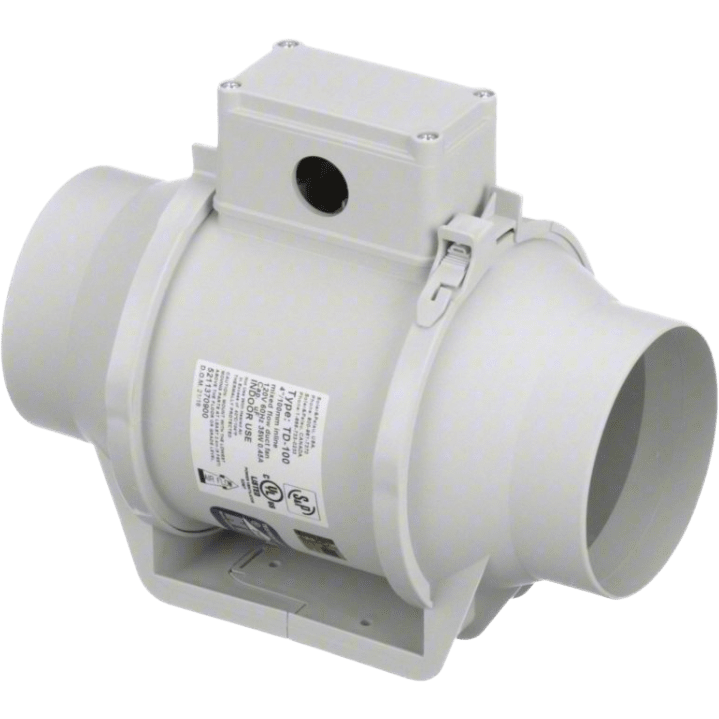

S&P TD-150 6-inch Mixed Flow Inline Duct Fan
S&P TD-150 6-inch Mixed Flow Inline Duct Fan is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- S&P TD-150 Inline Duct Fan
- Mounting Brackets and Hardware
- Installation and Operation Manual
Info & Guides
Info & Guides
S&P TD-150 6-inch Mixed Flow Inline Duct Fan
Description
Description
The S&P TD-150 6-inch Mixed Flow Inline Duct Fan offers powerful ventilation in tight spaces. It features a mixed-flow impeller and an innovative removable body design, making it perfect for small- to medium-sized applications requiring high airflow and static pressure.
Designed for professional contractors and installers, the TD-150 seamlessly integrates into existing HVAC systems, offering flexibility and efficiency in any ventilation setup.
Top Features
- Safety and Durability: With IP44-rated protection and safety thermal overload protection, these fans are built to last, ensuring reliable operation under demanding conditions.
- Compact Design: The TD-150 model is lightweight and compact, making it great for installations in tight spaces like ceiling voids, cabinets, and other constrained environments.

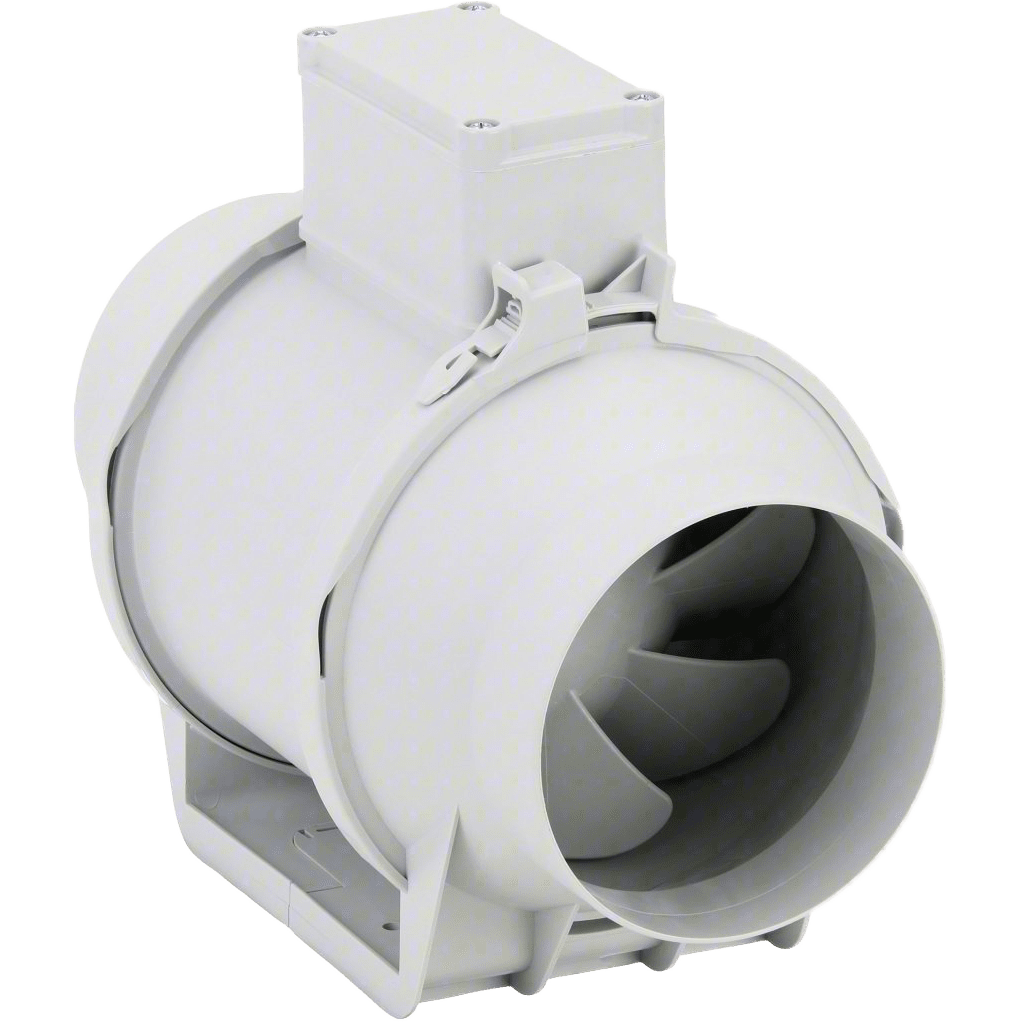

- Mixed Flow Impeller: This model has a mixed flow impeller to deliver an exceptional airflow-to-pressure ratio. It can produce an airflow of up to 265 CFM and performs in static pressure conditions up to 1.0 inches w.g.

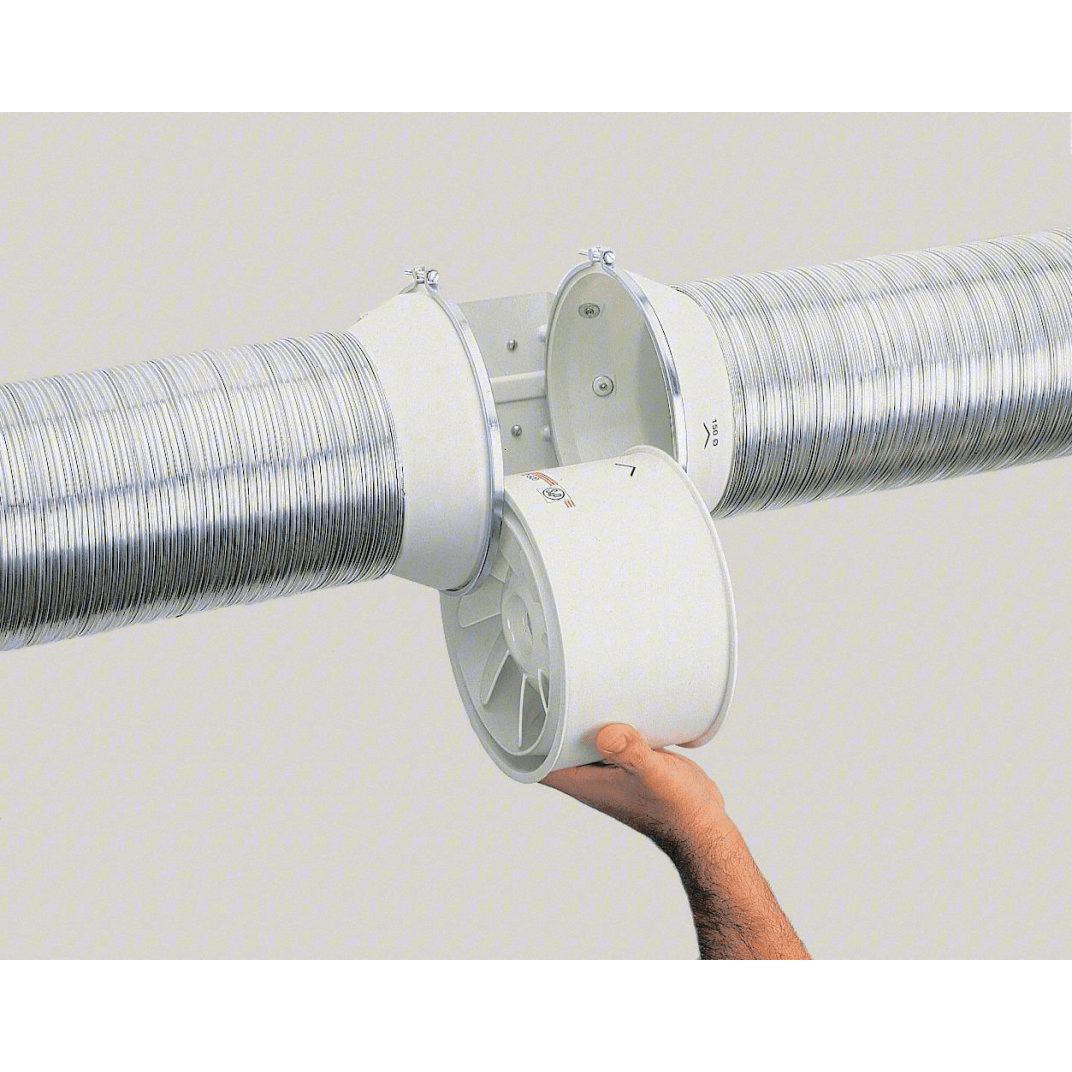

- Removable Body: The motor-impeller assembly can be fitted or removed without disturbing the ducting, simplifying maintenance and reducing downtime.
- Energy Efficiency: The TD-150 is Energy Star qualified, reflecting the fan’s superior energy efficiency and cost-effectiveness.
Additional Features
-

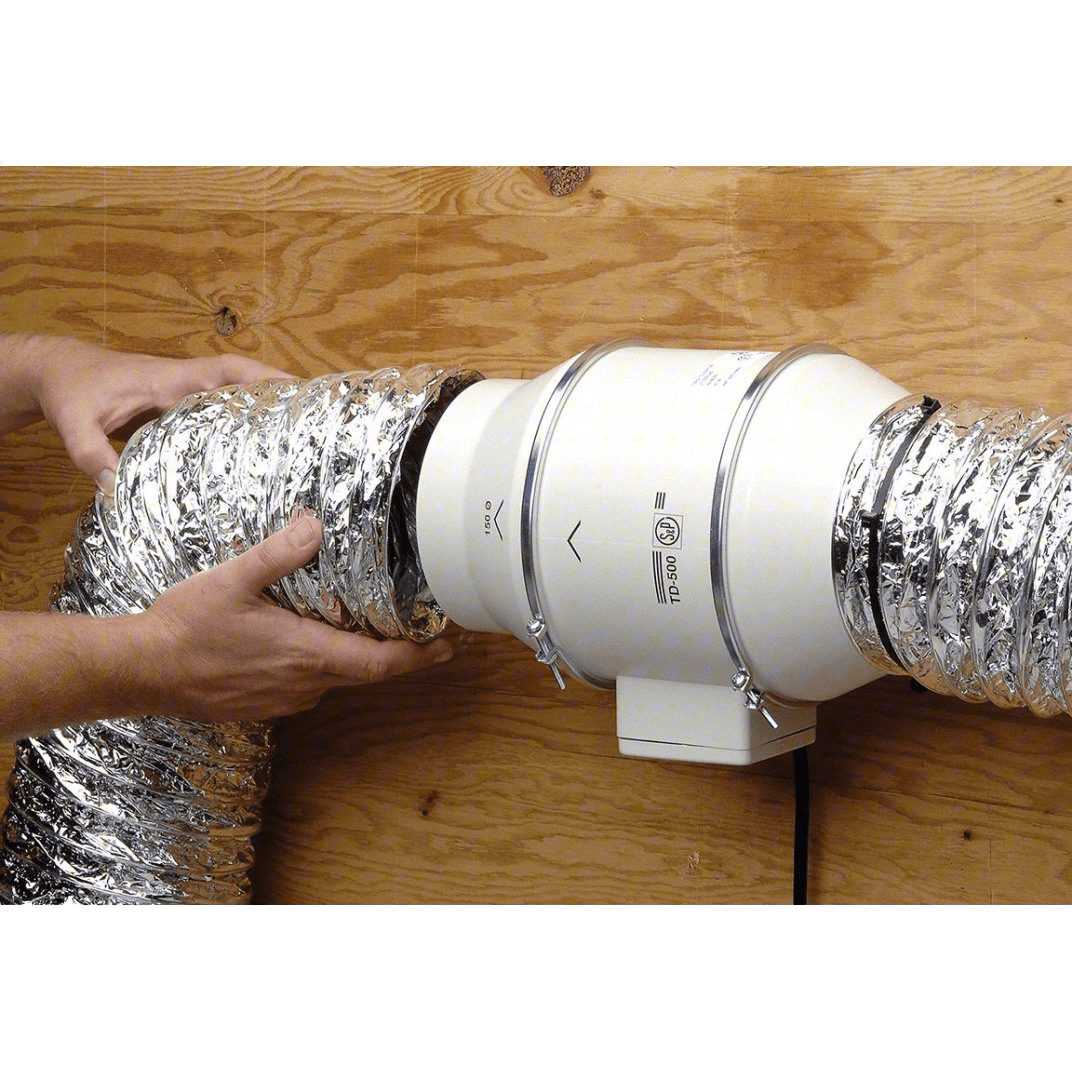

Installation Flexibility: The TD-150 can be installed in any orientation and fits 6-inch round ducts.

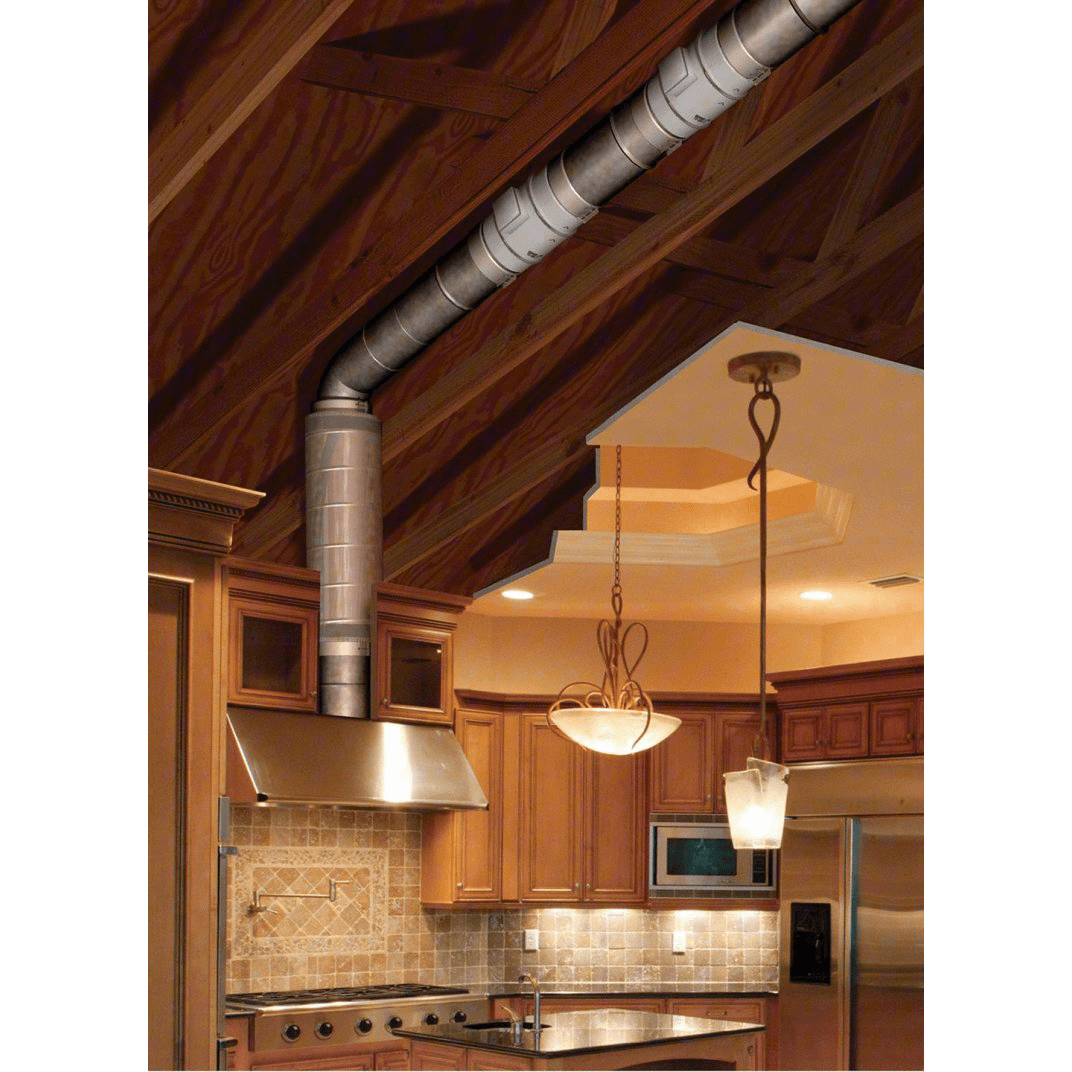

- Various Applications: This fan series excels in residential and commercial kitchen, bathroom, and general ventilation applications.
- Certified Performance: These models are AMCA-certified for air performance and have UL and cUL listings, ensuring compliance with industry standards.
- Quiet Operation: Designed to minimize in-duct and radiated noise, these fans are ideal for applications where noise reduction is critical.
- Easy Electrical Connection: These units operate on a standard 120 VAC 60Hz power supply and feature straightforward wiring requirements.
Sylvane’s Expert Take
Users of the S&P TD-150 Inline Duct Fan will love this compact model’s powerful ventilation airflow and superior design for tight spaces. It offers airflows of up to 293 CFM.
- Quiet Operation: This model maximizes airflow performance while maintaining minimal noise levels.

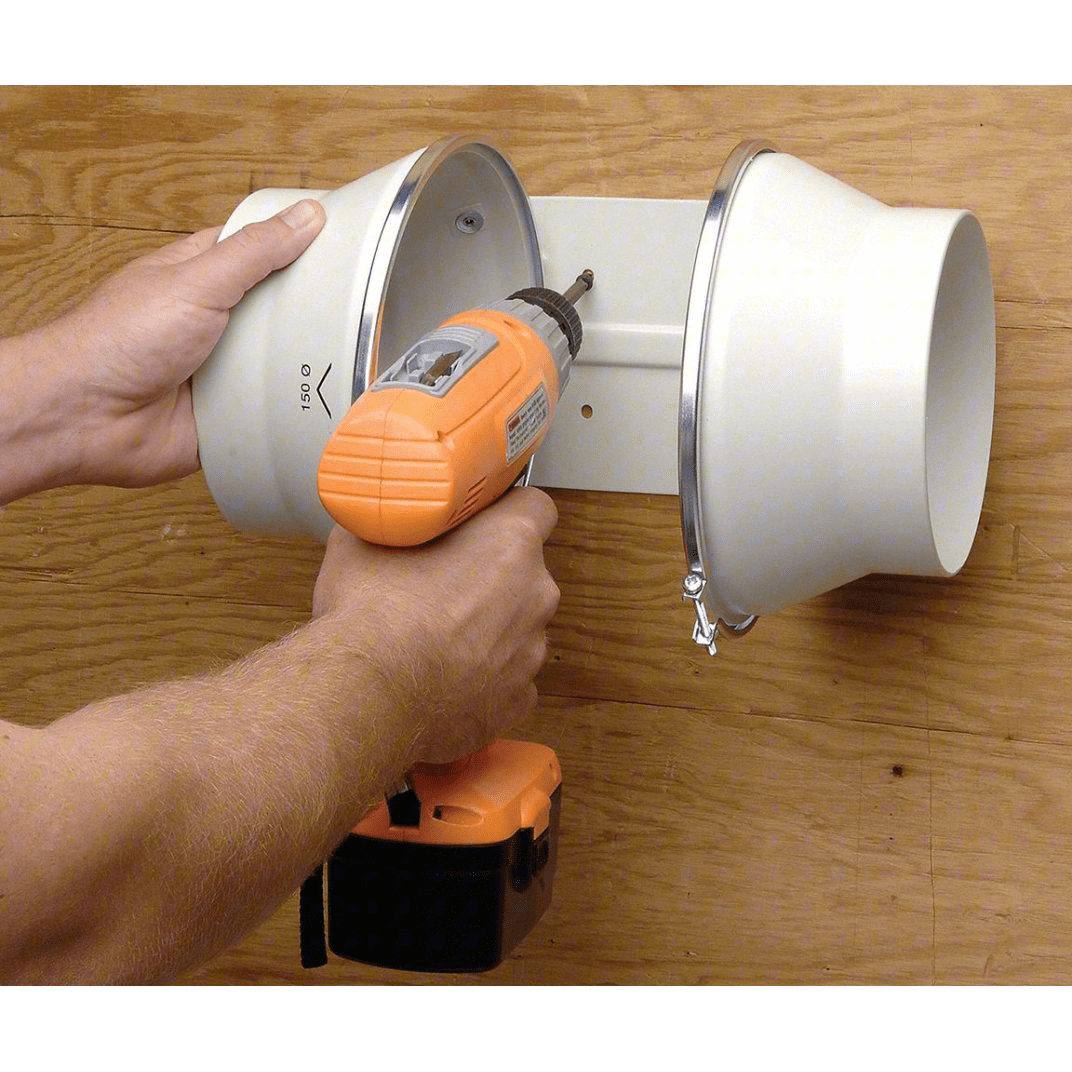

- Removable Design: The unique support bracket design will allow the motor and impeller assembly to be fitted or removed without dismantling adjacent ducting, making installation and maintenance easy.
Specifications
Specifications
-
Number of SpeedsVariable
-
TypeMixed Flow Inline Duct Fan
-
ApplicationDucting, Residential, Commercial/Industrial
-
California Residents⚠ WARNING: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.www.p65warnings.ca.gov.
-
CertificationsUL, cUL, HVI, cULus
-
ColorWhite
-
ControlsElectronic
-
Maximum Air Temperature (degrees F)140
-
Maximum Cubic Feet per Minute (CFM) (CFM)293.0
-
Amperage (Amps)0.54
-
Power SupplyHardwired
-
Voltage (V)110-120
-
Watts (W)65
-
Depth (in.)11.63
-
Depth (with front cover) (in.)11.63
-
Duct Diameter (in.)6.0
-
Height (in.)8.38
-
Height (with front cover) (in.)8.38
-
Weight (lbs.)9
-
Width (in.)8.38
-
Width (with front cover) (in.)8.38
-
Additional FeaturesEnergy Star, Thermal Cutoff Protection
-
Manufacturer's Warranty5-Year Fan Housing and Motor Warranty
