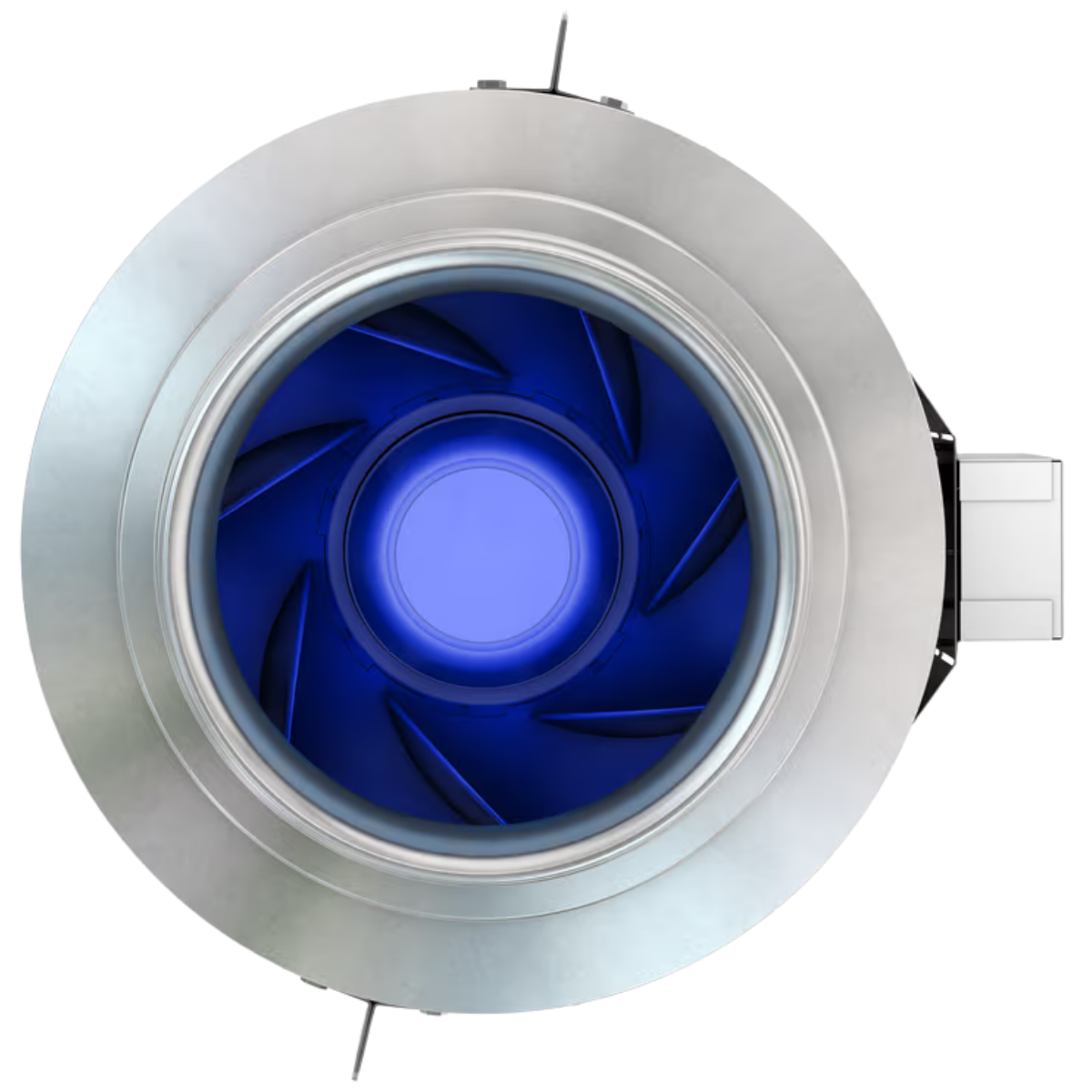

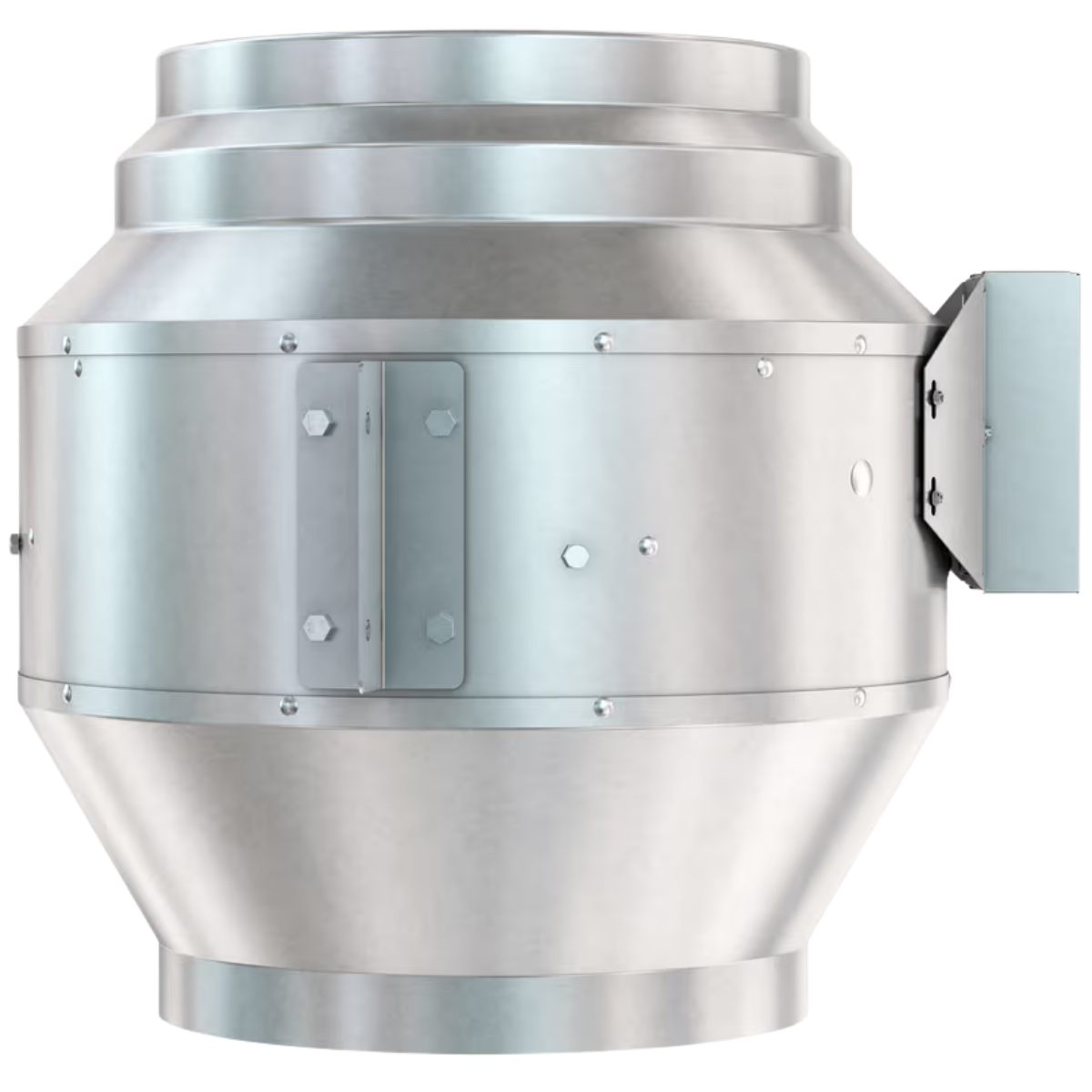

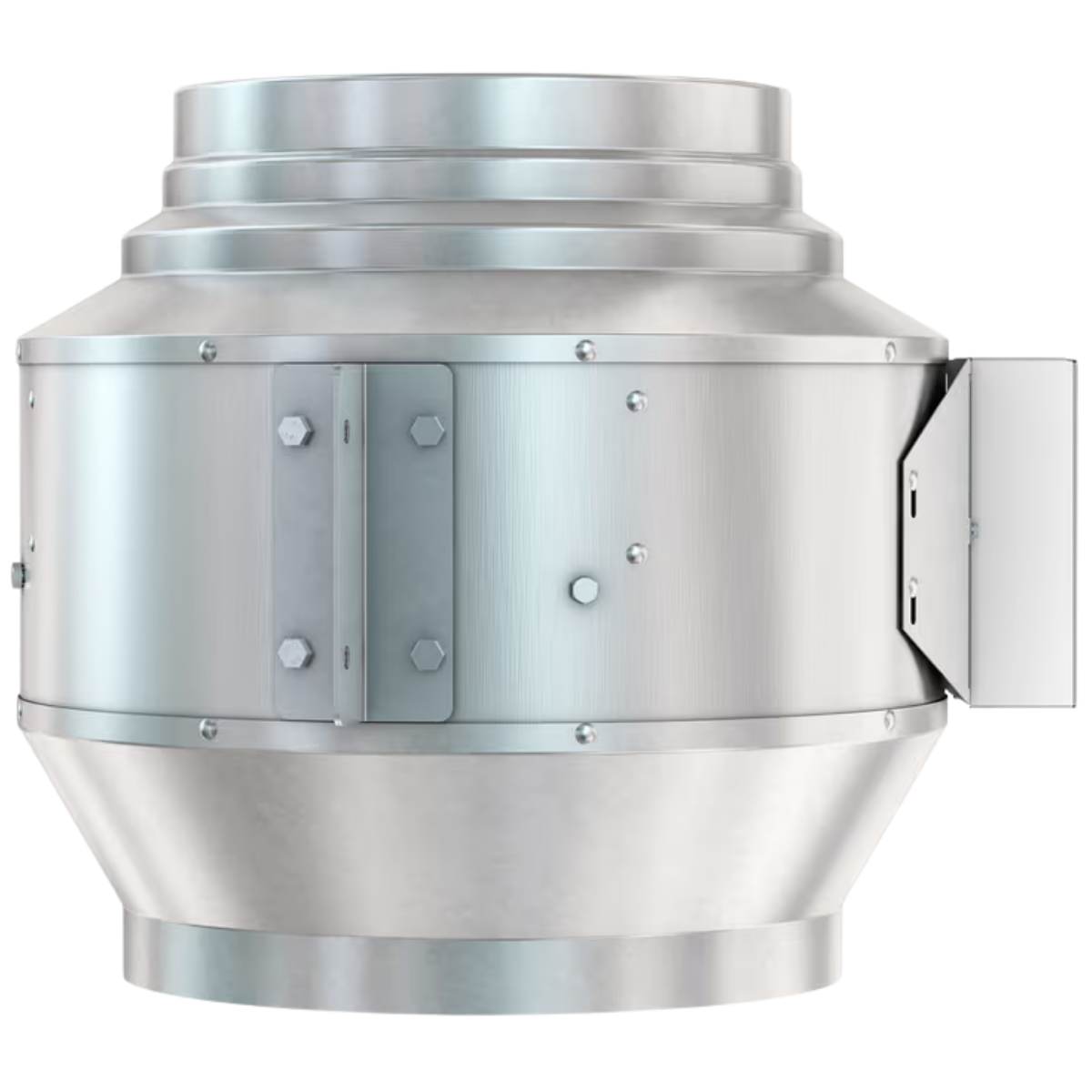

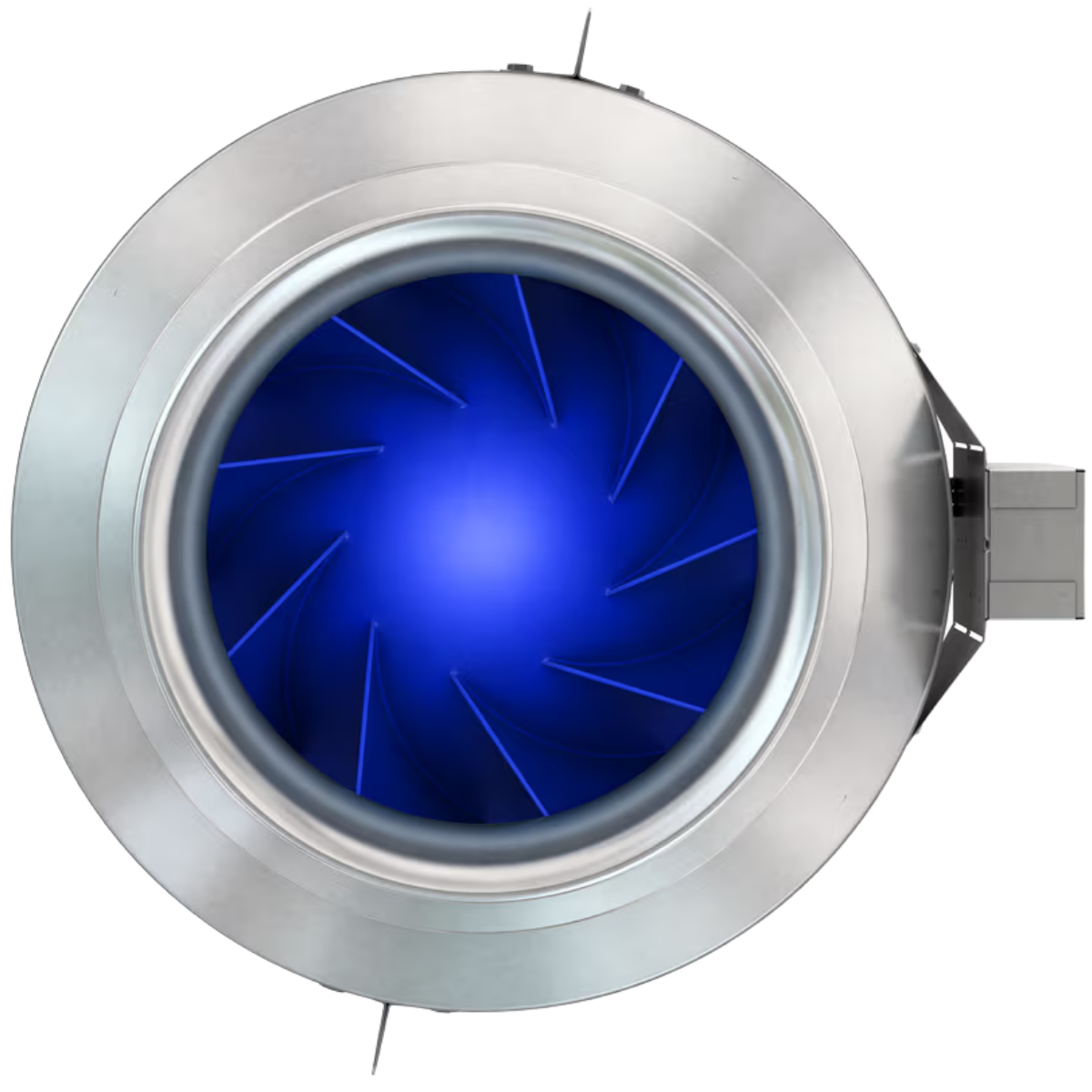

Fantech FKD 14 14in. Mixed Flow Inline Duct Fan

SKU: fn12463  |  Model: 498331
5.0
Rated 5.0 out of 5 stars
1 Review
$94900
Option

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Email

Manufacturer's Warranty

3-Year Limited Warranty

What's In The Box?
  • Fantech FKD 14 14-Inch Mixed Flow Inline Duct Fan
  • Owner's Manual

Info & Guides

Description

Get the high airflow performance of an axial fan with the reliability of a backward curved impeller when you install the Fantech FKD 14 14-Inch Mixed Flow Inline Duct Fan in your office, kitchen, or other space. Designed to work in commercial and residential applications, this mixed flow fan is built to deliver a quiet performance and is easy to set up and use.

It's available in four configurations.

Select The Perfect Model For You

With four options to choose from, there's a Fantech FKD 14 Series Fan for nearly any situation.

  • Fantech FKD 14 120V: 2,161 CFM Airflow
  • Fantech FKD 14 230V: 2,074 CFM Airflow
  • Fantech FKD 14 XL 120V: 2,621 CFM Airflow
  • Fantech FKD 14 XL 230V: 2,742 CFM Airflow

Key Features

  • Galvanized Steel Housing: Its galvanized steel housing makes this fan virtually airtight.
  • External Motor: Featuring an external rotor motor with built-in thermal overload protection.
  • Low Maintenance Solution: Permanently lubricated sealed ball bearings deliver a maintenance-free performance.
  • Works At Low RPM: This fan has superior heat dissipation even at lower RPM.
  • Speed Controllable: It's 100% speed controllable.
  • Prewired: Has a terminal box with a prewired electrical strip.
  • Air Stream Temperature: Works in air stream temperatures up to 140 degrees Fahrenheit.

Summary

Get the high airflow performance of an axial fan with the reliability of a backward curved impeller when you install the Fantech FKD 14 14-Inch Mixed Flow Inline Duct Fan.

Specifications

    Key Specifications

    • Number of Speeds
      Variable
    • Sound Level (Sones) (sones)
      FKD 14 - 120V: 18.4
      FKD 14XL - 120V: 19.0
      FKD 14 - 230V: 19.4
      FKD 14XL - 230V: 22.1
    • Type
      Mixed Flow Inline Duct Fan

    General

    • Application
      Ducting
    • Certifications
      FKD 14 - 120V: cULus
      FKD 14XL - 120V: UL
      FKD 14 - 230V: UL
      FKD 14XL - 230V: UL
    • Color
      Gray
    • Controls
      Manual
    • Maximum Air Temperature (degrees F)
      140
    • Maximum Cubic Feet per Minute (CFM) (CFM)
      FKD 14 - 120V: 2161.0
      FKD 14XL - 120V: 2621.0
      FKD 14 - 230V: 2074.0
      FKD 14XL - 230V: 2742.0
    • California Residents
      ⚠ WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.p65warnings.ca.gov.

    Power

    • Maximum Amperage (Amps)
      FKD 14 - 120V: 4.6
      FKD 14XL - 120V: 6.4
      FKD 14 - 230V: 2.4
      FKD 14XL - 230V: 3.8
    • Power Supply
      Hardwired
    • Voltage (V)
      FKD 14 - 120V: 220-240
      FKD 14XL - 120V: 110-120
      FKD 14 - 230V: 220-240
      FKD 14XL - 230V: 220-240
    • Watts (W)
      FKD 14 - 120V: 444
      FKD 14XL - 120V: 716
      FKD 14 - 230V: 438
      FKD 14XL - 230V: 662

    Dimensions

    • Depth (in.)
      FKD 14 - 120V: 17.25
      FKD 14XL - 120V: 20.25
      FKD 14 - 230V: 17.25
      FKD 14XL - 230V: 20.25
    • Duct Diameter (in.)
      14.0
    • Height (in.)
      FKD 14 - 120V: 20.375
      FKD 14XL - 120V: 22.375
      FKD 14 - 230V: 20.375
      FKD 14XL - 230V: 22.375
    • Weight (lbs.)
      FKD 14 - 120V: 46.7
      FKD 14XL - 120V: 50.5
      FKD 14 - 230V: 41.7
      FKD 14XL - 230V: 50.6
    • Width (in.)
      14.0

    Additional Features

    • Additional Features
      Applicable for Indoor Growing

    Warranty

    • Manufacturer's Warranty
      3-Year Limited Warranty
