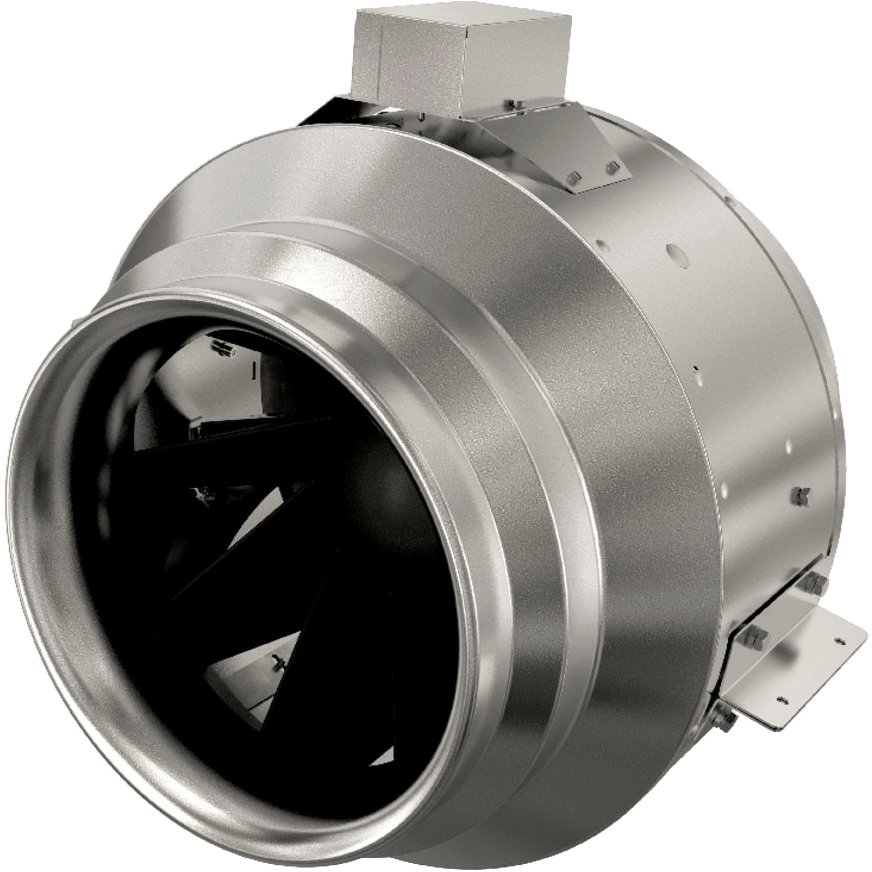

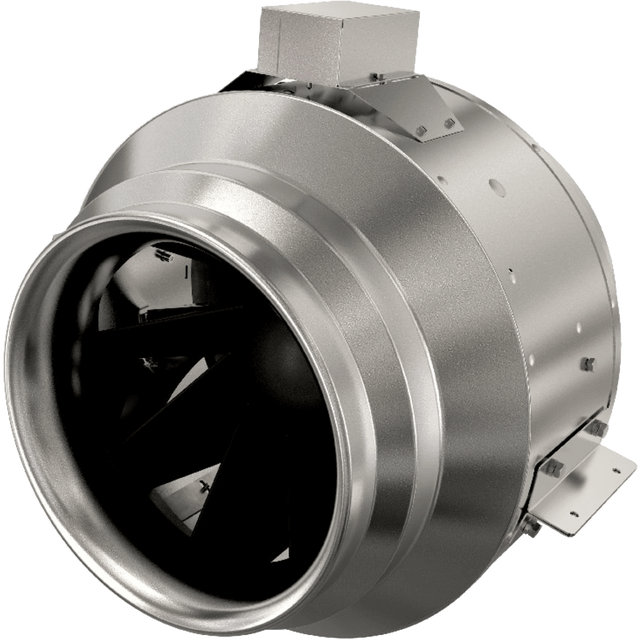

Fantech FKD 14 14in. Mixed Flow Inline Duct Fan
Fantech FKD 14 14in. Mixed Flow Inline Duct Fan - FKD 14XL - 230V is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- Fantech FKD 14 14-Inch Mixed Flow Inline Duct Fan
- Owner's Manual
Info & Guides
Info & Guides
Fantech FKD 14 14in. Mixed Flow Inline Duct Fan
Description
Description
Get the high airflow performance of an axial fan with the reliability of a backward curved impeller when you install the Fantech FKD 14 14-Inch Mixed Flow Inline Duct Fan in your office, kitchen, or other space. Designed to work in commercial and residential applications, this mixed flow fan is built to deliver a quiet performance and is easy to set up and use.
It's available in four configurations.
Select The Perfect Model For You
With four options to choose from, there's a Fantech FKD 14 Series Fan for nearly any situation.
- Fantech FKD 14 120V: 2,161 CFM Airflow
- Fantech FKD 14 230V: 2,074 CFM Airflow
- Fantech FKD 14 XL 120V: 2,621 CFM Airflow
- Fantech FKD 14 XL 230V: 2,742 CFM Airflow
Key Features
- Galvanized Steel Housing: Its galvanized steel housing makes this fan virtually airtight.
- External Motor: Featuring an external rotor motor with built-in thermal overload protection.
- Low Maintenance Solution: Permanently lubricated sealed ball bearings deliver a maintenance-free performance.
- Works At Low RPM: This fan has superior heat dissipation even at lower RPM.
- Speed Controllable: It's 100% speed controllable.
- Prewired: Has a terminal box with a prewired electrical strip.
- Air Stream Temperature: Works in air stream temperatures up to 140 degrees Fahrenheit.
Summary
Get the high airflow performance of an axial fan with the reliability of a backward curved impeller when you install the Fantech FKD 14 14-Inch Mixed Flow Inline Duct Fan.
Specifications
Specifications
-
Number of SpeedsVariable
-
Sound Level (Sones) (sones)22.119.019.418.4
-
TypeMixed Flow Inline Duct Fan
-
ApplicationDucting
-
California Residents⚠ WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. See: www.P65Warnings.ca.gov
-
CertificationsULULULcULus
-
ColorGray
-
ControlsManual
-
Maximum Air Temperature (degrees F)140
-
Maximum Cubic Feet per Minute (CFM) (CFM)2742.02621.02074.02161.0
-
Amperage (Amps)3.86.42.44.6
-
Power SupplyHardwired
-
Voltage (V)220-240110-120220-240220-240
-
Watts (W)662716438444
-
Depth (in.)20.2520.2517.2517.25
-
Depth (with front cover) (in.)20.2520.2517.2517.25
-
Duct Diameter (in.)14.0
-
Height (in.)22.37522.37520.37520.375
-
Height (with front cover) (in.)22.37522.37520.37520.375
-
Weight (lbs.)50.650.541.746.7
-
Width (in.)14.0
-
Width (with front cover) (in.)14.0
-
Additional FeaturesApplicable for Indoor Growing
-
Manufacturer's Warranty
3-Year Limited Warranty
Key Specifications
General
Power
Dimensions
Additional Features
Warranty
Recommended Accessories
-
-
Fantech

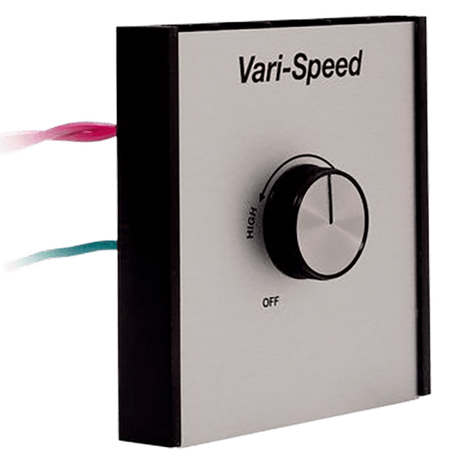

RPE 210 230V 10A Heavy Duty Speed Control with On/Off Switch
