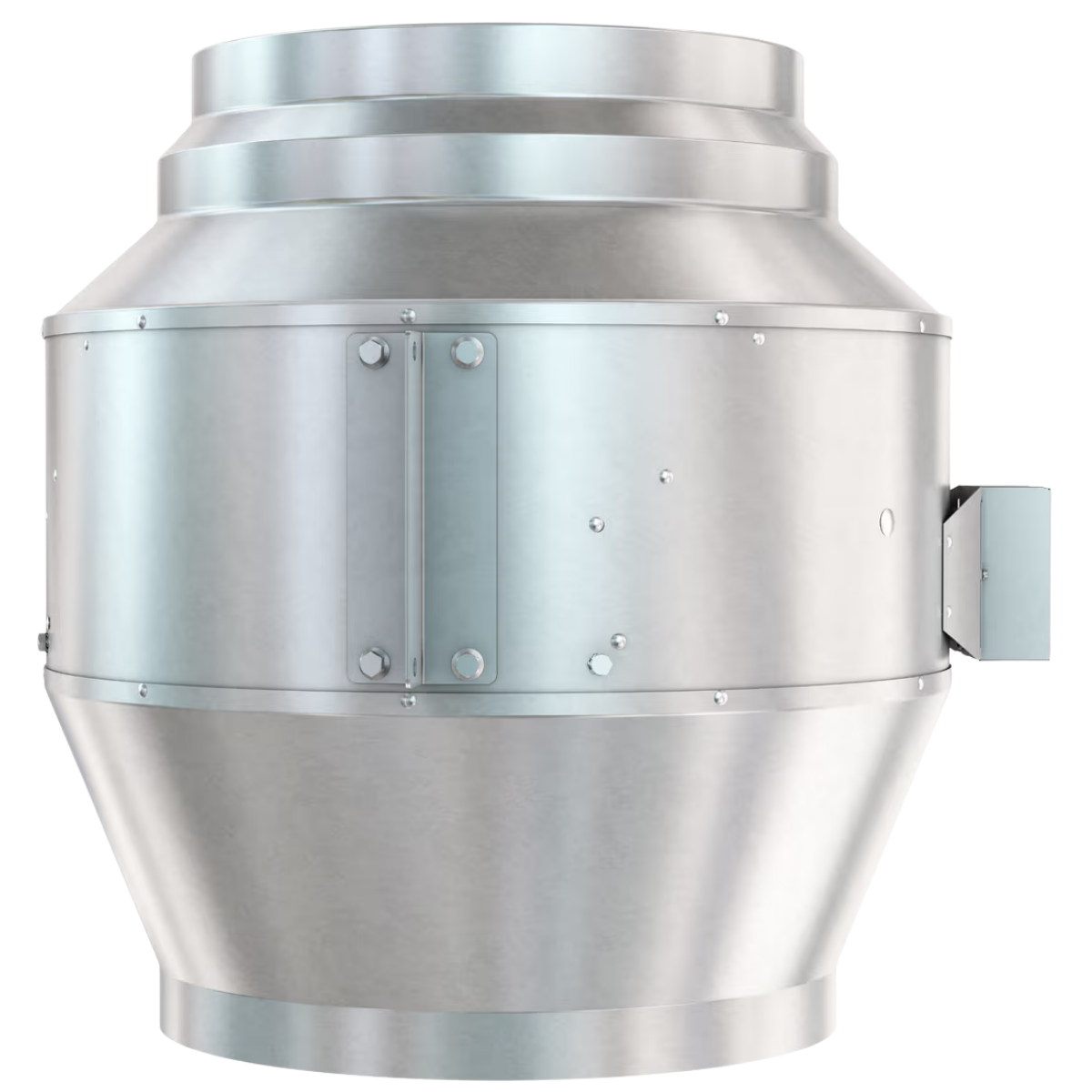

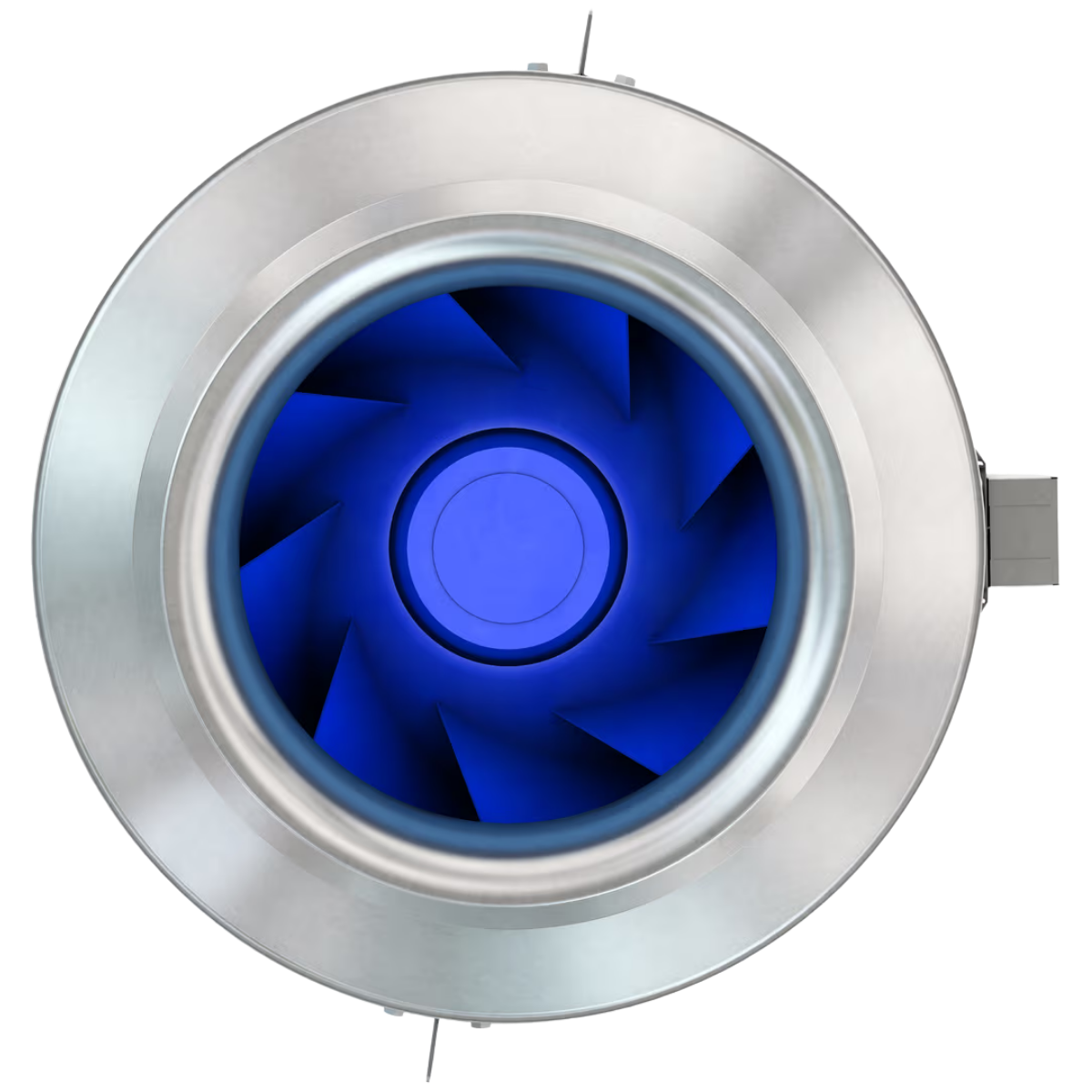

Fantech FKD 20 230V-460V 20-in. Mixed Flow Inline Duct Fan

SKU: fn12474  |  Model: 498351
$3,19900

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Email

Manufacturer's Warranty

3-Year Limited Warranty

What's In The Box?
  • Fantech FKD 20 230V-460V 20-Inch Mixed Flow Inline Duct Fan
  • Owner's Manual

Info & Guides

Description

Delivering an airflow of up to 6,306 CFM, the Fantech FKD 20 230V-460V 20-Inch Mixed Flow Inline Duct Fan is an effective and efficient ventilation solution for a variety of commercial and residential applications. Useful in offices, medical facilities, and salons, it's equally effective in your home kitchen. Combining the performance of axial fans with the overloading protection of backward curved impellers, it's the premier option for achieving the best of both worlds.

Key Features

  • For Commercial and Residential Use: With airtight galvanized steel housing, this duct fan is rated for both commercial and residential applications.
  • External Motor: Featuring an external rotor motor with built-in thermal overload protection.
  • Low Maintenance Solution: Permanently lubricated sealed ball bearings deliver a maintenance-free performance.
  • Maximum Heat Dissipation: This fan offers maximum heat dissipation even at low RPM.
  • Speed Controllable: This fan is 100% speed controllable.
  • Prewired: Has a terminal box with a prewired electrical strip.
  • Air Stream Temperatures: The Fantech FKD 20 Mixed Flow Fan is rated for air stream temperatures up to 140 degrees Fahrenheit.

Summary

Useful in offices, medical facilities, and salons, the Fantech FKD 20 230V-460V 20-Inch Mixed Flow Inline Duct Fan is equally effective in your home kitchen.

Specifications

    Key Specifications

    • Number of Speeds
      Variable
    • Sound Level (Sones) (sones)
      33.0
    • Type
      Mixed Flow Inline Duct Fan

    General

    • Application
      Ducting
    • Certifications
      UL
    • Color
      Gray
    • Controls
      Manual
    • Maximum Air Temperature (degrees F)
      140
    • Maximum Cubic Feet per Minute (CFM) (CFM)
      6306.0
    • California Residents
      ⚠ WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.p65warnings.ca.gov.

    Power

    • Maximum Amperage (Amps)
      1.36
    • Power Supply
      Hardwired
    • Voltage (V)
      220-240
    • Watts (W)
      2443

    Dimensions

    • Depth (in.)
      27.25
    • Duct Diameter (in.)
      20.0
    • Height (in.)
      28.5
    • Weight (lbs.)
      153
    • Width (in.)
      19.625

    Additional Features

    • Additional Features
      Applicable for Indoor Growing

    Warranty

    • Manufacturer's Warranty
      3-Year Limited Warranty
