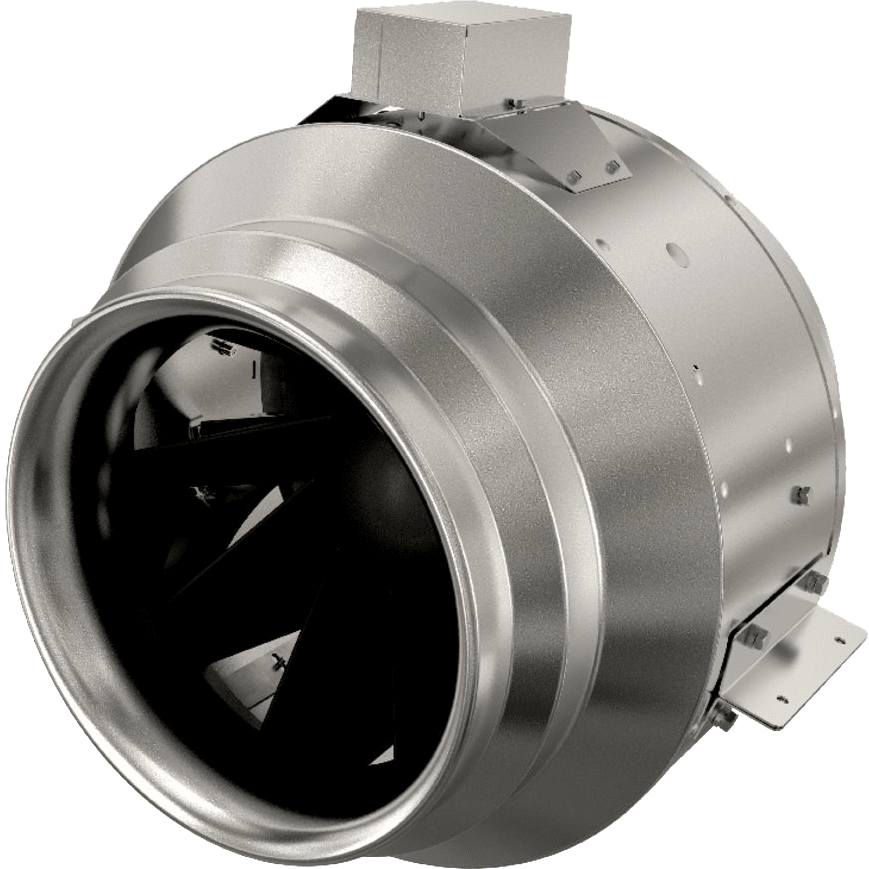

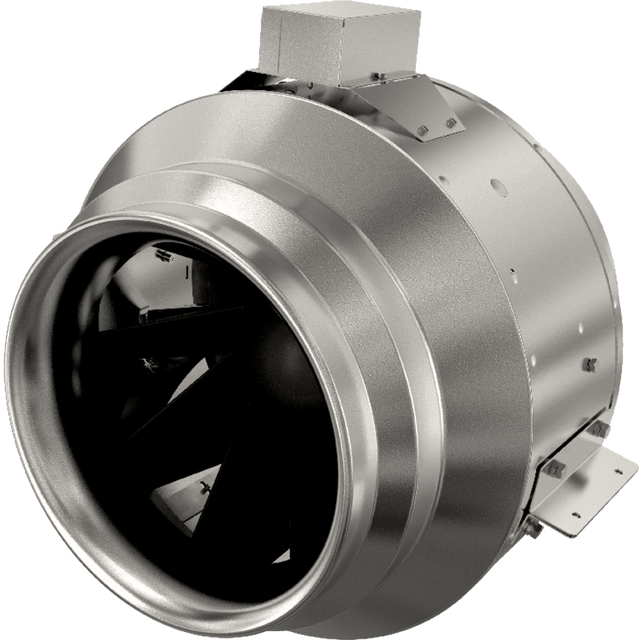

Fantech FKD 20 230V-460V 20-in. Mixed Flow Inline Duct Fan

Name: Fantech FKD 20 230V-460V 20-in. Mixed Flow Inline Duct Fan
Brand: Fantech
Price: 2918.0 USD
Availability: InStock

SKU: fn12474 | Model: 498351

$2,918.00

FREE shipping on orders over $45!

In Stock Ships within 1-2 business days.

Add extended protection plan. (Select one)

2-Year Warranty - $89.99

learn more

A 2-year major appliance warranty for products less than $3,500.

4-Year Warranty - $139.99

learn more

A 4-year major appliance warranty for products less than $3,500.

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

3-Year Limited Warranty

What's In The Box?

Fantech FKD 20 230V-460V 20-Inch Mixed Flow Inline Duct Fan
Owner's Manual

Info & Guides

Description

Delivering an airflow of up to 6,306 CFM, the Fantech FKD 20 230V-460V 20-Inch Mixed Flow Inline Duct Fan is an effective and efficient ventilation solution for a variety of commercial and residential applications. Useful in offices, medical facilities, and salons, it's equally effective in your home kitchen. Combining the performance of axial fans with the overloading protection of backward curved impellers, it's the premier option for achieving the best of both worlds.

Key Features

For Commercial and Residential Use: With airtight galvanized steel housing, this duct fan is rated for both commercial and residential applications.
External Motor: Featuring an external rotor motor with built-in thermal overload protection.
Low Maintenance Solution: Permanently lubricated sealed ball bearings deliver a maintenance-free performance.
Maximum Heat Dissipation: This fan offers maximum heat dissipation even at low RPM.
Speed Controllable: This fan is 100% speed controllable.
Prewired: Has a terminal box with a prewired electrical strip.
Air Stream Temperatures: The Fantech FKD 20 Mixed Flow Fan is rated for air stream temperatures up to 140 degrees Fahrenheit.

Summary

Useful in offices, medical facilities, and salons, the Fantech FKD 20 230V-460V 20-Inch Mixed Flow Inline Duct Fan is equally effective in your home kitchen.

Specifications

Key Specifications

Number of Speeds

Variable
Sound Level (Sones) (sones)

33.0
Type

Mixed Flow Inline Duct Fan

General

Application

Ducting
California Residents

⚠ WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. See: www.P65Warnings.ca.gov
Certifications

UL
Color

Gray
Controls

Manual
Maximum Air Temperature (degrees F)

140
Maximum Cubic Feet per Minute (CFM) (CFM)

6306.0

Power

Amperage (Amps)

1.36
Power Supply

Hardwired
Voltage (V)

220-240
Watts (W)

2443

Dimensions

Depth (in.)

27.25
Depth (with front cover) (in.)

27.25
Duct Diameter (in.)

20.0
Height (in.)

28.5
Height (with front cover) (in.)

28.5
Weight (lbs.)

153
Width (in.)

19.625
Width (with front cover) (in.)

19.625

Additional Features

Additional Features

Applicable for Indoor Growing

Warranty

Manufacturer's Warranty

3-Year Limited Warranty
