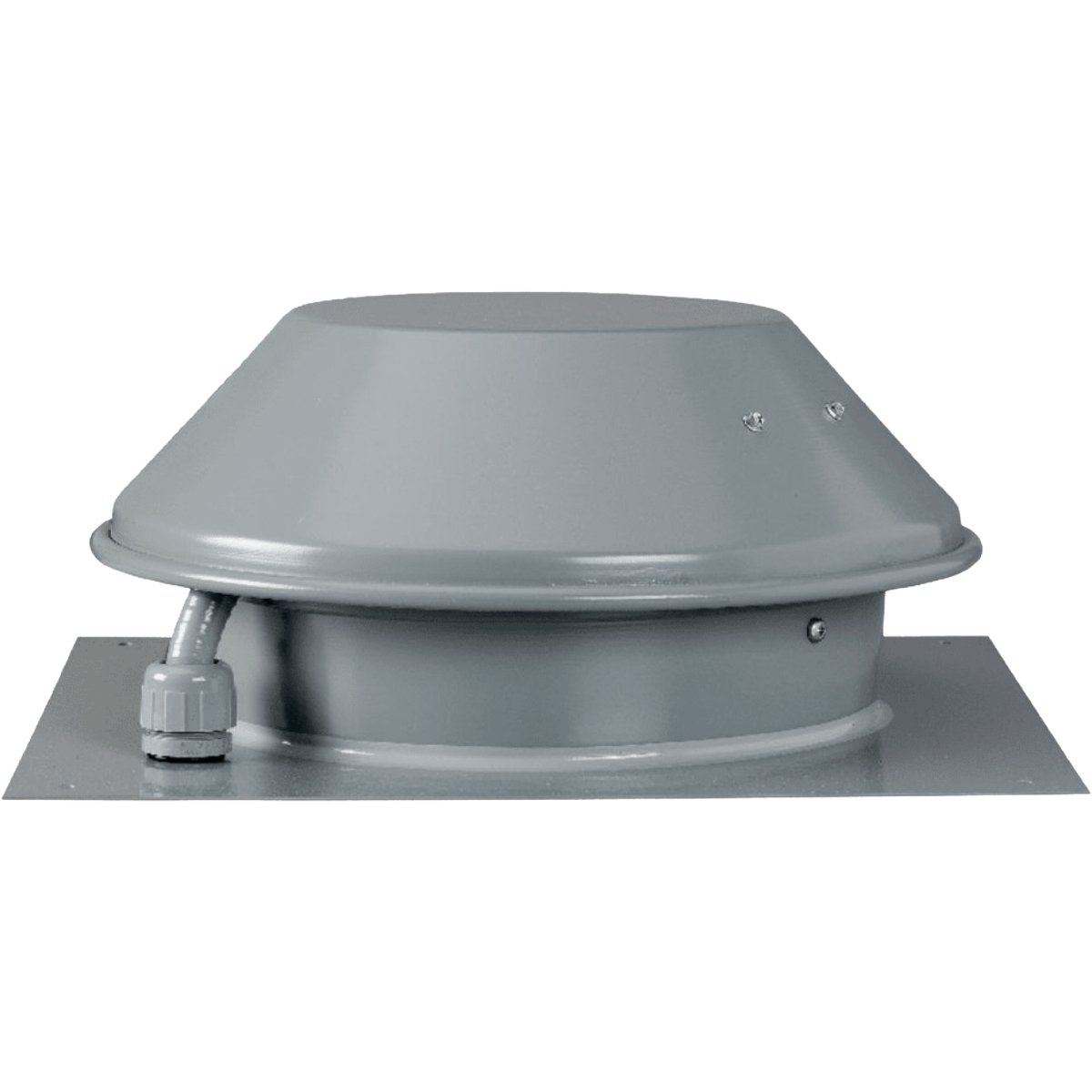

Fantech RE Series Roof Mount Centrifugal Duct Fan
Fantech RE Series Roof Mount Centrifugal Duct Fan - 5 / Curb is backordered and will ship as soon as it is back in stock.
Description
Description
The Fantech RE Series Roof Mount Centrifugal Duct Fan are designed for residential or commercial ventilation applications where it's beneficial to have the fan mounted on the building's exterior to reduce motor noise. The RE models have a flat base for direct flashing to the roof, and can also be mounted on an exterior wall. The REC models have a flanged base for curb mounting.
The RE fans are easily installed by simply mounting the fan on the roof and connecting the electrical supply to the easy-access terminal box. The galvanized steel housing has a baked powder-coat finish that can be painted if needed.
Key Features and Benefits of the Fantech RE Series Roof Mount Centrifugal Duct Fan
- Exterior Motor Placement: The direct-drive motor sits on your roof, outside the building envelope, keeping motor noise away from bedrooms and living spaces.
- Airflow Range: Models move from 117 to 1,009 CFM, so you can size the fan for a single vent or several exhaust points on one duct system.
- Duct Sizes: Fits 5 to 10-inch ducts, so you can match the fan to the duct run you already have.
- Sound Ratings: Sound levels range from 3.5 to 21 sones across the series, so compare models closely if noise matters in nearby rooms.
- Speed Control: This fan is 100 percent speed controllable with manual controls, so you can turn airflow down when you don't need full exhaust.
- Thermal Overload Protection: Built-in thermal overload protection with automatic reset shuts the motor off if it overheats and restarts it once it cools.
- Sealed Ball Bearings: Permanently sealed, self-lubricating ball bearings cut down vibration and take routine oiling off your maintenance list.
- Warm Airstream Rating: Rated for airstream temperatures up to 140 degrees F, so you can exhaust hot attic air.
- Galvanized Steel Housing: A gray powder-coated galvanized steel housing protects the fan on your roof, where it stays exposed year-round.
- cULus Listed: The fan carries cULus certification and is hardwired to a supply of 110-120 volts, so it connects to standard residential wiring.
- 5-Year Warranty: Fantech covers the series under a warranty that protects the fan through many seasons on the roof.
Choose Your Duct Size and Mounting Style
The RE Series comes in Flat, Curb, XL Flat, XL Curb, XLT Flat, and XLT Curb mounting styles, and duct diameters from 5 to 10 inches.
- Flat: This model has a flat base for direct flashing to the roof or wall mount.

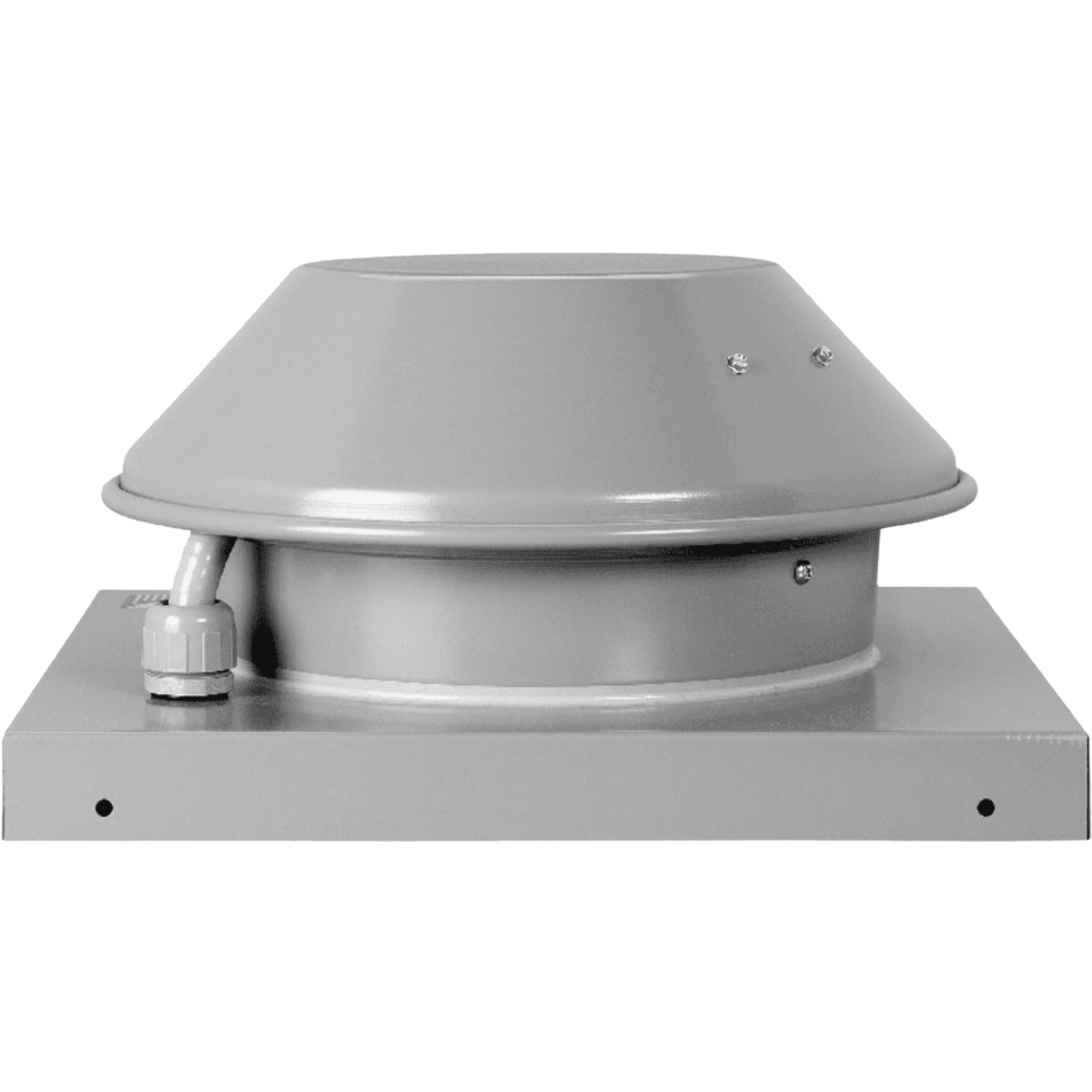

- Curb: This model mounts on a raised curb typically on a flat roof.
- XL Flat/Curb: Offers a stronger motor of 1/4 HP for the 8" Fan and 1/2 HP for the 10" Fan.
- XLT Flat/Curb: Has a 3/4 HP motor with the 10" Inlet Duct Diameter Fan.
Sylvane's Expert Take
If you're a homeowner or contractor venting a kitchen or attic, the RE Series is a strong choice wherever you can get onto the roof. The exterior motor is the main reason to choose it, because it removes the main source of indoor fan noise. These multi-purpose fans can be used to move air from one or more venting points. Thermal overload protection and the 5-year warranty add protection for a fan that spends its life exposed on the roof.
Specifications
Specifications
-
Number of Speeds1
-
Sound Level (Sones) (sones)3.53.57.57.58.98.916.416.421.021.0
-
TypeRoof Exhaust Fan
-
ApplicationAttic, Residential
-
CertificationscULus
-
ColorGray
-
ControlsManual
-
Housing MaterialPowder-Coated Galvanized Steel
-
Maximum Cubic Feet per Minute (CFM) (CFM)117.0117.0227.0227.0400.0400.0752.0752.01009.01009.0
-
Maximum RPM3040304027002700280028003250325029502950
-
Type of FanRoof Exhaust Fan
-
California Residents⚠ WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.p65warnings.ca.gov.
-
Maximum Amperage (Amps)0.180.180.60.61.191.193.423.424.44.4
-
Power SupplyHardwired
-
Voltage (V)110-120
-
Watts (W)18188787139139360360526526
-
Depth (in.)5.06.06.06.08.08.011.513.014.012.6875
-
Duct Diameter (in.)5.05.06.06.08.08.010.010.010.010.0
-
Height (in.)10.312510.312513.937513.937516.562520.812520.812520.812520.812520.8125
-
Weight (lbs.)9.28.211.39.713.515.43029.53533.4
-
Width (in.)15.515.515.515.520.020.010.010.010.010.0
-
Manufacturer's Warranty5-Year Limited Warranty
