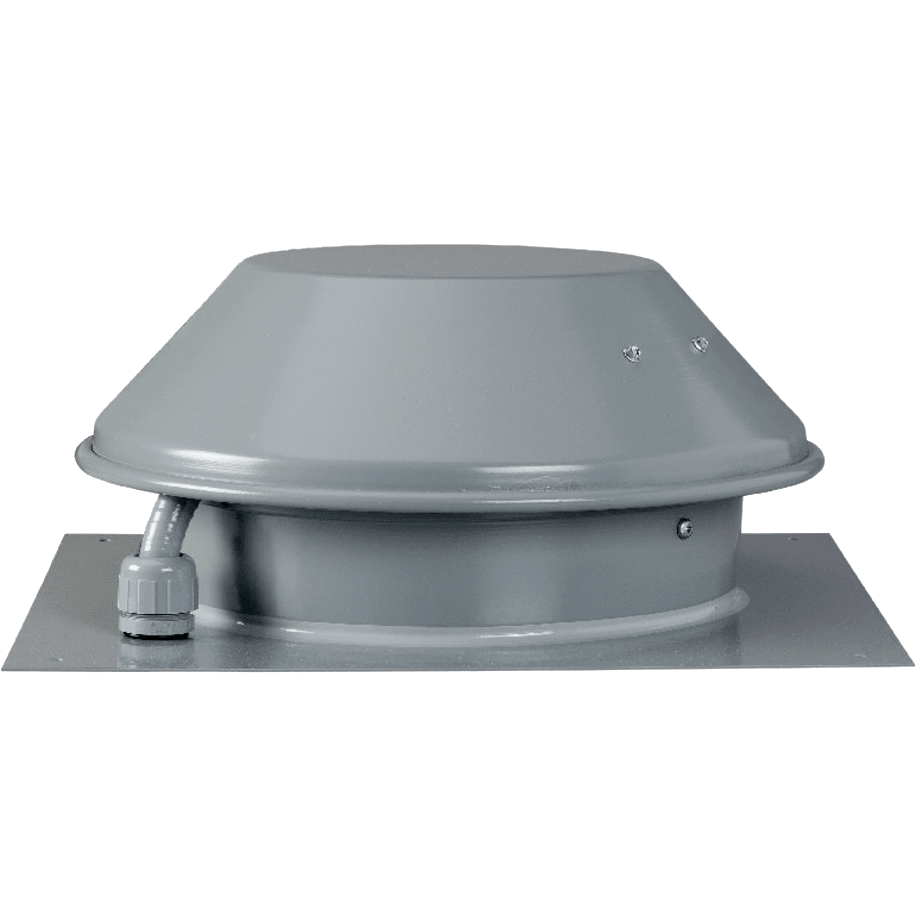

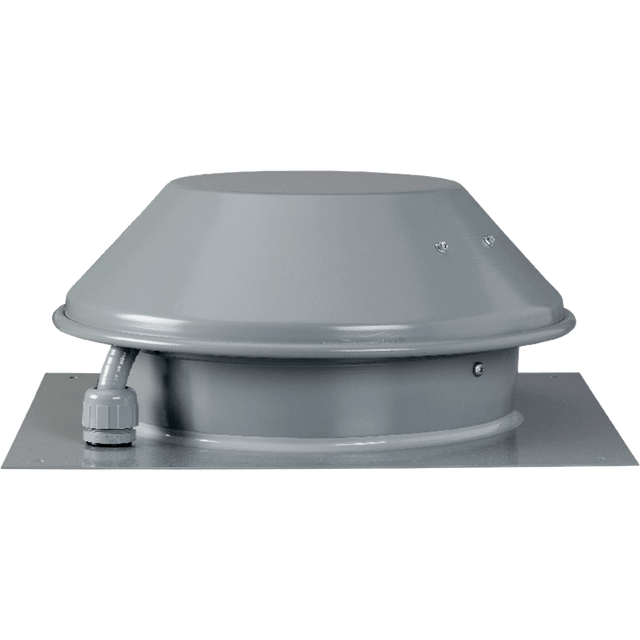

Fantech RE Series Roof Mount Centrifugal Duct Fan
Description
Description

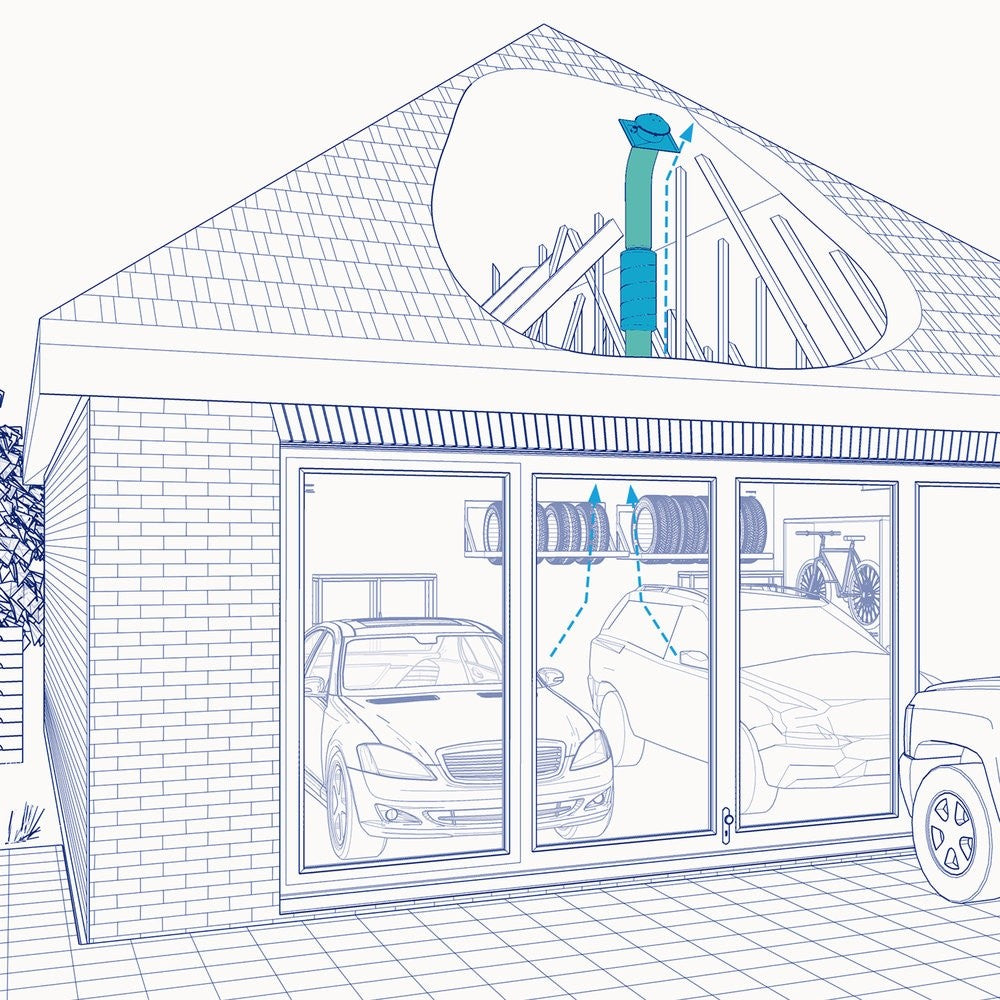

The Fantech RE Series Roof Mount Centrifugal Duct Fan provides an excellent solution for residential or commercial ventilation applications where the fan must be mounted on the exterior of the building. These multi-purpose direct drive fans can be used to move air from one or more venting points. Interior noise is not an issue because the fan motor is located outside the building envelope.
Available in ten models, select the option that is right for you.
Multiple Models To Choose From
The Fantech RE Series Centrifugal Duct Fan is available in multiple sizes and options ranging from 5 to 10-inch diameters. Available as flat and curved fans, selection the perfect fan for your building.
Key Features
- Vibration Free Design: Motor bearings are a permanently sealed, self-lubricating ball type.
- Works In Extreme Temperatures: It's suitable for airstream temperatures of up to 140° F.
- Built to Last: It features a long five-year warranty.
- Speed Controllable: This fan is 100% speed controllable.
- Motor Protection: Fantech Centrifugal Fans have built-in thermal overload protection with automatic reset.
Summary

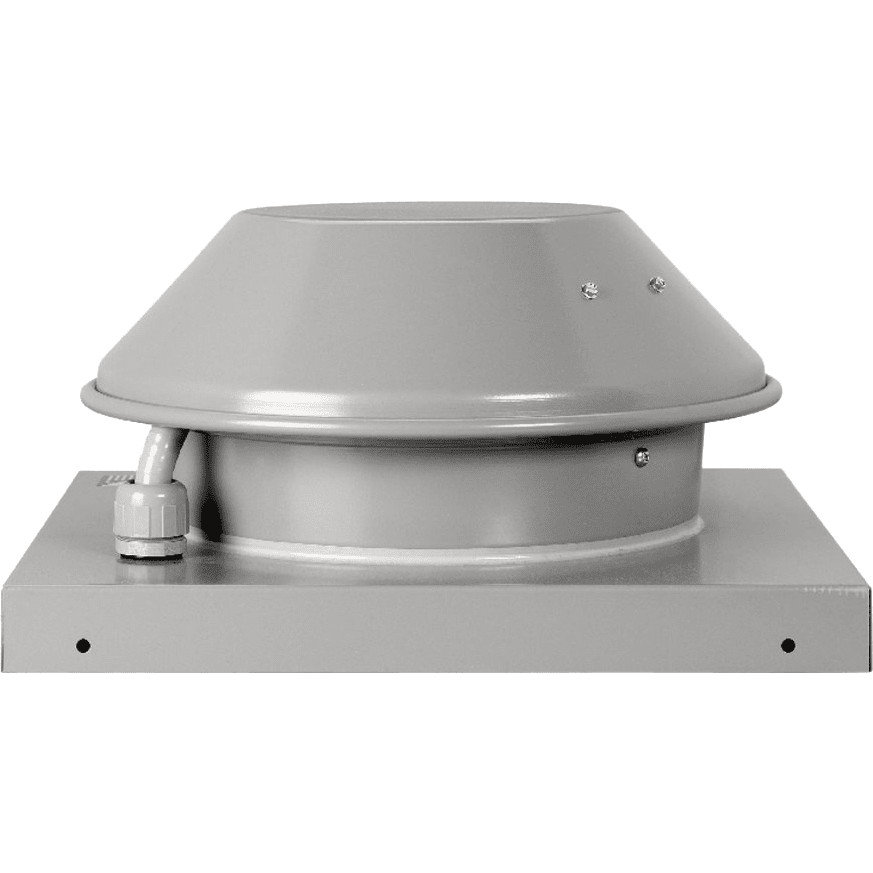

The Fantech RE/REC Series of direct drive centrifugal fans provide an excellent solution for residential ventilation as well as commercial ventilation where this roof fan must be mounted on the exterior of the building.
Specifications
Specifications
-
Number of Speeds1
-
Sound Level (Sones) (sones)7.57.53.53.58.98.916.416.421.021.0
-
TypeRoof Exhaust Fan
-
ApplicationAttic, Residential
-
California Residents⚠ WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. See: www.P65Warnings.ca.gov
-
CertificationscULus
-
ColorGray
-
ControlsManual
-
Housing MaterialPowder-Coated Galvanized Steel
-
Maximum Cubic Feet per Minute (CFM) (CFM)227.0227.0117.0117.0400.0400.0752.0752.01009.01009.0
-
Maximum RPM2700270030403040280028003250325029502950
-
Type of FanRoof Exhaust Fan
-
Amperage (Amps)0.60.60.180.181.191.193.423.424.44.4
-
Power SupplyHardwired
-
Voltage (V)110-120
-
Watts (W)87871818139139360360526526
-
Depth (in.)6.06.05.06.08.08.011.513.014.012.6875
-
Depth (with front cover) (in.)6.06.05.06.08.08.011.513.014.012.6875
-
Duct Diameter (in.)6.06.05.05.08.08.010.010.010.010.0
-
Height (in.)13.937513.937510.312510.312516.562520.812520.812520.812520.812520.8125
-
Height (with front cover) (in.)13.937513.937510.312510.312516.562520.812520.812520.812520.812520.8125
-
Weight (lbs.)11.39.79.28.213.515.43029.53533.4
-
Width (in.)15.515.515.515.520.020.010.010.010.010.0
-
Width (with front cover) (in.)15.515.515.515.520.020.010.010.010.010.0
-
Manufacturer's Warranty5-Year Limited Warranty
