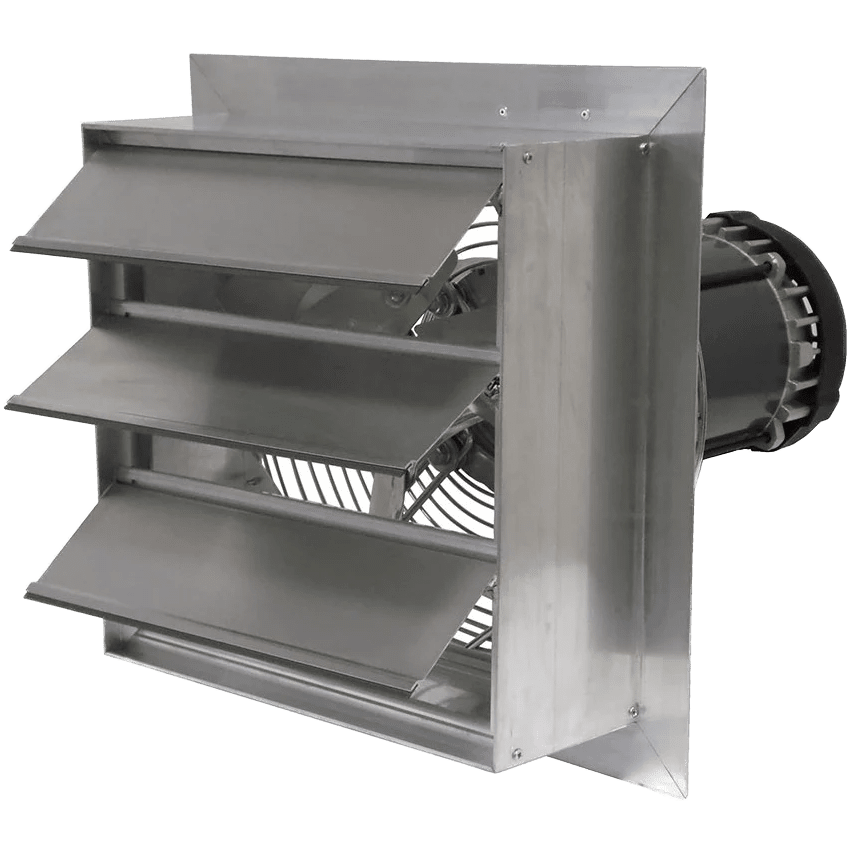

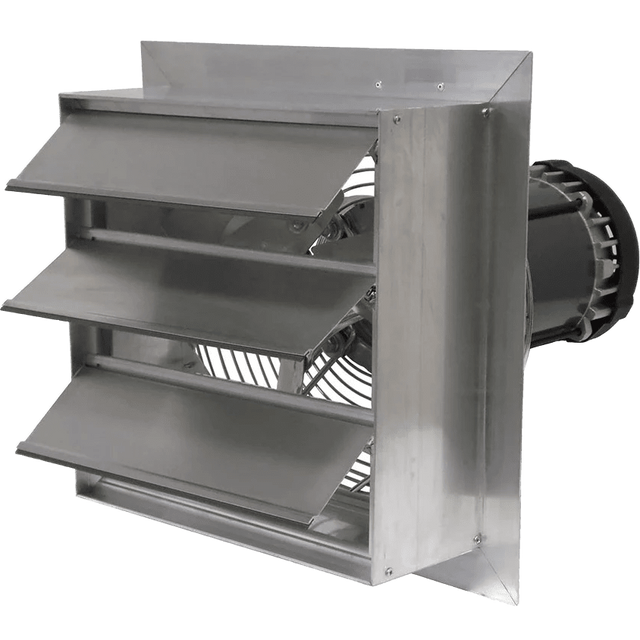

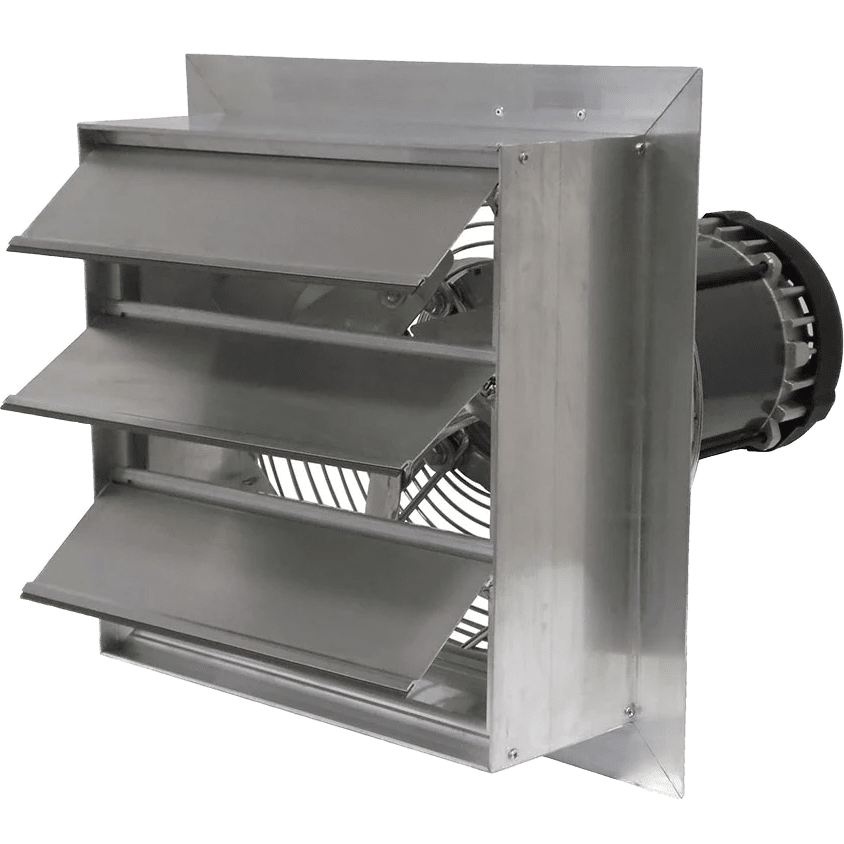

Canarm AX 14-In. Explosion Proof Aluminum Wall Mount Shutter Exhaust Fan

SKU: ca13549  |  Model: AX14-4M
$1,36400
Option

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Email

Manufacturer's Warranty

1-Year Limited Warranty

What's In The Box?
  • Canarm AX 14-In. Explosion Proof Aluminum Wall Mount Shutter Exhaust Fan
  • Owner's Manual

Info & Guides

Description

Commonly used for general ventilation in warehouses, factories, garages, and farming applications, this Canarm 14-inch fan is an explosion-proof option for the most sensitive of locations. With its durable design and easy-to-use features, it effectively ventilates facilities with an airflow of up to 2,170 CFM. It's available in single-phase and three-phase options.

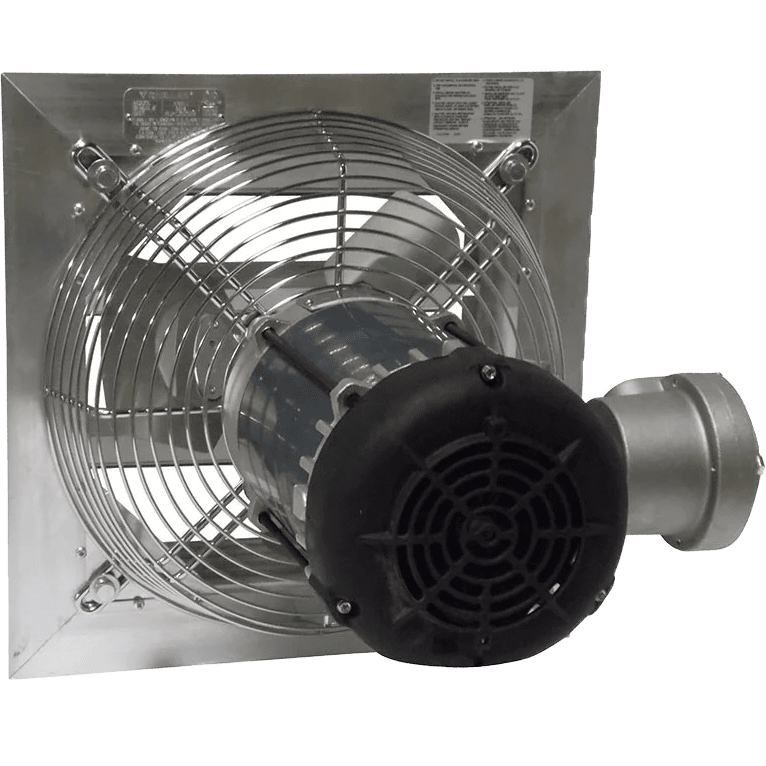

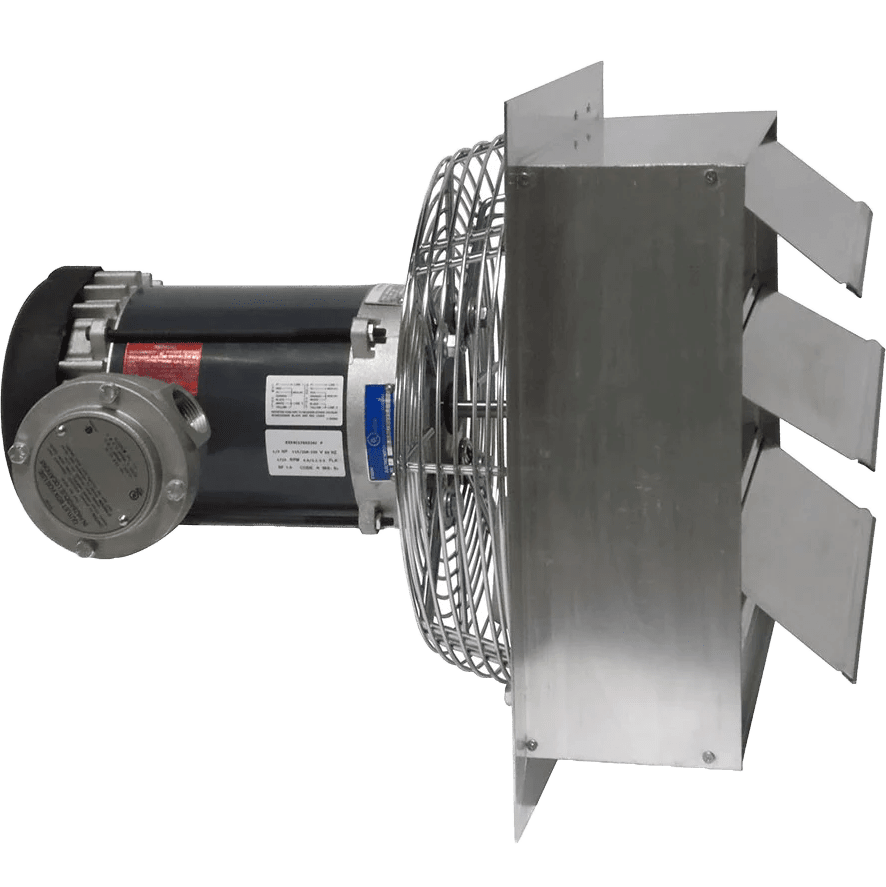

Explosion Proof Motor

This is an explosion-proof fan that meets and conforms to the following standards:

  • Class I, Group C: Atmospheres containing ethyl ether, ethylene, gases or vapors of equivalent hazard.
  • Class I, Group D: Atmospheres such as acetone, ammonia, benzene, butane, cyclopropane, ethanol, gasoline, hexane, methane, natural gas, naphtha, propane, or gasses or vapors of equivalent hazard.
  • Class II, Group F: Atmospheres containing carbonaceous dust, including carbon black, charcoal, coal, or coke dusts that have more than 8% total entrapped volatiles, or dusts that have been sensitized by other materials so that they present an explosion hazard.
  • Class II, Group G: G Atmospheres containing combustible dusts not included in group E or F, including flour, grain, wood, plastic and chemicals.

Top Features Of The Canarm AX-Series 14-Inch Fan

  • Multiple Options: Select from single-phase or three-phase options.
  • Direct-Drive Fan: This direct-drive, horizontal discharge fan as a maximum airflow of 2,170 CFM.
  • Built to Last: With durable heavy-duty aluminum housing, this fan withstands the rigors of daily use.

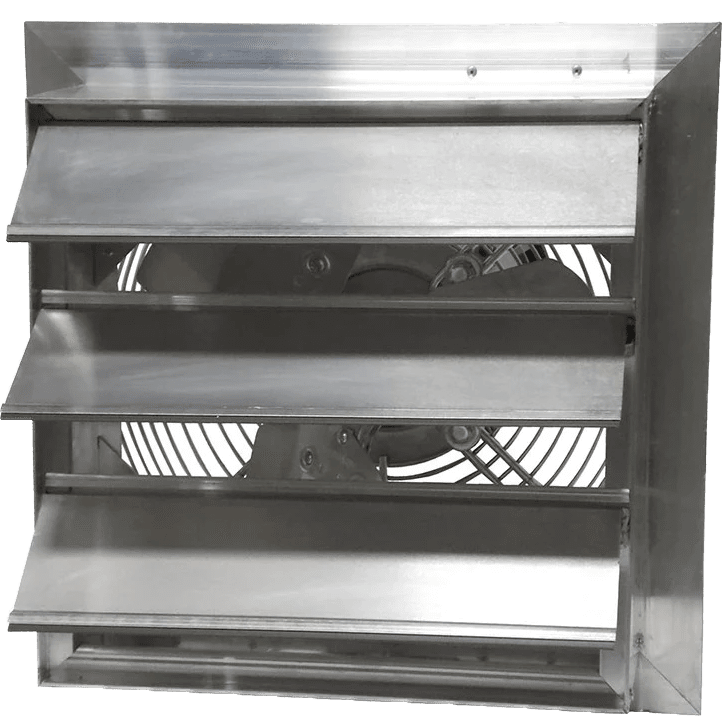

  • Shutter Design: The fan's shutters automatically open when the fan starts and gravity closes when the fan stops.

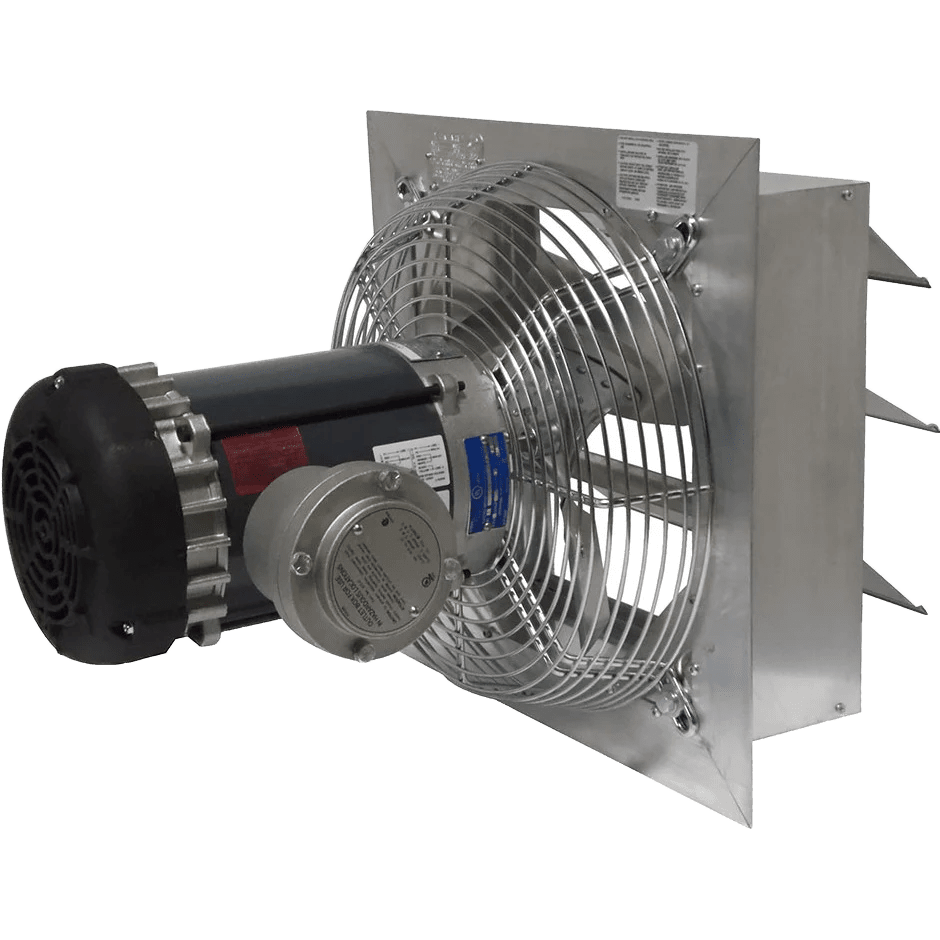

  • Intake Guards: Features heavy wire chrome plated OSHA guards on the intake side of fan.
  • Overload Protection: Provides an extra layer of safety.
  • Ships Fully Assembled: This fan is ready for use right out of the box.
  • Framing Dimensions: 16" x 16"

Summary

Safely and effectively ventilate factories, farming facilities, and more with this 14-inch explosion-proof fan from Canarm.

Specifications

    Key Specifications

    • Number of Speeds
      1
    • Sound Level (Sones) (sones)
      27.0
    • Type
      Shutter Exhaust Fan

    General

    • Application
      Commercial/Industrial
    • Certifications
      cETLus
    • Color
      Gray
    • Controls
      Toggle Switch
    • Housing Material
      Aluminum
    • Maximum Cubic Feet per Minute (CFM) (CFM)
      2190.0
    • Maximum RPM
      1725
    • California Residents
      ⚠ WARNING: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.

    Power

    • Maximum Amperage (Amps)
      6.6
    • Power Supply
      Hardwired
    • Voltage (V)
      Three Phase: 220-240
      Single Phase: 110-120

    Dimensions

    • Ceiling or Wall Cutout Length (in.)
      15.75
    • Ceiling or Wall Cutout Width (in.)
      15.75
    • Depth (in.)
      Three Phase: 18.75
      Single Phase: 16.0
    • Height (in.)
      18.75
    • Shutter Fan Size (in.)
      14
    • Weight (lbs.)
      49
    • Width (in.)
      18.75

    Additional Features

    • Additional Features
      Meets OSHA Standards, Explosion Proof

    Warranty

    • Manufacturer's Warranty
      1-Year Limited Warranty
