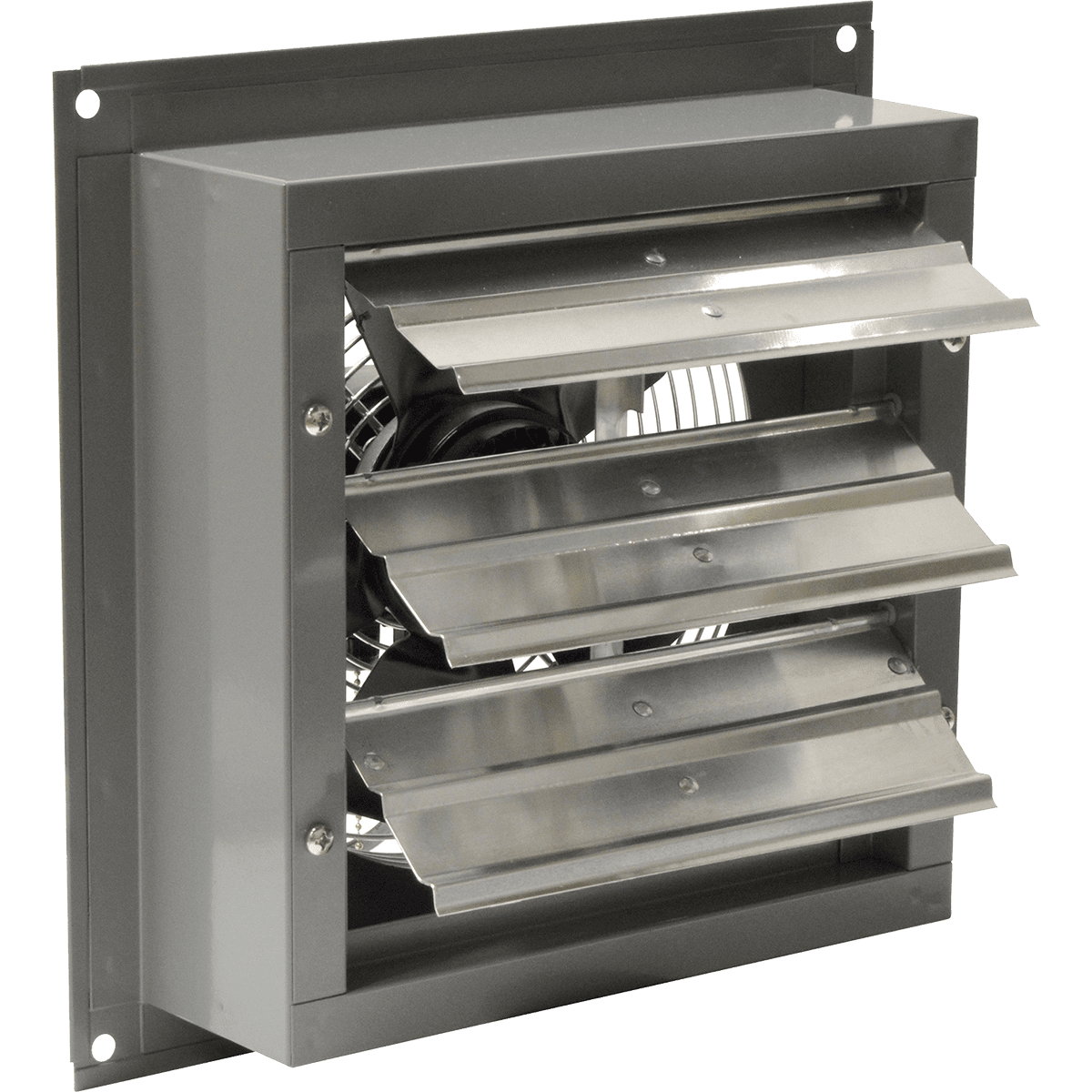

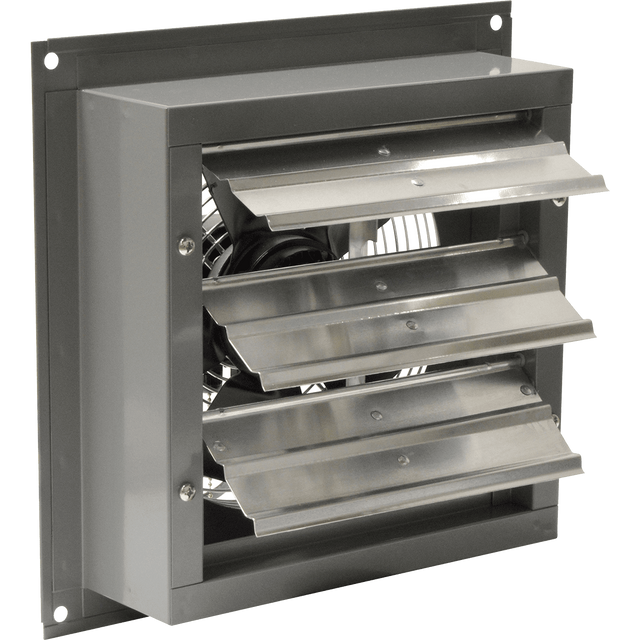

Canarm 10-in. SD-EC Variable Speed EC Motor Shutter Mounted Exhaust Fan

SKU: ca10147  |  Model: SD10-EC
$27800

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Email

Manufacturer's Warranty

1-Year Warranty

What's In The Box?
  • Canarm 10-inch Motor Exhaust Fan
  • Owner's Manual and Installation Guide

Info & Guides

Description

The 10-inch Canarm SD10-EC is an efficient and steel exhaust fan for long-term air quality control.

This variable speed exhaust fan offers an efficient and completely enclosed EC smart motor. Add it to any 13 x 13 opening for immediate ventilation.

Canarm 10-inch Motor Exhaust Fan Features

  • OSHA Compliant: Designed with zinc-plated OSHA specific ½-inch wire spacing for safety.
  • Fully Assembled: All Canarm fans are shipped completely assembled.
  • Durable: Rugged steel welded box housing with durable powder coat finish.
  • Variable Speed: Up to 690 CFMs.
  • Efficient EC Motors: These efficient fans and new EC motors save on energy costs over time.

Dimensions

  • Blade Diameter: 10 inches
  • Framing Dimensions: 13 x 13 inches
  • Dimensions: 15.25 x 15.25 x 4 inches (H x W x D)
  • Depth with Motor: 13.5 inches
  • Louver Dimensions: 14 x 14 inches

Additional Canarm Shutter Mounted Exhaust Fan Features

  • 1,800 RPMs
  • ¼ HP
  • 56 dB noise level
  • 115/208-280 voltage

The Canarm SD10-EC requires hardwired electrical connection.

Specifications

    Key Specifications

    • Number of Speeds
      Variable
    • Sound Level (Sones) (sones)
      4.0
    • Type
      Shutter Exhaust Fan

    General

    • Application
      Garage/Workshop, Basement, Crawlspace, Residential, Commercial/Industrial, Attic
    • Certifications
      ETL
    • Color
      Gray
    • Controls
      Manual
    • Housing Material
      Powder-Coated Steel
    • Maximum Cubic Feet per Minute (CFM) (CFM)
      690.0
    • Maximum RPM
      1800
    • California Residents
      ⚠ WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.p65warnings.ca.gov.

    Power

    • Maximum Amperage (Amps)
      2.8
    • Power Supply
      Hardwired
    • Voltage (V)
      110-120, 220-240
    • Watts (W)
      186

    Dimensions

    • Ceiling or Wall Cutout Length (in.)
      12.75
    • Ceiling or Wall Cutout Width (in.)
      12.75
    • Depth (in.)
      4.0
    • Height (in.)
      15.25
    • Shutter Fan Size (in.)
      10
    • Weight (lbs.)
      13
    • Width (in.)
      15.25

    Additional Features

    • Additional Features
      Meets OSHA Standards, Applicable for Indoor Growing

    Warranty

    • Manufacturer's Warranty
      1-Year Warranty
