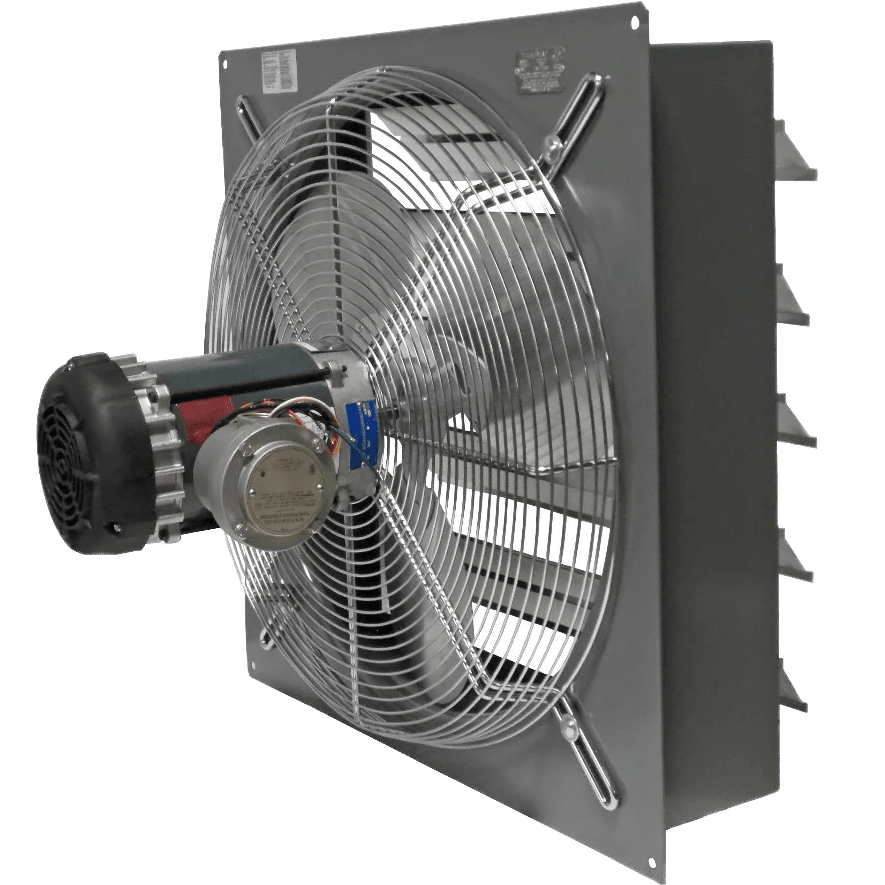

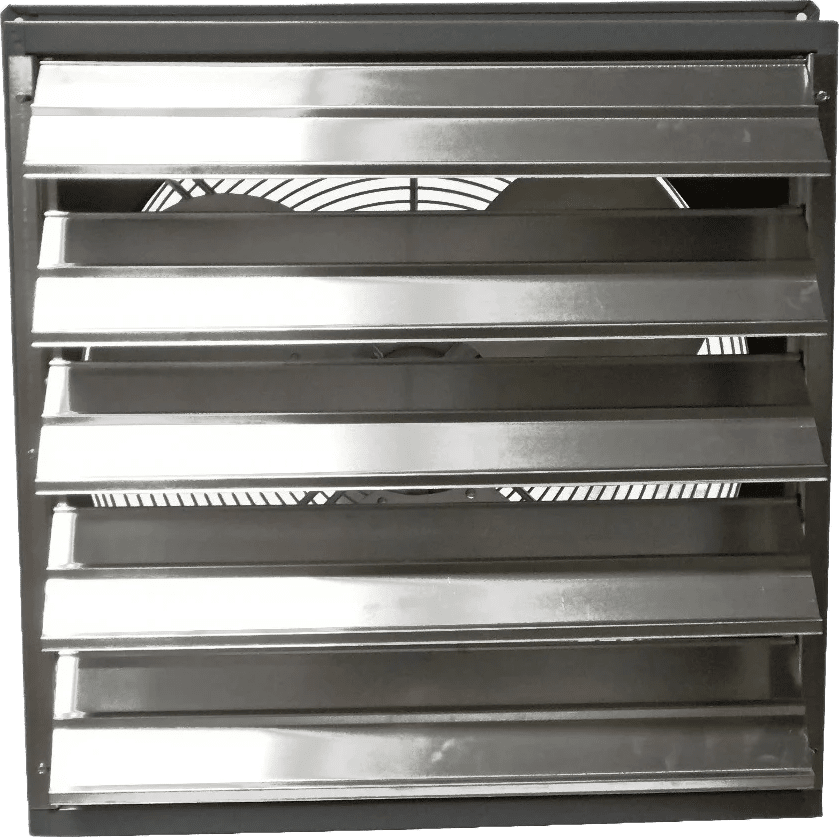

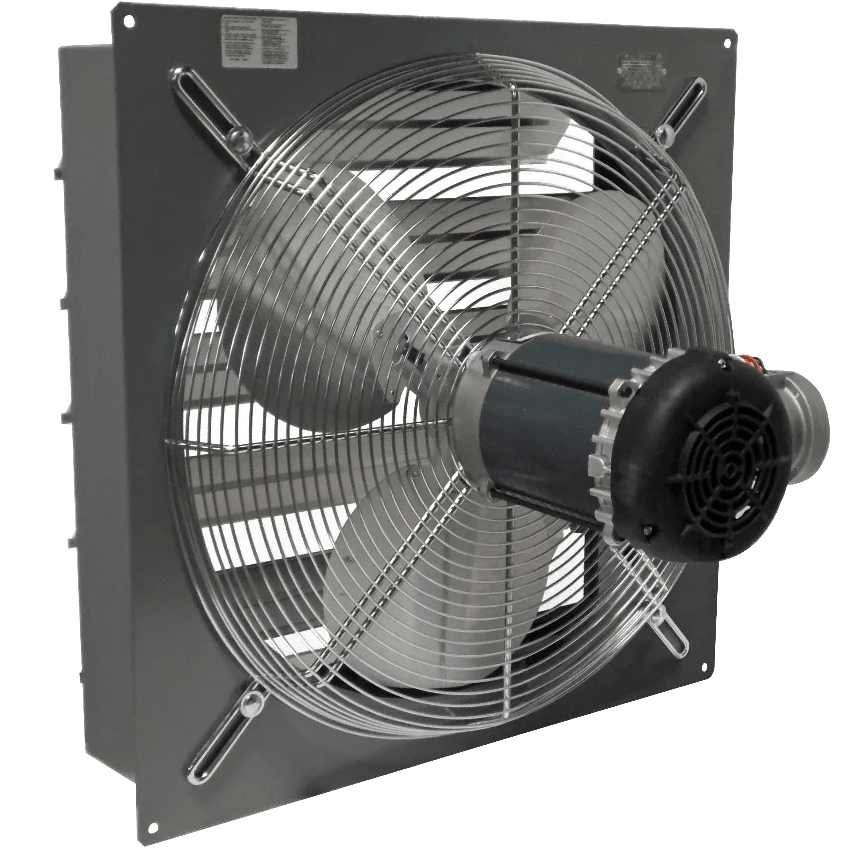

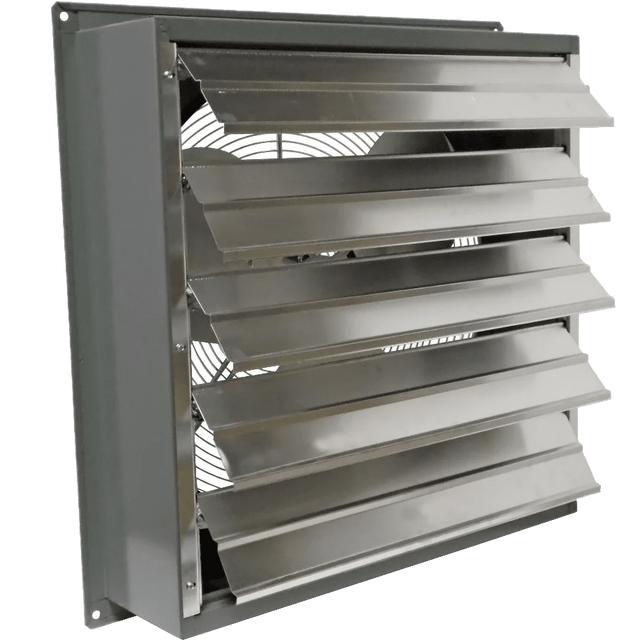

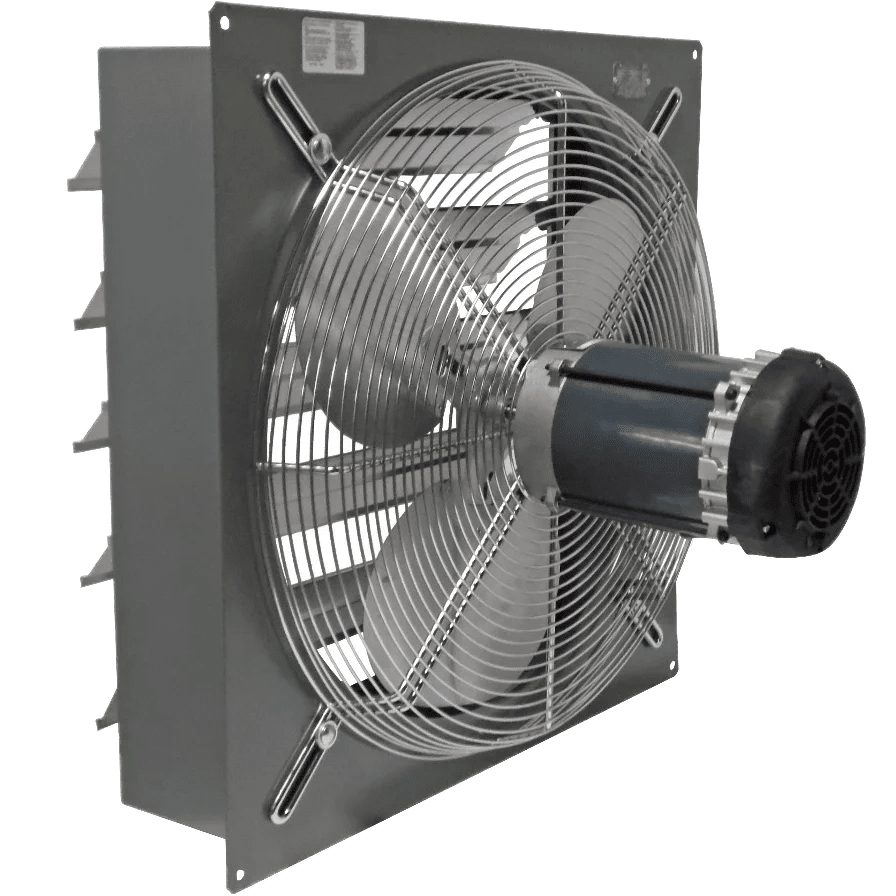

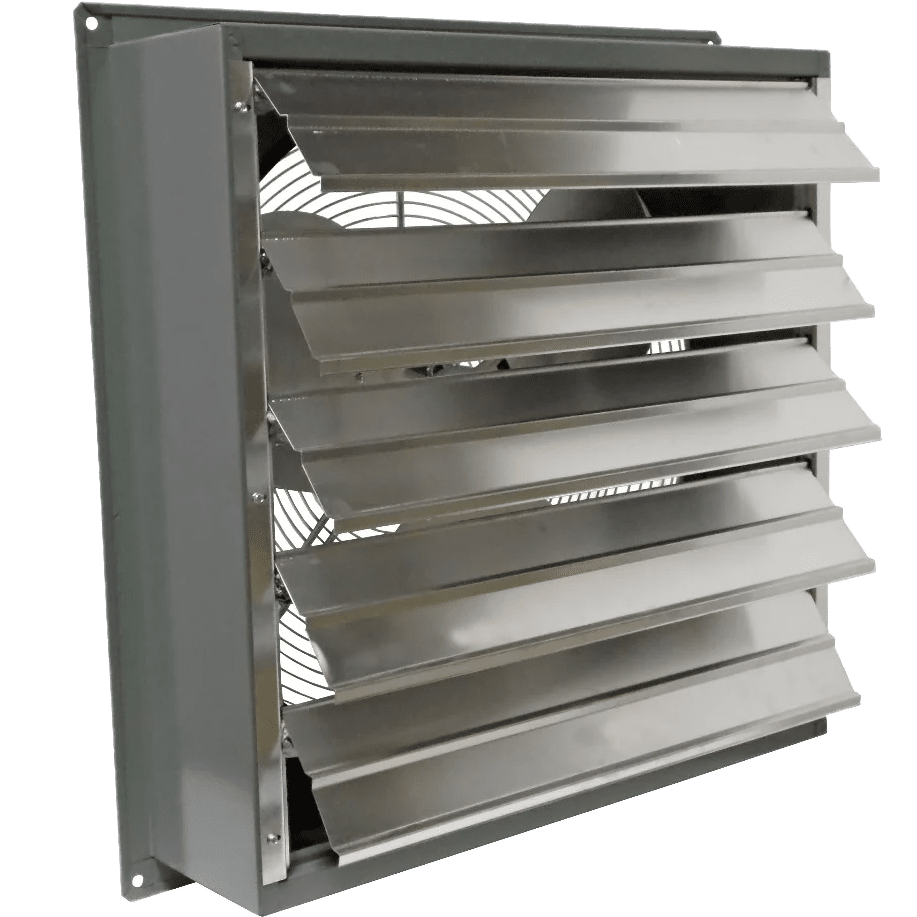

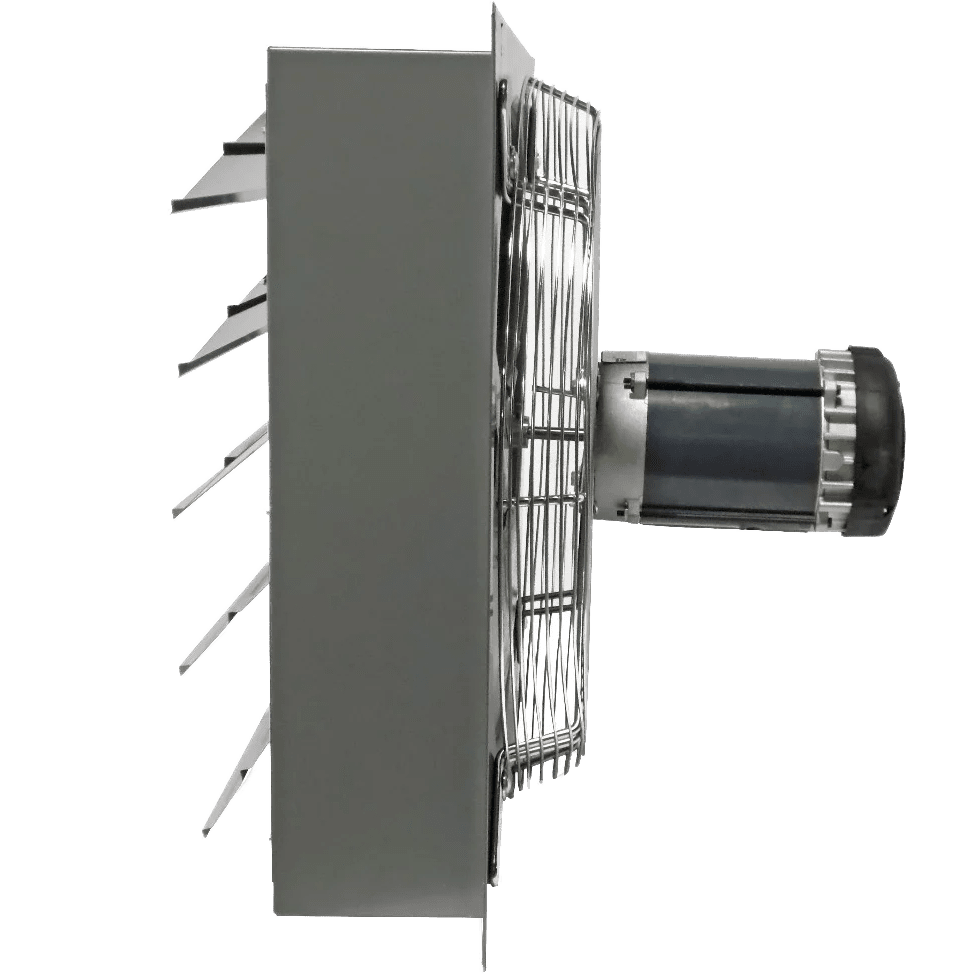

Canarm SD10-XPF 10-In. Explosion Proof Wall Mount Shutter Exhaust Fan

Name: Canarm SD10-XPF 10-In. Explosion Proof Wall Mount Shutter Exhaust Fan
Brand: Canarm
Price: 802.0 USD
Availability: InStock

SKU: ca13542 | Model: SD10-XPF

$802.00

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

1-Year Limited Warranty

What's In The Box?

Canarm SD10-XPF 10-In. Explosion Proof Wall Mount Shutter Exhaust Fan
Owner's Manual

Info & Guides

Description

Built for use in commercial applications, the Canarm SD10-XPF delivers safe and reliable ventilation in even the most sensitive of environments. Its explosion proof motor is designed to conform to Class I and Class II standards and features a steel box housing and durable fan blades. This unit can provide an airflow of up to 620 CFM.

Explosion Proof Shutter Exhaust Fan

The Canarm SD10-XPF is an explosion proof fan that meets and conforms to the following standards:

Class I, Group C: Atmospheres containing ethyl ether, ethylene, gases or vapors of equivalent hazard.
Class I, Group D: Atmospheres such as acetone, ammonia, benzene, butane, cyclopropane, ethanol, gasoline, hexane, methane, natural gas, naphtha, propane, or gasses or vapors of equivalent hazard.
Class II, Group F: Atmospheres containing carbonaceous dust, including carbon black, charcoal, coal, or coke dusts that have more than 8% total entrapped volatiles, or dusts that have been sensitized by other materials so that they present an explosion hazard.
Class II, Group G: G Atmospheres containing combustible dusts not included in group E or F, including flour, grain, wood, plastic and chemicals.

Canarm SD 10-In. Explosion Proof Fan Featured Specifications

Reliable Performance: This fan is capable of delivering up to 620 CFM of ventilation.
Enclosed Motor: Designed with a totally enclosed, ball bearing motor with thermal overload protection.
Aluminum Fan Blades: Its durable 10-inch fan blades are constructed of heavy-gauge aluminum.
Steel Housing: The steel welded box housing has a durable powder coated finish.
Intake Guards: Features heavy wire chrome plated OSHA guards on intake side of fan.
Ships Assembled: This fan ships completely assembled.
Framing Dimensions: 13" x 13"

Summary

Safely and reliably ventilate commercial facilities with the Canarm SD 10-In. Explosion Proof Wall Mount Shutter Exhaust Fan.

Specifications

Key Specifications

Number of Speeds

1
Type

Shutter Exhaust Fan

General

Application

Commercial/Industrial
California Residents

⚠ WARNING: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.www.p65warnings.ca.gov.
Certifications

cETLus
Color

Gray
Controls

Toggle Switch
Housing Material

Powder-Coated Steel
Maximum Cubic Feet per Minute (CFM) (CFM)

620.0
Maximum RPM

1725

Power

Amperage (Amps)

3.3 to 6.6
Power Supply

Hardwired
Voltage (V)

110-120

Dimensions

Ceiling or Wall Cutout Length (in.)

10.75
Ceiling or Wall Cutout Width (in.)

10.75
Depth (in.)

17.5
Depth (with front cover) (in.)

17.5
Height (in.)

14.0
Height (with front cover) (in.)

14.0
Shutter Fan Size (in.)

10
Weight (lbs.)

39
Width (in.)

15.25
Width (with front cover) (in.)

15.25
