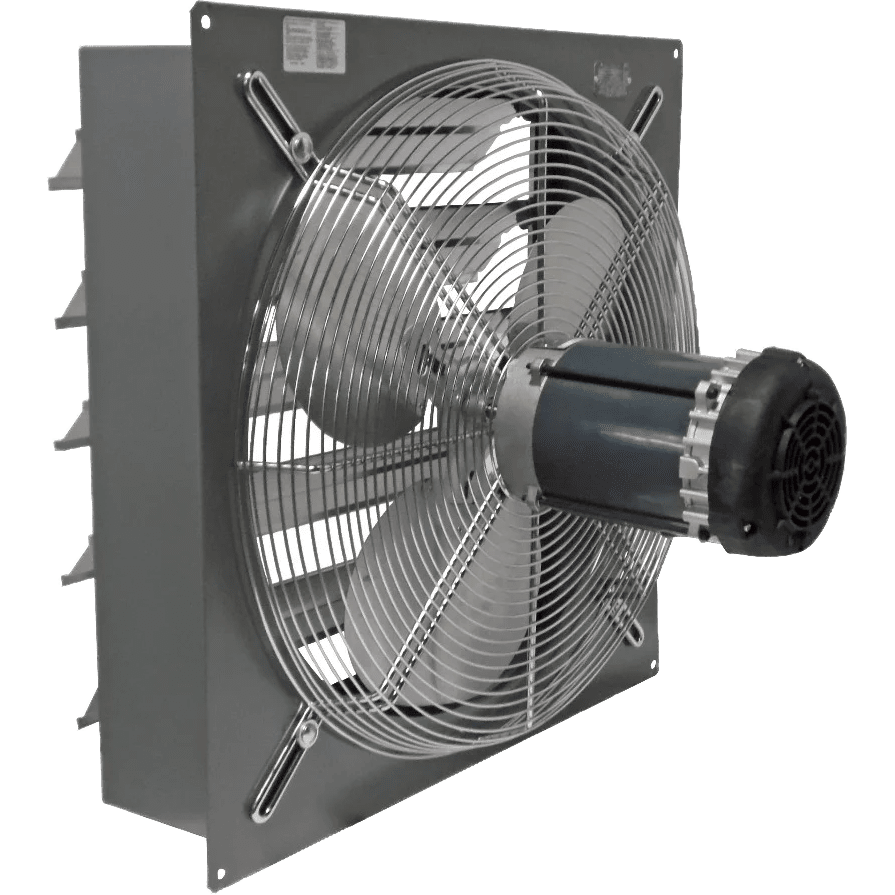

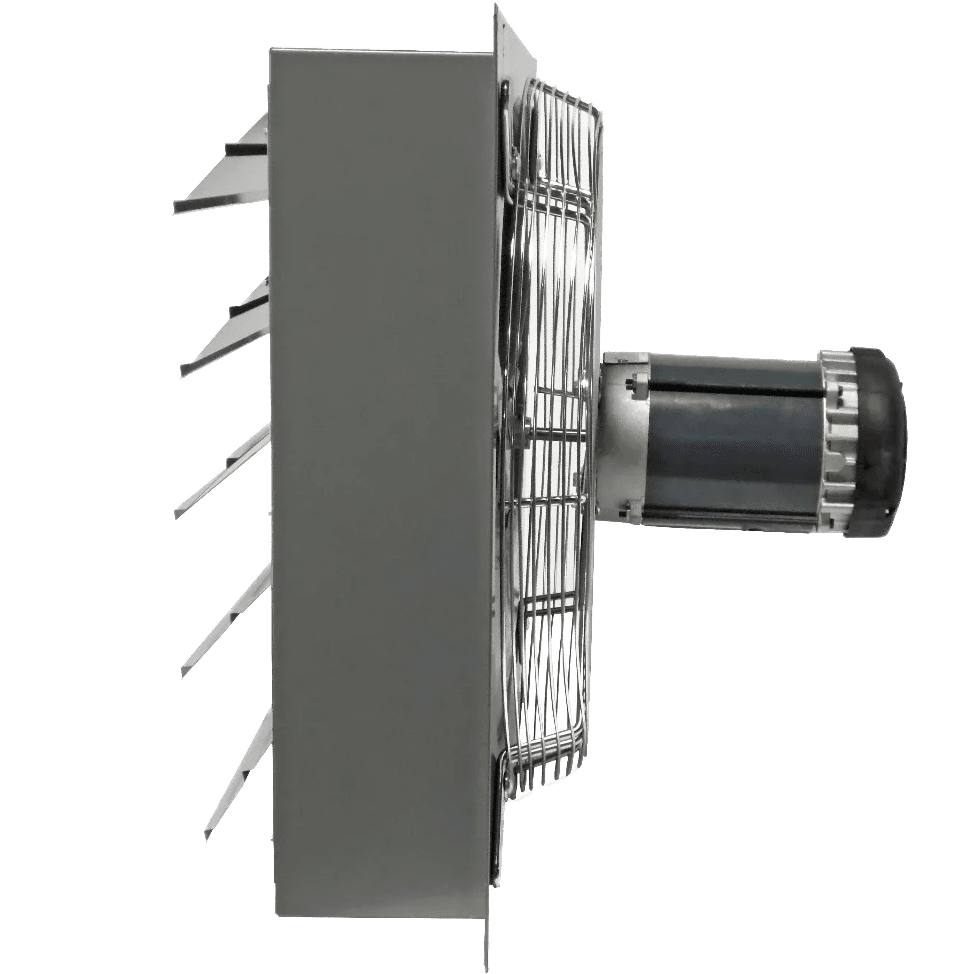

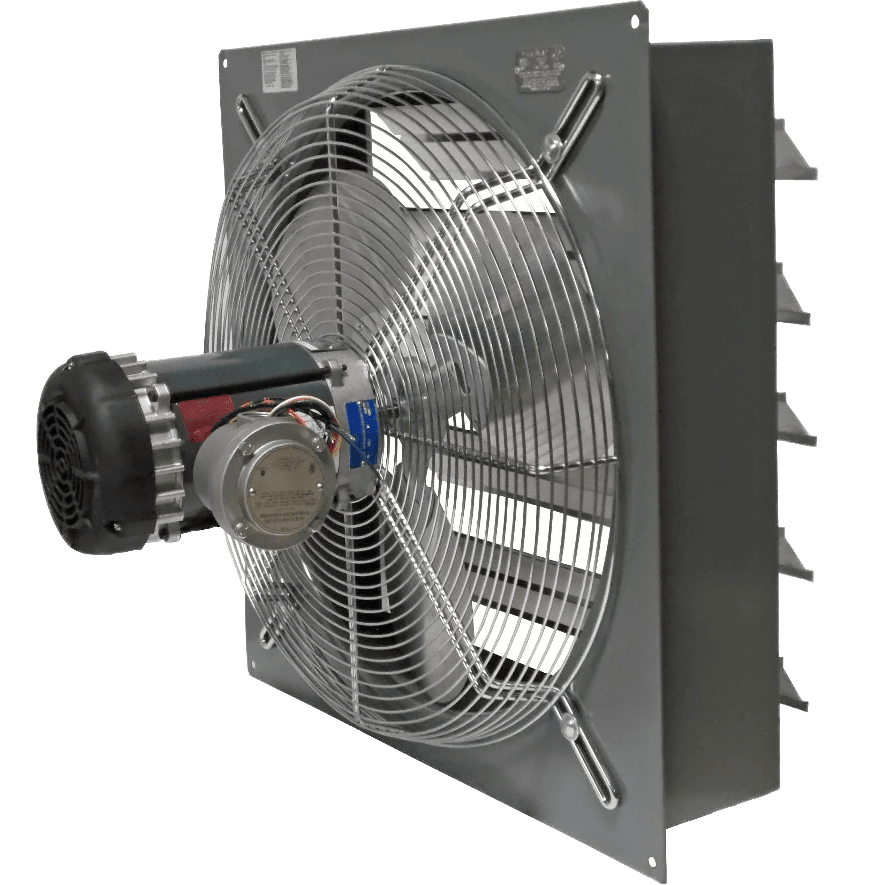

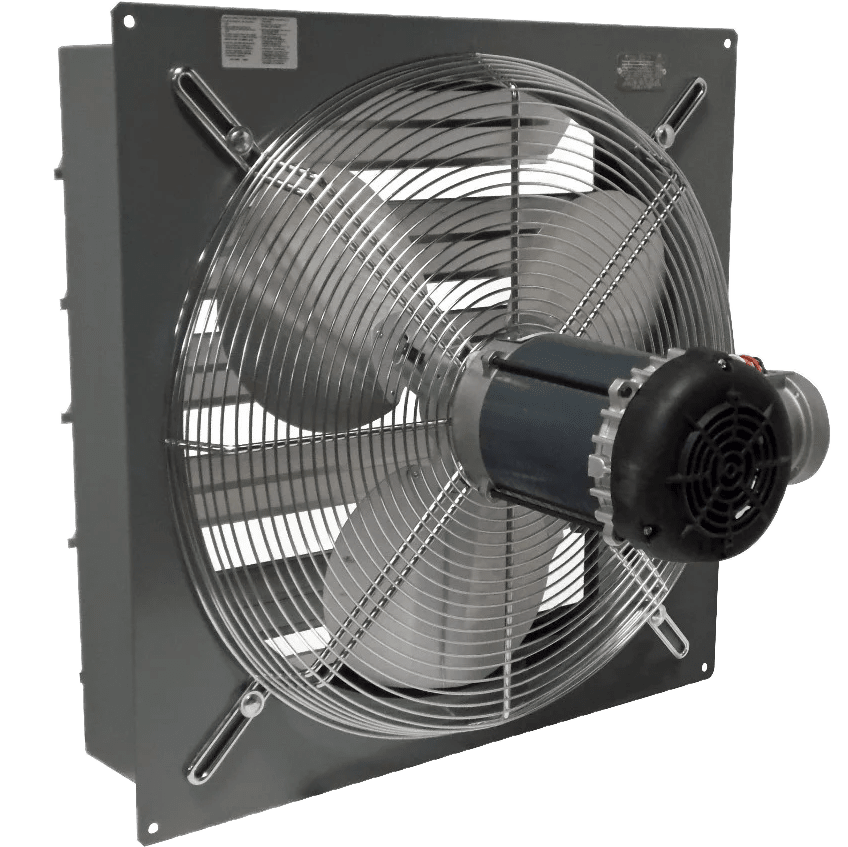

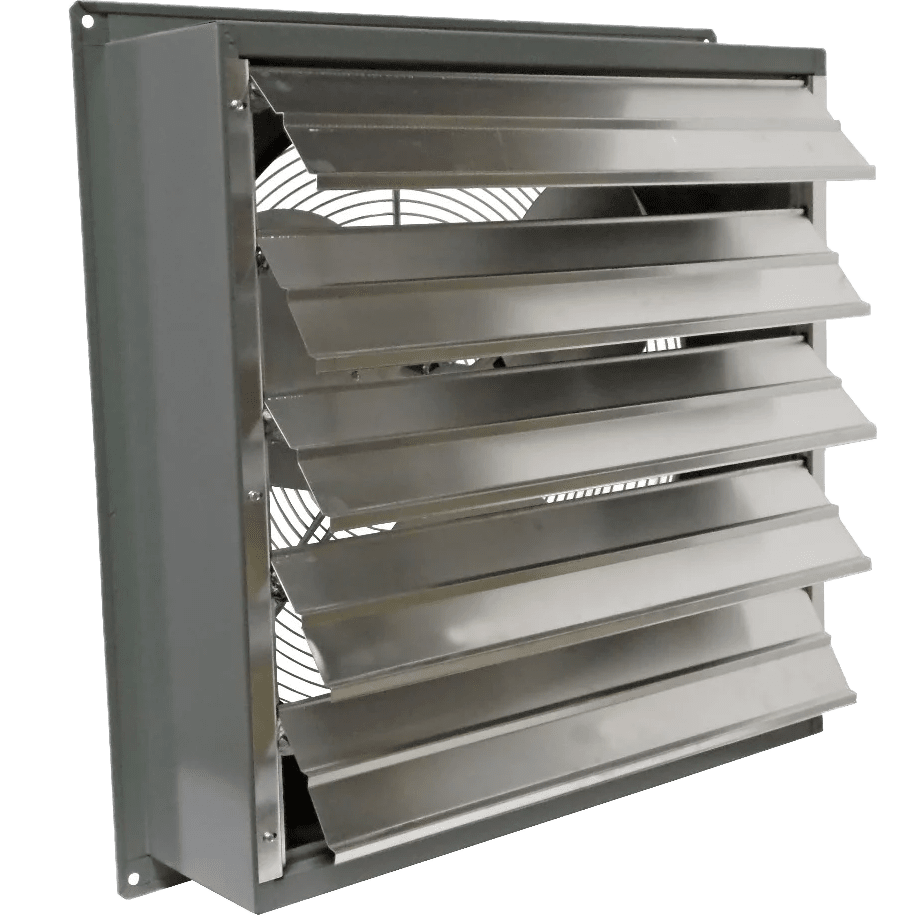

Canarm SD24-XPF 24-In. Explosion Proof Wall Mount Shutter Exhaust Fan
The largest of Canarm's standard wall explosion-proof fans, the Canarm SD24-XPF is a safe and reliable option for commercial facilities containing combustible materials. Capable of an airflow of up to 5,500 CFM, this ruggedly designed and easy-to-use unit is a must-have.
Explosion Proof Motor
The Canarm SD24-XPF is an explosion-proof fan that meets and conforms to the following standards:
- Class I, Group C: Atmospheres containing ethyl ether, ethylene, gases or vapors of equivalent hazard.
- Class I, Group D: Atmospheres such as acetone, ammonia, benzene, butane, cyclopropane, ethanol, gasoline, hexane, methane, natural gas, naphtha, propane, or gasses or vapors of equivalent hazard.
- Class II, Group F: Atmospheres containing carbonaceous dust, including carbon black, charcoal, coal, or coke dusts that have more than 8% total entrapped volatiles, or dusts that have been sensitized by other materials so that they present an explosion hazard.
- Class II, Group G: G Atmospheres containing combustible dusts not included in group E or F, including flour, grain, wood, plastic and chemicals.
Key Features Of The Canarm SD 24-In. Explosion Proof Fan
- Powerful Airflow: This Canarm shutter exhaust fan is capable of an airflow of up to 5,500 CFM.
- Ball-Bearing Motor: Features a totally enclosed, ball-bearing motor with thermal overload protection.
- Aluminum Fan Blades: Its durable 24-inch fan blades are constructed of heavy-gauge aluminum.
- Steel Housing: The steel welded box housing has a durable powder-coated finish.
- OSHA Guards: Equipped with heavy wire chrome-plated OSHA guards on the intake side of the fan.
- Ships Assembled: This fan ships completely assembled.
- Framing Dimensions: 27" x 27"
Summary
The Canarm SD 24-In. Explosion Proof Wall Mount Shutter Exhaust Fan is a high-performance ventilation solution for sensitive commercial applications.
-
Number of Speeds1
-
TypeShutter Exhaust Fan
-
ApplicationCommercial/Industrial
-
California Residents⚠ WARNING: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.www.p65warnings.ca.gov.
-
CertificationscETLus
-
ColorGray
-
ControlsToggle Switch
-
Housing MaterialPowder-Coated Steel
-
Maximum Cubic Feet per Minute (CFM) (CFM)5500.0
-
Maximum RPM1725
-
Amperage (Amps)3.3 to 6.6
-
Power SupplyHardwired
-
Voltage (V)110-120
-
Ceiling or Wall Cutout Length (in.)20.75
-
Ceiling or Wall Cutout Width (in.)20.75
-
Depth (in.)20.5
-
Depth (with front cover) (in.)20.5
-
Height (in.)28.0
-
Height (with front cover) (in.)28.0
-
Shutter Fan Size (in.)24
-
Weight (lbs.)71
-
Width (in.)29.25
-
Width (with front cover) (in.)29.25
-
Additional FeaturesMeets OSHA Standards, Explosion Proof
-
Manufacturer's Warranty1-Year Limited Warranty
Key Specifications
General
Power
Dimensions
Additional Features
Warranty
Recommended Accessories
Shop All Canarm Vent Exhaust Fans Accessories
- LLanceVerified BuyerReviewingCanarm SD24-XPF 24-In. Explosion Proof Wall Mount Shutter Exhaust FanI recommend this productRated 4 out of 5 stars2 years agoPain booth fan
This is what we needed. I would love it if it came in variable speed.
