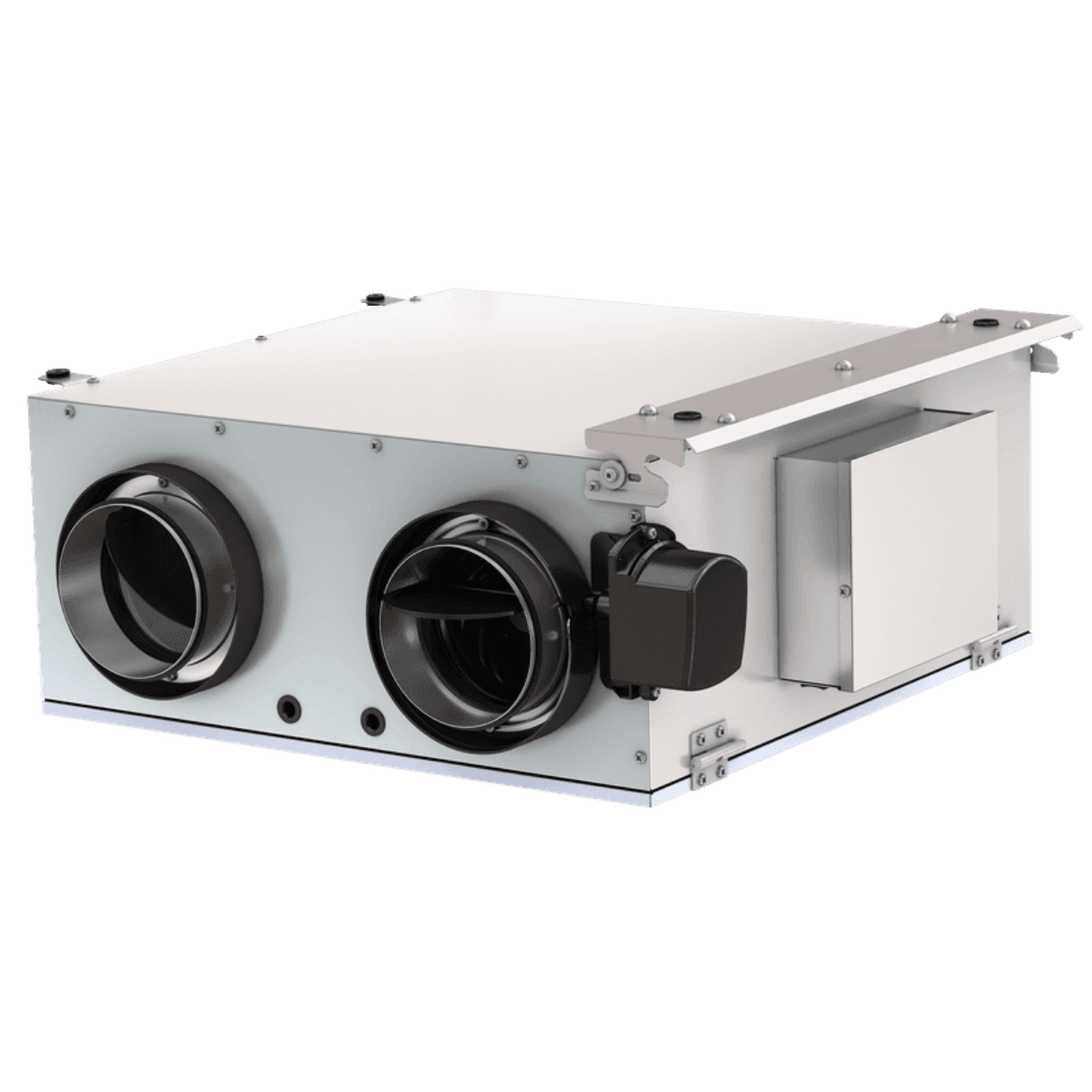

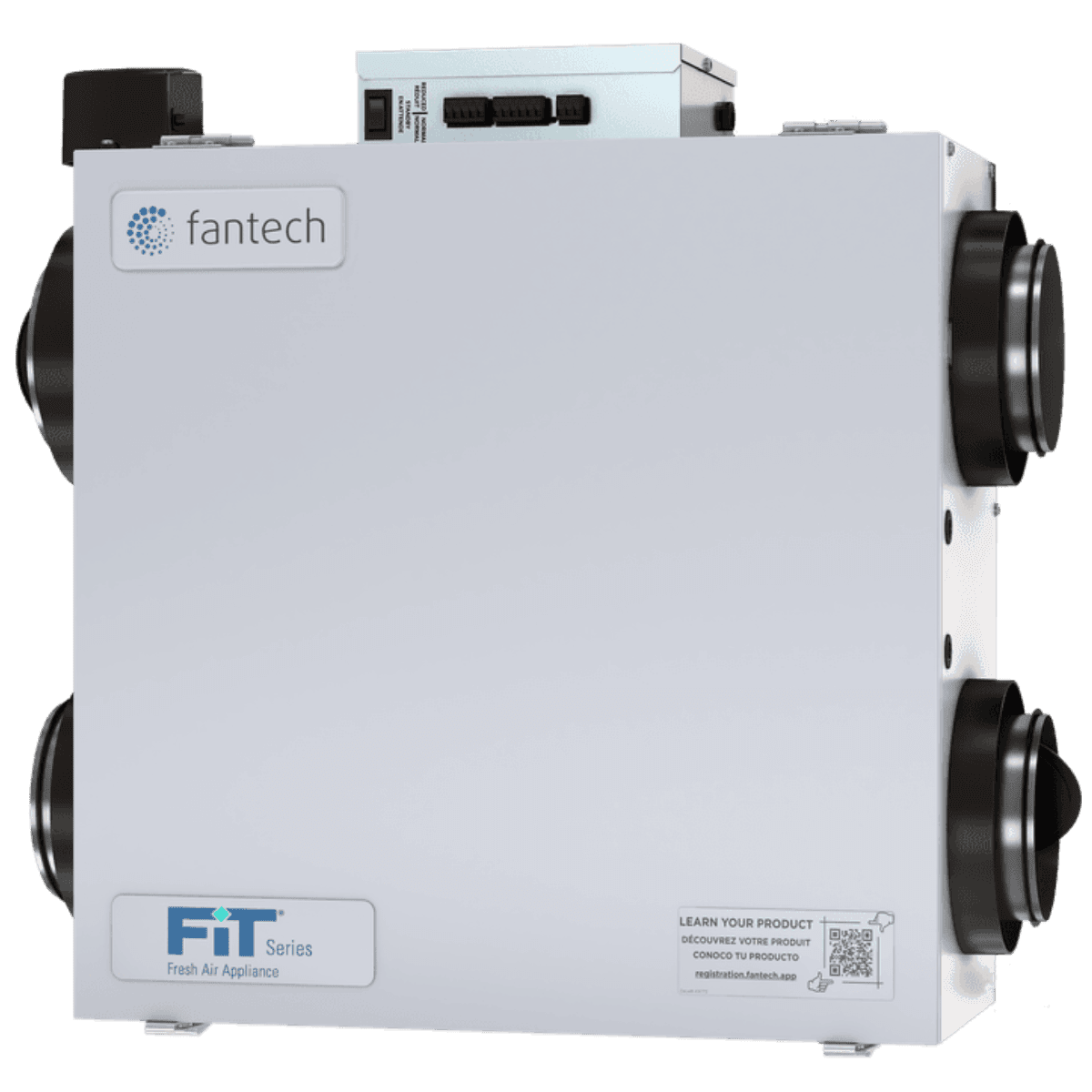

Fantech FIT 120E-D-EC Low Profile 129 CFM Energy Recovery Ventilator w/ Shut-Off Damper

Name: Fantech FIT 120E-D-EC Low Profile 129 CFM Energy Recovery Ventilator w/ Shut-Off Damper
Brand: Fantech
Price: 1217.0 USD
Availability: InStock

SKU: fn16831 | Model: 463411

$1,217.00

FREE shipping on orders over $45!

In Stock Ships within 1-2 business days.

Option

Product variants

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Request Callback | Email

Manufacturer's Warranty

7-Year Limited Motor Warranty, 5-Year Limited Energy Recovery Core and Electrical Parts Warranty

What's In The Box?

Fantech FIT 120E-D-EC Series Low Profile Energy Recovery Ventilator with EC Motor
Mechanical Shut-off Damper
Electrostatic Air Filters (2)
MERV 3 Filter (1)
Ceiling Mounting Bracket
Metal Collars with Rubber Gaskets
Owner’s Manual

Info & Guides

Description

To improve indoor air quality for multi-family buildings, the Fantech FIT 120E-D-EC Low Profile ERV with Shut-Off Damper and EC Motor is the appliance to choose. This versatile system is designed with a 129 CFM airflow and a compact profile measuring 8.75 inches in height and a 10-inch installed depth, fitting in space-limited areas.

This Energy Star-certified Fantech FIT 120E features an energy recovery core that effectively transfers heat and moisture from the outgoing air to the incoming fresh air, minimizing the energy needed to maintain a comfortable indoor environment year-round.

Key Features and Benefits of the Fantech FIT 120E Series

Shut-Off Damper: The integrated mechanical shutoff damper ensures that during standby or defrost mode, unconditioned outdoor air is not drawn into the building.
Energy Recovery Core: Incorporates an energy recovery core made of a durable polymer membrane that facilitates water vapor transport. This core exhibits high humidity permeability and is freeze-tolerant and water-washable.
Frost Prevention Mechanism: When the outdoor air temperature reaches 14 degrees F or lower, the appliance automatically engages a preset frost prevention sequence where the supply blower halts operation, while the exhaust blower switches to high speed, maximizing the effectiveness of the frost prevention method. Regular operation resumes after the sequence ends.
Drain-Free Design: Requires no drain installation. Moisture in the incoming air is simply transferred to the outgoing air during the circulation process.
Customizable Airflow Control: This fresh air appliance offers multi-speed operation from 40 to 129 CFM at 0.4 inches w.g., according to your specific space requirements. The settings can be easily managed through the external electrical box or a separate wall control.
Included Air Filters: It comes with two washable, UL900-certified, electrostatic panel-type air filters to effectively eliminate impurities from the indoor air. A MERV 3 filter is also included, with the option to upgrade to a MERV 8 filter.
Convenient and Secure Duct Connections: Metal collars with rubber gaskets ensure the 5-inch side port duct connections are tightly sealed for a seamless integration with your existing ductwork.

Two Power Options

This Energy Star rated Fantech ERV is available in two power supply options. A mirrored option with an EC motor is available for mirrored floor plans. For standard AC motor appliances, the Fantech FIT 120E is offered separately in standard and mirrored builds.

ERV with Shut-Off Damper - Plug (FIT 120E-D-EC): A 3-foot-long power cord accompanies this model.
ERV with Shut-Off Damper - Hardwired (FIT 120E-D-EC-HC): For a hardwired connection, select this model for a direct connection to the main electrical power.

Sylvane's Expert Take

Install this compact ERV on the ceiling or wall of a multi-family home to take advantage of its low-profile design footprint and flexible installation in narrow spaces.

The Energy Star rating, plus the HVI and CSA certifications, make this energy-efficient appliance a true asset to the building, bringing in a continuous supply of fresh air while exhausting an equal amount of contaminated air out to provide year-round efficiency and comfort.
