Fantech FIT 120E-D-EC Low Profile 129 CFM Energy Recovery Ventilator w/ Shut-Off Damper

SKU: fn16831  |  Model: 463411
$1,14900 $1,17900
Option

Have a question or need a quote? Ask Our Experts

Live Chat | 1 (800) 934-9194 | Email

Manufacturer's Warranty

7-Year Limited Motor Warranty, 5-Year Limited Energy Recovery Core and Electrical Parts Warranty

What's In The Box?
  • Fantech FIT 120E-D-EC Series Low Profile Energy Recovery Ventilator with EC Motor
  • Mechanical Shut-off Damper
  • Electrostatic Air Filters (2)
  • MERV 3 Filter (1)
  • Ceiling Mounting Bracket
  • Metal Collars with Rubber Gaskets
  • Owner’s Manual

Info & Guides

Description

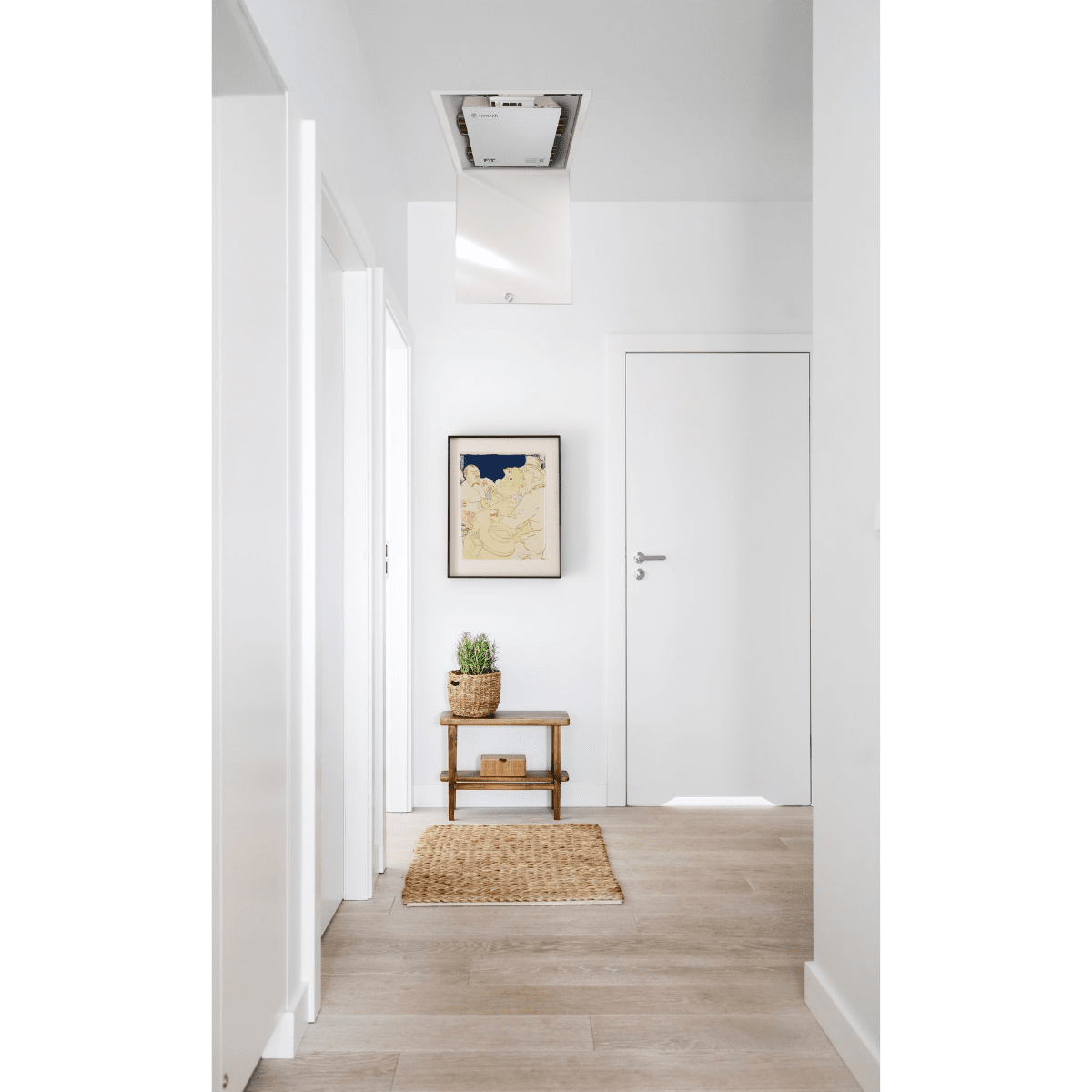

Stale, humid air builds up fast in tightly sealed apartments, and closets rarely have room for ventilation gear. The Fantech FIT 120E Low Profile Energy Recovery Ventilator with Shut-Off Damper solves both problems. Its slim cabinet mounts on a ceiling or wall and replaces stale indoor air with filtered outdoor air without taking up floor space.

Its energy recovery core moves heat and moisture from the outgoing airstream into the incoming one, so your heating and cooling system does less work to keep rooms comfortable year-round. Because moisture is transferred rather than condensed, you never have to run a condensate drain line. That makes this ERV much easier to place in multi-family buildings.

Key Features and Benefits of the Fantech FIT 120E Low Profile Energy Recovery Ventilator with Shut-Off Damper

  • Variable Airflow: Multi-speed operation from 40 to 129 CFM at 0.4 inches w.g. lets you match fresh air delivery to your home's size and occupancy.
  • EC Motor: The EC motor is rated at 147 watts and 3.0 amps on a 110-120 volt supply, which keeps power draw modest during continuous ventilation.
  • Shut-Off Damper: The integrated mechanical damper closes during standby or defrost mode, so unconditioned outdoor air stays out of your home.
  • Frost Prevention: When outdoor air reaches 14 degrees F or lower, the supply blower pauses and the exhaust blower runs on high to protect the core.

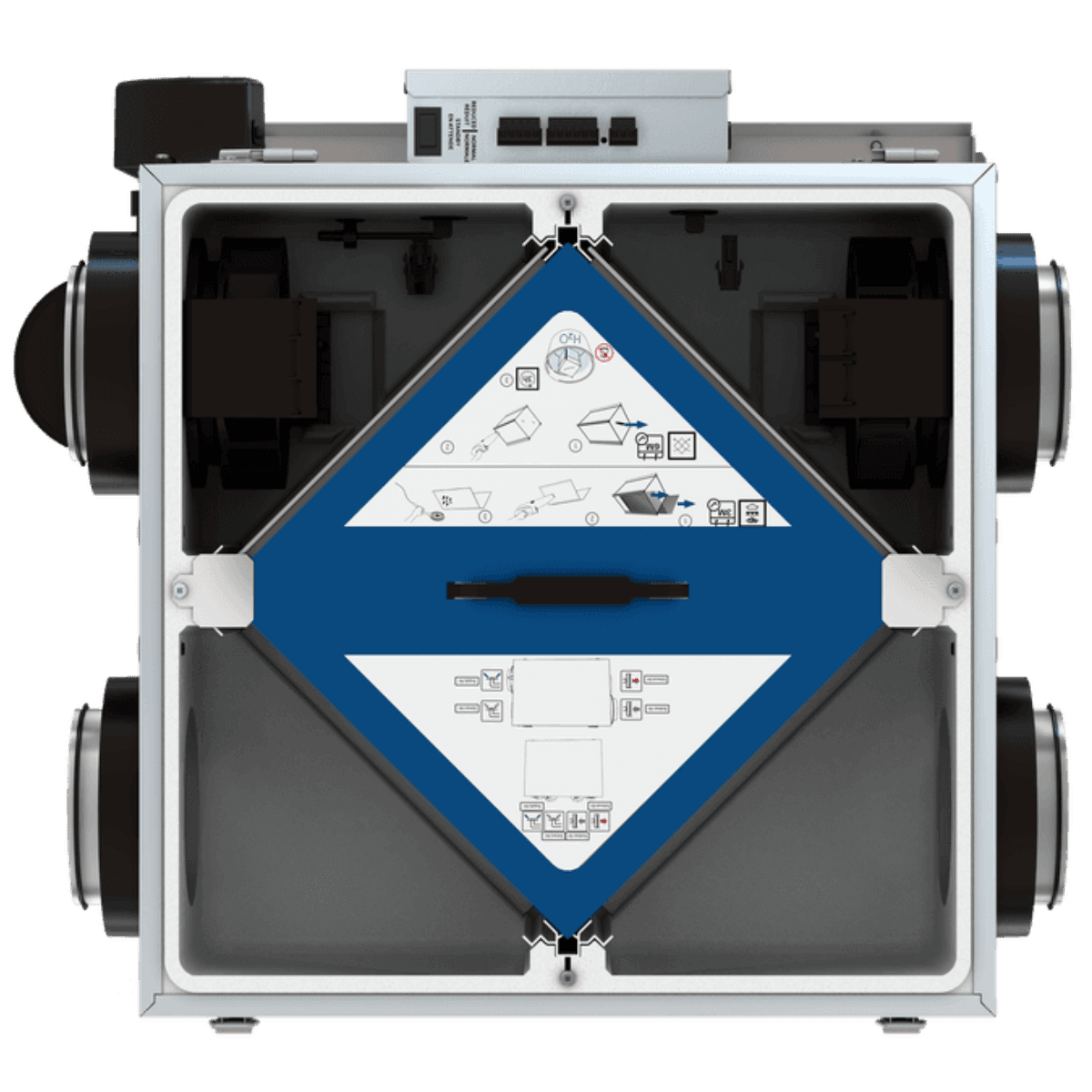

  • Polymer Membrane Core: The durable polymer membrane passes humidity readily and tolerates freezing, and its water-washable design means you can clean it rather than replace it.
  • Included Filters: The ventilator ships with 2 washable, UL900-certified electrostatic panel filters plus a MERV 3 filter to trap airborne impurities before they circulate.

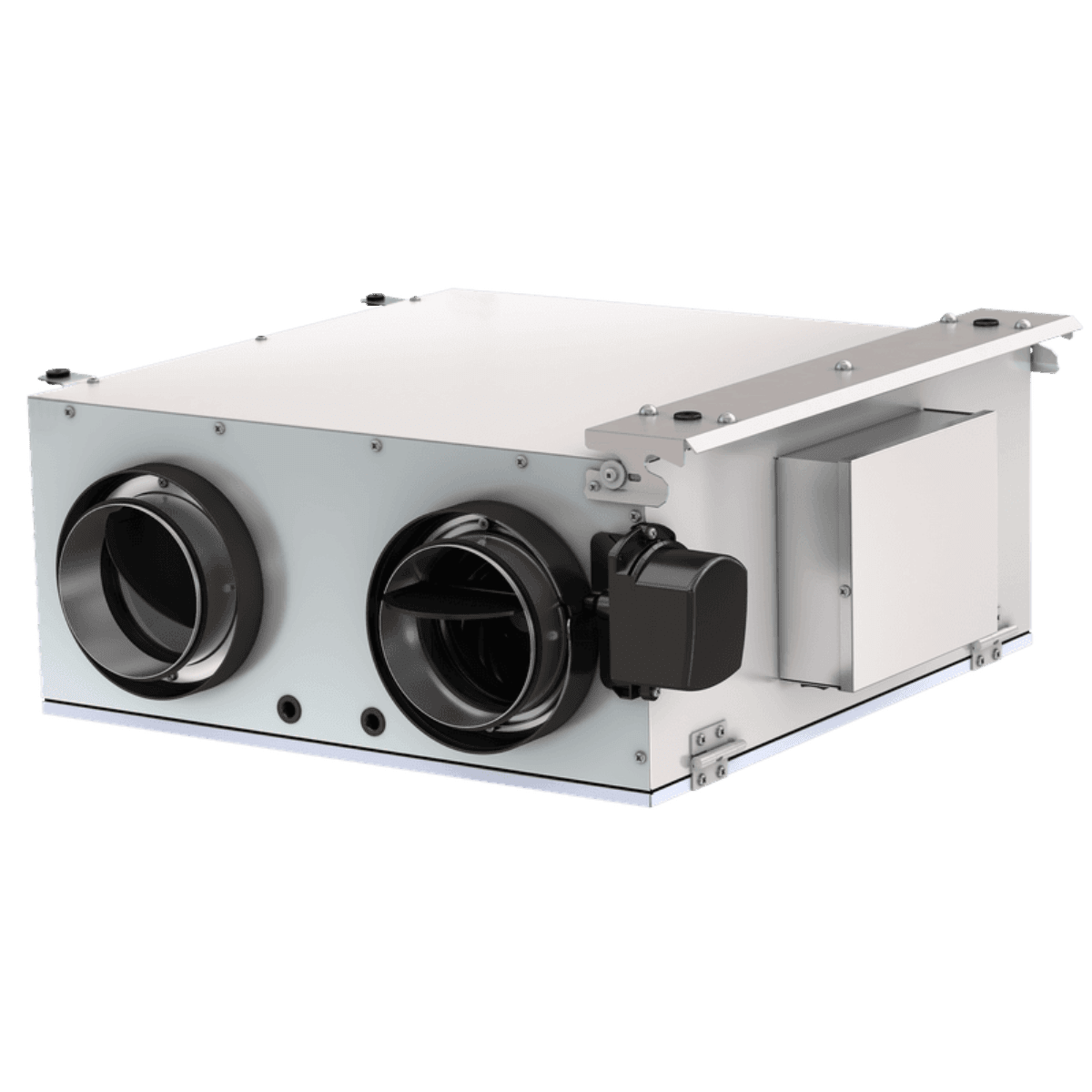

  • Sealed Duct Connections: Metal collars with rubber gaskets seal the 5-inch side ports tightly to your existing ductwork, which helps prevent air leaks at the joints.
  • Compact Footprint: The cabinet measures 25.1 x 10 x 23.2 inches (L x W x H) and weighs 35.3 pounds, so it fits tight ceiling or wall locations.
  • Certified Performance: The ventilator carries CSA and HVI certification, giving you independent confirmation of its efficiency and safety.
  • Electronic Controls: Electronic controls let you adjust fan speed from the external electrical box on the ventilator or from a wall control in your living space.

Plug-In vs Hardwired: Choose Your Power Connection

The FIT 120E EC line with shut-off damper comes in 2 power connection options, plug-in and hardwired, so you can match the ventilator to your building's electrical setup.

  • EC w/ Shut-Off Damper, Plug (FIT 120E-D-EC): This plug-in version ships with a power cord that measures 3 feet long, so you can connect it to an outlet close to where you mount it.
  • EC w/ Shut-Off Damper, Hardwired (FIT 120E-D-EC-HC): This hardwired version connects directly to your main electrical power and needs no cord, which gives you a permanent installation for ceiling locations far from an outlet.

Sylvane's Expert Take

If you own or manage apartments where ceiling space is tight, this ERV line fits spots where a full-size ventilator won't. It works especially well in homes that face both cold winters and muggy summers, because it handles heat and moisture transfer and protects itself from frost. Many people overlook the drain-free design, but it saves you from planning a condensate route. Choose plug-in when you have an outlet nearby or hardwired for permanent ceiling mounts, and enjoy balanced fresh air either way.

Specifications

    Key Specifications

    • Minimum Cubic Feet per Minute (CFM) (CFM)
      40.0
    • Mounting Type
      Ceiling, Wall
    • Number of Speeds
      Variable
    • Port Location
      Side
    • Type
      ERV-Air Supply Fan

    General

    • Application
      Residential
    • Certifications
      CSA, HVI
    • Color
      Gray
    • Controls
      Electronic
    • Maximum Cubic Feet per Minute (CFM) (CFM)
      129.0

    Power

    • Maximum Amperage (Amps)
      3.0
    • Power Supply
      EC w/ Shut-Off Damper - Hardwired: Hardwired
      EC w/ Shut-Off Damper - Plug: Plug-In
    • Voltage (V)
      110-120
    • Watts (W)
      147

    Dimensions

    • Depth (in.)
      25.1
    • Duct Diameter (in.)
      5.0
    • Height (in.)
      23.2
    • Weight (lbs.)
      35.3
    • Width (in.)
      10.0

    Warranty

    • Manufacturer's Warranty
      7-Year Limited Motor Warranty, 5-Year Limited Energy Recovery Core and Electrical Parts Warranty
