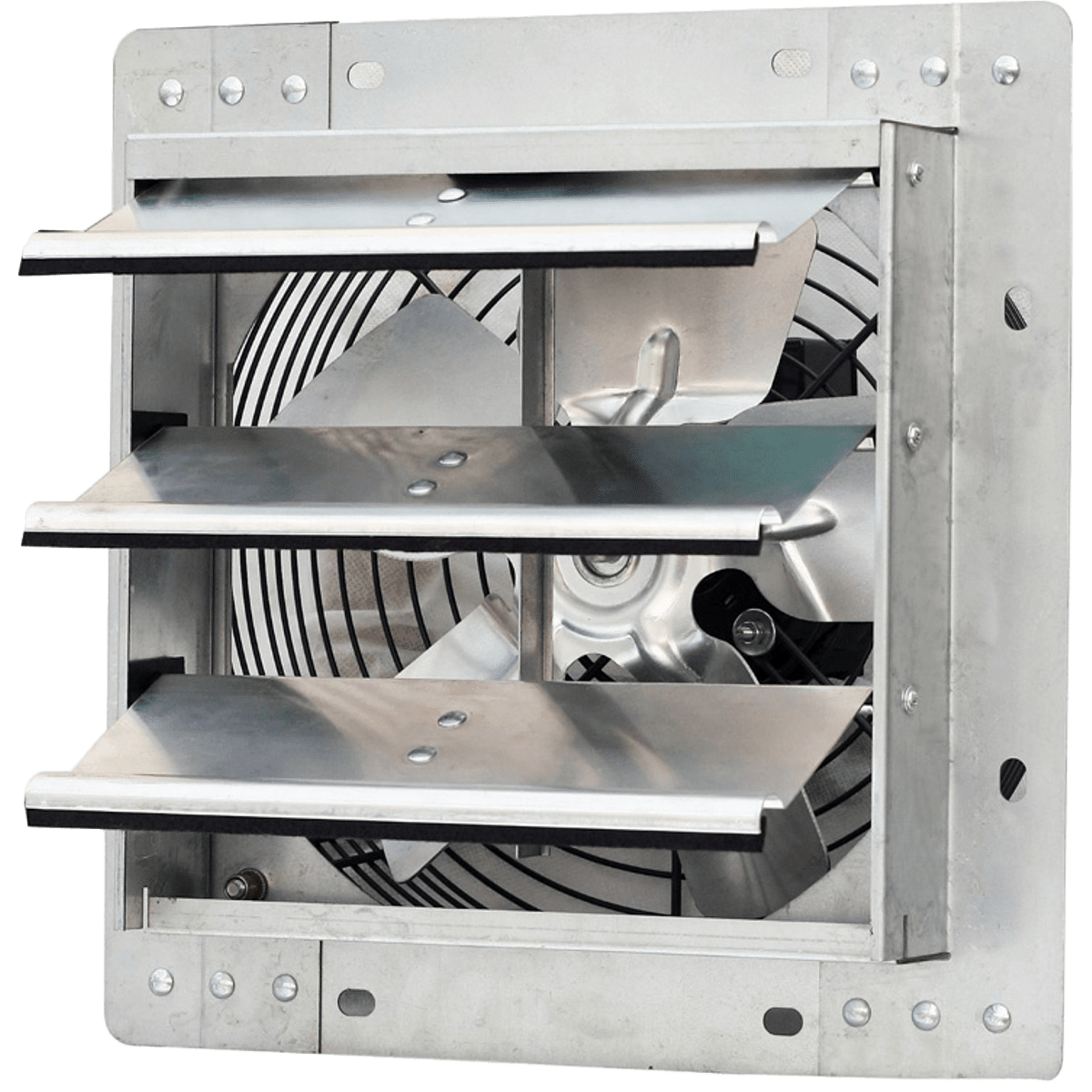

iLiving 12 inch Variable Speed Wall Mounted Shutter Exhaust Fan
iLiving 12 inch Variable Speed Wall Mounted Shutter Exhaust Fan is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- iLiving ILG8SF12V
- Owner's Manual
Info & Guides
Info & Guides
iLiving 12 inch Variable Speed Wall Mounted Shutter Exhaust Fan
Description
Description
Exhaust your indoor working space with the corrosion-resistant iLiving ILG8SF12V. Use in any garage, residential greenhouse, or workshop up to 200 square feet, and move stale air with 800 cubic feet of airflow per minute (CFM). This hardwired fan is durable, built with a steel frame, corrosion-resistant materials, and a tightly enclosed air-over-motor (TEAO).
Other features include automatic shutters, overheat protection, OSHA compliance, and more.
Control Options
Pre-assembled right out of the box, this iLiving exhaust fan is perfect for exhausting heat, moisture, or odors out of spaces up to 200 square feet with 800 cubic feet of airflow per minute (CFM).
- Variable Fan Speed: This iLiving variable speed shutter fan requires a variable speed controller, or it will operate continuously at high speed.
- Thermostat Control: An additional option is to install a thermostat control box, which allows you to set the fan to automatically turn on when the space reaches a pre-set temperature.
- Multiple Control: For a fan operation based on more than one variable, you can install the all-in-one fan controller, which includes a timer and humidistat, as well as a thermostat and speed controller. This kit’s control box is connected to the fan and plugged into a nearby outlet. It also comes with a remote control.
**A separate purchase of an eight-amp remote variable fan speed controller is required to use the variable fan speed. Without a variable fan speed controller, the fan will operate on high continuously.
Long-Lasting Dependability
Offering dependable quality, this 12-inch shutter fan features a permanently lubricated motor that requires no future maintenance. Additional features include:
- Galvanized Steel Construction: Durable aluminum shutter blades and a steel frame ensure long-lasting use.
- Corrosion-Resistant: Powder coated with gray polyester to resist weathering and rust.
- Enclosed Motor: A totally enclosed air-over motor (TEAO) protects the fan from dust and moisture.
- Automatic Shutters: Rubber-lined automatic shutters open and close in tandem with fan operation and ensure a tight seal against exterior dust, moisture, and temperature.
Additional Features
- OSHA Compliant: Designed with OSHA-specific ½-inch wire spacing for safety.
- UL-Certified: Rated for safety, this 12-inch exhaust fan is UL705-certified.
- Thermal Protection: In the event the motor freezes, the fan cuts the power to prevent overheating.
- Sones: At just 5.9 sones, this fan is no louder than a typical conversation.
- Balanced Propeller: A motion-balanced propeller ensures quieter operation.
Summary
Vent any space up to 200 square feet with this 12-inch iLiving shutter fan with a variable speed control option.
What Customers Love
- Single or Variable Speed: Choose between using the shutter fan as a single-speed fan or purchasing the variable fan speed controller for variable fan speed usage.
Things to Consider
- Professional Installation: The fan and variable speed controller should be professionally installed by a certified electrician.
Specifications
Specifications
-
Number of SpeedsVariable
-
Sound Level (Sones) (sones)5.9
-
TypeShutter Exhaust Fan
-
ApplicationGarage/Workshop, Basement, Crawlspace, Residential, Commercial/Industrial, Attic
-
California Residents⚠ WARNING: This product can expose you to chemicals including which is [are] known to the State of California to cause cancer or birth defects or other reproductive harm. See: www.P65Warnings.ca.gov
-
CertificationsUL
-
ColorGray
-
ControlsManual
-
Housing MaterialGalvanized Steel
-
Maximum Cubic Feet per Minute (CFM) (CFM)800.0
-
Maximum RPM1625
-
Recommended Coverage Area (sq. ft.)200
-
Amperage (Amps)0.55
-
Power SupplyHardwired
-
Voltage (V)110-120
-
Watts (W)63.25
-
Ceiling or Wall Cutout Length (in.)13
-
Ceiling or Wall Cutout Width (in.)13
-
Depth (in.)5.7
-
Depth (with front cover) (in.)5.7
-
Height (in.)15.0
-
Height (with front cover) (in.)15.0
-
Shutter Fan Size (in.)12
-
Weight (lbs.)9.75
-
Width (in.)15.0
-
Width (with front cover) (in.)15.0
-
Additional FeaturesMeets OSHA Standards, Thermal Cutoff Protection, Applicable for Indoor Growing
-
Manufacturer's Warranty1-Year Warranty
Key Specifications
General
Power
Dimensions
Additional Features
Warranty
Recommended Accessories
- JJohnVerified BuyerReviewingiLiving 12 inch Variable Speed Wall Mounted Shutter Exhaust FanI recommend this productRated 5 out of 5 stars5 years agoVery sturdy fan assembly - Easily installed.
Good working product- Does what it was intended for.
