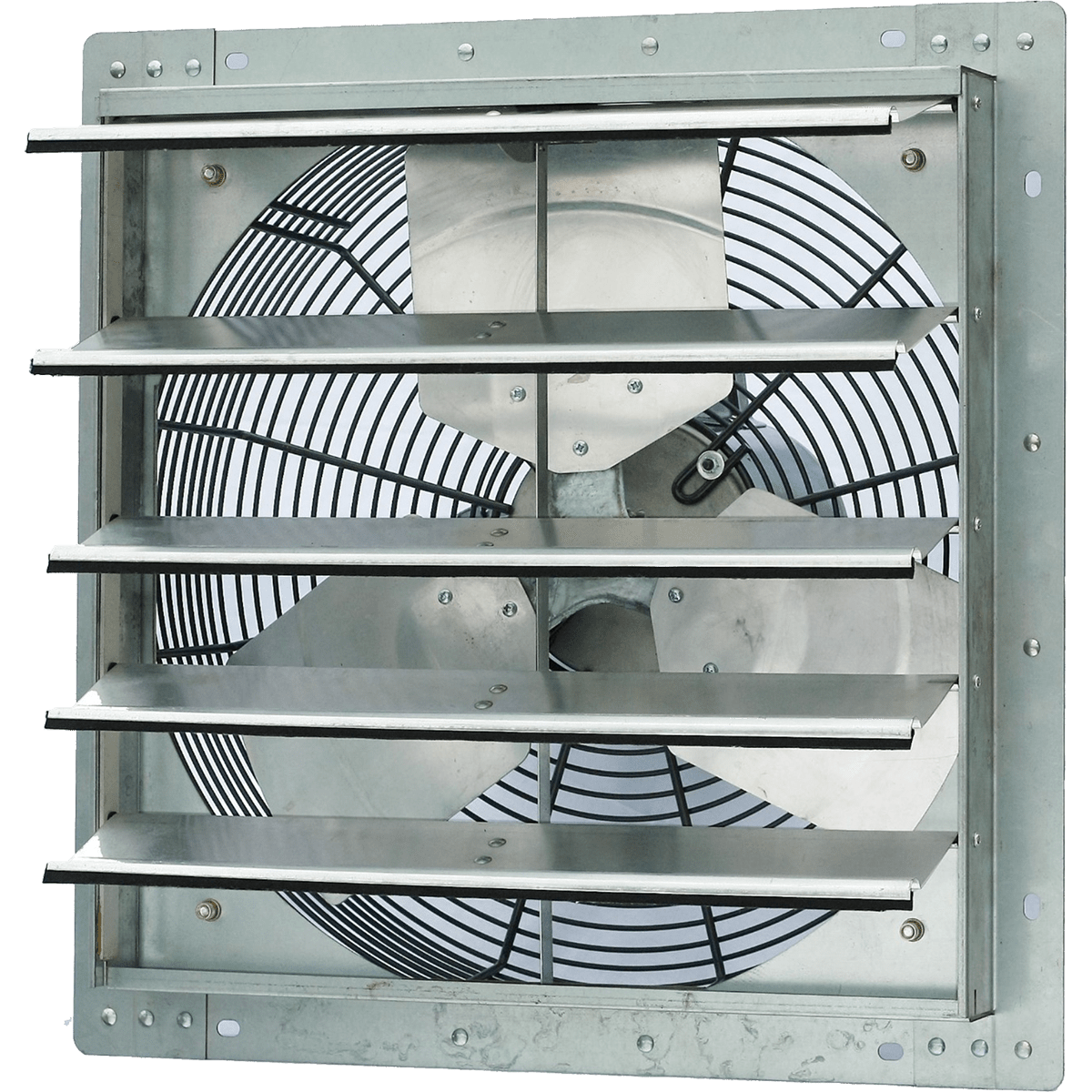

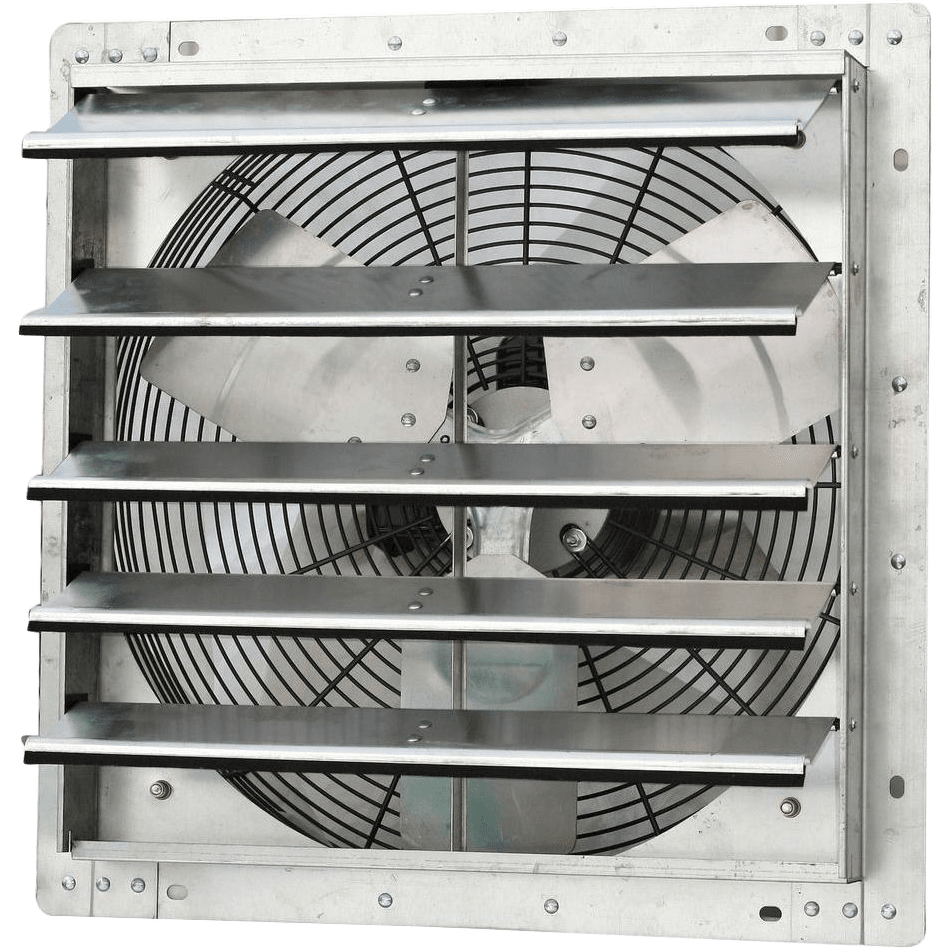

iLiving 18 inch Wall Mounted Shutter Exhaust Fan
iLiving 18 inch Wall Mounted Shutter Exhaust Fan - Single Speed is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- iLiving 18" Wall Mounted Shutter Exhaust Fan
- Owner's Manual
Info & Guides
Info & Guides
iLiving 18 inch Wall Mounted Shutter Exhaust Fan
Description
Description
Remove heat, moisture, and odor from restaurants, greenhouses, barns, and other commercial locations up to 650 square feet with the iLiving 18" Wall Mounted Shutter Exhaust Fan. Available in both single speed and variable speed configurations, this UL and OSHA certified fan is able to fulfill a variety of ventilation needs. Thanks to its durable construction and handy features, it’s the perfect shutter exhaust fan for nearly any area.
Shutter Exhaust Fan Speeds
With this iLiving exhaust fan you can select the speed option that best fits your needs. Choose from either the single speed or variable speed option. No matter which one you pick, you’ll have a powerful airflow of up to 2,600 cubic feet per minute (CFM).
Control Options for Variable Speed
The variable speed fan does require a variable speed controller or it will operate continuously at high speed. An additional option is to install a thermostat control box which allows you to set the fan to automatically turn on when the space reaches a pre-set temperature.
For additional control options, you can install the all-in-one fan controller which includes a timer and humidistat, as well as a thermostat and speed controller. This kit’s control box is connected to the fan and plugged into a nearby outlet. It also comes with a remote control.
**A variable speed controller is sold separately and is required to operate the variable fan speeds. Without a variable speed controller, it will operate on a continuous high speed.
Designed for Durability
Engineered to keep performing in even the toughest commercial environments, the iLiving Shutter Exhaust Fan has impressive features that deliver years of reliable use.
- A pre-assembled galvanized steel frame that’s reinforced with rivets.
- Automatic aluminum shutters open and close with the fan motor operation.
- Its completely enclosed fan motor is permanently sealed and protected from dirt and moisture.
Additional Features
- Added Protection: A corrosion-resistant frame and shutters help to protect your investment from the elements.
- UL-Certification: Has a UL705 safety rating for use in commercial spaces.
- OSHA Compliant: Features OSHA compliant wire guards for added safety.
- Thermal Protection: If the motor locks up, the unit will automatically turn off to prevent overheating.
Summary
Remove excess heat, moisture, and even odor from commercial and industrial spaces up 650 square feet with the iLiving Wall Mounted Shutter Exhaust Fan.
What Customers Love
- Multiple Speed Options: Choose from single speed or variable speed options depending on what works best for your space.
- Durable Construction: With a galvanized steel frame, aluminum shutters, and an enclosed motor, it’ll provide years of reliable use.
Things to Consider
- Variable Speed Controller: A variable speed controller is sold separately and is required to operate the variable fan speeds.
Specifications
Specifications
-
Number of Speeds1Variable
-
Sound Level (Sones) (sones)7.287.4
-
TypeShutter Exhaust Fan
-
ApplicationGarage/Workshop, Commercial/Industrial
-
California Residents⚠ WARNING: This product can expose you to chemicals including which is [are] known to the State of California to cause cancer or birth defects or other reproductive harm. See: www.P65Warnings.ca.gov
-
CertificationsUL
-
ColorGray
-
ControlsManual
-
Housing MaterialGalvanized Steel
-
Maximum Cubic Feet per Minute (CFM) (CFM)2600.0
-
Maximum RPM17251075
-
Recommended Coverage Area (sq. ft.)650
-
Amperage (Amps)3.30.85
-
Power SupplyHardwired
-
Voltage (V)110-120
-
Watts (W)379.597.75
-
Ceiling or Wall Cutout Length (in.)19
-
Ceiling or Wall Cutout Width (in.)19
-
Depth (in.)5.75
-
Depth (with front cover) (in.)5.75
-
Height (in.)21.0
-
Height (with front cover) (in.)21.0
-
Shutter Fan Size (in.)18
-
Weight (lbs.)25.416.6
-
Width (in.)21.0
-
Width (with front cover) (in.)21.0
-
Additional FeaturesMeets OSHA Standards, Thermal Cutoff ProtectionMeets OSHA Standards, Thermal Cutoff Protection, Applicable for Indoor Growing
-
Manufacturer's Warranty1-Year Limited Warranty
