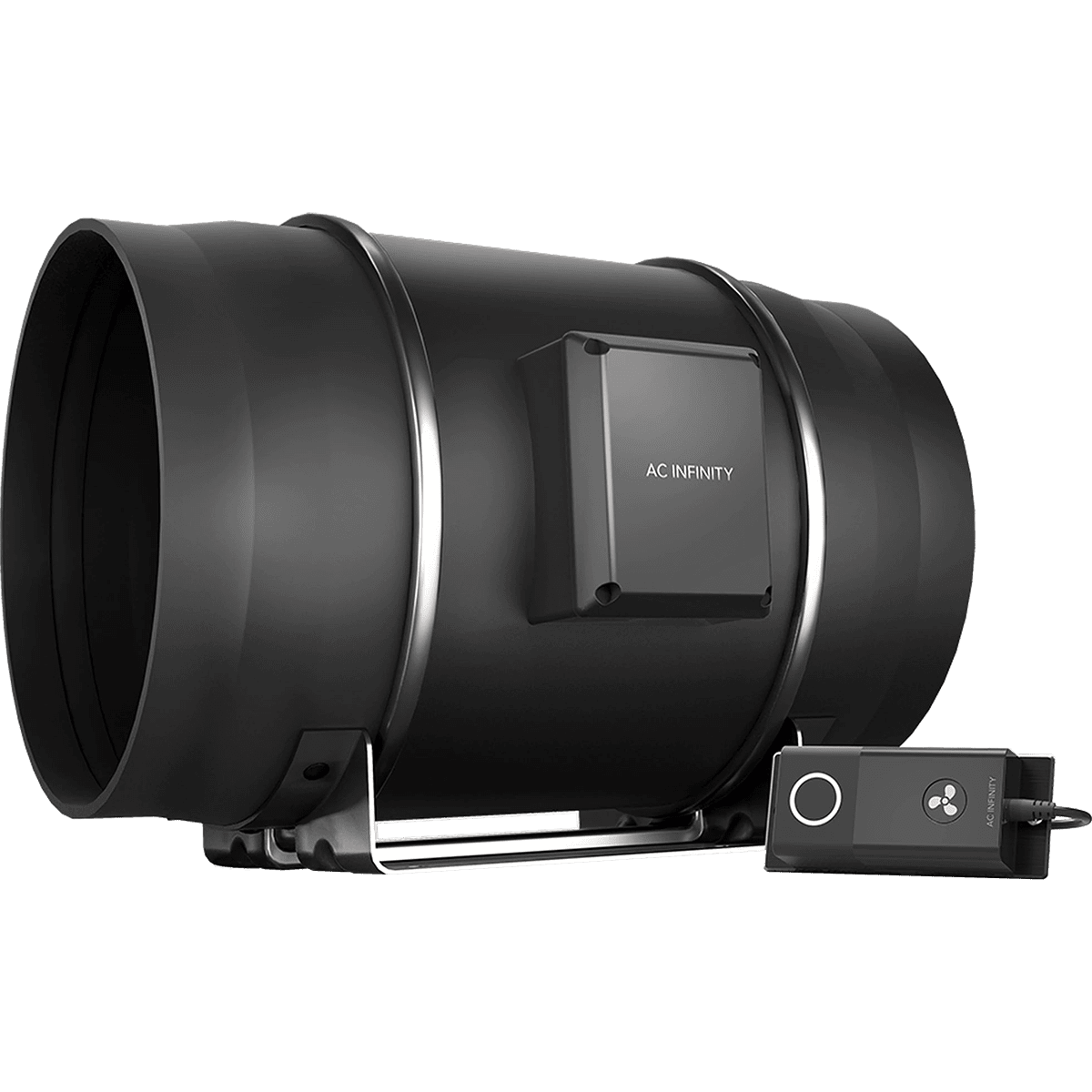

AC Infinity CLOUDLINE S12 12-In Inline Duct Fan w/ Speed Controller
AC Infinity CLOUDLINE S12 12-In Inline Duct Fan w/ Speed Controller is backordered and will ship as soon as it is back in stock.
Have a question or need a quote? Ask Our Experts
Manufacturer's Warranty
Manufacturer's Warranty
What's In The Box?
What's In The Box?
- AC Infinity CLOUDLINE S12 12-In Inline Duct Fan w/ Speed Controller
- Owner's Manual
- Installation Hardware
Info & Guides
Info & Guides
AC Infinity CLOUDLINE S12 12-In Inline Duct Fan w/ Speed Controller
Description
Description
Get the ultimate in ventilation with the AC Infinity CLOUDLINE S12 12" Inline Duct Fan with Speed Controller. The perfect solution for hydroponic growing, AV space cooling, and air transferring needs, this 8-speed manual controller limits noise production and heat creation thanks to its pulse wave modulation (PWM) technology. Its inline mixed-flow design allows it to maintain a consistent airflow in even high static pressure settings.
Specialized Ventilating Performance

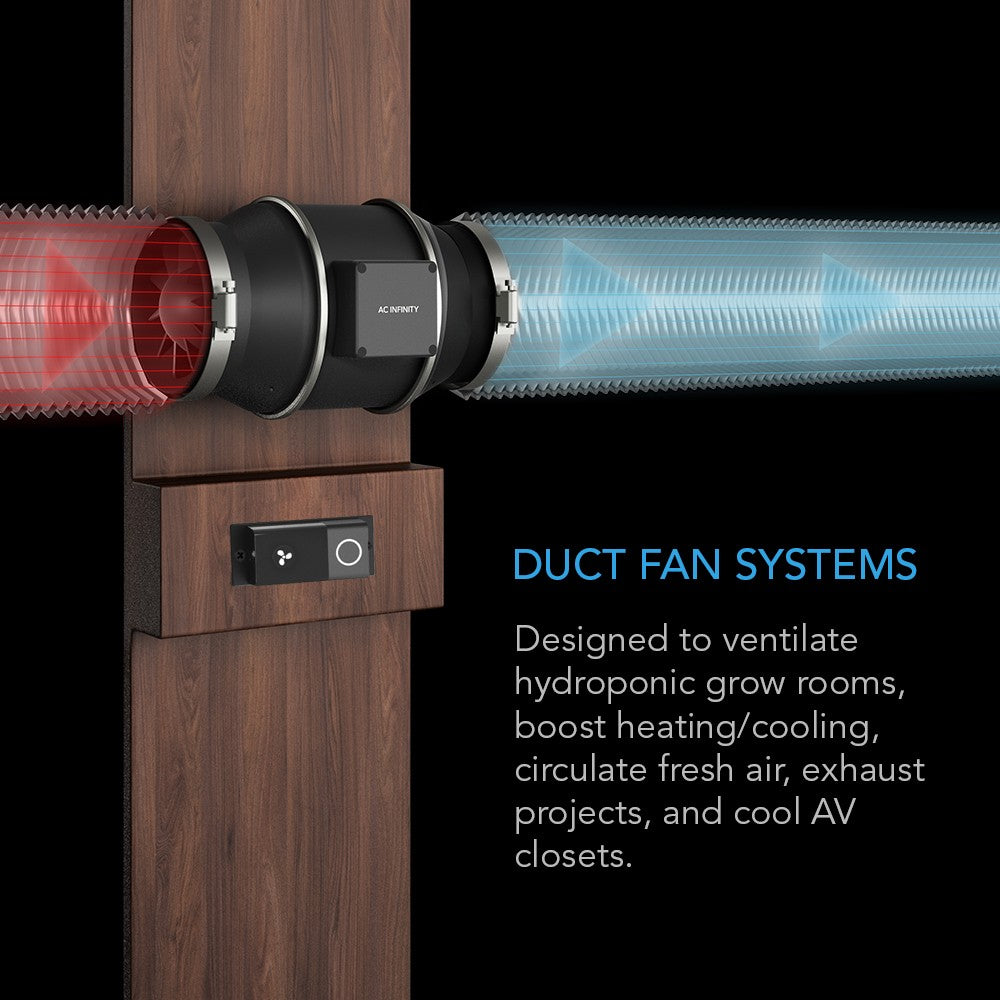

Tackle a variety of air movement and ventilation tasks with the AC Infinity AI-CLS12. It’s great for an array of applications including:
- Grow Rooms and Tent

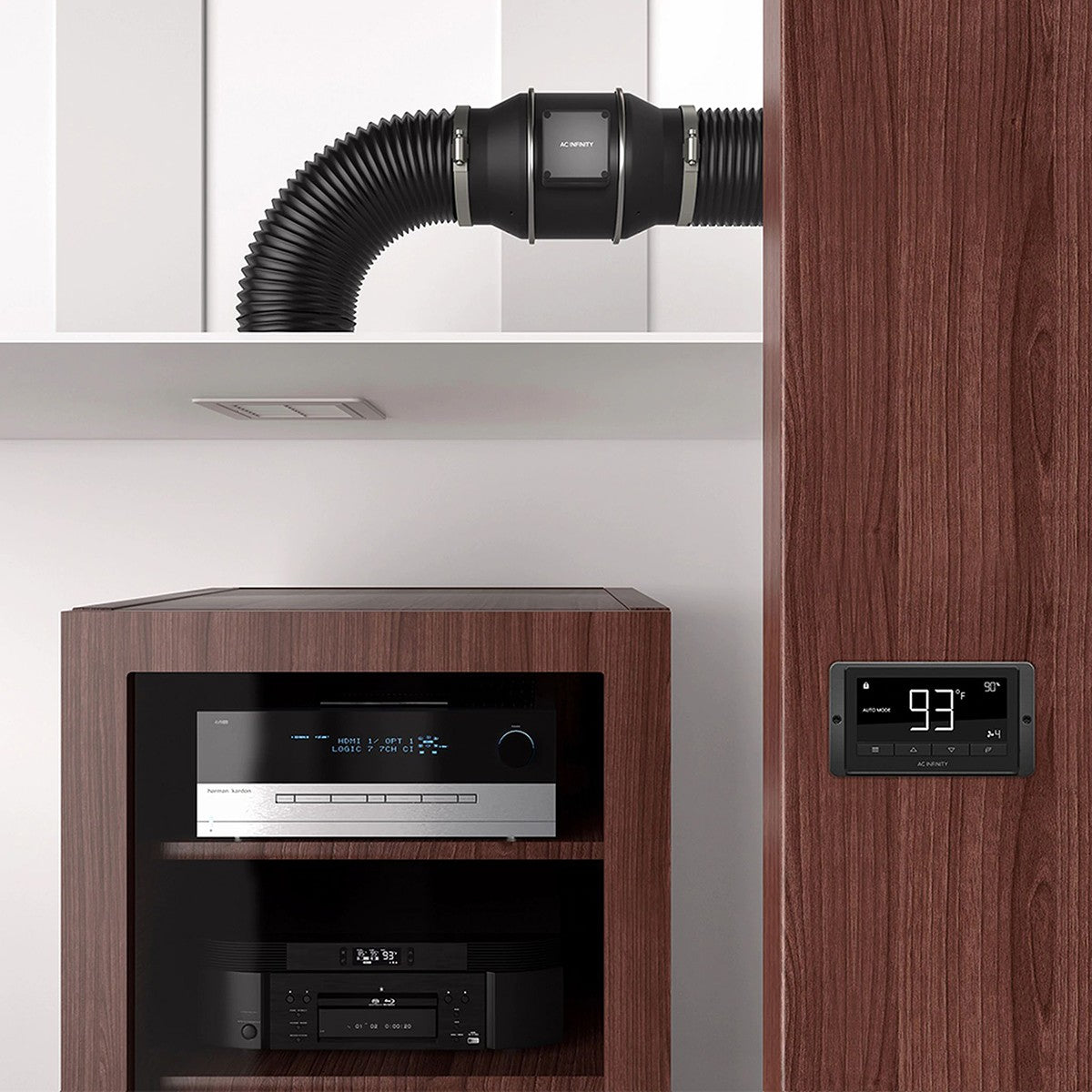

- Cooling AV Rooms
- Ventilating Bathrooms and Attics
- Transferring Cool/Heated Air Room to Room
EC-Powered Fan
As an EC-powered fan, the AC Infinity Inline Duct Fan is designed to operate more smoothly at lower RPM fan speeds and run more quietly than its AC-powered counterparts. AC-powered fans suppress voltage to control fan speed, while this EC-powered model uses PWM to accomplish the same task more efficiently.

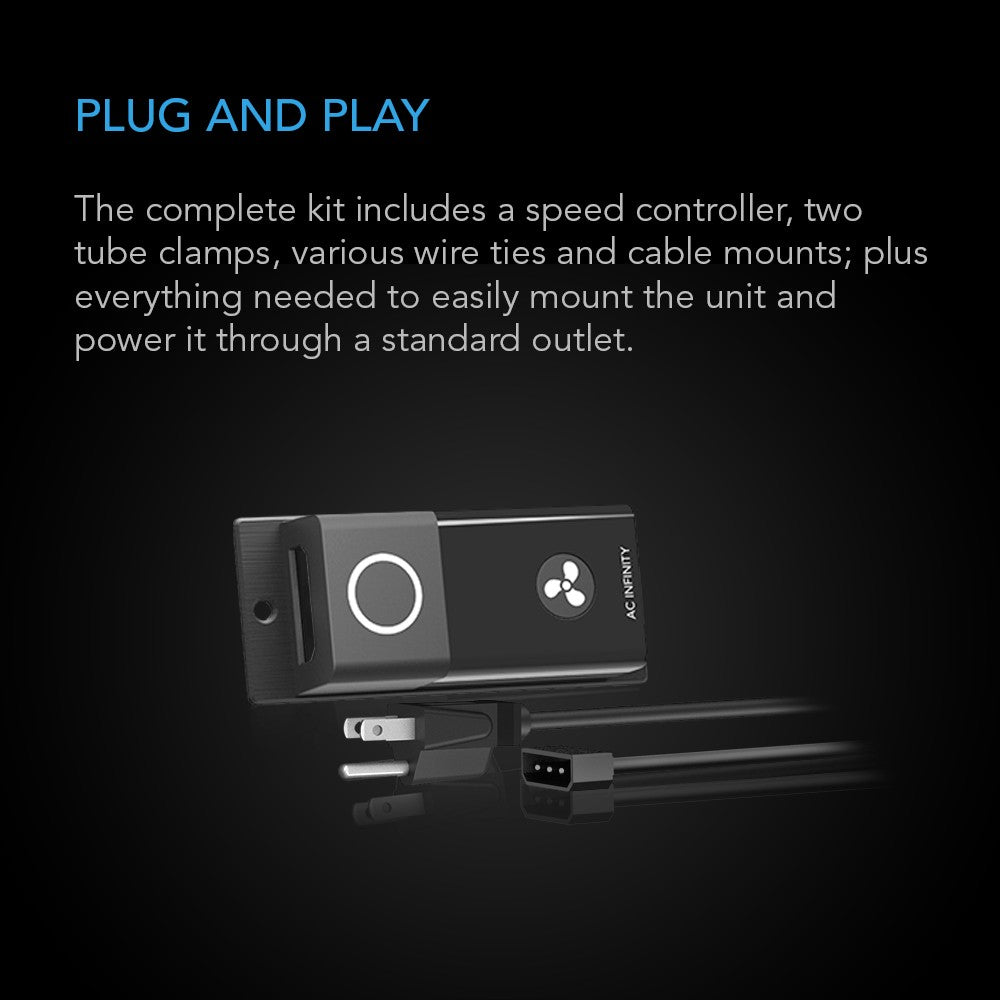

Installation Materials Included
Provided with the AC Infinity CLOUDLINE is everything you need for set up including:
- Corded AC Power Adapter
- Required Mounting Hardware
Additional Features
- Duct Size: 12-inches
- Maximum Airflow: 1,201 cubic feet per minute (CFM)
- Noise Level: 48 decibels
- Easy Cleaning Maintenance: The motor box containing that fan’s impeller and blades can be detached for simple routine upkeep.

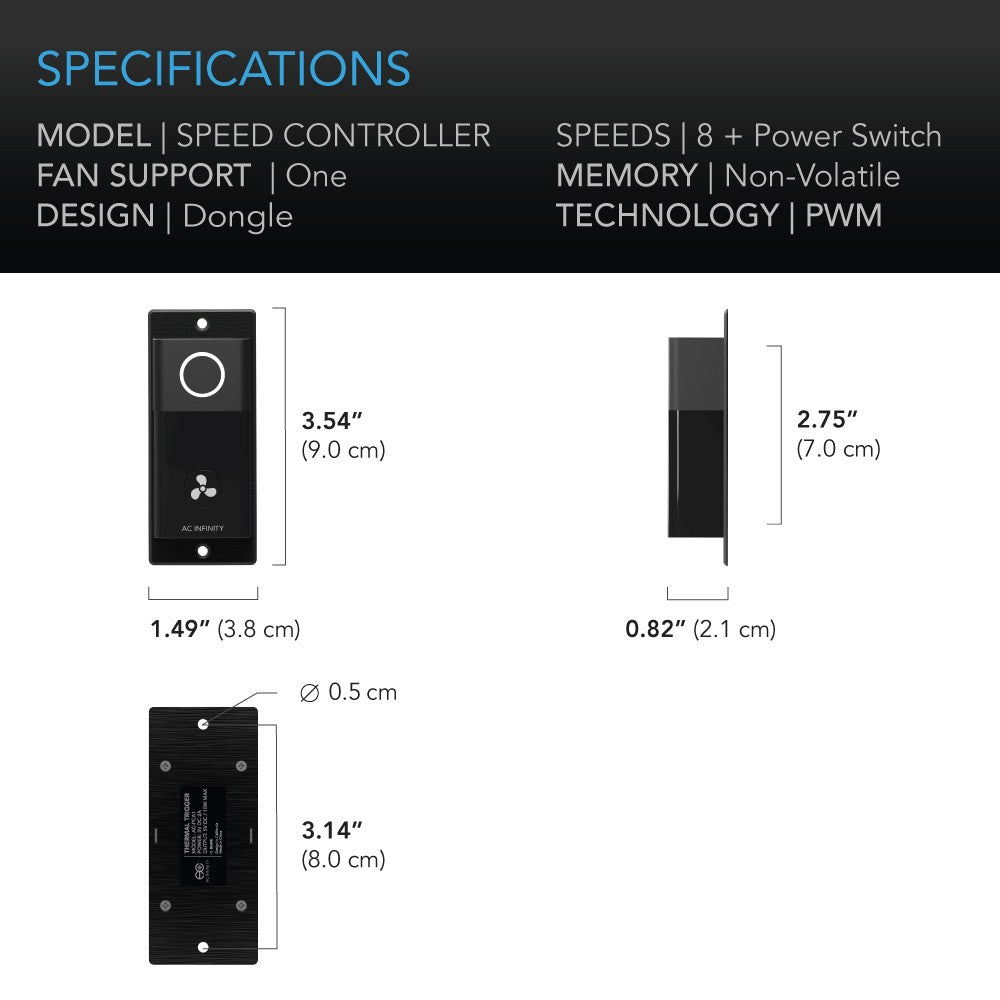

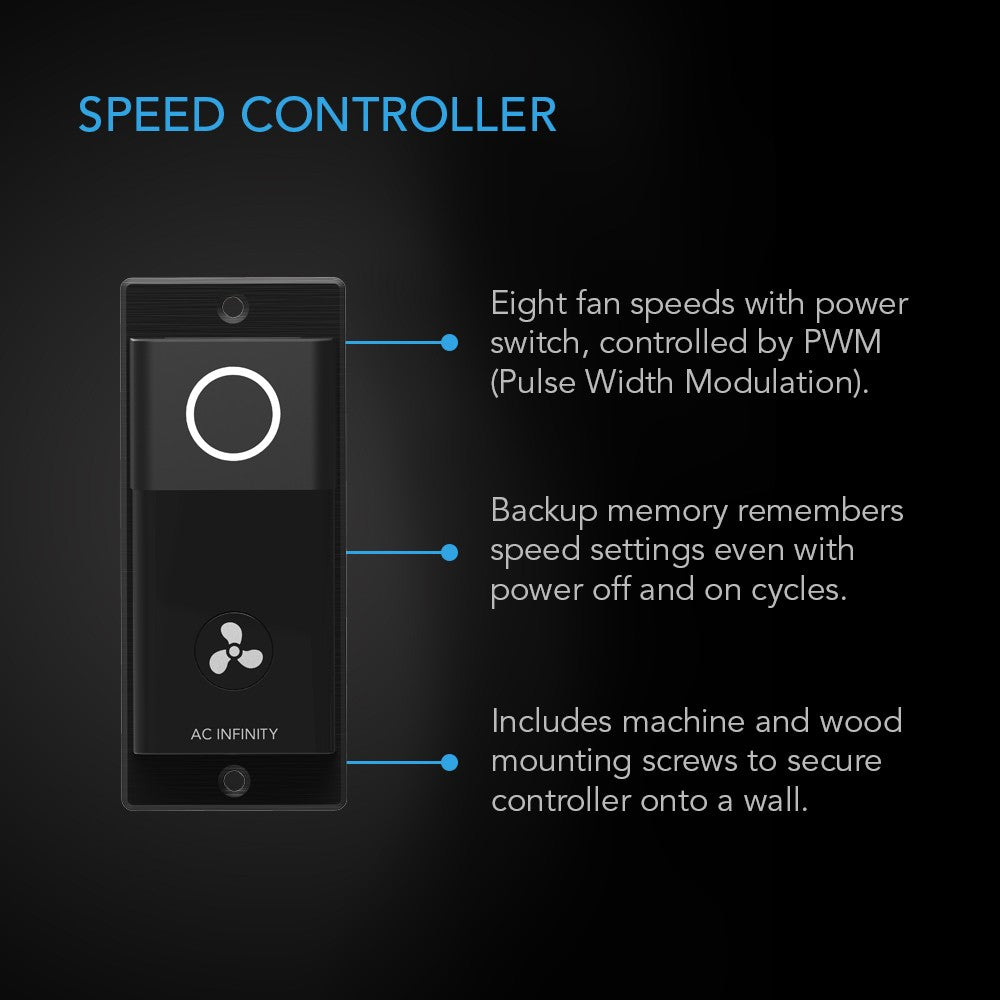

- Simple to Operate: Features eight-speed options with power switch and backup memory for easy operation.
- Mixed Flow Design: Its mixed flow design using a stator blade and dual hydrodynamic wind circles give it a high static pressure rating for use in areas where air movement is restricted.
- Built For Tough Environments: IP44 rated, it’s resistant to dust and liquids.
- Meant To Last: With a life expectancy of 67,000 hours, this unit has an impressive life expectancy.
Summary
Quiet and more efficient than AC-powered options, the AC Infinity AI-CLS12 Inline Duct Fan is built to deliver effective ventilation in even the toughest conditions.
What Customers Love
- Efficient Performance: An EC-powered fan, this unit operates more smoothly and quietly than AC-powered options.
- Installation Materials Included: Everything you need to set up and get started with this fan is included with the kit.

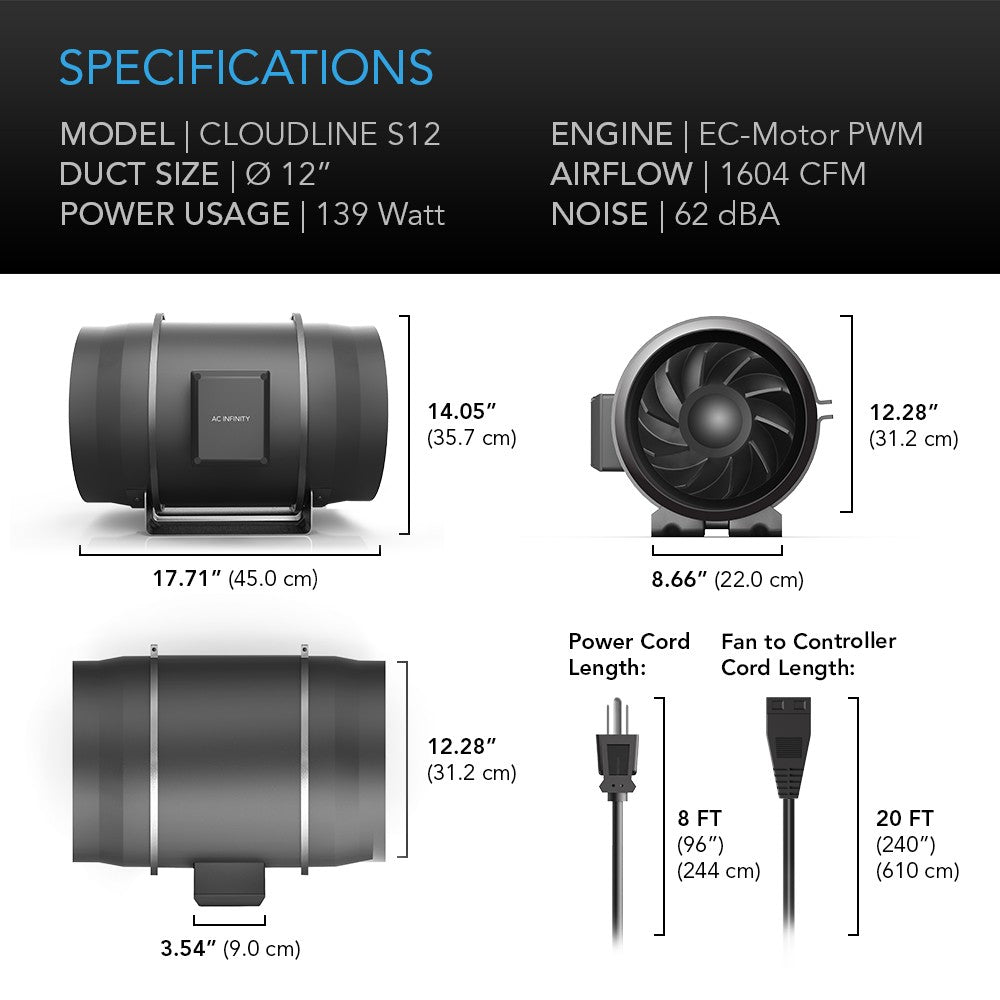

Specifications
Specifications
-
Number of Speeds8
-
Sound Level (Sones) (sones)2.5
-
TypeClassic Inline Duct Booster Fan
-
ApplicationDucting
-
California Residents⚠ WARNING: This product may contain chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. See: www.P65Warnings.ca.gov
-
CertificationsCE
-
ColorBlack
-
ControlsElectronic
-
Maximum Air Temperature (degrees F)140
-
Maximum Cubic Feet per Minute (CFM) (CFM)1604.0
-
Amperage (Amps)2.5
-
Power SupplyPlug
-
Voltage (V)110-120
-
Watts (W)250
-
Depth (in.)17.71
-
Depth (with front cover) (in.)17.71
-
Duct Diameter (in.)12.0
-
Height (in.)12.28
-
Height (with front cover) (in.)12.28
-
Weight (lbs.)24.5
-
Width (in.)14.05
-
Width (with front cover) (in.)14.05
-
Additional FeaturesApplicable for Indoor Growing
-
Manufacturer's Warranty2-Year Limited Warranty
Key Specifications
General
Power
Dimensions
Additional Features
Warranty
Recommended Accessories
- KKrisVerified BuyerReviewingAC Infinity CLOUDLINE S12 12-In Inline Duct Fan w/ Speed ControllerI recommend this productRated 5 out of 5 stars4 years agoI would buy this product again.
This is a great product and very quiet. Thank you.
